Slotted sleeve transmission fittings

Parker's Transmission fittings are designed to eliminate notch stress related to over-torque and are ideal for pressure protected pneumatic transmission applications.





Parker's compression style transmission fitting utilizes a specially designed slotted sleeve to help eliminate notch stress related to over torque. Transmission fittings are ideal for pressure protected pneumatic transmission applications. Transmission fittings are also available in a push-to-connect style reducing assembly time. The push-to-connect style has a staked in tube support and is D.O.T. approved. Electroless nickel plated bodies can be used with bio-diesel.

Use with the following Parker Parflex Division J844 tubing
- 1120 Nylon Air Brake Tubing
- 1320 Quantum Elastomeric Air Brake Tubing

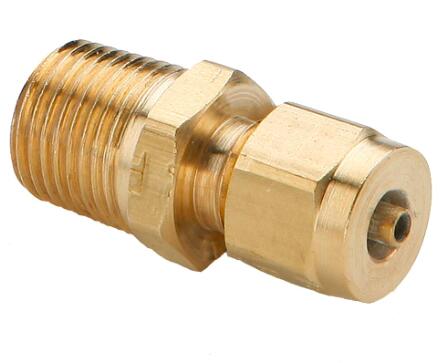

Slotted sleeve transmission fittings




Markets:
- Heavy duty truck

Features/Benefits:
- All brass construction
- D.O.T. approved with staked in tube support
- Compression & Push-to-Connect styles
- Slotted sleeve
- Use with J844 nylon tubing
- Electroless nickel plated bodies can be used with bio-diesel

Applications:
- Air shift transmissions
- Seat controls
- Dash controls

Custom configurations and sizes are available upon request. Contact us for additional information.



Technical Specifications

Connection Type: Thread, Compression
Shape: 90° Elbow, Connector, Nut, Sleeve and Union
Minimum Operating Temperature: -40 °F, -40 °C
Maximum Operating Temperature: 220 °F, 104 °C
Maximum Operating Pressure: 150 psi, 10 bar
Tube Material: SAE J844 Type A & B Nylon Tubing
Application: Air Shift Transmission, Seat Controls, Dash Controls
Materials of Construction: Brass
Nut Material: Brass
Sleeve Material: Brass
Collet Material: Brass
O-Ring Material: Nitrile
Connection 1 Size: Compression, Push-to-Connect
Connection 2 Tube Outside Diameter: 5/32, 3/16 inch



Slotted sleeve transmission fittings型号

Part Style Shape Connection 1 Tube O.D. (inch) Connection 2 Thread Size (inch) Connection 2 Style
269TF-2-2 Tube to Pipe 90? Elbow 1/8 1/8 Male Pipe
269TF-5/32-2 Tube to Pipe 90? Elbow 5/32 1/8 Male Pipe
60TF-2 Tube Sleeve 1/8 na na
60TF-5/32 Tube Sleeve 5/32 na na
61TF-2 Tube Nut 1/8 na na
61TF-5/32 Tube Nut 5/32 na na
62TF-2 Tube to tube Union 1/8 1/8 Compression
62TF-5/32 Tube to tube Union 5/32 5/32 Compression
68TF-2-1 Tube to Pipe Connector 1/8 1/16 Male Pipe
68TF-2-2 Tube to Pipe Connector 1/8 1/8 Male Pipe
68TF-5/32-1 Tube to Pipe Connector 5/32 1/16 Male Pipe
68TF-5/32-2 Tube to Pipe Connector 5/32 1/8 Male Pipe
