Triple-Lok 2 软密封 37° 扩口 JIC 管接头和适配器
Parker Fittings接头 Parker Adapters

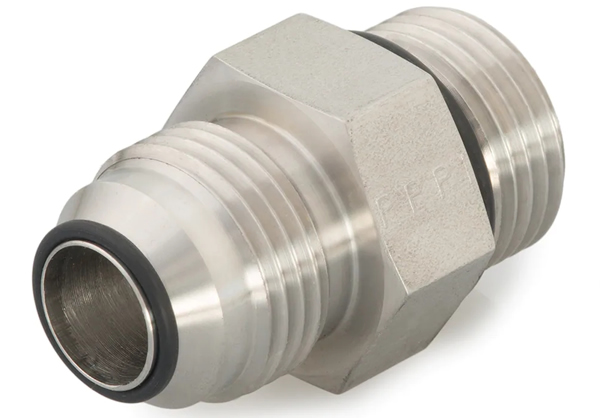

Triple-Lok 2 Soft Seal 37° Flare JIC Tube Fittings and Adapters

派克的Triple-Lok 2软密封37°喇叭形JIC管接头和适配器提供了鼻子弹性密封的独特和附加的优势，在金属对金属密封应用中创造了卓越的密封性能。派克的软密封37°喇叭口JIC管接头和适配器Triple-Lok 2提供了流行的金属对金属密封的多功能性，并在37°喇叭口的鼻部增加了弹性密封。这种设计在金属对金属密封应用中提供了卓越的密封性能，其工作压力比标准不锈钢金属对金属37°扩口JIC管接头和适配器高20％。

Parker's Triple-Lok 2 soft seal 37° flare JIC tube fittings and adapters offer the unique and added benefit of an elastomeric seal in the nose, creating superior sealing performance in metal to metal seal applications. Parker's soft seal 37° flare JIC tube fittings and adapters, Triple-Lok 2, offer the versatility of the popular metal to metal seal with the added advantage of an elastomeric seal in the nose of the 37° flare. This design creates superior sealing performance in metal-to-metal seal applications with working pressures up to 20% more than standard stainless steel metal to metal 37° flare JIC tube fittings and adapters.

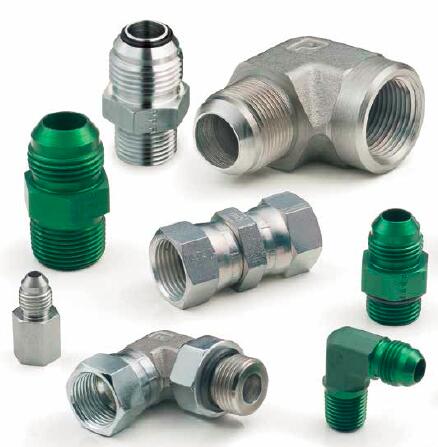

Triple-Lok 2 Soft Seal 37° Flare JIC Tube Fittings and Adapters
Parker's Triple-Lok 2 soft seal 37° flare JIC tube fittings and adapters



市场：

- 石油和天然气
- 无人潜水艇
- 航海
- 发电
- 纸浆和造纸
- 半导体

特性/优点：

- 专门设计的凹槽设计可防止机头塌陷。
- 易于适应英制管，公制管和软管，使其享誉全球。
- 可与标准的37°喇叭形接头互换，并具有可更换的标准O形圈密封。
- 超出SAE J514的所有性能要求。
- 大量的端口端选项，包括SAE直螺纹O型圈凸台（ORB），NPTF，BSPP-ED，BSPP-O型圈固定环（ORR），BSPP，BSPT，ISO 6149，公制O型圈固定铃声（ORR）和Metric-ED。
- 派克可调节端口上的坚固端口螺柱采用更长的防松螺母制成，几乎消除了垫圈的损坏和潜在的泄漏，并且使装配能够防错。
- 提供?“至2”尺寸的不锈钢，工作压力高达9000 psi。

应用：

- 液压和气体处理连接



Markets:
- Oil and Gas
- Unmanned Submarines
- Marine
- Power Generation
- Pulp and Paper
- Semiconductor

Features/Benefits:
- Specifically engineered groove design that prevents nose collapse.
- Easily adaptable to inch tube, metric tube and hose giving it worldwide acceptance.
- Interchangeable with standard 37° flared fittings and features a replaceable standard O-ring seal.
- Exceeds all performance requirements of SAE J514.
- Vast selection of port end options, including SAE Straight Thread O-ring Boss (ORB), NPTF, BSPP-ED, BSPP-O-ring Retaining Ring (ORR), BSPP, BSPT, ISO 6149, Metric-O-ring Retaining Ring (ORR), and Metric-ED.
- Parker's Robust Port Stud on adjustable ports is manufactured with a longer locknut virtually eliminating washer damage and potential leaks, as well as making assembly mistake-proof.
- Available in stainless steel in sizes ?“through 2” with working pressures up to 9000 psi.

Applications:
- Hydraulic fluid and gas handling connections

Technical Specifications

Maximum Operating Pressure: 62 (Dynamic Pressure) MPa, 621 (Dynamic Pressure) bar, 9000 (Dynamic Pressure) psi
Shape: 90°, Staight, and Tee
Connection Type: Flare
Materials of Construction: Stainless Steel
Application: Various
Connection 3 Size: Male 37° Flare with O-ring Seal on Nose
Connection 3 Tube Outside Diameter: 1/2, 3/8 and 1 inch
O-Ring Material: 90 Durometer Nitrile
Specifications Met: SAE J514





Triple-Lok 2 Soft Seal 37° Flare JIC Tube Fittings and Adapters
订货 型号

Part Shape Connection 1 Style Connection 1 Tube O.D. (inch) Connection 2 Style Connection 2 Tube O.D. (inch) Connection 2 Thread Size (inch)
10 F5OXO-SS Straight Male 37° Flare with O-ring Seal on Nose 5/8 Male SAE-ORB na 7/8-14
10 GTXO-SS Straight Male 37° Flare with O-ring Seal on Nose 5/8 Female NPT/NPTF na 1/2-14
10 HTXO-SS Straight Male 37° Flare with O-ring Seal on Nose 5/8 Male 37° Flare with O-ring Seal on Nose 5/8 na
12 C5OXO-SS 90° Elbow Male 37° Flare with O-ring Seal on Nose 3/4 Male SAE-ORB na 7/8-14
12 C6XO-SS 90° Elbow Male 37° Flare with O-ring Seal on Nose 3/4 Female 37° Flare Swivel 3/4 na
12 CTXO-SS 90° Elbow Male 37° Flare with O-ring Seal on Nose 3/4 Male NPT/NPTF na 3/4-14
12 F5OXO-SS Straight Male 37° Flare with O-ring Seal on Nose 3/4 Male SAE-ORB na 1 1/16-12
12 FTXO-SS Straight Male 37° Flare with O-ring Seal on Nose 3/4 Male NPT/NPTF na 3/4-14
12 HTXO-SS Straight Male 37° Flare with O-ring Seal on Nose 3/4 Male 37° Flare with O-ring Seal on Nose 3/4 na
16 CTXO-SS 90° Elbow Male 37° Flare with O-ring Seal on Nose 1 Male NPT/NPTF na 1-11 1/2
16 FTXO-SS Straight Male 37° Flare with O-ring Seal on Nose 1 Male NPT/NPTF na 1-11 1/2
16 GTXO-SS Straight Male 37° Flare with O-ring Seal on Nose 1 Female NPT/NPTF na 1-11 1/2
16 HTXO-SS Straight Male 37° Flare with O-ring Seal on Nose 1 Male 37° Flare with O-ring Seal on Nose 1 na
16 JTXO-SS Tee Male 37° Flare with O-ring Seal on Nose 1 Male 37° Flare with O-ring Seal on Nose 1 na
20 FTXO-SS Straight Male 37° Flare with O-ring Seal on Nose 1 1/4 Male NPT/NPTF na 1 1/4-11 1/2
20 HTXO-SS Straight Male 37° Flare with O-ring Seal on Nose 1 1/4 Male 37° Flare with O-ring Seal on Nose 1 1/4 na
24 F5OXO-SS Straight Male 37° Flare with O-ring Seal on Nose 1 1/2 Male SAE-ORB na 1 7/8-12
24 FTXO-SS Straight Male 37° Flare with O-ring Seal on Nose 1 1/2 Male NPT/NPTF na 1 1/2-11 1/2
24 HTXO-SS Straight Male 37° Flare with O-ring Seal on Nose 1 1/2 Male 37° Flare with O-ring Seal on Nose 1 1/2 na
4 C5OXO-SS 90° Elbow Male 37° Flare with O-ring Seal on Nose 1/4 Male SAE-ORB na 7/16-20
4 C6XO-SS 90° Elbow Male 37° Flare with O-ring Seal on Nose 1/4 Female 37° Flare Swivel 1/4 na
4 CTXO-SS 90° Elbow Male 37° Flare with O-ring Seal on Nose 1/4 Male NPT/NPTF na 1/8-27
4 F5OXO-SS Straight Male 37° Flare with O-ring Seal on Nose 1/4 Male SAE-ORB na 7/16-20
4 FTXO-SS Straight Male 37° Flare with O-ring Seal on Nose 1/4 Male NPT/NPTF na 1/8-27
4 HTXO-SS Straight Male 37° Flare with O-ring Seal on Nose 1/4 Male 37° Flare with O-ring Seal on Nose 1/4 na
4-4 FTXO-SS Straight Male 37° Flare with O-ring Seal on Nose 1/4 Male NPT/NPTF na 1/4-18
4-6 F5OXO-SS Straight Male 37° Flare with O-ring Seal on Nose 1/4 Male SAE-ORB na 9/16-18
6 C6XO-SS 90° Elbow Male 37° Flare with O-ring Seal on Nose 3/8 Female 37° Flare Swivel 3/8 na
6 F5OXO-SS Straight Male 37° Flare with O-ring Seal on Nose 3/8 Male SAE-ORB na 9/16-18
6 FTXO-SS Straight Male 37° Flare with O-ring Seal on Nose 3/8 Male NPT/NPTF na 1/4-18
6 GTXO-SS Straight Male 37° Flare with O-ring Seal on Nose 3/8 Female NPT/NPTF na 1/4-18
6 HTXO-SS Straight Male 37° Flare with O-ring Seal on Nose 3/8 Male 37° Flare with O-ring Seal on Nose 3/8 na
6 JTXO-SS Tee Male 37° Flare with O-ring Seal on Nose 3/8 Male 37° Flare with O-ring Seal on Nose 3/8 na
6-4 F5OXO-SS Straight Male 37° Flare with O-ring Seal on Nose 3/8 Male SAE-ORB na 7/16-20
6-6 CTXO-SS 90° Elbow Male 37° Flare with O-ring Seal on Nose 3/8 Male NPT/NPTF na 3/8-18
6-6 FTXO-SS Straight Male 37° Flare with O-ring Seal on Nose 3/8 Male NPT/NPTF na 3/8-18
6-8 F5OXO-SS Straight Male 37° Flare with O-ring Seal on Nose 3/8 Male SAE-ORB na 3/4-16
8 C5OXO-SS 90° Elbow Male 37° Flare with O-ring Seal on Nose 1/2 Male SAE-ORB na 3/4-16
8 C6XO-SS 90° Elbow Male 37° Flare with O-ring Seal on Nose 1/2 Female 37° Flare Swivel 1/2 na
8 F5OXO-SS Straight Male 37° Flare with O-ring Seal on Nose 1/2 Male SAE-ORB na 3/4-16
8 FTXO-SS Straight Male 37° Flare with O-ring Seal on Nose 1/2 Male NPT/NPTF na 3/8-18
8 HTXO-SS Straight Male 37° Flare with O-ring Seal on Nose 1/2 Male 37° Flare with O-ring Seal on Nose 1/2 na
8 JTXO-SS Tee Male 37° Flare with O-ring Seal on Nose 1/2 Male 37° Flare with O-ring Seal on Nose 1/2 na
8 RTXO-SS Tee Male 37° Flare with O-ring Seal on Nose 1/2 Male NPT/NPTF na 3/8-18
8-8 CTXO-SS 90° Elbow Male 37° Flare with O-ring Seal on Nose 1/2 Male NPT/NPTF na 1/2-14
8-8 FTXO-SS Straight Male 37° Flare with O-ring Seal on Nose 1/2 Male NPT/NPTF na 1/2-14
