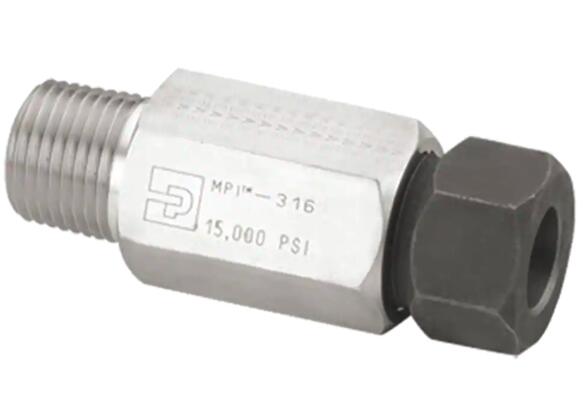

Parker 派克 MPI Series Inverted Two ferrule Compression Tube Fitting
派克 Parker MPI双卡套接头 仪表接头 Parker Fittings接头 Compression Fittings
Tube Fitting, Inverted Two ferrule Compression - MPI Series

派克MPI接头是反置双卡套接头. 它们的设计和制造为整个行业提供了安全、牢固、防泄漏的连接，包括海上石油和天然气开发平台、研究实验室和其他工作压力范围在6,000 到 15,000 psi 的设施.MPI接头非常适合处理流体、气体或化学品，可用于多种管材，包括冷拔–1/8 硬（退火）不锈钢管 , 退火2507 无缝钢管或仪表级薄壁退火不锈钢。每只 MPI? 接头是可装配的整体套件.Parker's MPI Series is an inverted two ferrule design engineered and manufactured to provide secure, tight, and leak resistant connections for small bore instrumentation applications up to 15,000 PSI. Parker MPI Fittings are an inverted two ferrule, compression design. They are engineered and manufactured to provide secure, tight, and leak-resistant connections throughout industry, including off-shore oil and gas exploration platforms, research labs, and other facilities that require operating pressures in the range of 6,000 to 15,000 psi. MPI Fittings are ideally suited to handle liquids, gases, or chemicals and can be used on a wide variety of tubing materials including cold drawn – 1/8 hard (unannealed) stainless steel tubing, annealed 2507 seamless tubing or instrument grade thick-walled annealed stainless steel. Every Parker MPI? Fitting is supplied complete and ready to install.

Parker 派克 MPI Series Inverted Two ferrule Compression Tube Fitting
Tube Fitting, Inverted Two ferrule Compression - MPI Series

市场:
- 海上
- 石油和天然气
- 化工
- 石化
- 电力
- 科研院所

特点/优势:
- 经过耐腐蚀派克Suparcase处理的前卡套，在管子、接头体和卡套之间形成密封.它还在管上提供了一个机械保持.
- 经过耐腐蚀派克Suparcase 处理的后卡套在管上提供了强机械保持.
- 更长螺纹区域，改进的抗压力和负荷的卡套.
- 二硫化钼涂层反螺母，有助于减少磨损, 提供容易的装配，允许重复使用.
- 长的管支撑区域，提高抗震性和管路负荷.

应用:
- 海上工艺盘
- 化学注射
- 井口控制盘
- 高压罐

Markets:
- Offshore
- Oil and Gas
- Chemical
- Petrochemical
- Power
- Research

Features/Benefits:
- Front ferrule with corrosion-resistant Parker Suparcase? forms a seal between the tube, body and ferrule. It also provides a mechanical hold on the tube.
- Back ferrule with corrosion-resistant Parker Suparcase? provides a strong mechanical hold on the tube.
- Longer thread area for improved resistance to pressure and load on the ferrules.
- Molybdenum disulfide-coated inverted nut helps prevent galling, provides easier assembly, and permits multiple remakes.
- Long tube-support area improves resistance to vibration and line loads.

Applications:
- Offshore Process Panels
- Chemical Injection
- Well Head Control Panels
- High Pressure Tanks

Technical Specifications

技术规格：

Tube Fitting, Inverted Two ferrule Compression - MPI Series型号

MPI 双卡套接头(Catalog4234)

石油天然气市场的创新产品—MPI 接头－压力等级：6000-15000psi
MPI接头最初是为海上平台井口控制盘研发设计，这些油井的钻井深度在10000英尺以下，适合于振动环境。
采用独特的嵌入式外螺纹螺母设计，有效加强对厚壁仪表管的抓紧力
加长螺纹提供更好的承载性能和抗振能力
螺母经二硫化钼涂层处理，防止螺纹咬死，适用于高温工况
节省50%安装和重装的时间
Suparcase抗腐前卡套形成理想的第二连接和密封;
Suparcase抗腐后卡套形成钢管牢固的主连接;
加长螺纹提高了卡套的耐压和负载能力;
二硫化钼处理的螺母避免了不锈钢的咬合，可重复装配.
加长钢管支撑,提高了抗震性能和负载能力.
