UHP焊接配件 Parker Fittings接头 Tube Fittings

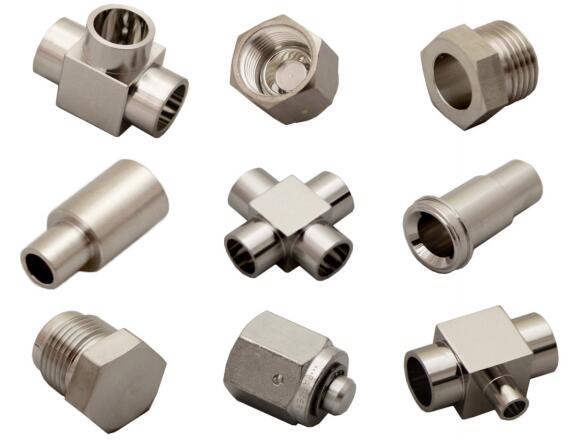

Parker 316L Stainless Steel Weld Fittings UHP Weld Fitttings

派克Veriflo的SEMI F20材料级UHP焊接配件系列提供了经济高效的解决方案，并保证了派克的质量，可靠性和性能。 派克焊接配件专为需要超高纯度应用的应用而设计，并提供紧凑的设计以用于轨道焊接设备。标准的精加工焊接配件的内表面平均粗糙度为10 μin。（0.25μm）Ra，而PE精加工的配件的平均内表面粗糙度为5 μin。（0.13μm）Ra。 UHP焊接配件产品线使Parker能够以有竞争力的价格在fab应用中竞争，并补充了Parker当前的VacuSeal和Mini buttweld生产线，后者的坚固设计最适合半导体工具的关键应用。

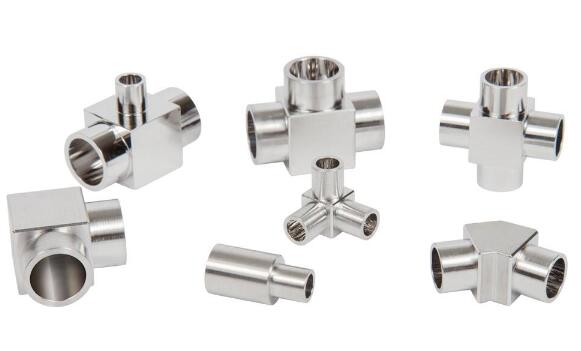

Parker Veriflo's line of SEMI F20 material grade UHP weld fittings

UHP Weld Fitttings

Parker 316L Stainless Steel Weld Fittings are made for use in ultra high purity semiconductor applications. Optimized for orbital welding systems, they meet SEMI F20 requirements for cleanliness and corrosion resistance. Parker Veriflo's line of SEMI F20 material grade UHP weld fittings provide cost effective solutions and guarantee Parker's quality, reliability and performance. Parker Weld fittings are designed for applications where ultra high purity applications are required and provide compact designs for use with orbital weld equipment. Standard finish weld fittings have an internal surface roughness average of 10 μin. (0.25μm) Ra while PE finished fittings have an internal surface roughness average of 5 μin. (0.13μm) Ra. The UHP Weld Fittings line allows Parker to compete in fab applications at a competitive price point and complements Parker's current VacuSeal and Mini buttweld lines, whose robust design works best for critical applications at the semiconductor tool.

市场：
- 半导体制造

特性/优点：
- 紧凑的设计可实现系统的小型化和紧密的耦合间距
- 通过在每个接液部件上永久标记的热代码，可追溯材料
- 永久性的产品名称在适用时可识别制造商，材料和内部表面
- 锋利的方形管端可改善对准和焊接重复性
- 光滑，圆角的接合处可促进更好的流动过渡，减少湍流并减少可能的夹带部位
- 受控的润湿表面通过防止脱气和抑制腐蚀满足严格的超高纯系统要求

应用：
- 工具连接
- 阀歧管盒子
- 煤气柜

Market:
- Semiconductor Fabrication

Features/Benefits:
- Compact Design allows for system miniaturization and close coupled spacing
- Material traceability via permanently marked heat codes on each wetted component
- Permanent product designation identifies manufacturer, material and internal finish when applicable
- Sharp and square tube ends improves alignment and weld repeatability
- Smooth, radiused junctions promote better flow transition, reduces turbulent flow, and reduces possible entrapment sites
- Controlled wetted surfaces meet stringent ultra high purity system requirements by preventing outgassing and inhibiting corrosion

Applications:
- Tool Hook-Up
- Valve Manifold Boxes
- Gas Cabinets

Technical Specifications

UHP Weld Fitttings 型号
