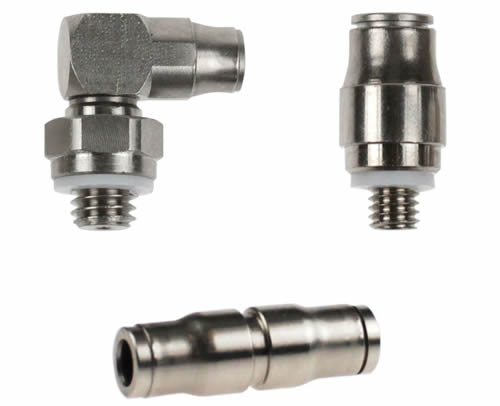

微型气动回路是非常精确和敏感的系统，具有特殊的运行特点。因此，为了达到机械稳定性和紧凑性的要求，派克乐可利开发了符合人体工程学的微型铜镀镍快插式接头系列。微型气动回路是非常精确和敏感的系统，具有特殊的运行特点。因此，为了达到机械稳定性和紧凑性的要求，派克乐可利开发了符合人体工程学的微型铜镀镍快插式接头系列。Miniature pneumatic installations are very precise and sensitive systems, having specific operating characteristics. Consequently, Parker Legris has developed this ergonomic range of brass push-in fittings for its mechanical robustness and compactness. The LF3200 fitting, connected with a 3 mm polyurethane or antistatic polyurethane tube, is the perfect solution for compact installations:
- which are highly stressed
- whose reliability is critical
Parker Legris LF3200 Push-In Fittings (3 mm)
LF3200 Pneumatic Miniature Push-In Fittings Datasheet
特点/优点：
- 结构紧凑
- 比市场上其他品牌同类接头体积小25%，可满足执行元件的尺寸要求
- 重量满足高的效率
- 减少能耗并降低执行元件的负载
- 坚固耐用，性能稳定
- 所有铜质部件具有优秀的抗碰撞性能
- 带卡爪的夹爪系统提高了连接的稳定性和使用寿命
- 优秀的耐高压性能
- 性能可靠
- 100%防泄露检测
- 质量保证和可追溯性的生产批次代码
- 高敏感应用场合的选择
- 具有耐腐蚀性能
市场：
- 工厂自动化
- 车辆装配设施
- 食品和饮料
- 半导体
- 服装
- 包装机械
应用：
- 气动机械设备
- 低压压缩空气输送
- 适用于真空应用
技术：
- 微型接头
- 快插接头
- 黄铜快插接头
- 推入式连接接头
- 气动接头
- 即时接头
- 快速接头
- 连接接头
技术特点：
- 流体：压缩空气，非腐蚀性液体
- 材料：化学镀镍黄铜，NBR
- 压力：真空至 20 bar
- 温度：-15°C 至 +80°C
- ? 公制：3mm
法规：
- ISO 14743:气动流体动力，用于热塑管的快插接头
- DI:94/9/EC (ATEX )
- DI:2002/95/EC (RoHS), 2011/65/EC
- RG:1907/2006 (REACH)
产品类型：
- 油口接头
- 管对管接头
- 管对管接头附件
Part |
Product Type |
Shape |
Body Material |
Connection 1 Thread Size (metric) |
Connection 1 Thread Style |
Connection 2 Tube O.D. (mm) |
Connection 3 Tube O.D. (mm) |
3202 03 00 |
Tube-to-Tube Fittings and Accessories |
Elbow 90° tube / tube |
NICKEL PLATED BRASS |
na |
na |
3 |
na |
3204 03 00 |
Tube-to-Tube Fittings and Accessories |
Tee tube / tube |
NICKEL PLATED BRASS |
na |
na |
3 |
na |
3206 03 00 |
Tube-to-Tube Fittings and Accessories |
Tube / tube connector |
NICKEL PLATED BRASS |
na |
na |
3 |
na |
3218 03 09 |
Stud Fittings |
Male stud single banjo thread |
NICKEL PLATED BRASS |
M3x0,5 |
Metric |
3 |
na |
3218 03 19 |
Stud Fittings |
Male stud single banjo thread |
NICKEL PLATED BRASS |
M5x0,8 |
Metric |
3 |
na |
3226 03 00 |
Tube-to-Tube Fittings and Accessories |
Blanking plug with tailpiece |
NICKEL PLATED BRASS |
na |
na |
3 |
na |
3229 03 09 |
Stud Fittings |
Male stud extented elbow adjustable 90° thread |
NICKEL PLATED BRASS |
M3x0,5 |
Metric |
3 |
na |
3229 03 19 |
Stud Fittings |
Male stud extented elbow adjustable 90° thread |
NICKEL PLATED BRASS |
M5x0,8 |
Metric |
3 |
na |
3266 03 04 |
Tube-to-Tube Fittings and Accessories |
Reducer with tailpiece |
NICKEL PLATED BRASS |
na |
na |
3 |
4 |
3281 03 09 |
Stud Fittings |
Male stud fitting thread |
NICKEL PLATED BRASS |
M3x0,5 |
Metric |
3 |
na |
3281 03 19 |
Stud Fittings |
Male stud fitting thread |
NICKEL PLATED BRASS |
M5x0,8 |
Metric |
3 |
na |
3293 03 09 |
Stud Fittings |
Male stud run tee adjustable thread |
NICKEL PLATED BRASS |
M3x0,5 |
Metric |
3 |
na |
3293 03 19 |
Stud Fittings |
Male stud run tee adjustable thread |
NICKEL PLATED BRASS |
M5x0,8 |
Metric |
3 |
na |
3298 03 09 |
Stud Fittings |
Male stud branch tee adjustable thread |
NICKEL PLATED BRASS |
M3x0,5 |
Metric |
3 |
na |
3298 03 19 |
Stud Fittings |
Male stud branch tee adjustable thread |
NICKEL PLATED BRASS |
M5x0,8 |
Metric |
3 |
na |
3299 03 09 |
Stud Fittings |
Male stud elbow adjustable 90° thread |
NICKEL PLATED BRASS |
M3x0,5 |
Metric |
3 |
na |
3299 03 19 |
Stud Fittings |
Male stud elbow adjustable 90° thread |
NICKEL PLATED BRASS |
M5x0,8 |
Metric |
3 |
|
