Parker LF3800 / LF 3900 系列用于腐蚀环境303/316L不锈钢快插接头
Parker Legris LF3800 / LF3900 Stainless Steel Push In Fittings
LF 3800 / LF 3900 Stainless Steel Push-In Fittings

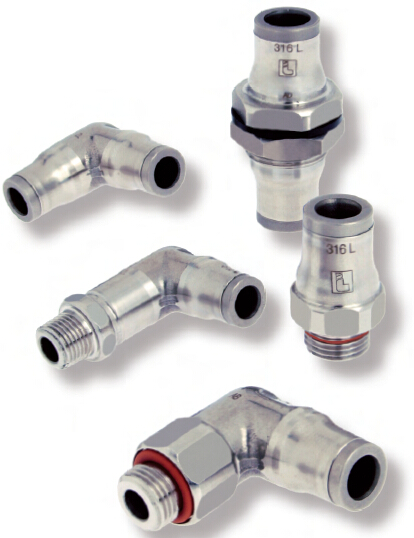

派克乐可利开发了两种系列的不锈钢快插式接头（LF3800和LF3900全不锈钢316L材质系列），可用于传输严苛环境中的腐蚀性流体。这些产品系列提供了两种水平的耐蚀性能，具有符合卫生要求的外形设计。为了满足您的技术和环境要求，派克乐可利设计了该系列的金属快插式接头，在大多数苛刻环境下能够为工业流体提供稳定、可靠和耐用的连接方案。Parker Legris has developed two ranges of stainless steel fittings ( LF3800 or LF3900 in full 316L ) for conveying corrosive fluids in aggressive environments.These ranges provide two complementary levels of corrosion resistance and a hygienic external design.
Parker Legris LF3800 / LF3900 Stainless Steel Push In Fittings
Parker LF3800 / LF 3900 系列用于腐蚀环境 303 / 316L不锈钢快插接头
产品优势：
>对腐蚀性环境抵抗力强
- LF 3800：非常适合传输腐蚀性流体
- LF 3900：接头内部和外部都具有很强的耐腐蚀性能
- 符合卫生要求的外形设计可有效减少杂质残留
- 便于现场清洁
- 可靠的卡爪技术
>广泛的应用
- 非常适合长期接触食品的应用
- 适合频繁消毒的应用场合
- 是含盐环境和室外应用的选择
- 可防止工业清洁剂和洗涤剂的腐蚀
- 可与软管和槽型不锈钢管连接
- 一个接头适合多种应用：优化库存管理
>可靠和安全
- 全金属产品可适用于几乎所有种类的流体
- 全流量，压降小
- 可防止锤击、机械冲击和脉冲效应
- 手动快速连接和拆卸，无需使用任何工具
- 生产中100%防泄漏检测
- 保证质量和可追溯性的日期代码
- IP 51穿板式接头：全面保护，防止食品区和非食品区受污染
产品类型：
- 油口接头
- 带尾管的油口接头
- 埋入式
- 油口弯头
- 加长型油口弯头
- 紧凑型弯头
- 支管油口三通
- 直管油口三通
- 管对管接头
- 管对管弯通连接件
- 等径弯头
- 等径三通
- 隔板连接接头
- 等径隔板连接接头
- 隔板接头
- 等径隔板弯头
- 减径插杆接头
- 插杆过渡接头
- 插杆膨胀接头
- 插杆宝塔连接接头
- 插杆连接件
- 堵头
- 断开工具
应用：
- 食品加工
- 造纸行业
- 石化
- 制药
- 化学品
- 医疗
技术特点：
- 流体：与接头以及管材兼容的所有流体
- 材质：不锈钢316L，不锈钢303，FKM
- 压力：真空至30bar
- 温度：-20°C至+ 150°C
- ? 公制：4-12 mm
- ? 英制：3/16英寸至1/2英寸
法规：
- ISO 14743 气动传输，用于热塑性管道推入式管接头
- DI:97/23/EC (PED)
- DI :2002/95/EC (RoHS), 2011/65/EC
- DI:94/9/EC (ATEX)
- RG :1907/2006 (REACH)
- UL94 V-0:密封
- RG:21CFR (FDA)
- RG:1935/2004/EC
- USDA NSF H1:油脂
技术：
- 316L不锈钢接头
- 303不锈钢接头
- 卫生接头
- 隔板接头
- 快插接头
- 推入式连接接头
- 气动接头
- 即时接头
- 快速接头
- 连接接头
- 旋转接头
性能特点
主体材料 316L不锈钢
螺母材料 na，316L不锈钢
O 型圈材料 FKM, na
压力 (BARG) 30, 20
工作温度(°C) -20
工作温度 (C) 120
箱数 2
重量 (KG) 0.01, 0.017, 0.009, 0.005, 0.014, 0.027, 0.025, 0.035, 0.03, 0.034, 0.015, 0.024, 0.031, 0.05, 0.072, 0.02, 0.038, 0.049, 0.055, 0.07, 0.083, 0.041, 0.063, 0.087, 0.046, 0.008, 0.016, 0.012, 0.018, 0.029, 0.019, 0.033, 0.04, 0.043, 0.082, 0.068, 0.021, 0.
应用 食品工业，造纸工业，石化，制药，化工，医疗
媒介 与接头以及管材兼容的所有流体
证书 ISO 14743 气动传输，用于热塑性管道推入式管接头，DI: 97/23/EC (PED), DI : 2002/95/EC (RoHS), 2011/65/EC, DI: 94/9/EC (ATEX), RG : 1907/2006 (REACH), UL94 V-0: Seal, RG: 21CFR (FDA), RG: 1935/2004/EC, USDA NSF H1: 油脂
