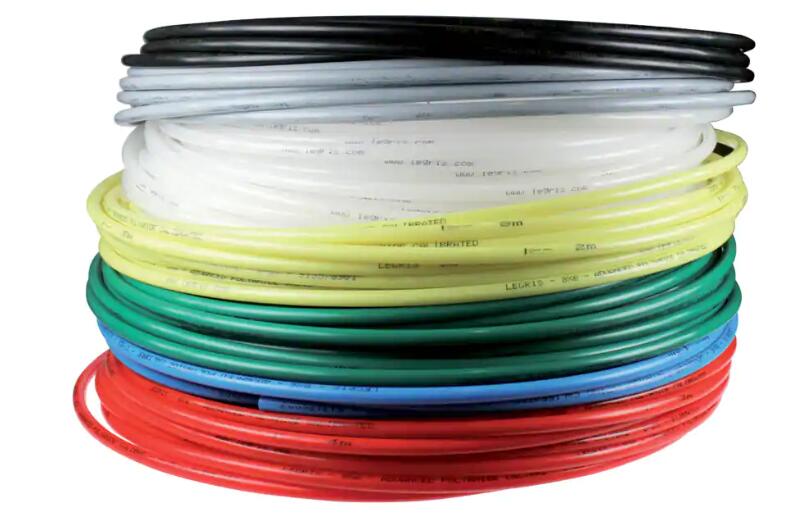

Parker Legris Polyamide PA Flexible Tubing
聚醯胺树脂;尼龙;聚酰胺软管 - 聚酰胺PA挠性管
经过久经考验的工业或车辆应用，PA管材具有稳定的长期机械性能，可确保出色的耐用性。根据我们的生态设计方法制造的特殊等级的半刚性聚酰胺。Parker Legris的特殊等级的半刚性聚酰胺是根据我们的Eco-Design方法制造的，具有更高的性能。聚酰胺PA挠性管应用：包装，工具，压缩空气，运动技术，机器人技术，工业机械。聚酰胺PA挠性管适用介质：半刚性PA：压缩空气，其他流体/刚性PA：压缩空气，润滑剂，其他流体。聚酰胺PA挠性管符合规格：工业：DI：2002/95 / EC（RoHS），2011/65 / EC；DI：97/23 / EC（PED）；RG：1907/2006（REACH）/运输：根据DIN 74324 -1 / DIN 73378 / ISO 7774测试的化学性能和电阻。Tried-and-tested for industrial or vehicle applications, PA tubing guarantees excellent durability due to its stable long-term mechanical properties.
Special grade of semi-rigid polyamide manufactured according to our Eco-Design approach. Tried-and-tested for industrial or vehicle applications, PA tubing guarantees excellent durability due to its stable long-term mechanical properties.
Parker Legris' special grade of semi-rigid polyamide is manufactured according to our Eco-Design approach for higher performance.
特点/优点：
-经过试验和测试的材料
- 良好的耐化学性和耐湿性
- 出色的材料稳定性（机械和化学性）
- 生产过程中连续校准以提供出色的可靠性
- 两种材料等级：刚性和半刚性
- 生物基半固态刚性材料
-多功能性和性能
- 宽的工作压力和温度范围
- 良好的吸振性
- 耐磨性
- 剩余长度标记
- 多种颜色可供选择，以方便识别电路
- 无硅
市场：
- 工厂自动化
- 杂项制造
- 包装
- 机床
应用：
- 标准气动机械设备
- 低压压缩空气输送
- 适用于真空应用
- 应用受到机械应力（刚性PA）
技术的影响：
- PA管
- 聚酰胺管
- 挠性管
- 挠性管
- 半刚性管
- 工业管
技术特性：
流体：
- 半刚性PA：压缩空气，其他流体
- 硬质PA：压缩空气，润滑剂和其他流体
材料：
- 半硬质PA：生物基聚酰胺（68邵氏D）
- 硬质PA：聚酰胺（65邵氏D）
压力：
- 半硬质PA：真空至50 bar
- 刚性PA：真空至60 bar
温度：
- 半刚性PA：-40°C至+ 100°C
- 刚性PA：-40°C至+ 80°C
规定：
工业
- DI：2002/95 / EC（ RoHS），2011/65 / EC
- DI：97/23 / EC（PED）
- RG：1907/2006（REACH）
运输
- 根据
DIN 74324 -1 / DIN 73378 / ISO 7628测试的化学性能和耐性
产品类型：
- 半刚性PA管
- 刚性PA管
技术指标
管内径（mm）： 2 5
管材： PA-65分D
长度（米）： 25
管外径（mm）： 4
颜色： 黑色
重量（每计量单位）： 0.00336公斤/米
最大工作压力： 58巴
最低工作温度： -40°摄氏度
最高工作温度： 80°摄氏度
真空压力等级： 755毫米汞柱
重量： 0.192公斤/包装
弯曲半径： 35毫米
管数： 1个
应用： 包装，工具，压缩空气，运动技术，机器人技术，工业机械
媒体： 半刚性PA：压缩空气，其他流体/刚性PA：压缩空气，润滑剂，其他流体
符合规格： 工业：DI：2002/95 / EC（RoHS），2011/65 / EC；DI：97/23 / EC（PED）；RG：1907/2006（REACH）/运输：根据DIN 74324 -1 / DIN 73378 / ISO 7774测试的化学性能和电阻
| Color: |
Clear, Black, Green, Red, Blue, Yellow, Gray |
| Specifications Met: |
Industrial [DI: 2002/95/EC (RoHS), 2011/65/EC, DI: 97/23/EC (PED), RG: 1907/2006 (REACH)], Transportation [Chemical performance and resistance tested according to DIN 74324 -1 / DIN 73378 / ISO 7628] |
| Maximum Operating Pressure: |
50 to 58 bar |
| Maximum Operating Temperature: |
176 to 212 °F, 80 to 100 °C |
| Minimum Operating Temperature: |
-40 °C, -40 °F |
| Tube Inside Diameter: |
1,8 to 13 mm |
| Tube Outside Diameter: |
3 to 16 mm |
| Tube Material: |
Bio-based polymaide (68 shore D), Polyamide (65 shore D) |
| Vacuum Pressure Rating: |
755 mm-Hg |
| Weight: |
0,200 to 2,26 kg/package |
|
| Bend Radius: |
6 to 116 mm |
| Number of Tubes: |
1 |
| Application: |
Packaging, Tooling, Compressed Air, Motion Technologies, Robotics, Industrial Machinery |
| Media: |
Semi-Rigid PA: Compressed air, other fluids /Rigid PA: Compressed air,lubricants, other fluids |
Features/Benefits:
- Tried-&-Tested Material
- Good chemical and humidity resistance
- Excellent material stability (mechanical and chemical)
- Continuous calibration during production for excellent reliability
- Two material grades: rigid and semi-rigid
- Bio-based semi-rigid material
- Versatility & Performance
- Wide range of working pressure and temperature
- Good vibration absorption
- Abrasion-resistant
- Remaining length marking
- Large choice of colours to facilitate circuit identification
- Silicone-free
Markets:
- Factory Automation
- Miscellaneous Manufacturing
- Packaging
- Machine Tools
Applications:
- Standard Pneumatic Machinery Equipment
- Low Pressure Compressed Air Conveying
- Suitable for Vacuum Applications
- Applications Subjected to Mechanical Stress (Rigid PA)
Technologies:
- PA Tubing
- Polyamide Tubing
- Flexible Tubing
- Flexible Tube
- Semi Rigid Tubing
- Industrial Tubing
Technical Characteristics:
Fluids:
- Semi-Rigid PA: Compressed air, other fluids
- Rigid PA: Compressed air, lubricants, other fluids
Materials:
- Semi-Rigid PA: Bio-based polyamide (68 shore D)
- Rigid PA: Polyamide (65 shore D)
Pressure:
- Semi-Rigid PA: Vacuum to 50 bar
- Rigid PA: Vacuum to 60 bar
Temperature:
- Semi-Rigid PA: -40°C to +100°C
- Rigid PA: -40°C to +80°C
Regulations:
Industrial
- DI: 2002/95/EC (RoHS), 2011/65/EC
- DI: 97/23/EC (PED)
- RG: 1907/2006 (REACH)
Transportation
- Chemical performance and resistance tested according to
DIN 74324 -1 / DIN 73378 / ISO 7628
Product Types:
- Semi-rigid PA Tubing
- Rigid PA Tubing
Literature and Reference Materials
Parker Legris SuccessStory Industrial Air&Gas Compressors EN 112017
Technical tubing and hose brochure
Chemical Compatibility Chart
LPCE Poster : Parker Legris / Rectus Core Product Ranges - WC/0204
PA Tubing Datasheet
Packaging For Technical Tubing And Hose
Principle and Advantages of Our Coupling Systems
Technical Tubing And Hose
Tubing Part Number Identification
Distributor Support
LPCE Poster : Parker Legris / Rectus Core Product Ranges - WC/0204
Contact & Support Information
Contact & Support
Selector Guides
Chemical Compatibility Chart
Compliance, Certifications, & Safety
Certificate of conformity - 2014 68 EU_connectic
Certificate of conformity - Mineral Conflict Statement_connectic
Certificate of conformity - REACH_Statement
Certificate of conformity - RoHS 3_connectic
- Polyamide (PA) Flexible Tubing
Part |
Tubing Material |
Tube O.D. (mm) |
Tube I.D. (mm) |
Color |
Length (m) |
1025L04 01 25 |
PA - 65 SHORE D |
4 |
2,5 |
BLACK |
25 |
1025L06 01 |
PA - 65 SHORE D |
6 |
4 |
BLACK |
25 |
1025L08 01 |
PA - 65 SHORE D |
8 |
6 |
BLACK |
25 |
1025L08 01 05 |
PA - 65 SHORE D |
8 |
5 |
BLACK |
25 |
1025L10 01 06 |
PA - 65 SHORE D |
10 |
6 |
BLACK |
25 |
1025P03 00 18 |
PA |
3 |
1,8 |
NATURAL |
25 |
1025P03 04 18 |
PA |
3 |
1,8 |
BLUE |
25 |
1025P04 00 |
PA |
4 |
2 |
NATURAL |
25 |
1025P04 00 27 |
PA |
4 |
2,7 |
NATURAL |
25 |
1025P04 01 |
PA |
4 |
2 |
BLACK |
25 |
1025P04 01 27 |
PA |
4 |
2,7 |
BLACK |
25 |
1025P04 02 |
PA |
4 |
2 |
GREEN |
25 |
1025P04 02 27 |
PA |
4 |
2,7 |
GREEN |
25 |
1025P04 03 |
PA |
4 |
2 |
RED |
25 |
1025P04 03 27 |
PA |
4 |
2,7 |
RED |
25 |
1025P04 04 |
PA |
4 |
2 |
BLUE |
25 |
1025P04 04 27 |
PA |
4 |
2,7 |
BLUE |
25 |
1025P04 05 |
PA |
4 |
2 |
YELLOW |
25 |
1025P04 05 27 |
PA |
4 |
2,7 |
YELLOW |
25 |
1025P04 06 27 |
PA |
4 |
2,7 |
GREY |
25 |
1025P05 00 33 |
PA |
5 |
3,3 |
NATURAL |
25 |
1025P05 01 33 |
PA |
5 |
3,3 |
BLACK |
25 |
1025P05 04 33 |
PA |
5 |
3,3 |
BLUE |
25 |
1025P06 00 |
PA |
6 |
4 |
NATURAL |
25 |
1025P06 01 |
PA |
6 |
4 |
BLACK |
25 |
1025P06 02 |
PA |
6 |
4 |
GREEN |
25 |
1025P06 03 |
PA |
6 |
4 |
RED |
25 |
1025P06 04 |
PA |
6 |
4 |
BLUE |
25 |
1025P06 05 |
PA |
6 |
4 |
YELLOW |
25 |
1025P06 06 |
PA |
6 |
4 |
GREY |
25 |
1025P08 00 |
PA |
8 |
6 |
NATURAL |
25 |
1025P08 01 |
PA |
8 |
6 |
BLACK |
25 |
1025P08 02 |
PA |
8 |
6 |
GREEN |
25 |
1025P08 03 |
PA |
8 |
6 |
RED |
25 |
1025P08 04 |
PA |
8 |
6 |
BLUE |
25 |
1025P08 05 |
PA |
8 |
6 |
YELLOW |
25 |
1025P08 06 |
PA |
8 |
6 |
GREY |
25 |
1025P10 00 |
PA |
10 |
8 |
NATURAL |
25 |
1025P10 00 75 |
PA |
10 |
7,5 |
NATURAL |
25 |
1025P10 01 |
PA |
10 |
8 |
BLACK |
25 |
1025P10 01 75 |
PA |
10 |
7,5 |
BLACK |
25 |
1025P10 02 |
PA |
10 |
8 |
GREEN |
25 |
1025P10 03 |
PA |
10 |
8 |
RED |
25 |
1025P10 04 |
PA |
10 |
8 |
BLUE |
25 |
1025P10 04 75 |
PA |
10 |
7,5 |
BLUE |
25 |
1025P10 05 |
PA |
10 |
8 |
YELLOW |
25 |
1025P10 06 |
PA |
10 |
8 |
GREY |
25 |
1025P12 00 |
PA |
12 |
10 |
NATURAL |
25 |
1025P12 00 09 |
PA |
12 |
9 |
NATURAL |
25 |
1025P12 01 |
PA |
12 |
10 |
BLACK |
25 |
Part |
Tubing Material |
Tube O.D. (mm) |
Tube I.D. (mm) |
Color |
Length (m) |
1025P12 01 09 |
PA |
12 |
9 |
BLACK |
25 |
1025P12 04 |
PA |
12 |
10 |
BLUE |
25 |
1025P12 04 09 |
PA |
12 |
9 |
BLUE |
25 |
1025P12 05 |
PA |
12 |
10 |
YELLOW |
25 |
1025P14 00 |
PA |
14 |
12 |
NATURAL |
25 |
1025P14 00 11 |
PA |
14 |
11 |
NATURAL |
25 |
1025P14 01 |
PA |
14 |
12 |
BLACK |
25 |
1025P14 01 11 |
PA |
14 |
11 |
BLACK |
25 |
1025P14 04 |
PA |
14 |
12 |
BLUE |
25 |
1025P14 04 11 |
PA |
14 |
11 |
BLUE |
25 |
1025P16 00 13 |
PA |
16 |
13 |
NATURAL |
25 |
1025P16 01 13 |
PA |
16 |
13 |
BLACK |
25 |
1025P16 02 13 |
PA |
16 |
13 |
GREEN |
25 |
1025P16 03 13 |
PA |
16 |
13 |
RED |
25 |
1025P16 04 13 |
PA |
16 |
13 |
BLUE |
25 |
1100P04 00 |
PA |
4 |
2 |
NATURAL |
100 |
1100P04 00 27 |
PA |
4 |
2,7 |
NATURAL |
100 |
1100P04 01 |
PA |
4 |
2 |
BLACK |
100 |
1100P04 01 27 |
PA |
4 |
2,7 |
BLACK |
100 |
1100P04 02 |
PA |
4 |
2 |
GREEN |
100 |
1100P04 02 27 |
PA |
4 |
2,7 |
GREEN |
100 |
1100P04 03 |
PA |
4 |
2 |
RED |
100 |
1100P04 03 27 |
PA |
4 |
2,7 |
RED |
100 |
1100P04 04 |
PA |
4 |
2 |
BLUE |
100 |
1100P04 04 27 |
PA |
4 |
2,7 |
BLUE |
100 |
1100P04 05 |
PA |
4 |
2 |
YELLOW |
100 |
1100P04 05 27 |
PA |
4 |
2,7 |
YELLOW |
100 |
1100P04 06 |
PA |
4 |
2 |
GREY |
100 |
1100P04 06 27 |
PA |
4 |
2,7 |
GREY |
100 |
1100P05 00 33 |
PA |
5 |
3,3 |
NATURAL |
100 |
1100P05 04 33 |
PA |
5 |
3,3 |
BLUE |
100 |
1100P06 00 |
PA |
6 |
4 |
NATURAL |
100 |
1100P06 01 |
PA |
6 |
4 |
BLACK |
100 |
1100P06 02 |
PA |
6 |
4 |
GREEN |
100 |
1100P06 03 |
PA |
6 |
4 |
RED |
100 |
1100P06 04 |
PA |
6 |
4 |
BLUE |
100 |
1100P06 05 |
PA |
6 |
4 |
YELLOW |
100 |
1100P06 06 |
PA |
6 |
4 |
GREY |
100 |
1100P08 00 |
PA |
8 |
6 |
NATURAL |
100 |
1100P08 01 |
PA |
8 |
6 |
BLACK |
100 |
1100P08 02 |
PA |
8 |
6 |
GREEN |
100 |
1100P08 03 |
PA |
8 |
6 |
RED |
100 |
1100P08 04 |
PA |
8 |
6 |
BLUE |
100 |
1100P08 05 |
PA |
8 |
6 |
YELLOW |
100 |
1100P08 06 |
PA |
8 |
6 |
GREY |
100 |
1100P10 00 |
PA |
10 |
8 |
NATURAL |
100 |
1100P10 00 75 |
PA |
10 |
7,5 |
NATURAL |
100 |
1100P10 01 |
PA |
10 |
8 |
BLACK |
100 |
1100P10 01 75 |
PA |
10 |
7,5 |
BLACK |
100 |
1100P10 02 |
PA |
10 |
8 |
GREEN |
100 |
Parker Hannifin Products
- Aerospace Systems and Technologies
- Air Preparation (FRL) and Dryers
- Cylinders and Actuators
- EMI Shielding
- Filters, Separators and Purifiers
- Fittings and Quick Couplings
- Gas Generators
- Hose, Piping, Tubing and T-Slot Framing
- Medical and Dental Equipment
- Motors, Drives and Controllers
- Power Take Offs and Drive Systems
- Pumps
- Refrigeration and Air Conditioning
- Regulators, Monitors, Sensors and Flow Control
- Seals and O-Rings
- Thermal and Power Management
- Valves
|
fcg.cnmec@parkerdistribution.com.cn
