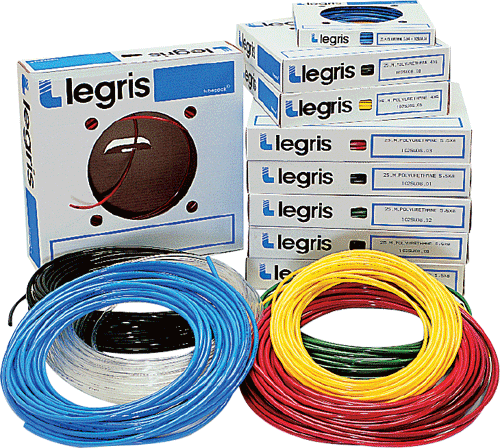

PARKER Legris Polyurethane PU Tubing
聚氨酯聚氨酯管 聚氨酯PU管

聚氨酯的3种特殊材料-乙醚、酯和食品级“晶体”-在广泛的应用中提供了极好的灵活性和卓越的用途，与半刚性PA管相比，可减少高达50%的空间。Polyurethane's 3 specific materials - ether, ester and food-grade "crystal" - offer excellent flexibility and outstanding use in a wide range of applications, allowing for up to 50% space reduction when compared to semi-rigid PA tubing.

聚氨酯的3种特殊材料-乙醚、酯和食品级“晶体”-在广泛的应用中提供了极好的灵活性和卓越的用途，与半刚性PA管相比，可减少高达50%的空间。Polyurethane's 3 specific materials - ether, ester and food-grade "crystal" - offer excellent flexibility and outstanding use in a wide range of applications, allowing for up to 50% space reduction when compared to semi-rigid PA tubing.

聚氨酯的三种特殊材料-醚，酯和食品级“晶体”-具有出色的柔韧性，在广泛的应用中具有出色的用途，与半刚性的PA管相比，可减少多达50％的空间。聚氨酯PU管的应用： 食品加工，机器人技术，布线，气动，自动化，厂内汽车，快速循环。 聚氨酯的三种特殊材料-醚，酯和食品级“晶体”-具有出色的柔韧性和在广泛的应用中的出色用途，与半刚性的PA管相比，可减少多达50％的空间。

特性/优点：

-优异的机械性能

- 一致的拉伸强度可确保最佳的使用寿命
- 最佳的弯曲半径
- 良好的吸振性-
单层管材具有无与伦比的耐磨性
- 耐紫外线
- 表面硬度高，可
承受真空- 剩余长度标记
- 硅树脂-免费

- 3个材料牌号

- PU酯：完美的气动应用
- PU醚：不吸水；对PU酯具有优异的耐化学性
- 食品级“ PU晶体”的PU醚：
识别流体和回路的
化学性能优于PU醚，
从而提高了使用寿命

。

- 食品和饮料
- 其他制造
- 工厂自动化
- 车辆组装设施的

应用：

- 压缩空气和工业流体输送
- 需要快速循环的标准气动应用
- 易受水和高湿（PU醚）影响的
应用- 适用于真空应用

技术：

- PU管
- 聚氨酯管
- 工业管

技术特性：

- 流体：压缩空气，工业流体（取决于材料类型）
- 材料：聚氨酯酯，聚氨酯醚，聚氨酯醚食品级“晶体”
- 压力：真空至12 bar
- 温度：-20°C至+ 70°C

法规：

工业
- DI：2002/95 / EC（RoHS），2011/65 / EC
- DI：97/23 / EC（PED）
- RG：1907/2006（REACH）
食品（PU醚食品-级“水晶”）
- FDA：21 CFR 177.2600，178.3297，176.170，178.2010
- RG：1935/2004 EC

产品类型：

- 聚胺酯管
- 聚氨酯醚油管

Features/Benefits:

- Excellent Mechanical Properties

- Consistent tensile strength for optimum longevity
- Optimal bend radius
- Good vibration absorption
- Unsurpassed abrasion resistance for a single layer tubing
- UV-resistant
- Superior vacuum capability due to surface hardness
- Remaining length marking
- Silicone-free

- 3 Material Grades

- PU ester: perfect for pneumatic applications
- PU ether: no water absorption; superior chemical resistance to PU ester
- PU ether food-grade "crystal":
identification of fluids and circuits
chemical resistance superior to PU ether
improved longevity

Markets:

- Food and Beverage
- Miscellaneous Manufacturing
- Factory Automation
- Vehicle Assembly Facilities

Applications:

- Compressed Air and Industrial Fluids Conveying
- Standard Pneumatic Applications Requiring Rapid Cycles
- Applications Subjected to Water and High Humidity (PU ether)
- Suitable for Vacuum Applications

Technologies:

- PU Tubing
- Polyurethane Tubing
- Industrial Tubing

Technical Characteristics:

- Fluids: Compressed air, industrial fluids (depending on the material type)
- Materials: Polyurethane ester, Polyurethane ether, Polyurethane ether food-grade "crystal"
- Pressure: Vacuum to 12 bar
- Temperature: -20°C to +70°C

Regulations:

Industrial
- DI: 2002/95/EC (RoHS), 2011/65/EC
- DI: 97/23/EC (PED)
- RG: 1907/2006 (REACH)
Food (PU ether food-grade "crystal")
- FDA: 21 CFR 177.2600, 178.3297, 176.170, 178.2010
- RG: 1935/2004 EC

Product Types:

- Polyurethane Ester Tubing
- Polyurethane Ether Tubing
