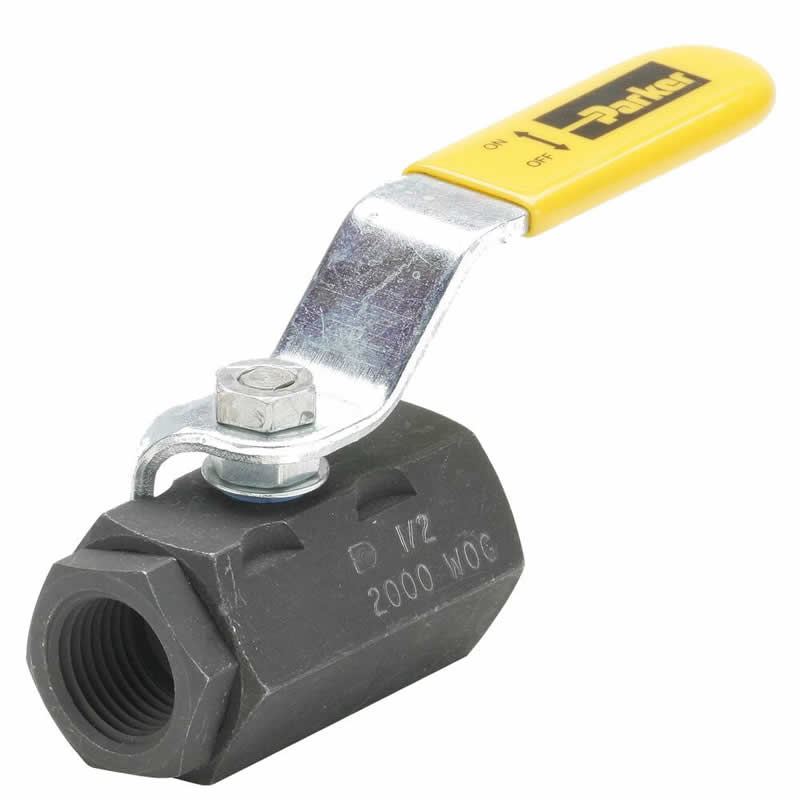

Parker Industrial Ball Valves - Carbon Steel
派克工业碳钢球阀
Parker派克的碳钢球阀旨在为需要坚固耐用和可靠性能的应用提供卓越的性能。派克的工业碳钢球阀系列旨在用于一般用途。这些阀门旨在为需要坚固耐用和可靠性能的应用提供卓越的性能。碳钢球阀适用于全开或全关位置。根据应用条件，阀门的节流可能导致过早的密封失效和/或无法旋转阀门手柄。派克公司的碳钢球阀是为需要坚固可靠性能的应用提供卓越性能而设计的。帕克公司的工业碳钢球阀是为一般用途而设计的。这些阀门的设计为需要坚固可靠性能的应用提供了优越的性能。碳钢球阀用于全开或全关位置。根据应用条件，阀门节流可能导致过早密封失效和/或无法转动阀门手柄。Parker's carbon steel ball valves were designed to offer superior performance for applications that require rugged and reliable performance.Parker's industrial carbon steel ball valve line is intended for general purpose use. These valves were designed to offer superior performance for applications that require rugged and reliable performance. Carbon steel ball valves are intended for use in the fully open or closed positions. Depending on the application conditions, throttling of the valve may result in premature seal failure and/or inability to turn the valve handle.
Parker's carbon steel ball valves are available in the following styles.
- Female Pipe x Female Pipe
- Female Straight Thread x Female Straight Thread
- Panel Mount
- High Pressure 6,000 psi
碳钢球阀的选件包括：
- 三通手柄
- 椭圆形手柄
- 挂锁手柄
市场：
- 重型卡车
- 机动
- 农业
- 建筑
- 工业
功能/优点：
- 碳钢磷酸盐涂层车身
- 钢球
- PTFE阀座/密封件
- 带二硫化钼阀座的Delrin（500HP，506HP系列）
应用：
- 燃料管路关闭用于汽油和柴油设备
- 基本设备上的液压管线
- 需要总关闭能力的工厂设计管道
Options for the carbon steel ball valve include:
- Tee Handle
- Oval Handle
- Padlocking Handle
Markets:
- Heavy Duty Truck
- Mobile
- Agriculture
- Construction
- Industrial
Features/Benefits:
- Carbon Steel Phosphate Coated Body
- Steel Ball
- PTFE Seats/Seals
- Delrin with Molybdenum Disulphide Seats (Series 500HP, 506HP)
Applications:
- Fuel Line Shutoffs for Gasoline and Diesel Equipment
- Hydraulic Lines on Capital Equipment
- Plant Design Plumbing Requiring Total Shutoff Capability
技术规格参数：
Technical Specifications
Minimum Operating Temperature: -20 to -10 °F, -28 to -23 °C
Maximum Operating Temperature: 210 to 425 °F, 99 to 218 °C
Maximum Operating Pressure: 103 to 413 bar
Connection Type: NPT, Straight Thread, SAE J1926-1
Body Material: Carbon Steel
Ball Material: Steel
Seat Material: Delrin Molybdenum Disulphide, PTFE
Related Documents
Literature and Reference Materials
Brass, Composite and Thermoplastic Fittings and Valves - CAT. 3501E
Quick Reference Guide - 3500-QRG
RACE--Ball valves
RACE--PB Bi-Flow CO2 Valves_uk
Compliance, Certifications, & Safety
Certificate of Registration for Albion, IN facility
Certificate of Registration for Lakeview, MI facility
Certificate of Registration for Otsego, MI facility
Conflict Minerals Statement Parker Fluid System Connectors Division
FSC REACH Product Declaration
Management System Certificate for Otsego, MI
RoHS Product Declaration
Brass Composition
Certificate of Insurance
Safe Drinking Water Act
Part |
Maximum Working Pressure (psi) |
Style |
Shape |
Connection 1 Thread Size (inch) |
Connection 1 Thread Style |
Connection 2 Thread Size (inch) |
Connection 2 Thread Style |
Handle |
Locking Mechanism |
V500CS-12 |
2000 |
Female Pipe Ends |
In Line |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
Steel Lever |
Non-Locking |
V500CS-12-04 |
2000 |
Female Pipe Ends |
In Line |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
Steel Tee |
Non-Locking |
V500CS-12-21 |
2000 |
Female Pipe Ends |
In Line |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
Steel Oval |
Non-Locking |
V500CS-16 |
2000 |
Female Pipe Ends |
In Line |
1 |
Female Pipe |
1 |
Female Pipe |
Steel Lever |
Non-Locking |
V500CS-16-04 |
2000 |
Female Pipe Ends |
In Line |
1 |
Female Pipe |
1 |
Female Pipe |
Steel Tee |
Non-Locking |
V500CS-16-21 |
2000 |
Female Pipe Ends |
In Line |
1 |
Female Pipe |
1 |
Female Pipe |
Steel Oval |
Non-Locking |
V500CS-4 |
2000 |
Female Pipe Ends |
In Line |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
Steel Lever |
Non-Locking |
V500CS-4-04 |
2000 |
Female Pipe Ends |
In Line |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
Steel Tee |
Non-Locking |
V500CS-4-21 |
2000 |
Female Pipe Ends |
In Line |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
Steel Oval |
Non-Locking |
V500CS-6 |
2000 |
Female Pipe Ends |
In Line |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
Steel Lever |
Non-Locking |
V500CS-6-04 |
2000 |
Female Pipe Ends |
In Line |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
Steel Tee |
Non-Locking |
V500CS-6-21 |
2000 |
Female Pipe Ends |
In Line |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
Steel Oval |
Non-Locking |
V500CS-8 |
2000 |
Female Pipe Ends |
In Line |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
Steel Lever |
Non-Locking |
V500CS-8-04 |
2000 |
Female Pipe Ends |
In Line |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
Steel Tee |
Non-Locking |
V500CS-8-21 |
2000 |
Female Pipe Ends |
In Line |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
Steel Oval |
Non-Locking |
V500HP-12 |
6000 |
Female Pipe Ends |
In Line |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
Steel Lever |
Non-Locking |
V500HP-16 |
6000 |
Female Pipe Ends |
In Line |
1 |
Female Pipe |
1 |
Female Pipe |
Steel Lever |
Non-Locking |
V500HP-20 |
6000 |
Female Pipe Ends |
In Line |
1 1/4 |
Female Pipe |
1 1/4 |
Female Pipe |
Steel Lever |
Non-Locking |
V500HP-24 |
6000 |
Female Pipe Ends |
In Line |
1 1/2 |
Female Pipe |
1 1/2 |
Female Pipe |
Steel Lever |
Non-Locking |
V500HP-32 |
6000 |
Female Pipe Ends |
In Line |
2 |
Female Pipe |
2 |
Female Pipe |
Steel Lever |
Non-Locking |
V500HP-4 |
6000 |
Female Pipe Ends |
In Line |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
Steel Lever |
Non-Locking |
V500HP-6 |
6000 |
Female Pipe Ends |
In Line |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
Steel Lever |
Non-Locking |
V500HP-8 |
6000 |
Female Pipe Ends |
In Line |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
Steel Lever |
Non-Locking |
V502CS-20 |
1500 |
Female Pipe Ends |
Panel Mount |
1 1/4 |
Female Pipe |
1 1/4 |
Female Pipe |
Steel Lever |
Non-Locking |
V502CS-20-21 |
1500 |
Female Pipe Ends |
Panel Mount |
1 1/4 |
Female Pipe |
1 1/4 |
Female Pipe |
Steel Oval |
Non-Locking |
Part |
Maximum Working Pressure (psi) |
Style |
Shape |
Connection 1 Thread Size (inch) |
Connection 1 Thread Style |
Connection 2 Thread Size (inch) |
Connection 2 Thread Style |
Handle |
Locking Mechanism |
V502CS-24 |
1500 |
Female Pipe Ends |
Panel Mount |
1 1/2 |
Female Pipe |
1 1/2 |
Female Pipe |
Steel Lever |
Non-Locking |
V502CS-24-21 |
1500 |
Female Pipe Ends |
Panel Mount |
1 1/2 |
Female Pipe |
1 1/2 |
Female Pipe |
Steel Oval |
Non-Locking |
V502CS-32 |
1500 |
Female Pipe Ends |
Panel Mount |
2 |
Female Pipe |
2 |
Female Pipe |
Steel Lever |
Non-Locking |
V502CS-32-21 |
1500 |
Female Pipe Ends |
Panel Mount |
2 |
Female Pipe |
2 |
Female Pipe |
Steel Oval |
Non-Locking |
V506CS-12 |
3000 |
Straight Thread Ends |
In Line |
1 1/16-12 |
SAE Straight Thread |
1 1/16-12 |
SAE Straight Thread |
Steel Lever |
Non-Locking |
V506CS-16 |
3000 |
Straight Thread Ends |
In Line |
1 5/16-12 |
SAE Straight Thread |
1 5/16-12 |
SAE Straight Thread |
Steel Lever |
Non-Locking |
V506CS-4 |
3000 |
Straight Thread Ends |
In Line |
1/8-27 |
SAE Straight Thread |
7/16-20 |
SAE Straight Thread |
Steel Lever |
Non-Locking |
V506CS-6 |
3000 |
Straight Thread Ends |
In Line |
9/16-18 |
SAE Straight Thread |
9/16-18 |
SAE Straight Thread |
Steel Lever |
Non-Locking |
V506CS-8 |
3000 |
Straight Thread Ends |
In Line |
3/4-16 |
SAE Straight Thread |
3/4-16 |
SAE Straight Thread |
Steel Lever |
Non-Locking |
V506HP-12 |
6000 |
Straight Thread Ends |
In Line |
1 1/16-12 UNF |
SAE J1926-1 |
1 1/16-12 UNF |
SAE J1926-1 |
Steel Lever |
Non-Locking |
V506HP-16 |
6000 |
Straight Thread Ends |
In Line |
1 5/16-12 UNF |
SAE J1926-1 |
1 5/16-12 UNF |
SAE J1926-1 |
Steel Lever |
Non-Locking |
V506HP-20 |
6000 |
Straight Thread Ends |
In Line |
1 5/8-12 UNF |
SAE J1926-1 |
1 5/8-12 UNF |
SAE J1926-1 |
Steel Lever |
Non-Locking |
V506HP-24 |
6000 |
Straight Thread Ends |
In Line |
1 7/8-12 UNF |
SAE J1926-1 |
1 7/8-12 UNF |
SAE J1926-1 |
Steel Lever |
Non-Locking |
V506HP-32 |
6000 |
Straight Thread Ends |
In Line |
2 1/2-12 UNF |
SAE J1926-1 |
2 1/2-12 UNF |
SAE J1926-1 |
Steel Lever |
Non-Locking |
V506HP-4 |
6000 |
Straight Thread Ends |
In Line |
7/16-20 UNF |
SAE J1926-1 |
7/16-20 UNF |
SAE J1926-1 |
Steel Lever |
Non-Locking |
V506HP-6 |
6000 |
Straight Thread Ends |
In Line |
9/16-18 UNF |
SAE J1926-1 |
9/16-18 UNF |
SAE J1926-1 |
Steel Lever |
Non-Locking |
V506HP-8 |
6000 |
Straight Thread Ends |
In Line |
3/4-16 UNF |
SAE J1926-1 |
3/4-16 UNF |
SAE J1926-1 |
Steel Lever |
Non-Locking |
VP500CS-12 |
2000 |
Female Pipe Ends |
In Line |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
Steel Lever |
Padlock |
VP500CS-16 |
2000 |
Female Pipe Ends |
In Line |
1 |
Female Pipe |
1 |
Female Pipe |
Steel Lever |
Padlock |
VP500CS-4 |
2000 |
Female Pipe Ends |
In Line |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
Steel Lever |
Padlock |
VP500CS-6 |
2000 |
Female Pipe Ends |
In Line |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
Steel Lever |
Padlock |
VP500CS-8 |
2000 |
Female Pipe Ends |
In Line |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
Steel Lever |
Padlock |
VP500HP-12 |
6000 |
Female Pipe Ends |
In Line |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
Steel Lever |
Padlock |
VP500HP-16 |
6000 |
Female Pipe Ends |
In Line |
1 |
Female Pipe |
1 |
Female Pipe |
Steel Lever |
Padlock |
VP500HP-20 |
6000 |
Female Pipe Ends |
In Line |
1 1/4 |
Female Pipe |
1 1/4 |
Female Pipe |
Steel Lever |
Padlock |
Part |
Maximum Working Pressure (psi) |
Style |
Shape |
Connection 1 Thread Size (inch) |
Connection 1 Thread Style |
Connection 2 Thread Size (inch) |
Connection 2 Thread Style |
Handle |
Locking Mechanism |
VP500HP-24 |
6000 |
Female Pipe Ends |
In Line |
1 1/2 |
Female Pipe |
1 1/2 |
Female Pipe |
Steel Lever |
Padlock |
VP500HP-32 |
6000 |
Female Pipe Ends |
In Line |
2 |
Female Pipe |
2 |
Female Pipe |
Steel Lever |
Padlock |
VP500HP-4 |
6000 |
Female Pipe Ends |
In Line |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
Steel Lever |
Padlock |
VP500HP-6 |
6000 |
Female Pipe Ends |
In Line |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
Steel Lever |
Padlock |
VP500HP-8 |
6000 |
Female Pipe Ends |
In Line |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
Steel Lever |
Padlock |
VP502CS-20 |
1500 |
Female Pipe Ends |
Panel Mount |
1 1/4 |
Female Pipe |
1 1/4 |
Female Pipe |
Steel Lever |
Padlock |
VP502CS-24 |
1500 |
Female Pipe Ends |
Panel Mount |
1 1/2 |
Female Pipe |
1 1/2 |
Female Pipe |
Steel Lever |
Padlock |
VP502CS-32 |
1500 |
Female Pipe Ends |
Panel Mount |
2 |
Female Pipe |
2 |
Female Pipe |
Steel Lever |
Padlock |
VP506CS-12 |
3000 |
Straight Thread Ends |
In Line |
1 1/16-12 |
SAE Straight Thread |
1 1/16-12 |
SAE Straight Thread |
Steel Lever |
Padlock |
VP506CS-16 |
3000 |
Straight Thread Ends |
In Line |
1 5/16-12 |
SAE Straight Thread |
1 5/16-12 |
SAE Straight Thread |
Steel Lever |
Padlock |
VP506CS-4 |
3000 |
Straight Thread Ends |
In Line |
1/8-27 |
SAE Straight Thread |
7/16-20 |
SAE Straight Thread |
Steel Lever |
Padlock |
VP506CS-6 |
3000 |
Straight Thread Ends |
In Line |
9/16-18 |
SAE Straight Thread |
9/16-18 |
SAE Straight Thread |
Steel Lever |
Padlock |
VP506HP-12 |
6000 |
Straight Thread Ends |
In Line |
1 1/16-12 UNF |
SAE J1926-1 |
1 1/16-12 UNF |
SAE J1926-1 |
Steel Lever |
Padlock |
VP506HP-16 |
6000 |
Straight Thread Ends |
In Line |
1 5/16-12 UNF |
SAE J1926-1 |
1 5/16-12 UNF |
SAE J1926-1 |
Steel Lever |
Padlock |
VP506HP-20 |
6000 |
Straight Thread Ends |
In Line |
1 5/8-12 UNF |
SAE J1926-1 |
1 5/8-12 UNF |
SAE J1926-1 |
Steel Lever |
Padlock |
VP506HP-24 |
6000 |
Straight Thread Ends |
In Line |
1 7/8-12 UNF |
SAE J1926-1 |
1 7/8-12 UNF |
SAE J1926-1 |
Steel Lever |
Padlock |
VP506HP-32 |
6000 |
Straight Thread Ends |
In Line |
2 1/2-12 UNF |
SAE J1926-1 |
2 1/2-12 UNF |
SAE J1926-1 |
Steel Lever |
Padlock |
VP506HP-4 |
6000 |
Straight Thread Ends |
In Line |
7/16-20 UNF |
SAE J1926-1 |
7/16-20 UNF |
SAE J1926-1 |
Steel Lever |
Padlock |
VP506HP-6 |
6000 |
Straight Thread Ends |
In Line |
9/16-18 UNF |
SAE J1926-1 |
9/16-18 UNF |
SAE J1926-1 |
Steel Lever |
Padlock |
VP506HP-8 |
6000 |
Straight Thread Ends |
In Line |
3/4-16 UNF |
SAE J1926-1 |
3/4-16 UNF |
SAE J1926-1 |
Steel Lever |
Padlock |
|
fcg.cnmec@parkerdistribution.com.cn
