Parker Legris LF3600系列适用于流体及气体铜镀镍接头, 铜镀镍
Parker LF3600 FDA Chemical Nickel-Plated Brass Push-In Fittings datasheet

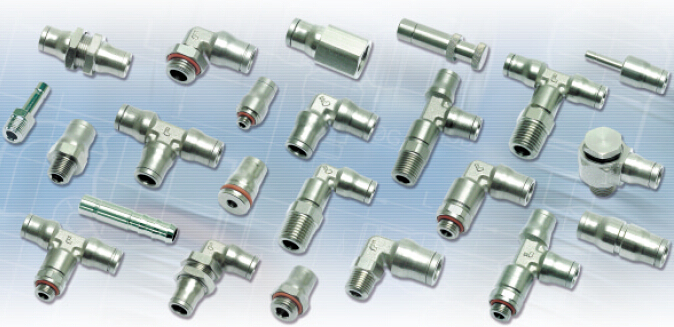

Legris LF3600系列铜镀镍快插式接头
Legris LF6100 Brass Push-In Fittings
Parker Legris LF3600 Push-In Fittings

为了满足您的技术和环境要求，派克乐可利设计了该系列的金属快插式接头，在大多数苛刻环境下能够为工业流体提供稳定、可靠和耐用的连接方案。为了满足您的技术和环境要求，派克乐可利设计了该系列的金属快插式接头，在大多数苛刻环境下能够为工业流体提供稳定、可靠和耐用的连接方案。Parker Legris 派克乐可利LF3600铜镀镍接头用于低腐蚀性环境或食品制造行业．铜镀镍的材质和FKM的密封圈都符合FDA标准。适用真空应用，工作压力30bar，工作温度从-20°C 到150°C间，可与所有塑料管类产品连接使用。In order to meet your technical and environment requirements, Parker Legris designed this range of metal fittings, offering robustness, reliability and resistance to industrial fluids for the most demanding environments。LF3600 push-in fittings for food fluids Materials: FDA approved chemical nickel-plated brass and FKM seals。

Parker Legris LF3600系列适用于流体及气体铜镀镍接头, 铜镀镍
Parker LF3600 FDA Chemical Nickel-Plated Brass Push-In Fittings datasheet

产品优势：

> 性能出色
- 能够耐受30 bar压力，+150?C的环境
- 优秀的机械性能
- 防冲击和振动的加长型螺纹
- 由于采用高磷化学镀镍，因此具备优秀的耐磨损和防腐蚀性能
- 全流量，压降小

> 多功能性
- 材质符合美国食品和药物管理局标准
- 弹簧卡爪可用于连接金属管（槽型）和塑料软管
- 优秀的高压和真空能力
- 出色的化学相容性
- 超过250个产品型号
- 一款接头可适用于多种应用：库存优化
- 手动快速连接和拆卸
- 紧凑、美观、符合人体工程学的设计

> 可靠性
- 高性能铜材质可提高使用寿命
- 生产环节100%防泄漏检测
- 保证质量和可追溯性的日期代码

产品类型：
- 油口接头
- 带尾管的油口接头
- 埋入式
- 油口弯头
- 加长型油口弯头
- 紧凑型弯头
- 支管油口三通
- 直管油口三通
- 铰接接头
- 管对管接头
- 管对管弯通连接件
- 等径弯头
- 等径三通
- 隔板连接接头
- 等径隔板连接接头
- 隔板接头
- 等径隔板弯头
- 减径插杆接头
- 插杆过渡接头
- 插杆膨胀接头
- 插杆宝塔连接接头
- 插杆连接件
- 堵头
- 断开工具
- 释放钮盖

应用：
- 食品加工
- 咖啡机
- 汽车生产
- 医用器材
- 印刷
- 雾化
- 焊接机器人

技术特点：
- 流体：压缩空气，润滑脂，润滑剂，水
- 材料：化学镀镍黄铜，FKM
- 压力：真空至30bar
- 温度：-20°C至+ 150°C
- 公制：4-14 mm

法规：
>工业
- ISO 14743: 气动传动装置，用于热塑性管材的快插接头
- DI:97/23/EC (PED)
- DI :2002/95/EC (RoHS), 2011/65/EC
- RG:1907/2006 (REACH)
- DI:94/9/EC (ATEX )
- UL94 V-0: 请咨询我们
>食品
- RG:21CFR (FDA)
- RG:1935/2004/EC (流量0.02 l/h)
- USDA NSF H1: 油脂
- ASTM B733-04: 自催化（无电解）镍磷涂层

技术：
- 油口接头
- 管对管接头
- 隔板连接件
- 快插接头
- 铜镀镍快插接头
- 快插接头
- 气动接头
- 即时接头
- 快速接头
- 连接件
- 旋转接头

性能特点

压力 (BARG) 30, 20
工作温度(°C) -20
工作温度 (C) 150
真空额定值 (HG MM) 755, na
箱数 10, 5, 100
重量 (KG) 0.043, 0.03, 0.034, 0.042, 0.038, 0.045, 0.01, 0.009, 0.015, 0.006, 0.007, 0.011, 0.014, 0.016, 0.028, 0.025, 0.023, 0.033, 0.056, 0.017, 0.048, 0.067, 0.069, 0.103, 0.147, 0.322, 0.001, 0.044, 0.003, 0.039, 0.091, 0.115, 0.018, 0.02, 0, 0.031, 0.037, 0.
应用食品加工，咖啡机，车内汽车，医疗设备，印刷，雾化，焊接机器人
媒介压缩空气，油脂，润滑剂，水
证书工业 - ISO 14743：气动传输，用于热塑性管道推入式管接头DI：97/23 / EC（PED），DI：2002/95 / EC（RoHS），2011/65 / EC，RG：1907/2006 REACH），DI：94/9 / EC（ATEX），UL94 V-0：请咨询我们 - 食品 - RG：21CFR（FDA），RG：193

COMPLIANCE, CERTIFICATIONS, & SAFETY
产品资料下载

Quality and Safety, the Basis of Our Commitment
CONTACT & SUPPORT INFORMATION
Contact & Support
LITERATURE AND REFERENCE MATERIALS
Conversion Tables
Directives and Regulations
Fitting Threads
- LF3600 FDA Chemical Nickel-Plated Brass Push-In Fittings datasheet
Make Your Product Choice!
Our Services Contribute to Your Performance
Parker Legris SuccessStory LifeSciences2 UK 092016
Part Number Identification
Pneumatic Technical Guidelines
Principle and Advantages of Our Coupling Systems
Principle and Avantages of the Push-in Fitting
Quality and Safety, the Basis of Our Commitment
Sustainable Development
Your Applications Inspire Our Innovation
SELECTOR GUIDES
Conversion Tables

Parker Legris 派克乐可利LF3600铜镀镍接头用于低腐蚀性环境或食品制造行业．铜镀镍的材质和FKM的密封圈都符合FDA标准。适用真空应用，工作压力30bar，工作温度从-20°C 到150°C间，可与所有塑料管类产品连接使用。

- 应用于工业和食品的铜镀镍材料
- 适用多种流体尤其是食物流体、清洁、冷热水和蒸气
- LF3600 所使用材料符合FDA食品标准，材质为镀镍及FKM （FPM）氟橡胶垫圈
- 适用腐蚀和磨损环境
- 优化密封，内部有BSPP密封气垫
- 小巧、美观
- 适用于塑料管件（尼龙，聚氨酯和氟化乙丙烯）
- 工作压力: 0,5 to 20 bar; - 工作温度: -20° to + 120°C

产品范围：

3675 - MALE STUD, BSPT THREAD直接头，外部连接用平扳手或套筒扳手拧紧，内部安装用六角扳手拧紧
3601 - 直接头外螺纹,BSPP直螺纹(即PF直螺纹),公制螺纹直接头，内部安装用平扳手或套筒扳手，外部安装用六角扳手拧紧。
3681 - 直接头外螺纹, 公制螺纹直接头，外部用六角扳手拧紧，以便在极狭小的空间内安装
3614 - 直接头内螺纹, BSPP 直螺纹(即PF直螺纹) 及公制螺纹内螺纹直接头
3621 - 带尾管直接头外螺纹,BSPT 锥螺纹(即PT锥螺纹)带尾管直接头，连接管对管接头
3631 - 带尾管直接头外螺纹,BSPP 直螺纹(即PF直螺纹) 及公制螺纹带尾管直接头，连接管对管接头
3609 - MALE STUD ELBOW, BSPT THREAD直角接头，低高度
3629 - 加长形直角接头,BSPP锥螺纹加长型直角接头，高度大于3609
3699 - 直角接头外螺纹, BSPP直螺纹(即PF直螺纹),公制螺纹直角接头
3669 - 加长形直角接头,BSPP 直螺纹(即PF直螺纹) 及公制螺纹加长型直角接头，高度大于3699
3608 - 正T形外螺纹三通接头, BSPT 锥螺纹(即PT锥螺纹) 及NPT美制锥螺纹正T型接头
3603 - 直T形外螺纹三通接头, BSPT 锥螺纹(即PT锥螺纹) 及NPT美制锥螺纹直T型接头
3698 - 正T形三通接头,BSPP直螺纹(即PF直螺纹),公制螺纹正T型接头
3693 - 直T形三通接头,BSPP直螺纹(即PF直螺纹),公制螺纹直T型接头
3618 - 绞接式接头外螺纹,BSPP直螺纹(即PF直螺纹),公制螺纹绞接式直角接头，顶端用平扳手或套筒扳手拧紧，以方便在狭小空间内安装。可旋转以配合管路方向
3606 - 等径对接直接头等径管对管直接头
3602 - 管对管直角接头等径管对管直角连接，可避免受气管的弯曲半径限制
3604 - 等径三通接头等径管对管三通接头
3616 - 穿板式等径接头管对管穿板直接头
3636 - 穿板式接头内螺纹, BSPP 直螺纹(即PF直螺纹)带内螺纹穿板直接头
3639 - 穿板式等径直角接头管对管穿板直角接头
3666 - 大转小转带尾管接头大转小接头
3667 - 公制-英制转换带尾管接头带尾管直接头，将英制管连接在公制快速接头上
3668 - 小转大接头带尾管接头小转大接头
3622 - 尾管-宝塔式对接接头带尾管互换接头，将管子和快速接头连接在一起
3620 - 尾管对接接头接头连接杆，连接两个快插接头
3626 - 接头用堵栓堵塞，将暂时不用的快插接头堵塞上
3610 - COLOURED RELEASE BUTTON COVERS Help the identification of circuits and improve safety for use with metal
fittings.

3675 - MALE STUD, BSPT THREAD In line connection of tubing to a threaded port. External tightening with a
flat spanner or socket wrench, internal tightening with an Allen key.

3675 - MALE STUD, NPT THREAD In line connection of tubing to a threaded port. External tightening with a
flat spanner or socket wrench, internal tightening with an Allen key.

3609 - MALE STUD ELBOW, NPT THREAD Connection of tubing at a 90° angle to a threaded port with reduced height
dimensions.

3604 - EQUAL TEE Connection at a 90° angle of 3 tubes of equal diameter.

3606 - EQUAL TUBE-TO-TUBE CONNECTOR In line connection of 2 tubes of equal diameter.

- Legris LF3600 Chemical Nickel-Plated Brass Push-In Fittings

Part	Product Type	Shape	Body Material	O-Ring Material	Color	Connection 1 Thread Style	Connection 1 Thread Size (metric)
3601 04 10	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3601 04 13	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3601 04 19	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	Metric	M5x0,8
3601 04 20	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	UNF	10-32
3601 04 52	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	Metric	M6x1
3601 04 56	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	Metric	M8x1
3601 06 10	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3601 06 13	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3601 06 19	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	Metric	M5x0,8
3601 06 60	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	Metric	M10x1
3601 08 10	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3601 08 13	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3601 08 17	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G3/8
3601 10 13	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3601 10 17	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G3/8
3601 10 21	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/2
3601 12 13	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3601 12 17	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G3/8
3601 12 21	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/2
3601 14 17	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G3/8
3601 14 21	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/2
3601 56 20	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	UNF	10-32
3602 04 00	Tube-to-Tube Fittings	Elbow 90° tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3602 06 00	Tube-to-Tube Fittings	Elbow 90° tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3602 08 00	Tube-to-Tube Fittings	Elbow 90° tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na

Part	Product Type	Shape	Body Material	O-Ring Material	Color	Connection 1 Thread Style	Connection 1 Thread Size (metric)
3602 10 00	Tube-to-Tube Fittings	Elbow 90° tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3602 12 00	Tube-to-Tube Fittings	Elbow 90° tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3602 14 00	Tube-to-Tube Fittings	Elbow 90° tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3602 56 00	Tube-to-Tube Fittings	Elbow 90° tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3602 60 00	Tube-to-Tube Fittings	Elbow 90° tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3602 62 00	Tube-to-Tube Fittings	Elbow 90° tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3603 04 10	Stud Fittings	Male stud run tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/8
3603 04 11	Stud Fittings	Male stud run tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	NPT	NPT1/8
3603 06 10	Stud Fittings	Male stud run tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/8
3603 06 13	Stud Fittings	Male stud run tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/4
3603 08 10	Stud Fittings	Male stud run tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/8
3603 08 13	Stud Fittings	Male stud run tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/4
3603 10 13	Stud Fittings	Male stud run tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/4
3603 10 17	Stud Fittings	Male stud run tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R3/8
3603 12 17	Stud Fittings	Male stud run tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R3/8
3603 14 21	Stud Fittings	Male stud run tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/2
3603 56 14	Stud Fittings	Male stud run tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	NPT	NPT1/4
3603 60 22	Stud Fittings	Male stud run tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	NPT	NPT1/2
3603 62 18	Stud Fittings	Male stud run tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	NPT	NPT3/8
3603 62 22	Stud Fittings	Male stud run tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	NPT	NPT1/2
3604 04 00	Tube-to-Tube Fittings	Tee tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3604 06 00	Tube-to-Tube Fittings	Tee tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3604 08 00	Tube-to-Tube Fittings	Tee tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3604 10 00	Tube-to-Tube Fittings	Tee tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3604 12 00	Tube-to-Tube Fittings	Tee tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na

Part	Product Type	Shape	Body Material	O-Ring Material	Color	Connection 1 Thread Style	Connection 1 Thread Size (metric)
3604 14 00	Tube-to-Tube Fittings	Tee tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3606 04 00	Tube-to-Tube Fittings	Tube / tube connector	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3606 06 00	Tube-to-Tube Fittings	Tube / tube connector	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3606 08 00	Tube-to-Tube Fittings	Tube / tube connector	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3606 10 00	Tube-to-Tube Fittings	Tube / tube connector	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3606 12 00	Tube-to-Tube Fittings	Tube / tube connector	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3606 14 00	Tube-to-Tube Fittings	Tube / tube connector	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3608 04 10	Stud Fittings	Male stud branch tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/8
3608 04 11	Stud Fittings	Male stud branch tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	NPT	NPT1/8
3608 06 10	Stud Fittings	Male stud branch tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/8
3608 06 13	Stud Fittings	Male stud branch tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/4
3608 08 10	Stud Fittings	Male stud branch tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/8
3608 08 13	Stud Fittings	Male stud branch tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/4
3608 10 13	Stud Fittings	Male stud branch tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/4
3608 10 17	Stud Fittings	Male stud branch tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R3/8
3608 12 17	Stud Fittings	Male stud branch tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R3/8
3608 14 21	Stud Fittings	Male stud branch tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/2
3608 62 18	Stud Fittings	Male stud branch tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	NPT	NPT3/8
3609 04 10	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/8
3609 04 11	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	NPT	NPT1/8
3609 04 13	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/4
3609 04 14	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	NPT	NPT1/4
3609 06 10	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/8
3609 06 13	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/4
3609 08 10	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/8

Part	Product Type	Shape	Body Material	O-Ring Material	Color	Connection 1 Thread Style	Connection 1 Thread Size (metric)
3609 08 13	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/4
3609 08 17	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R3/8
3609 10 13	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/4
3609 10 17	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R3/8
3609 12 13	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/4
3609 12 17	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R3/8
3609 12 21	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/2
3609 14 17	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R3/8
3609 14 21	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/2
3609 56 11	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	NPT	NPT1/8
3609 56 14	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	NPT	NPT1/4
3609 56 18	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	NPT	NPT3/8
3609 60 14	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	NPT	NPT1/4
3609 60 18	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	NPT	NPT3/8
3609 60 22	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	NPT	NPT1/2
3609 62 18	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	NPT	NPT3/8
3609 62 22	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	NPT	NPT1/2
3610 06 00	Accessories	Release button covers	ANODIZED ALUMINIUM	na	NATURAL	na	na
3610 06 04	Accessories	Release button covers	ANODIZED ALUMINIUM	na	BLUE	na	na
3610 08 00	Accessories	Release button covers	ANODIZED ALUMINIUM	na	NATURAL	na	na
3610 08 04	Accessories	Release button covers	ANODIZED ALUMINIUM	na	BLUE	na	na
3610 10 04	Accessories	Release button covers	ANODIZED ALUMINIUM	na	BLUE	na	na
3610 12 00	Accessories	Release button covers	ANODIZED ALUMINIUM	na	NATURAL	na	na
3610 12 04	Accessories	Release button covers	ANODIZED ALUMINIUM	na	BLUE	na	na
3610 14 00	Accessories	Release button covers	ANODIZED ALUMINIUM	na	NATURAL	na	na

Part	Product Type	Shape	Body Material	O-Ring Material	Color	Connection 1 Thread Style	Connection 1 Thread Size (metric)
3610 14 04	Accessories	Release button covers	ANODIZED ALUMINIUM	na	BLUE	na	na
3614 04 10	Stud Fittings	Female stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3614 04 13	Stud Fittings	Female stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3614 04 19	Stud Fittings	Female stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	Metric	M5x0,8
3614 06 10	Stud Fittings	Female stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3614 06 13	Stud Fittings	Female stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3614 08 10	Stud Fittings	Female stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3614 08 13	Stud Fittings	Female stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3614 10 17	Stud Fittings	Female stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G3/8
3614 12 17	Stud Fittings	Female stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G3/8
3614 12 21	Stud Fittings	Female stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/2
3616 04 00	Bulkhead Connector Fittings	Bulkhead connector tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3616 06 00	Bulkhead Connector Fittings	Bulkhead connector tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3616 08 00	Bulkhead Connector Fittings	Bulkhead connector tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3616 10 00	Bulkhead Connector Fittings	Bulkhead connector tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3616 12 00	Bulkhead Connector Fittings	Bulkhead connector tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3616 14 00	Bulkhead Connector Fittings	Bulkhead connector tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3616 56 00	Bulkhead Connector Fittings	Bulkhead connector tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3616 60 00	Bulkhead Connector Fittings	Bulkhead connector tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3616 62 00	Bulkhead Connector Fittings	Bulkhead connector tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3618 04 10	Stud Fittings	Male stud single banjo thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3618 04 19	Stud Fittings	Male stud single banjo thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	Metric	M5x0,8
3618 06 10	Stud Fittings	Male stud single banjo thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3618 06 13	Stud Fittings	Male stud single banjo thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3618 06 19	Stud Fittings	Male stud single banjo thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	Metric	M5x0,8

Part	Product Type	Shape	Body Material	O-Ring Material	Color	Connection 1 Thread Style	Connection 1 Thread Size (metric)
3618 08 10	Stud Fittings	Male stud single banjo thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3618 08 13	Stud Fittings	Male stud single banjo thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3618 10 17	Stud Fittings	Male stud single banjo thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G3/8
3620 04 00	Plug-In Accessories	Double male stem connector	FDA CHEMICAL NICKEL PLATED BRASS	na	na	na	na
3620 06 00	Plug-In Accessories	Double male stem connector	FDA CHEMICAL NICKEL PLATED BRASS	na	na	na	na
3620 08 00	Plug-In Accessories	Double male stem connector	FDA CHEMICAL NICKEL PLATED BRASS	na	na	na	na
3620 10 00	Plug-In Accessories	Double male stem connector	FDA CHEMICAL NICKEL PLATED BRASS	na	na	na	na
3620 12 00	Plug-In Accessories	Double male stem connector	FDA CHEMICAL NICKEL PLATED BRASS	na	na	na	na
3620 14 00	Plug-In Accessories	Double male stem connector	FDA CHEMICAL NICKEL PLATED BRASS	na	na	na	na
3621 04 10	Stud Fittings	Male standpipe stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	na	na	BSPT	R1/8
3621 06 10	Stud Fittings	Male standpipe stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	na	na	BSPT	R1/8
3621 06 13	Stud Fittings	Male standpipe stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	na	na	BSPT	R1/4
3621 08 10	Stud Fittings	Male standpipe stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	na	na	BSPT	R1/8
3621 08 13	Stud Fittings	Male standpipe stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	na	na	BSPT	R1/4
3621 10 13	Stud Fittings	Male standpipe stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	na	na	BSPT	R1/4
3621 10 17	Stud Fittings	Male standpipe stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	na	na	BSPT	R3/8
3621 12 17	Stud Fittings	Male standpipe stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	na	na	BSPT	R3/8
3621 12 21	Stud Fittings	Male standpipe stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	na	na	BSPT	R1/2
3621 14 21	Stud Fittings	Male standpipe stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	na	na	BSPT	R1/2
3622 04 05	Plug-In Accessories	Barbed connector with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	na	na	na	na
3622 04 53	Plug-In Accessories	Barbed connector with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	na	na	na	na
3622 06 05	Plug-In Accessories	Barbed connector with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	na	na	na	na
3622 08 08	Plug-In Accessories	Barbed connector with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	na	na	na	na
3622 08 56	Plug-In Accessories	Barbed connector with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	na	na	na	na
3622 10 08	Plug-In Accessories	Barbed connector with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	na	na	na	na

Part	Product Type	Shape	Body Material	O-Ring Material	Color	Connection 1 Thread Style	Connection 1 Thread Size (metric)
3622 10 56	Plug-In Accessories	Barbed connector with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	na	na	na	na
3622 12 08	Plug-In Accessories	Barbed connector with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	na	na	na	na
3622 12 10	Plug-In Accessories	Barbed connector with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	na	na	na	na
3622 12 62	Plug-In Accessories	Barbed connector with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	na	na	na	na
3622 14 14	Plug-In Accessories	Barbed connector with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	na	na	na	na
3622 14 62	Plug-In Accessories	Barbed connector with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	na	na	na	na
3626 04 00	Accessories	Blanking plug with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	na	na	na	na
3626 06 00	Accessories	Blanking plug with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	na	na	na	na
3626 08 00	Accessories	Blanking plug with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	na	na	na	na
3626 10 00	Accessories	Blanking plug with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	na	na	na	na
3626 12 00	Accessories	Blanking plug with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	na	na	na	na
3626 14 00	Accessories	Blanking plug with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	na	na	na	na
3629 04 10	Stud Fittings	Male stud extented elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/8
3629 06 10	Stud Fittings	Male stud extented elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/8
3629 06 13	Stud Fittings	Male stud extented elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/4
3629 08 10	Stud Fittings	Male stud extented elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/8
3629 08 13	Stud Fittings	Male stud extented elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/4
3629 10 13	Stud Fittings	Male stud extented elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/4
3631 04 10	Stud Fittings	Male standpipe stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3631 04 13	Stud Fittings	Male standpipe stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3631 04 19	Stud Fittings	Male standpipe stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	Metric	M5x0,8
3631 06 10	Stud Fittings	Male standpipe stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3631 06 13	Stud Fittings	Male standpipe stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3631 08 10	Stud Fittings	Male standpipe stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3631 08 13	Stud Fittings	Male standpipe stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4

Part	Product Type	Shape	Body Material	O-Ring Material	Color	Connection 1 Thread Style	Connection 1 Thread Size (metric)
3631 08 17	Stud Fittings	Male standpipe stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G3/8
3631 10 13	Stud Fittings	Male standpipe stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3631 10 17	Stud Fittings	Male standpipe stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G3/8
3631 10 21	Stud Fittings	Male standpipe stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/2
3631 12 17	Stud Fittings	Male standpipe stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G3/8
3631 12 21	Stud Fittings	Male standpipe stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/2
3631 14 21	Stud Fittings	Male standpipe stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/2
3636 04 10	Bulkhead Connector Fittings	Bulkhead connector female	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3636 06 10	Bulkhead Connector Fittings	Bulkhead connector female	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3636 06 13	Bulkhead Connector Fittings	Bulkhead connector female	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3636 08 10	Bulkhead Connector Fittings	Bulkhead connector female	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3636 08 13	Bulkhead Connector Fittings	Bulkhead connector female	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3636 10 17	Bulkhead Connector Fittings	Bulkhead connector female	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G3/8
3636 12 17	Bulkhead Connector Fittings	Bulkhead connector female	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G3/8
3636 12 21	Bulkhead Connector Fittings	Bulkhead connector female	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/2
3639 04 00	Bulkhead Connector Fittings	Bulkhead elbow 90° tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3639 06 00	Bulkhead Connector Fittings	Bulkhead elbow 90° tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3639 08 00	Bulkhead Connector Fittings	Bulkhead elbow 90° tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3639 10 00	Bulkhead Connector Fittings	Bulkhead elbow 90° tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3639 12 00	Bulkhead Connector Fittings	Bulkhead elbow 90° tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3639 14 00	Bulkhead Connector Fittings	Bulkhead elbow 90° tube / tube	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3666 04 06	Plug-In Accessories	Reducer with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3666 04 08	Plug-In Accessories	Reducer with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3666 06 08	Plug-In Accessories	Reducer with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3666 06 10	Plug-In Accessories	Reducer with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na

Part	Product Type	Shape	Body Material	O-Ring Material	Color	Connection 1 Thread Style	Connection 1 Thread Size (metric)
3666 08 10	Plug-In Accessories	Reducer with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3666 08 12	Plug-In Accessories	Reducer with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3666 10 12	Plug-In Accessories	Reducer with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3666 12 14	Plug-In Accessories	Reducer with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3667 06 56	Plug-In Accessories	Adaptor metric / imperial with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3667 10 60	Plug-In Accessories	Adaptor metric / imperial with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3667 12 62	Plug-In Accessories	Adaptor metric / imperial with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3668 06 04	Plug-In Accessories	Increase with tailpiece	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	na	na
3669 04 10	Stud Fittings	Male stud extented elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3669 04 19	Stud Fittings	Male stud extented elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	Metric	M5x0,8
3669 06 10	Stud Fittings	Male stud extented elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3669 06 13	Stud Fittings	Male stud extented elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3669 08 10	Stud Fittings	Male stud extented elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3669 08 13	Stud Fittings	Male stud extented elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3669 10 13	Stud Fittings	Male stud extented elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3669 10 17	Stud Fittings	Male stud extented elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G3/8
3669 12 13	Stud Fittings	Male stud extented elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3669 12 17	Stud Fittings	Male stud extented elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G3/8
3669 14 21	Stud Fittings	Male stud extented elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/2
3675 04 10	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/8
3675 04 11	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	NPT	NPT1/8
3675 04 13	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/4
3675 04 14	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	NPT	NPT1/4
3675 06 10	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/8
3675 06 13	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/4

Part	Product Type	Shape	Body Material	O-Ring Material	Color	Connection 1 Thread Style	Connection 1 Thread Size (metric)
3675 08 10	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/8
3675 08 13	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/4
3675 08 17	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R3/8
3675 10 13	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/4
3675 10 17	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R3/8
3675 10 21	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/2
3675 12 13	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/4
3675 12 17	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R3/8
3675 12 21	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/2
3675 14 17	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R3/8
3675 14 21	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPT	R1/2
3675 56 18	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	NPT	NPT3/8
3675 60 22	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	NPT	NPT1/2
3675 62 22	Stud Fittings	Male stud fitting thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	NPT	NPT1/2
3681 04 19	Stud Fittings	Male stud fitting thread with internal hexagon	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	Metric	M5x0,8
3693 04 10	Stud Fittings	Male stud run tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3693 04 19	Stud Fittings	Male stud run tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	Metric	M5x0,8
3693 04 20	Stud Fittings	Male stud run tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	UNF	10-32
3693 06 10	Stud Fittings	Male stud run tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3693 06 13	Stud Fittings	Male stud run tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3693 08 10	Stud Fittings	Male stud run tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3693 08 13	Stud Fittings	Male stud run tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3693 10 13	Stud Fittings	Male stud run tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3693 12 17	Stud Fittings	Male stud run tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G3/8
3693 14 21	Stud Fittings	Male stud run tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM

Part	Product Type	Shape	Body Material	O-Ring Material	Color	Connection 1 Thread Style	Connection 1 Thread Size (metric)
3698 04 10	Stud Fittings	Male stud branch tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3698 04 19	Stud Fittings	Male stud branch tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	Metric	M5x0,8
3698 06 10	Stud Fittings	Male stud branch tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3698 06 13	Stud Fittings	Male stud branch tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3698 08 10	Stud Fittings	Male stud branch tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3698 08 13	Stud Fittings	Male stud branch tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3698 10 13	Stud Fittings	Male stud branch tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3698 12 17	Stud Fittings	Male stud branch tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G3/8
3698 14 21	Stud Fittings	Male stud branch tee adjustable thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/2
3699 04 10	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3699 04 13	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3699 04 19	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	Metric	M5x0,8
3699 04 20	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	UNF	10-32
3699 04 52	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	Metric	M6x1
3699 04 56	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	Metric	M8x1
3699 06 10	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3699 06 13	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3699 06 60	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	Metric	M10x1
3699 08 10	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/8
3699 08 13	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3699 08 17	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G3/8
3699 10 13	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3699 10 17	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G3/8
3699 12 13	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/4
3699 12 17	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G3/8

Part	Product Type	Shape	Body Material	O-Ring Material	Color	Connection 1 Thread Style	Connection 1 Thread Size (metric)
3699 12 21	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/2
3699 14 17	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G3/8
3699 14 21	Stud Fittings	Male stud elbow adjustable 90° thread	FDA CHEMICAL NICKEL PLATED BRASS	FKM	na	BSPP	G1/2

美国DMK Engineering Solutions公司
信德迈科技(北京)有限公司 CNMEC Technology

E-mail：sales@cnmec.biz

fcg.cnmec@parkerdistribution.com.cn
地址：北京市朝阳区望京街10号望京SOHO塔1C座2115室
邮编：100102
电话：010-8428 2935, 8428 9077, 8428 3983
手机：139 101 22694
Http：//www.cnmec.biz
传真：010-8428 8762

京ICP备08000876号-1
京公网安备 11010502019740
Since 2007 Strong Distribution & Powerful Partnerships




E-mail：sales@cnmec.biz fcg.cnmec@parkerdistribution.com.cn
