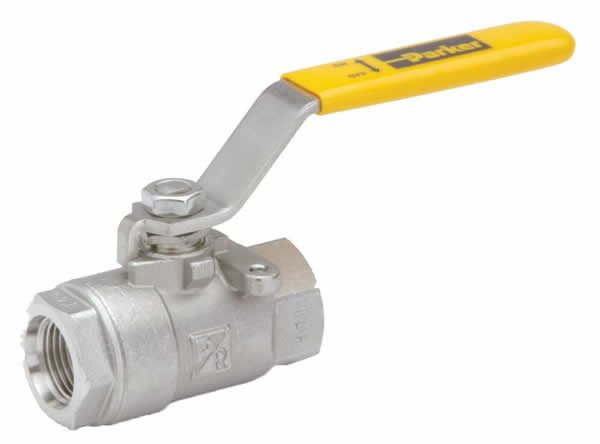

Parker Stainless Steel Industrial Ball Valves
派克不锈钢球阀

派克不锈钢球阀符合NACE MR-01-75的材料要求。帕克公司的工业不锈钢球阀是为一般用途。不锈钢球阀用于全开或全关位置。根据应用条件，阀门节流可能导致过早密封失效和/或无法转动阀门手柄。派克不锈钢球阀符合NACE MR-01-75的材料要求。Parker's stainless steel ball valves meet the material requirements of NACE MR-01-75. Parker's industrial stainless steel ball valve line is intended for general purpose use. Stainless steel ball valves are intended for use in the fully open or closed positions. Depending on the application conditions, throttling of the valve may result in premature seal failure and/or inability to turn the valve handle. Parker's stainless steel ball valves meet the material requirements of of NACE MR-01-75.

Ball Valve Products and Custom Solutions

派克的不锈钢球阀符合NACE MR-01-75的材料要求。派克的工业不锈钢球阀产品线适用于一般用途。不锈钢球阀适用于全开或全关位置。根据应用条件，阀门的节流可能导致过早的密封失效和/或无法旋转阀门手柄。派克的不锈钢球阀符合NACE MR-01-75的材料要求。

派克的不锈钢球阀有以下几种样式。
- 公管x母管- 母
管x母管
-

不锈钢球阀的面板安装选项包括：
- 椭圆形手柄
- 短手柄
- 挂锁手柄
- 焊接固定螺母
- 执行器套件

市场：
- 石油化工
- 炼油厂
- 钢铁
- 农业
- 食品加工
- 工业

功能/优点：
- CF-8M不锈钢阀体
- 不锈钢球
- PTFE阀座/密封件
- 满足材料要求NACE MR-01-75

应用：
- 燃料管线
- 化学管线
- 冲洗
- 需要完全关闭能力的工厂设计管道

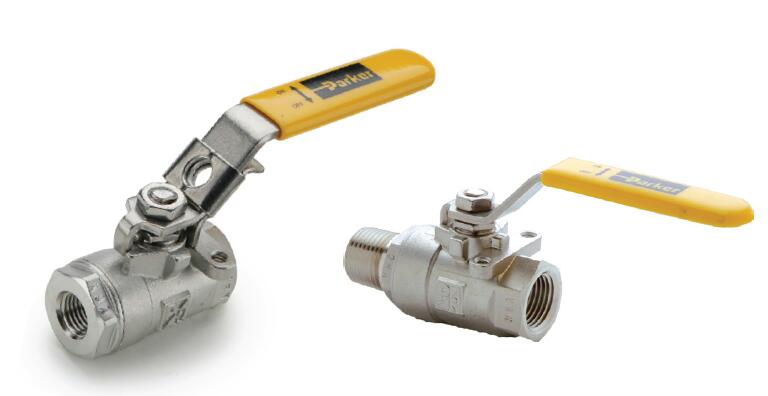

Parker's stainless steel ball valves are available in the following styles.
- Male Pipe x Female Pipe
- Female Pipe x Female Pipe
- Panel Mount

Options for the stainless steel ball valve include:
- Oval Handle
- Short Handle
- Padlocking Handle
- Welded Retainer Nut
- Actuator Kit

市场:
- Petrochemical
- Refineries
- Steel
- Agriculture
- Food Processing
- Industrial

参数:
- CF-8M Stainless Steel Body
- Stainless Steel Ball
- PTFE Seats/Seals
- Meets Material Requirements NACE MR-01-75

应用:
- Fuel Lines
- Chemical Lines
- Wash Down
- Plant Design Plumbing Requiring Total Shutoff Capability

规格参数

Technical Specifications
Minimum Operating Temperature: 0 °F, -17 °C
Maximum Operating Temperature: 400 °F, 204 °C
Maximum Operating Pressure: 2000 (1/4 - 1), 1500 (1 1/4 - 2) psi, 103 - 138 bar
Connection Type: NPT
Body Material: CF-8M Stainless Steel
Ball Material: Stainless Steel
Seat Material: PTFE
Specifications Met: NACE MR-01-75
Vacuum Pressure Rating: 28 Inch-Hg
