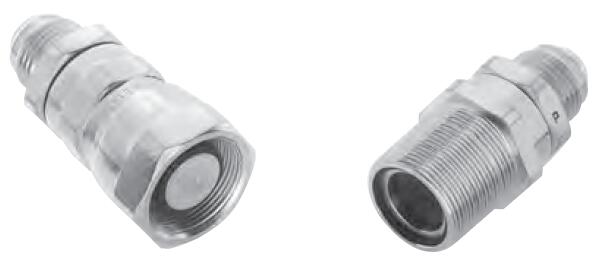

Parker 5400 self-sealing steel couplings are used in fluid-transfer applications for easy maintenance on refrigeration and air conditioning systems. The couplings also allow for pre-charging of units for easy installation. Applications can include marine refrigeration and air conditioning systems, along with cryogenic units.
Parker couplings are used in fluid transfer applications for easy maintenance on refrigeration or air conditioning systems.Parker Hannifin has the broadest coupling product offering in the market. Whether it is quick- connect, self- sealing upon disconnection, or brass or steel construction, Parker has what you need. With applications ranging from room air conditioners to cryogenic pumps, Parker has the product you are looking for.
Parker 5400 self-sealing steel couplings PDF Catalog
这种完整的生产线方法允许派克开发增值的组件，这将减少SKU和减少总的任务时间。结合派克提供的出色服务，一切皆有可能。This complete line approach allows Parker to develop value- added assemblies that will reduce SKU’s and decrease overall task time. Combine this with the outstanding services Parker offers and anything is possible.
这些快速接头用于流体输送应用，以便于制冷或空调系统的维护。有些可以用自密封钢或黄铜制成。另一些则是用于预充电系统的一次性黄铜。短管套件提供独特的铜连接，以创造一个替代品，允许铜对铜钎焊。These couplings are used in fluid transfer applications for easy maintenance on refrigeration or air conditioning systems. Some are available in self- sealing steel or brass. Others are one-shot brass for pre-charged systems. Stub kits are available with unique copper connections to create a drop in replacement allowing copper to copper brazing.
市场
- Air Conditioning
- Refrigeration
- Industrial Refrigeration
- Transportation
性能特点:
- Self- sealing disconnection maintains minimum air inclusion and fluid loss
- Brass coupling provides corrosion resistance
- Final metal to metal seal prevents refrigerant loss
- One-Shot series contains a diaphragm that is pierced upon connection and folded back into the coupling to provide a high flow path and low pressure drop
产品应用行业:
- Air Conditioning – Residential, Commercial, Portable split systems, Manufactured home units
- Heat Pumps – Split units
- Refrigeration – Marine, Split systems
- Transportation
- Cryogenic units using the steel couplings
-空调-住宅、商业、便携式分体式系统、家庭制造单元
-热泵-分体式机组
-制冷-船用，分体式系统
-运输
-使用钢联轴器的低温装置
规格参数
Technical Specifications
Maximum Burst Pressure: Not Applicable, or 2100 to 9000 psi
External Leak Rate: <0.25 ounce of R-22 refrigerant per year at operating pressure range, <0.1 ounce of R-22 refrigerant per year at operating pressure range or Not Applicable
Model Number: Please Configure Part for Model Number
Agency Approvals
U.L. listed; File No: SA7511
Part |
Coupling Half |
Inlet Connection |
Outlet Connection |
Product Type |
Maximum Operating Temperature (F) |
Minimum Operating Temperature (F) |
Maximum Operating Pressure (psig) |
150-22-12 |
N/A |
3/4" ODF |
N/A |
5500 Series Steel Mounting Flange |
N/A |
N/A |
N/A |
150-22-16 |
N/A |
1" ODF |
N/A |
5500 Series Steel Mounting Flange |
N/A |
N/A |
N/A |
150-22-8 |
N/A |
1/2" ODF |
N/A |
5500 Series Steel Mounting Flange |
N/A |
N/A |
N/A |
5400-S2-12 |
Male |
1-1/4"-18 Threaded |
1-7/16"-16UN Threaded |
Self-Sealing Steel |
250 |
-40 |
700 |
5400-S2-16 |
Male |
1-19/32"-20 Threaded |
1-3/4"-16UN Threaded |
Self-Sealing Steel |
250 |
-40 |
700 |
5400-S2-4 |
Male |
1/2"-20 Threaded |
5/8"-18UNF Threaded |
Self-Sealing Steel |
250 |
-40 |
3000 |
5400-S2-8 |
Male |
7/8"-20 Threaded |
1"-20UNEF Threaded |
Self-Sealing Steel |
250 |
-40 |
1750 |
5400-S5-12 |
Female |
1-1/4"-18 Threaded |
1-7/16"-16UN Threaded |
Self-Sealing Steel |
250 |
-40 |
700 |
5400-S5-16 |
Female |
1-19/32"-20 Threaded |
1-3/4"-16UN Threaded |
Self-Sealing Steel |
250 |
-40 |
700 |
5400-S5-4 |
Female |
1/2"-20 Threaded |
5/8"-18UNF Threaded |
Self-Sealing Steel |
250 |
-40 |
3000 |
5400-S5-8 |
Female |
7/8"-20 Threaded |
1"-20UNEF Threaded |
Self-Sealing Steel |
250 |
-40 |
1750 |
5400-S6-12 |
N/A |
1-7/16"-16UN Threaded |
N/A |
Self-Sealing Steel Dust Cap with Gasket |
N/A |
N/A |
N/A |
5400-S6-16 |
N/A |
1-3/4"-16UN Threaded |
N/A |
Self-Sealing Steel Dust Cap with Gasket |
N/A |
N/A |
N/A |
5400-S6-4 |
N/A |
5/8"-18UNF Threaded |
N/A |
Self-Sealing Steel Dust Cap with Gasket |
N/A |
N/A |
N/A |
5400-S6-8 |
N/A |
1"-20UNEF Threaded |
N/A |
Self-Sealing Steel Dust Cap with Gasket |
N/A |
N/A |
N/A |
5400-S8-12 |
N/A |
1-7/16"-16UN Threaded |
N/A |
Self-Sealing Steel Dust Plug with Gasket |
N/A |
N/A |
N/A |
5400-S8-16 |
N/A |
1-3/4"-16UN Threaded |
N/A |
Self-Sealing Steel Dust Plug with Gasket |
N/A |
N/A |
N/A |
5400-S8-4 |
N/A |
5/8"-18UNF Threaded |
N/A |
Self-Sealing Steel Dust Plug with Gasket |
N/A |
N/A |
N/A |
5400-S8-8 |
N/A |
1"-20UNEF Threaded |
N/A |
Self-Sealing Steel Dust Plug with Gasket |
N/A |
N/A |
N/A |
5500-04-08 |
N/A |
1/4" ODF |
1/2" |
Self-Sealing Brass |
250 |
-40 |
750 |
5500-06-08 |
Male/Female Assembly |
3/8" ODF |
1/2" |
Self-Sealing Brass |
250 |
-40 |
750 |
5500-08-08 |
Male/Female Assembly |
1/2" ODF |
1/2" |
Self-Sealing Brass |
250 |
-40 |
750 |
5500-10-08 |
N/A |
5/8" ODF |
1/2" |
Self-Sealing Brass |
250 |
-40 |
750 |
5500-10-12 |
N/A |
5/8" ODF |
3/4" |
Self-Sealing Brass |
250 |
-40 |
750 |
5500-12-12 |
N/A |
3/4" ODF |
3/4" |
Self-Sealing Brass |
250 |
-40 |
750 |
5500-14-12 |
N/A |
7/8" ODF |
3/4" |
Self-Sealing Brass |
250 |
-40 |
750 |
5500-14-16 |
N/A |
7/8" ODF |
1" |
Self-Sealing Brass |
250 |
-40 |
750 |
5500-18-16 |
N/A |
1-1/8" ODF |
1" |
Self-Sealing Brass |
250 |
-40 |
750 |
5502-04B-06 |
Male |
1/4" ODF |
3/8" |
Self-Sealing Brass with Plastic Protective Cap |
250 |
-40 |
750 |
5502-04B-08 |
Male |
1/4" ODF |
1/2" |
Self-Sealing Brass with Plastic Protective Cap |
250 |
-40 |
750 |
5502-06B-06 |
Male |
3/8" ODF |
3/8" |
Self-Sealing Brass with Plastic Protective Cap |
250 |
-40 |
750 |
5502-06B-08 |
Male |
3/8" ODF |
1/2" |
Self-Sealing Brass with Plastic Protective Cap |
250 |
-40 |
750 |
5502-08B-08 |
Male |
1/2" ODF |
1/2" |
Self-Sealing Brass with Plastic Protective Cap |
250 |
-40 |
750 |
5502-10-12 |
Male |
5/8" ODF |
3/4" |
Self-Sealing Brass |
250 |
-40 |
750 |
5502-10B-08 |
Male |
5/8" ODF |
1/2" |
Self-Sealing Brass |
250 |
-40 |
750 |
5502-12-12 |
Male |
3/4" ODF |
3/4" |
Self-Sealing Brass |
250 |
-40 |
750 |
5502-14-12 |
Male |
7/8" ODF |
3/4" |
Self-Sealing Brass |
250 |
-40 |
750 |
5502-14-16 |
Male |
7/8" ODF |
1" |
Self-Sealing Brass |
250 |
-40 |
750 |
5505-04B-06 |
Female |
1/4" ODF |
3/8" |
Self-Sealing Brass with Plastic Protective Cap |
250 |
-40 |
750 |
5505-04B-08 |
Female |
1/4" ODF |
1/2" |
Self-Sealing Brass with Plastic Protective Cap |
250 |
-40 |
750 |
5505-06B-06 |
Female |
3/8" ODF |
3/8" |
Self-Sealing Brass with Plastic Protective Cap |
250 |
-40 |
750 |
5505-06B-08 |
Female |
3/8" ODF |
1/2" |
Self-Sealing Brass with Plastic Protective Cap |
250 |
-40 |
750 |
5505-08B-08 |
Female |
1/2" ODF |
1/2" |
Self-Sealing Brass with Plastic Protective Cap |
250 |
-40 |
750 |
5505-10-12 |
Female |
5/8" ODF |
3/4" |
Self-Sealing Brass |
250 |
-40 |
750 |
5505-10B-08 |
Female |
5/8" ODF |
1/2" |
Self-Sealing Brass with Plastic Protective Cap |
250 |
-40 |
750 |
5505-12-12 |
Female |
3/4" ODF |
3/4" |
Self-Sealing Brass |
250 |
-40 |
750 |
5505-14-12 |
Female |
7/8" ODF |
3/4" |
Self-Sealing Brass |
250 |
-40 |
750 |
5505-14-16 |
Female |
7/8" ODF |
1" |
Self-Sealing Brass |
250 |
-40 |
750 |
RC01C-002 |
N/A |
M14x1.5-6H |
13 mm |
Automotive Process Coupling - Low Side R-134a |
250 |
-40 |
500 |
RC01C-003 |
N/A |
M14x1.5-6H |
16 mm |
Automotive Process Coupling - High Side R-134a |
250 |
-40 |
500 |
RC01C-011 |
N/A |
7/16"-20 Male |
13 mm |
Automotive Process Coupling - Low Side R-134a |
250 |
-40 |
500 |
RC01C-012 |
N/A |
7/16"-20 Male |
16 mm |
Automotive Process Coupling - High Side R-134a |
250 |
-40 |
500 |
RC01YF-012 |
N/A |
N/A |
N/A |
Automotive Process Coupling - Low Side R-1243YF |
250 |
-40 |
500 |
RC01YF-013 |
N/A |
N/A |
N/A |
Automotive Process Coupling - High Side R-1243YF |
250 |
-40 |
500 |
|
