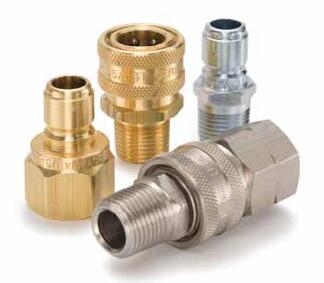

Parker ST Series are unvalved quick couplings
ST Series High Flow (Unvalved) - Brass, Stainless Steel, Steel Quick Couplings (hydraulic, fluids) up to 6700 psi



ST Series high flow Couplers (hydraulic, fluids) up to 6700 psi connect with ST Series high flow Nipples. Parker's ST Series are unvalved quick couplings with manual sleeves providing high flow and low pressure drop. The smooth, straight through flow path allows easy cleaning where the same lines are used for more than one media. These straight through couplers and nipples are available in a wide range of sizes and materials for pressure ranges up to 6700 psi.



Body Size: 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1 1/4, 1 1/2 inch
Maximum Operating Pressure: Up to 6700 psi, Up to 462 bar
Maximum Operating Temperature: Up to 204 °C, Up to 400 °F, 250 to 400 °F
Materials of Construction: Brass, Stainless steel
Valve Type: No Valve, Unvalved
Brand: Parker
Vacuum Pressure Rating: No
Fitting Connection Type: Female Thread, Male Thread
Flow Rate: 3 to 100 Gal/min
Seal Material: Nitrile, Fluorocarbon
Media: Hydraulic
Coupling Half: Coupler
Minimum Operating Temperature: -40 to -15 °F
Sleeve Type: Manual
Lock Type: Locking balls
Connection Type: NPTF
Application: Hydraulic, high flow



Technical Characteristics:
- Sizes: 1/8” – 1-1/2”
- Materials: Brass, 303 Stainless Steel
- Port Ends: Female NPTF, Male NPTF
- Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene
Other Coupler options include: Sleeve lock

Markets:
- Industrial
- Construction
- Commercial Cleaning
- Agriculture

Features/Benefits:
- Multi-purpose high flow coupling, widely used in varied applications
- Wide range of sizes and material options
- Optional coupler sleeve lock helps to prevent accidental disconnection
- Functionally interchanges with similar straight through quick couplings

Applications:
- High pressure water
- Steam washers
- Carpet cleaners



Related Documents
Literature and Reference Materials
Catalog 3800 Quick Coupling Products
ST Series Catalog





High Flow (Unvalved) - Brass, Stainless Steel, Steel Quick Couplings (hydraulic, fluids) up to 6700 psi - ST Series Couplers



Part

Maximum Working Pressure (psi)

Body Size (inch)

Body Material

Thread Style

Connection Thread Size (inch)

BST-1

2500

1/8

Brass

Female

1/8 - 27

BST-10

1700

1 1/4

Brass

Female

1 1/4 - 11 1/2

BST-12

1400

1 1/2

Brass

Female

1 1/2 - 11 1/2

BST-1M

2500

1/8

Brass

Male

1/8 - 27

BST-2

5200

1/4

Brass

Female

1/4 - 18

BST-2M

5200

1/4

Brass

Male

1/4 - 18

BST-3

2700

3/8

Brass

Female

3/8 - 18

BST-3M

2700

3/8

Brass

Male

3/8 - 18

BST-4

2200

1/2

Brass

Female

1/2 - 14

BST-4M

2200

1/2

Brass

Male

1/2 - 14

BST-6

1700

3/4

Brass

Female

3/4 - 14

BST-6M

1700

3/4

Brass

Male

3/4 - 14

BST-8

1200

1

Brass

Female

1 - 11 1/2

BST-8M

1200

1

Brass

Male

1 - 11 1/2

SSST-2Y

6700

1/4

316 stainless steel

Female

1/4 - 18

SSST-3Y

5500

3/8

316 stainless steel

Female

3/8 - 18

SST-1

4200

1/8

303 stainless steel

Female

1/8 - 27

SST-1M

4200

1/8

303 stainless steel

Male

1/8 - 27

SST-2

6700

1/4

303 stainless steel

Female

1/4 - 18

SST-2M

6700

1/4

303 stainless steel

Male

1/4 - 18

SST-3

5500

3/8

303 stainless steel

Female

3/8 - 18

SST-3M

5500

3/8

303 stainless steel

Male

3/8 - 18

SST-4

3000

1/2

303 stainless steel

Female

1/2 - 14

SST-4M

3000

1/2

303 stainless steel

Male

1/2 - 14

SST-6

3000

3/4

303 stainless steel

Female

3/4 - 14

SST-6M

3000

3/4

303 stainless steel

Male

3/4 - 14

SST-8

1700

1

303 stainless steel

Female

1 - 11 1/2

SST-8M

1700

1

303 stainless steel

Male

1 - 11 1/2



High Flow (Unvalved) - Brass, Stainless Steel, Steel Quick Couplings (hydraulic, fluids) up to 6700 psi - ST Series Nipples





Part

Maximum Working Pressure (psi)

Body Size (inch)

Body Material

Thread Style

Connection Thread Size (inch)

BST-N1

2500

1/8

Brass

Female

1/8 - 27

BST-N10

1700

1 1/4

Brass

Female

1 1/4 - 11 1/2

BST-N10M

1700

1 1/4

Brass

Male

1 1/4 - 11 1/2

BST-N12

1400

1 1/2

Brass

Female

1 1/2 - 11 1/2

BST-N12M

1400

1 1/2

Brass

Male

1 1/2 - 11 1/2

BST-N1M

2500

1/8

Brass

Male

1/8 - 27

BST-N2

5200

1/4

Brass

Female

1/4 - 18

BST-N2M

5200

1/4

Brass

Male

1/4 - 18

BST-N3

2700

3/8

Brass

Female

3/8 - 18

BST-N3M

2700

3/8

Brass

Male

3/8 - 18

BST-N4

2200

1/2

Brass

Female

1/2 - 14

BST-N4M

2200

1/2

Brass

Male

1/2 - 14

BST-N6

1700

3/4

Brass

Female

3/4 - 14

BST-N6M

1700

3/4

Brass

Male

3/4 - 14

BST-N8

1200

1

Brass

Female

1 - 11 1/2

BST-N8M

1200

1

Brass

Male

1 - 11 1/2

SSST-N2

6700

1/4

316 Stainless Steel

Female

1/4 - 18

SSST-N2M

6700

1/4

316 Stainless Steel

Male

1/4 - 18

SSST-N3M

5500

3/8

316 Stainless Steel

Male

3/8 - 18

SSST-N4

3000

1/2

316 Stainless Steel

Female

1/2 - 14

SST-N1

4200

1/8

303 Stainless Steel

Female

1/8 - 27

SST-N1M

4200

1/8

303 Stainless Steel

Male

1/8 - 27

SST-N2

6700

1/4

303 Stainless Steel

Female

1/4 - 18

SST-N2M

6700

1/4

303 Stainless Steel

Male

1/4 - 18

SST-N3

5500

3/8

303 Stainless Steel

Female

3/8 - 18

SST-N3M

5500

3/8

303 Stainless Steel

Male

3/8 - 18

SST-N4

3000

1/2

303 Stainless Steel

Female

1/2 - 14

SST-N4M

3000

1/2

303 Stainless Steel

Male

1/2 - 14

SST-N6

3000

3/4

303 Stainless Steel

Female

3/4 - 14

SST-N6M

3000

3/4

303 Stainless Steel

Male

3/4 - 14

SST-N8

1700

1

303 Stainless Steel

Female

1 - 11 1/2

SST-N8M

1700

1

303 Stainless Steel

Male

1 - 11 1/2

ST-N1

2600

1/8

Steel

Female

1/8 - 27

ST-N1M

2600

1/8

Steel

Male

1/8 - 27

ST-N2

5500

1/4

Steel

Female

1/4 - 18

ST-N2M

5500

1/4

Steel

Male

1/4 - 18

ST-N3

3500

3/8

Steel

Female

3/8 - 18

ST-N3M

3500

3/8

Steel

Male

3/8 - 18

ST-N4

2700

1/2

Steel

Female

1/2 - 14

ST-N4M

2700

1/2

Steel

Male

1/2 - 14

ST-N6

2700

3/4

Steel

Female

3/4 - 14

ST-N6M

2700

3/4

Steel

Male

3/4 - 14

ST-N8

2000

1

Steel

Female

1 - 11 1/2

ST-N8M

2000

1

Steel

Male

1 - 11 1/2
