Parker Skinner CNG High Pressure Solenoid Valves

为了提高环保意识，遵守政府的排放法规，减少对外国石油的依赖，清洁燃烧的替代燃料，如CNG（压缩天然气）已经成为一种可行的解决方案。派克流体控制部门致力于为这些和许多其他替代燃料应用提供系统解决方案。派克流体控制事业部现高兴地提供高压、高流量、低泄漏的CNG天然气阀门。本产品设计用于集成到压缩天然气燃料输送系统（即卡车、公共汽车等），利用单罐和多罐应用。

In an effort to be environmentally conscious, comply with government emission laws and decrease dependence on foreign oil, clean burning alterative fuels such as CNG (compressed natural gas) have become a viable solution. Parker Fluid Control Division is committed to providing system solutions for these and many other alternative fuel applications.Parker Fluid Control Division is now pleased to offer the high pressure,high flow, low leakage CNG natural gas valve. This product is designed for integration into compressed natural gas fuel delivery systems (i.e. trucks, buses, & etc…) utilizing single and multi-tank applications.

Parker Skinner CNG High Pressure Solenoid Valves pdf catalog

Key Features

Note: Consult Factory for other CNG valves used in installations after the CNG is regulated to a much lower pressure.

Control flow between fuel tanks and engine.

Electrical Characteristics:

Standard Materials of Construction:

*HNBR is a proprietary seal material

Installation:

Valve Assembly
Part Number**
Reference
Min.

Compressed Natural Gas Coil Valve part number 7121Z015NOL322C1
Compressed Natural Gas Coil Valve part number 7121Z015NOL322C2

1/4 0.031 0.021 0 4500 -10 170 22 Nylon 7121Z015NOL322xx 8 D59
** Replace "xx" at the end of the part number with "C1" for 12 VDC or "C2" for 24 VDC voltages.

High Pressure CNG Valve
CNG Valve + Coalescing Filter
(Watt) Seal Valve Number

Pilot Body Pilot Body Min. Max.
HNBR* 7121Z033N0L322C1
HNBR* 7121Z033N0L322C2

HNBR* 7121Z034N0L322C1
HNBR* 7121Z034N0L322C2

HNBR* 7121Z037N0L322C1
HNBR* 7121Z037N0L322C2

HNBR* 7121Z041N0L322C1
HNBR* 7121Z041N0L322C2
HNBR* 7121Z042N0L322C1
HNBR* 7121Z042N0L322C2

Nylon 7121Z015N0L322C1
Nylon 7121Z015N0L322C2

HNBR* 7121Z035N0L322C1
HNBR* 7121Z035N0L322C2

Low Pressure CNG Valve

73212BN3TNP8F7J222C1
73212BN3TNP8F7J222C2

73212BN4TNP8F7J222C1
73212BN4TNP8F7J222C2

* HNBR = Hydrogenated Nitrile
** Valve number ending in “C1” = 12VDC
Valve number ending in “C2” = 24VDC

Related Products:

CNG Series Electrically Conductive Compressed Natural Gas Hose

CNG Low Pressure Solenoid Valves

CNG Fuel Dispensing

Parker Fluid Control Division is committed to being environmentally conscious by developing valve products that comply with Government emission laws. This is just one reason our high flow, natural gas valves with hazardous class coils are in high demand for the fuel dispensing industry.In an effort to decrease dependence on foreign oil, clean burning alternative fuels like CNG (compressed natural gas) have become an ideal solution for fuel dispensing. CNG is the preferred alternative, not only for its lower flammability characteristics, but also for its cost effectiveness.Recognizing the ongoing need for alternative fuel dispensing solutions that are eco-friendly, Parker offers a high pressure, high flow CNG natural gas valve.Our CNG valves are designed for low leakage and are ideal for integration into compressed natural gas fuel dispensing systems where precise dispensing is required.Parker CNG natural gas valves are available in a wide pressure range of 0 to 4,500 PSI, with standard voltage options and the maximal allowed internal seat leakage for safe and reliable fuel dispensing solutions.Parker’s years of extensive experience as a multi technology provider (from fittings and couplings to manifolds and hoses), saves you time and money by reducing the need for multiple suppliers.

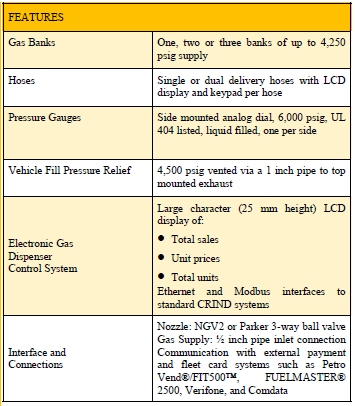

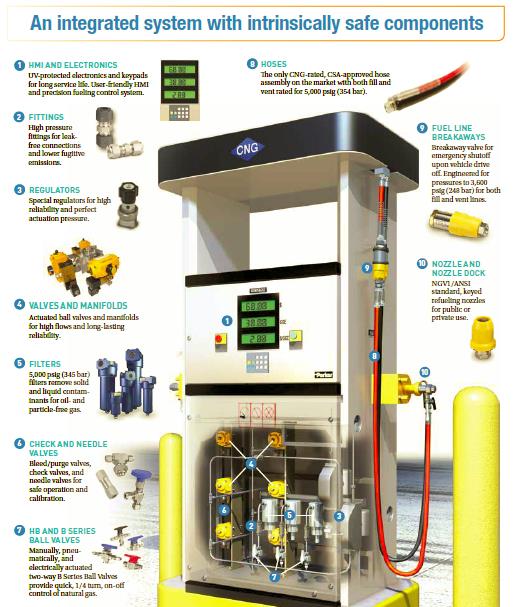

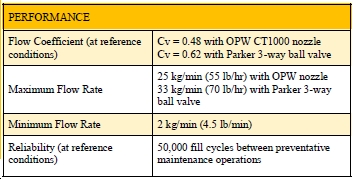

LNG/CNG Dispenser
Parker is an expert in natural gas. A leader in the design and manufacture of products and systems that filter, regulate, control, and measure compressed natural gas (CNG).

CNG Valve High pressure and high flow valves for compressed natural gas
