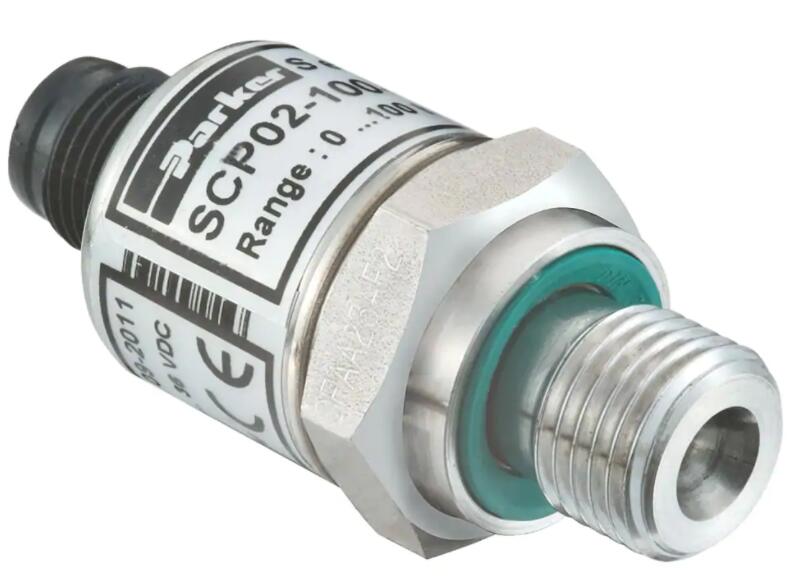

Parker派克Pressure Sensor SCP02,压力范围0-630bar
Parker派克压力传感器SCP02 | #SCP02-010-24-00
Parker派克压力传感器SensoControl SCP02专为在移动工作机中使用而设计。SCP02已获得e1批准,并根据ISO / TS 16949采用先进的生产方法制造。压力传感器SensoControl SCP02专为在移动工作机中使用而设计。SCP02已通过e1认证,并按照ISO / TS 16949的新生产方法进行制造。抗冲击和振动,EMC特性,电源以及扩展的温度范围均针对该应用类型而设计。 SCP02具有快速的响应速度,因此适用于快速控制解决方案。带有塑料连接器的紧凑型不锈钢外壳允许在恶劣的环境条件下使用,例如在移动液压系统中。与该物质接触的组件由不锈钢(1.4548)制成。此功能与焊接的薄层测量池相结合,可确保与物质的佳兼容性。添加了EDM孔,以便您进行精确,无干扰的压力测量。这样可以大程度地减少空气和污垢的气穴现象,从而防止测量单元受到压力波动和压力峰值的影响。The pressure sensor SensoControl SCP02 is designed especifically for the use in mobile working machines. The SCP02 has e1-approval and is manufactured with state of the art production methods according to ISO/TS 16949.

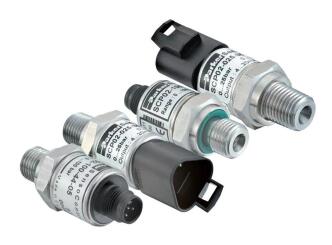

Parker pressure sensor SensoControl SCP02
市场:
- 汽车
- 国防
- 移动
- 运输
功能/优点:
- 小型设计
- 不锈钢测量单元
- 不锈钢外壳
- 防震和振动
- 防护等级高
- E1道路认可
- 物质温度-40至150°C
- 上至1000 bar
- 1毫秒
- 高达36V的接线系统
技术指标
- 端口尺寸:G 1/4“ BSPP
- 端口类型:BSPP
- 每盒数量:1个
- 运营压力:0…630 bar
- 输出类型:4…20 mA(3线)
- 电气连接:固定电缆1 m
- 高度:呐
- 重量:大约 55克
- 师:HPCE
- 行业:移动
- 宽度:主体直径21.3毫米
- 牌:SensoControl
- 产品款式:旋入式传感器
- 长度:28.8毫米(不带插头和连接器)
- 符合规格:CE认证
- 应用:压力测量
- 产品类别:压力传感器
- 技术:DMS
应用:
- 移动液压
- 运输车辆
- 输送车辆
- 商用车辆
- 汽车技术
- 制动系统
- 油压
- 测试设备和技术
- 变速箱控制
部件号 |
工作压力 |
输出类型 |
数量 / 箱 |
电气连接 |
端口类型 |
端口尺寸 |
SCP02-010-24-00 |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
SCP02-010-24-00Q9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
SCP02-010-24-05 |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-24-05Q9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-24-0A |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
SCP02-010-24-0AQ9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
SCP02-010-24-0D |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-24-0DQ9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-24-0E |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-24-0EQ9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-25-00 |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-25-00Q9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-25-05 |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-25-05Q9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-25-0A |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-25-0AQ9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-25-0D |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-25-0DQ9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-25-0E |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-25-0EQ9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-26-00 |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-26-00Q9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-26-05 |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-26-05Q9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-26-0A |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-26-0AQ9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-26-0D |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-26-0DQ9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-26-0E |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-26-0EQ9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-27-00 |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-27-00Q9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-27-05 |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-27-05Q9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-27-0A |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-27-0AQ9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-27-0D |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-27-0DQ9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-27-0E |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-27-0EQ9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-28-00 |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-28-00Q9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-28-05 |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-28-05Q9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-28-0A |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-28-0AQ9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-28-0D |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-28-0DQ9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-28-0E |
0 … 010 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-28-0EQ9 |
0 … 010 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
部件号 |
工作压力 |
输出类型 |
数量 / 箱 |
电气连接 |
端口类型 |
端口尺寸 |
SCP02-010-34-00 |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
SCP02-010-34-00Q9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
SCP02-010-34-05 |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-34-05Q9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-34-0A |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
SCP02-010-34-0AQ9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
SCP02-010-34-0D |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-34-0DQ9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-34-0E |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-34-0EQ9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-35-00 |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-35-00Q9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-35-05 |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-35-05Q9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-35-0A |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-35-0AQ9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-35-0D |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-35-0DQ9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-35-0E |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-35-0EQ9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-36-00 |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-36-00Q9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-36-05 |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-36-05Q9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-36-0A |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-36-0AQ9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-36-0D |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-36-0DQ9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-36-0E |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-36-0EQ9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-37-00 |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-37-00Q9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-37-05 |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-37-05Q9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-37-0A |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-37-0AQ9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-37-0D |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-37-0DQ9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-37-0E |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-37-0EQ9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-38-00 |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-38-00Q9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-38-05 |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-38-05Q9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-38-0A |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-38-0AQ9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-38-0D |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-38-0DQ9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-38-0E |
0 … 010 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-38-0EQ9 |
0 … 010 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
部件号 |
工作压力 |
输出类型 |
数量 / 箱 |
电气连接 |
端口类型 |
端口尺寸 |
SCP02-010-44-00 |
0 … 010 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
SCP02-010-44-00Q9 |
0 … 010 bar |
0 … 10 V |
100 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
SCP02-010-44-05 |
0 … 010 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-44-05Q9 |
0 … 010 bar |
0 … 10 V |
100 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-44-0A |
0 … 010 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
SCP02-010-44-0AQ9 |
0 … 010 bar |
0 … 10 V |
100 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
SCP02-010-44-0D |
0 … 010 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-44-0DQ9 |
0 … 010 bar |
0 … 10 V |
100 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-44-0E |
0 … 010 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-44-0EQ9 |
0 … 010 bar |
0 … 10 V |
100 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-45-00 |
0 … 010 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-45-00Q9 |
0 … 010 bar |
0 … 10 V |
100 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-45-05 |
0 … 010 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-45-05Q9 |
0 … 010 bar |
0 … 10 V |
100 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-45-0A |
0 … 010 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-45-0AQ9 |
0 … 010 bar |
0 … 10 V |
100 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-45-0D |
0 … 010 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-45-0DQ9 |
0 … 010 bar |
0 … 10 V |
100 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-45-0E |
0 … 010 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-45-0EQ9 |
0 … 010 bar |
0 … 10 V |
100 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-46-00 |
0 … 010 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-46-00Q9 |
0 … 010 bar |
0 … 10 V |
100 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-46-05 |
0 … 010 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-46-05Q9 |
0 … 010 bar |
0 … 10 V |
100 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-46-0A |
0 … 010 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-46-0AQ9 |
0 … 010 bar |
0 … 10 V |
100 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-46-0D |
0 … 010 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-46-0DQ9 |
0 … 010 bar |
0 … 10 V |
100 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-46-0E |
0 … 010 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-46-0EQ9 |
0 … 010 bar |
0 … 10 V |
100 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-47-00 |
0 … 010 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-47-00Q9 |
0 … 010 bar |
0 … 10 V |
100 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-47-05 |
0 … 010 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-47-05Q9 |
0 … 010 bar |
0 … 10 V |
100 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-47-0A |
0 … 010 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-47-0AQ9 |
0 … 010 bar |
0 … 10 V |
100 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-47-0D |
0 … 010 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-47-0DQ9 |
0 … 010 bar |
0 … 10 V |
100 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-47-0E |
0 … 010 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-47-0EQ9 |
0 … 010 bar |
0 … 10 V |
100 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-48-00 |
0 … 010 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-48-00Q9 |
0 … 010 bar |
0 … 10 V |
100 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-48-05 |
0 … 010 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-48-05Q9 |
0 … 010 bar |
0 … 10 V |
100 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-48-0A |
0 … 010 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-48-0AQ9 |
0 … 010 bar |
0 … 10 V |
100 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-48-0D |
0 … 010 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-48-0DQ9 |
0 … 010 bar |
0 … 10 V |
100 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-48-0E |
0 … 010 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-48-0EQ9 |
0 … 010 bar |
0 … 10 V |
100 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
部件号 |
工作压力 |
输出类型 |
数量 / 箱 |
电气连接 |
端口类型 |
端口尺寸 |
SCP02-010-A4-00 |
0 … 010 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
SCP02-010-A4-00Q9 |
0 … 010 bar |
0 … 5 V |
100 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
SCP02-010-A4-05 |
0 … 010 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-A4-05Q9 |
0 … 010 bar |
0 … 5 V |
100 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-A4-0A |
0 … 010 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
SCP02-010-A4-0AQ9 |
0 … 010 bar |
0 … 5 V |
100 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
SCP02-010-A4-0D |
0 … 010 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-A4-0DQ9 |
0 … 010 bar |
0 … 5 V |
100 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-A4-0E |
0 … 010 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-A4-0EQ9 |
0 … 010 bar |
0 … 5 V |
100 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-A5-00 |
0 … 010 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-A5-00Q9 |
0 … 010 bar |
0 … 5 V |
100 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-A5-05 |
0 … 010 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-A5-05Q9 |
0 … 010 bar |
0 … 5 V |
100 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-A5-0A |
0 … 010 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-A5-0AQ9 |
0 … 010 bar |
0 … 5 V |
100 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-A5-0D |
0 … 010 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-A5-0DQ9 |
0 … 010 bar |
0 … 5 V |
100 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-A5-0E |
0 … 010 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-A5-0EQ9 |
0 … 010 bar |
0 … 5 V |
100 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-A6-00 |
0 … 010 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-A6-00Q9 |
0 … 010 bar |
0 … 5 V |
100 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-A6-05 |
0 … 010 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-A6-05Q9 |
0 … 010 bar |
0 … 5 V |
100 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-A6-0A |
0 … 010 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-A6-0AQ9 |
0 … 010 bar |
0 … 5 V |
100 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-A6-0D |
0 … 010 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-A6-0DQ9 |
0 … 010 bar |
0 … 5 V |
100 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-A6-0E |
0 … 010 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-A6-0EQ9 |
0 … 010 bar |
0 … 5 V |
100 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-A7-00 |
0 … 010 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-A7-00Q9 |
0 … 010 bar |
0 … 5 V |
100 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-A7-05 |
0 … 010 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-A7-05Q9 |
0 … 010 bar |
0 … 5 V |
100 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-A7-0A |
0 … 010 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-A7-0AQ9 |
0 … 010 bar |
0 … 5 V |
100 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-A7-0D |
0 … 010 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-A7-0DQ9 |
0 … 010 bar |
0 … 5 V |
100 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-A7-0E |
0 … 010 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-A7-0EQ9 |
0 … 010 bar |
0 … 5 V |
100 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-A8-00 |
0 … 010 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-A8-00Q9 |
0 … 010 bar |
0 … 5 V |
100 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-A8-05 |
0 … 010 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-A8-05Q9 |
0 … 010 bar |
0 … 5 V |
100 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-A8-0A |
0 … 010 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-A8-0AQ9 |
0 … 010 bar |
0 … 5 V |
100 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-A8-0D |
0 … 010 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-A8-0DQ9 |
0 … 010 bar |
0 … 5 V |
100 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-A8-0E |
0 … 010 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-A8-0EQ9 |
0 … 010 bar |
0 … 5 V |
100 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
部件号 |
工作压力 |
输出类型 |
数量 / 箱 |
电气连接 |
端口类型 |
端口尺寸 |
SCP02-010-B4-00 |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
SCP02-010-B4-00Q9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
SCP02-010-B4-05 |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-B4-05Q9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-B4-0A |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
SCP02-010-B4-0AQ9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
SCP02-010-B4-0D |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-B4-0DQ9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-B4-0E |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-B4-0EQ9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-B5-00 |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-B5-00Q9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-B5-05 |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-B5-05Q9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-B5-0A |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-B5-0AQ9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-B5-0D |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-B5-0DQ9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-B5-0E |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-B5-0EQ9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-B6-00 |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-B6-00Q9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-B6-05 |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-B6-05Q9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-B6-0A |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-B6-0AQ9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-B6-0D |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-B6-0DQ9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-B6-0E |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-B6-0EQ9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-B7-00 |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-B7-00Q9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-B7-05 |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-B7-05Q9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-B7-0A |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-B7-0AQ9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-B7-0D |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-B7-0DQ9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-B7-0E |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-B7-0EQ9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-B8-00 |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-B8-00Q9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-B8-05 |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-B8-05Q9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-B8-0A |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-B8-0AQ9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-B8-0D |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-B8-0DQ9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-B8-0E |
0 … 010 bar |
1 … 6 V (nominal) |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-B8-0EQ9 |
0 … 010 bar |
1 … 6 V (nominal) |
100 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
部件号 |
工作压力 |
输出类型 |
数量 / 箱 |
电气连接 |
端口类型 |
端口尺寸 |
SCP02-010-K4-05 |
0 … 010 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-K4-05Q9 |
0 … 010 bar |
CAN Open |
100 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-K5-05 |
0 … 010 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-K5-05Q9 |
0 … 010 bar |
CAN Open |
100 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-K6-05 |
0 … 010 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-K6-05Q9 |
0 … 010 bar |
CAN Open |
100 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-K7-05 |
0 … 010 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-K7-05Q9 |
0 … 010 bar |
CAN Open |
100 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-K8-05 |
0 … 010 bar |
CAN Open |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-K8-05Q9 |
0 … 010 bar |
CAN Open |
100 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-010-R4-00 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
SCP02-010-R4-00Q9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
SCP02-010-R4-05 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-R4-05Q9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-R4-0A |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
SCP02-010-R4-0AQ9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
SCP02-010-R4-0D |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-R4-0DQ9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-R4-0E |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-R4-0EQ9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
SCP02-010-R5-00 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-R5-00Q9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-R5-05 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-R5-05Q9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-R5-0A |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-R5-0AQ9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-R5-0D |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-R5-0DQ9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-R5-0E |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-R5-0EQ9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-010-R6-00 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-R6-00Q9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-R6-05 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-R6-05Q9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-R6-0A |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-R6-0AQ9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-R6-0D |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-R6-0DQ9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-R6-0E |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-R6-0EQ9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-010-R7-00 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-R7-00Q9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-R7-05 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-R7-05Q9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-R7-0A |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-R7-0AQ9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-R7-0D |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-R7-0DQ9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-R7-0E |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-010-R7-0EQ9 |
0 … 010 bar |
0,5 … 4,5 V (ratiometric) |
100 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
部件号 |
工作压力 |
输出类型 |
数量 / 箱 |
电气连接 |
端口类型 |
端口尺寸 |
SCP02-025-28-00 |
0 … 025 bar |
4 … 20 mA (3-wire) |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-28-00Q9 |
0 … 025 bar |
4 … 20 mA (3-wire) |
100 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-28-05 |
0 … 025 bar |
4 … 20 mA (3-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-28-05Q9 |
0 … 025 bar |
4 … 20 mA (3-wire) |
100 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-28-0A |
0 … 025 bar |
4 … 20 mA (3-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-28-0AQ9 |
0 … 025 bar |
4 … 20 mA (3-wire) |
100 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-28-0D |
0 … 025 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-28-0DQ9 |
0 … 025 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-28-0E |
0 … 025 bar |
4 … 20 mA (3-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-28-0EQ9 |
0 … 025 bar |
4 … 20 mA (3-wire) |
100 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-34-00 |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
SCP02-025-34-00Q9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
SCP02-025-34-05 |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
SCP02-025-34-05Q9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
SCP02-025-34-0A |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
SCP02-025-34-0AQ9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
SCP02-025-34-0D |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
SCP02-025-34-0DQ9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
SCP02-025-34-0E |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
SCP02-025-34-0EQ9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
SCP02-025-35-00 |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-35-00Q9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-35-05 |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-35-05Q9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-35-0A |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-35-0AQ9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-35-0D |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-35-0DQ9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-35-0E |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-35-0EQ9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-36-00 |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-36-00Q9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-36-05 |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-36-05Q9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-36-0A |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-36-0AQ9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-36-0D |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-36-0DQ9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-36-0E |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-36-0EQ9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-37-00 |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-37-00Q9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-37-05 |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-37-05Q9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-37-0A |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-37-0AQ9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-37-0D |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-37-0DQ9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-37-0E |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-37-0EQ9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
部件号 |
工作压力 |
输出类型 |
数量 / 箱 |
电气连接 |
端口类型 |
端口尺寸 |
SCP02-025-38-00 |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-38-00Q9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-38-05 |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-38-05Q9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-38-0A |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-38-0AQ9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-38-0D |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-38-0DQ9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-38-0E |
0 … 025 bar |
4 … 20 mA (2-wire) |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-38-0EQ9 |
0 … 025 bar |
4 … 20 mA (2-wire) |
100 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-44-00 |
0 … 025 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
SCP02-025-44-00Q9 |
0 … 025 bar |
0 … 10 V |
100 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
SCP02-025-44-05 |
0 … 025 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
SCP02-025-44-05Q9 |
0 … 025 bar |
0 … 10 V |
100 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
SCP02-025-44-0A |
0 … 025 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
SCP02-025-44-0AQ9 |
0 … 025 bar |
0 … 10 V |
100 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
SCP02-025-44-0D |
0 … 025 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
SCP02-025-44-0DQ9 |
0 … 025 bar |
0 … 10 V |
100 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
SCP02-025-44-0E |
0 … 025 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
SCP02-025-44-0EQ9 |
0 … 025 bar |
0 … 10 V |
100 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
SCP02-025-45-00 |
0 … 025 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-45-00Q9 |
0 … 025 bar |
0 … 10 V |
100 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-45-05 |
0 … 025 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-45-05Q9 |
0 … 025 bar |
0 … 10 V |
100 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-45-0A |
0 … 025 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-45-0AQ9 |
0 … 025 bar |
0 … 10 V |
100 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-45-0D |
0 … 025 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-45-0DQ9 |
0 … 025 bar |
0 … 10 V |
100 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-45-0E |
0 … 025 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-45-0EQ9 |
0 … 025 bar |
0 … 10 V |
100 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-46-00 |
0 … 025 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-46-00Q9 |
0 … 025 bar |
0 … 10 V |
100 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-46-05 |
0 … 025 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-46-05Q9 |
0 … 025 bar |
0 … 10 V |
100 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-46-0A |
0 … 025 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-46-0AQ9 |
0 … 025 bar |
0 … 10 V |
100 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-46-0D |
0 … 025 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-46-0DQ9 |
0 … 025 bar |
0 … 10 V |
100 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-46-0E |
0 … 025 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-46-0EQ9 |
0 … 025 bar |
0 … 10 V |
100 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-47-00 |
0 … 025 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-47-00Q9 |
0 … 025 bar |
0 … 10 V |
100 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-47-05 |
0 … 025 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-47-05Q9 |
0 … 025 bar |
0 … 10 V |
100 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-47-0A |
0 … 025 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-47-0AQ9 |
0 … 025 bar |
0 … 10 V |
100 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-47-0D |
0 … 025 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-47-0DQ9 |
0 … 025 bar |
0 … 10 V |
100 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-47-0E |
0 … 025 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-47-0EQ9 |
0 … 025 bar |
0 … 10 V |
100 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
部件号 |
工作压力 |
输出类型 |
数量 / 箱 |
电气连接 |
端口类型 |
端口尺寸 |
SCP02-025-48-00 |
0 … 025 bar |
0 … 10 V |
1 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-48-00Q9 |
0 … 025 bar |
0 … 10 V |
100 |
Stationary cable 1 m |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-48-05 |
0 … 025 bar |
0 … 10 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-48-05Q9 |
0 … 025 bar |
0 … 10 V |
100 |
Circular connector M12x1 5-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-48-0A |
0 … 025 bar |
0 … 10 V |
1 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-48-0AQ9 |
0 … 025 bar |
0 … 10 V |
100 |
Device plug AMP Superseal |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-48-0D |
0 … 025 bar |
0 … 10 V |
1 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-48-0DQ9 |
0 … 025 bar |
0 … 10 V |
100 |
Device plug DT04 4-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-48-0E |
0 … 025 bar |
0 … 10 V |
1 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-48-0EQ9 |
0 … 025 bar |
0 … 10 V |
100 |
Device plug DT04 3-pole |
BSPP |
G1/4" BSPP O ring (Pn ≤ 600 bar) |
SCP02-025-A4-00 |
0 … 025 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
SCP02-025-A4-00Q9 |
0 … 025 bar |
0 … 5 V |
100 |
Stationary cable 1 m |
BSPP |
G 1/4" BSPP |
SCP02-025-A4-05 |
0 … 025 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
SCP02-025-A4-05Q9 |
0 … 025 bar |
0 … 5 V |
100 |
Circular connector M12x1 5-pole |
BSPP |
G 1/4" BSPP |
SCP02-025-A4-0A |
0 … 025 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
SCP02-025-A4-0AQ9 |
0 … 025 bar |
0 … 5 V |
100 |
Device plug AMP Superseal |
BSPP |
G 1/4" BSPP |
SCP02-025-A4-0D |
0 … 025 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
SCP02-025-A4-0DQ9 |
0 … 025 bar |
0 … 5 V |
100 |
Device plug DT04 4-pole |
BSPP |
G 1/4" BSPP |
SCP02-025-A4-0E |
0 … 025 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
SCP02-025-A4-0EQ9 |
0 … 025 bar |
0 … 5 V |
100 |
Device plug DT04 3-pole |
BSPP |
G 1/4" BSPP |
SCP02-025-A5-00 |
0 … 025 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-A5-00Q9 |
0 … 025 bar |
0 … 5 V |
100 |
Stationary cable 1 m |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-A5-05 |
0 … 025 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-A5-05Q9 |
0 … 025 bar |
0 … 5 V |
100 |
Circular connector M12x1 5-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-A5-0A |
0 … 025 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-A5-0AQ9 |
0 … 025 bar |
0 … 5 V |
100 |
Device plug AMP Superseal |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-A5-0D |
0 … 025 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-A5-0DQ9 |
0 … 025 bar |
0 … 5 V |
100 |
Device plug DT04 4-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-A5-0E |
0 … 025 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-A5-0EQ9 |
0 … 025 bar |
0 … 5 V |
100 |
Device plug DT04 3-pole |
NPT |
1/4 NPT (Pn ≤ 600 bar) |
SCP02-025-A6-00 |
0 … 025 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-A6-00Q9 |
0 … 025 bar |
0 … 5 V |
100 |
Stationary cable 1 m |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-A6-05 |
0 … 025 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-A6-05Q9 |
0 … 025 bar |
0 … 5 V |
100 |
Circular connector M12x1 5-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-A6-0A |
0 … 025 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-A6-0AQ9 |
0 … 025 bar |
0 … 5 V |
100 |
Device plug AMP Superseal |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-A6-0D |
0 … 025 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-A6-0DQ9 |
0 … 025 bar |
0 … 5 V |
100 |
Device plug DT04 4-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-A6-0E |
0 … 025 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-A6-0EQ9 |
0 … 025 bar |
0 … 5 V |
100 |
Device plug DT04 3-pole |
UNF |
9/16-18 UNF, SAE-6 O ring (Pn ≤ 400 bar) |
SCP02-025-A7-00 |
0 … 025 bar |
0 … 5 V |
1 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-A7-00Q9 |
0 … 025 bar |
0 … 5 V |
100 |
Stationary cable 1 m |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-A7-05 |
0 … 025 bar |
0 … 5 V |
1 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-A7-05Q9 |
0 … 025 bar |
0 … 5 V |
100 |
Circular connector M12x1 5-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-A7-0A |
0 … 025 bar |
0 … 5 V |
1 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-A7-0AQ9 |
0 … 025 bar |
0 … 5 V |
100 |
Device plug AMP Superseal |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-A7-0D |
0 … 025 bar |
0 … 5 V |
1 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-A7-0DQ9 |
0 … 025 bar |
0 … 5 V |
100 |
Device plug DT04 4-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-A7-0E |
0 … 025 bar |
0 … 5 V |
1 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
SCP02-025-A7-0EQ9 |
0 … 025 bar |
0 … 5 V |
100 |
Device plug DT04 3-pole |
UNF |
7/16-20 UNF SAE-4 O ring (Pn ≤ 400 bar) |
|
