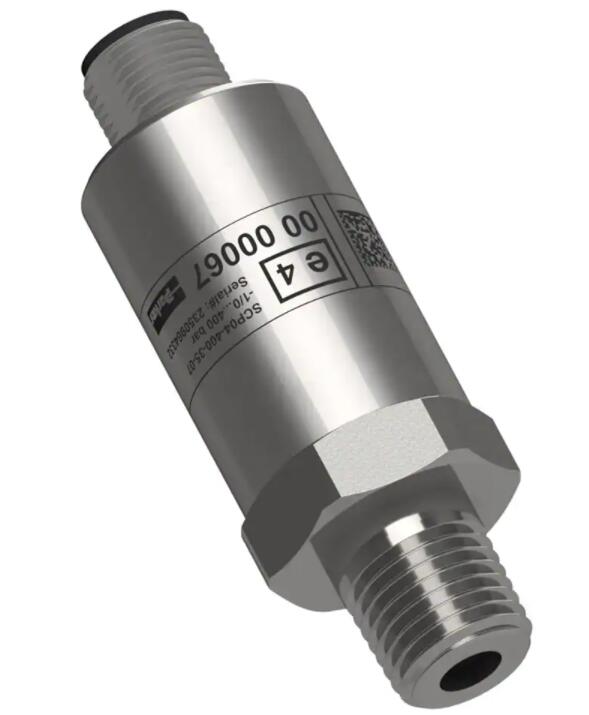

SCP04氢气压力传感器 / SensoControl SCP04 Hydrogen Pressure Sensor
派克汉尼汾推出适用于氢气应用的新型SensoControl压力传感器SCP04
SCP04压力传感器设计应用于氢气,并符合其化学和物理要求。数字校准的压阻式不锈钢测量元件可以检测到从4 bar到1000 bar范围内的压力。粘结的连接销,即使在低温、冲击或振动的情况下也能保持稳定。测量元件与介质接触的压力连接采用一体式设计。因此,无需使用内部密封件,也不会有焊缝。无材料混淆。该结构设计可使金属表面免于电离氢脆化。一体式设计解除了因内部密封材料疲劳而导致的泄漏。SCP04无压力传输流体,没有大的受压区域,并且使真空密封和不含弹性体的。由此产生的低渗透性与不锈钢相结合,使其具备了广泛的介质兼容性。为配合氢气应用,工艺连接也采用了无垫片设计。
紧凑的不锈钢外壳设计,在恶劣的环境条件应用下表现优越。
SCP04氢气压力传感器 / SensoControl SCP04 Hydrogen Pressure Sensor
派克汉尼汾推出适用于氢气应用的新型SensoControl压力传感器SCP04
特性/优势:
- 一体式设计
- 无内部密封件
- 无材料混淆
- 无焊缝
- 正在申请EC79/2009
- 介质兼容性高
- 氢气
- 耐负压
- 最高工作压力可达1000 bar
- 有多种连接
市场:
- 能源
- 环境
- 工业
- 基础设施
- 机床
- 物料搬运
- 发电
- 工艺
- 工程机械
- 动力单元
应用:
- 氢气应用
SCP04-004-35-0E
SCP04-004 35-0EQ2
SCP04-004-35-0EQ8
SCP04-004-35-07S
CP04-025-A5-07Q8
SCP04-025-R7-0E
SCP04-025-R7-0EQ
2SCP04-025-R7-0EQ8
SCP04-025-35-07
SCP04-1000-R5-0E
SCP04-1000-R5-0EQ2
SCP04-1000-R5-0EQ8
SCP04-1000-R5-07
SCP04-1000-R6-0E
SCP04-1000-R6-0EQ2
SCP04-1000-R6-0EQ8
SCP04-1000-R7-0E
SCP04-1000-R7-0EQ2
SCP04-1000-R7-0EQ8
SCP04-1000-R7-076
SCP04-400-OE
SCP04-500-R6-0EQ2
SCP04-500-R6-0EQ8
SCP04-500-R7-0E
SCP04-500-R7-0EQ2
SCP04-600-35-07
技术规格:
工作压力:0 .. 004, 0 ... 025, 0 ... 400, 0500, 0 ... 600, 0 ... 1000 bar
行业:Industrial
品牌:SensoControl
长度:
应用:Hydrogen applications
技术: Piezoresistive stainless steelmeasuring cell
端口类型:1/4 NPT 7/16"-20UNF-2AG1/4 B (EN 837)
宽度:
数量/箱:50
工作温度:-40 to 105 ,-40 to 221 F
重重:approx. 120 g
输出类型:0,5 ... 4,5 V (ratiometric), 010 V, 4 ... 20 mA (2-wire)
电气连接:Circular connector M12X1 4-pole, Device connector DIN EN175301-803 Form A 4-poleDevice plug DT04 3-pole
端口尺寸:1/4 NPT 7/16"-20UNF-2AG1/4 B(EN 837)
产品类型Pressure sensor
高度:
分部:HPCE
产品风格:Monolithic design
符合规格:CE
部件 |
工作压力 |
输出类型 |
端口尺寸 |
电气连接 |
SCP04-004-35-06-Q8 |
0 … 004 |
4 … 20 mA (2-wire) |
1/4 NPT |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-004-35-07-Q8 |
0 … 004 |
4 … 20 mA (2-wire) |
1/4 NPT |
Circular connector M12x1 4-pole |
SCP04-004-35-0E-Q8 |
0 … 004 |
4 … 20 mA (2-wire) |
1/4 NPT |
Device plug DT04 3-pole |
SCP04-004-37-06-Q8 |
0 … 004 |
4 … 20 mA (2-wire) |
7/16"-20UNF-2A |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-004-37-07-Q8 |
0 … 004 |
4 … 20 mA (2-wire) |
7/16"-20UNF-2A |
Circular connector M12x1 4-pole |
SCP04-004-37-0E-Q8 |
0 … 004 |
4 … 20 mA (2-wire) |
7/16"-20UNF-2A |
Device plug DT04 3-pole |
SCP04-004-3A-06-Q8 |
0 … 004 |
4 … 20 mA (2-wire) |
G1/4 B (EN 837) |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-004-3A-07-Q8 |
0 … 004 |
4 … 20 mA (2-wire) |
G1/4 B (EN 837) |
Circular connector M12x1 4-pole |
SCP04-004-3A-0E-Q8 |
0 … 004 |
4 … 20 mA (2-wire) |
G1/4 B (EN 837) |
Device plug DT04 3-pole |
SCP04-004-45-06-Q8 |
0 … 004 |
0 … 10 V |
1/4 NPT |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-004-45-07-Q8 |
0 … 004 |
0 … 10 V |
1/4 NPT |
Circular connector M12x1 4-pole |
SCP04-004-45-0E-Q8 |
0 … 004 |
0 … 10 V |
1/4 NPT |
Device plug DT04 3-pole |
SCP04-004-47-06-Q8 |
0 … 004 |
0 … 10 V |
7/16"-20UNF-2A |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-004-47-07-Q8 |
0 … 004 |
0 … 10 V |
7/16"-20UNF-2A |
Circular connector M12x1 4-pole |
SCP04-004-47-0E-Q8 |
0 … 004 |
0 … 10 V |
7/16"-20UNF-2A |
Device plug DT04 3-pole |
SCP04-004-4A-06-Q8 |
0 … 004 |
0 … 10 V |
G1/4 B (EN 837) |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-004-4A-07-Q8 |
0 … 004 |
0 … 10 V |
G1/4 B (EN 837) |
Circular connector M12x1 4-pole |
SCP04-004-4A-0E-Q8 |
0 … 004 |
0 … 10 V |
G1/4 B (EN 837) |
Device plug DT04 3-pole |
SCP04-004-R5-06-Q8 |
0 … 004 |
0,5 … 4,5 V (ratiometric) |
1/4 NPT |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-004-R5-07-Q8 |
0 … 004 |
0,5 … 4,5 V (ratiometric) |
1/4 NPT |
Circular connector M12x1 4-pole |
SCP04-004-R5-0E-Q8 |
0 … 004 |
0,5 … 4,5 V (ratiometric) |
1/4 NPT |
Device plug DT04 3-pole |
SCP04-004-R7-06-Q8 |
0 … 004 |
0,5 … 4,5 V (ratiometric) |
7/16"-20UNF-2A |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-004-R7-07-Q8 |
0 … 004 |
0,5 … 4,5 V (ratiometric) |
7/16"-20UNF-2A |
Circular connector M12x1 4-pole |
SCP04-004-R7-0E-Q8 |
0 … 004 |
0,5 … 4,5 V (ratiometric) |
7/16"-20UNF-2A |
Device plug DT04 3-pole |
SCP04-004-RA-06-Q8 |
0 … 004 |
0,5 … 4,5 V (ratiometric) |
G1/4 B (EN 837) |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-004-RA-07-Q8 |
0 … 004 |
0,5 … 4,5 V (ratiometric) |
G1/4 B (EN 837) |
Circular connector M12x1 4-pole |
SCP04-004-RA-0E-Q8 |
0 … 004 |
0,5 … 4,5 V (ratiometric) |
G1/4 B (EN 837) |
Device plug DT04 3-pole |
SCP04-025-35-06-Q8 |
0 … 025 |
4 … 20 mA (2-wire) |
1/4 NPT |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-025-35-07-Q8 |
0 … 025 |
4 … 20 mA (2-wire) |
1/4 NPT |
Circular connector M12x1 4-pole |
SCP04-025-35-0E-Q8 |
0 … 025 |
4 … 20 mA (2-wire) |
1/4 NPT |
Device plug DT04 3-pole |
SCP04-025-37-06-Q8 |
0 … 025 |
4 … 20 mA (2-wire) |
7/16"-20UNF-2A |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-025-37-07-Q8 |
0 … 025 |
4 … 20 mA (2-wire) |
7/16"-20UNF-2A |
Circular connector M12x1 4-pole |
SCP04-025-37-0E-Q8 |
0 … 025 |
4 … 20 mA (2-wire) |
7/16"-20UNF-2A |
Device plug DT04 3-pole |
SCP04-025-3A-06-Q8 |
0 … 025 |
4 … 20 mA (2-wire) |
G1/4 B (EN 837) |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-025-3A-07-Q8 |
0 … 025 |
4 … 20 mA (2-wire) |
G1/4 B (EN 837) |
Circular connector M12x1 4-pole |
SCP04-025-3A-0E-Q8 |
0 … 025 |
4 … 20 mA (2-wire) |
G1/4 B (EN 837) |
Device plug DT04 3-pole |
SCP04-025-45-06-Q8 |
0 … 025 |
0 … 10 V |
1/4 NPT |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-025-45-07-Q8 |
0 … 025 |
0 … 10 V |
1/4 NPT |
Circular connector M12x1 4-pole |
SCP04-025-45-0E-Q8 |
0 … 025 |
0 … 10 V |
1/4 NPT |
Device plug DT04 3-pole |
SCP04-025-47-06-Q8 |
0 … 025 |
0 … 10 V |
7/16"-20UNF-2A |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-025-47-07-Q8 |
0 … 025 |
0 … 10 V |
7/16"-20UNF-2A |
Circular connector M12x1 4-pole |
SCP04-025-47-0E-Q8 |
0 … 025 |
0 … 10 V |
7/16"-20UNF-2A |
Device plug DT04 3-pole |
SCP04-025-4A-06-Q8 |
0 … 025 |
0 … 10 V |
G1/4 B (EN 837) |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-025-4A-07-Q8 |
0 … 025 |
0 … 10 V |
G1/4 B (EN 837) |
Circular connector M12x1 4-pole |
SCP04-025-4A-0E-Q8 |
0 … 025 |
0 … 10 V |
G1/4 B (EN 837) |
Device plug DT04 3-pole |
SCP04-025-R5-06-Q8 |
0 … 025 |
0,5 … 4,5 V (ratiometric) |
1/4 NPT |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-025-R5-07-Q8 |
0 … 025 |
0,5 … 4,5 V (ratiometric) |
1/4 NPT |
Circular connector M12x1 4-pole |
SCP04-025-R5-0E-Q8 |
0 … 025 |
0,5 … 4,5 V (ratiometric) |
1/4 NPT |
Device plug DT04 3-pole |
SCP04-025-R7-06-Q8 |
0 … 025 |
0,5 … 4,5 V (ratiometric) |
7/16"-20UNF-2A |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-025-R7-07-Q8 |
0 … 025 |
0,5 … 4,5 V (ratiometric) |
7/16"-20UNF-2A |
Circular connector M12x1 4-pole |
部件 |
工作压力 |
输出类型 |
端口尺寸 |
电气连接 |
SCP04-025-R7-0E-Q8 |
0 … 025 |
0,5 … 4,5 V (ratiometric) |
7/16"-20UNF-2A |
Device plug DT04 3-pole |
SCP04-025-RA-06-Q8 |
0 … 025 |
0,5 … 4,5 V (ratiometric) |
G1/4 B (EN 837) |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-025-RA-07-Q8 |
0 … 025 |
0,5 … 4,5 V (ratiometric) |
G1/4 B (EN 837) |
Circular connector M12x1 4-pole |
SCP04-025-RA-0E-Q8 |
0 … 025 |
0,5 … 4,5 V (ratiometric) |
G1/4 B (EN 837) |
Device plug DT04 3-pole |
SCP04-1000-35-06-Q8 |
0 … 1000 |
4 … 20 mA (2-wire) |
1/4 NPT |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-1000-35-07-Q8 |
0 … 1000 |
4 … 20 mA (2-wire) |
1/4 NPT |
Circular connector M12x1 4-pole |
SCP04-1000-35-0E-Q8 |
0 … 1000 |
4 … 20 mA (2-wire) |
1/4 NPT |
Device plug DT04 3-pole |
SCP04-1000-37-06-Q8 |
0 … 1000 |
4 … 20 mA (2-wire) |
7/16"-20UNF-2A |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-1000-37-07-Q8 |
0 … 1000 |
4 … 20 mA (2-wire) |
7/16"-20UNF-2A |
Circular connector M12x1 4-pole |
SCP04-1000-37-0E-Q8 |
0 … 1000 |
4 … 20 mA (2-wire) |
7/16"-20UNF-2A |
Device plug DT04 3-pole |
SCP04-1000-3A-06-Q8 |
0 … 1000 |
4 … 20 mA (2-wire) |
G1/4 B (EN 837) |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-1000-3A-07-Q8 |
0 … 1000 |
4 … 20 mA (2-wire) |
G1/4 B (EN 837) |
Circular connector M12x1 4-pole |
SCP04-1000-3A-0E-Q8 |
0 … 1000 |
4 … 20 mA (2-wire) |
G1/4 B (EN 837) |
Device plug DT04 3-pole |
SCP04-1000-45-06-Q8 |
0 … 1000 |
0 … 10 V |
1/4 NPT |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-1000-45-07-Q8 |
0 … 1000 |
0 … 10 V |
1/4 NPT |
Circular connector M12x1 4-pole |
SCP04-1000-45-0E-Q8 |
0 … 1000 |
0 … 10 V |
1/4 NPT |
Device plug DT04 3-pole |
SCP04-1000-47-06-Q8 |
0 … 1000 |
0 … 10 V |
7/16"-20UNF-2A |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-1000-47-07-Q8 |
0 … 1000 |
0 … 10 V |
7/16"-20UNF-2A |
Circular connector M12x1 4-pole |
SCP04-1000-47-0E-Q8 |
0 … 1000 |
0 … 10 V |
7/16"-20UNF-2A |
Device plug DT04 3-pole |
SCP04-1000-4A-06-Q8 |
0 … 1000 |
0 … 10 V |
G1/4 B (EN 837) |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-1000-4A-07-Q8 |
0 … 1000 |
0 … 10 V |
G1/4 B (EN 837) |
Circular connector M12x1 4-pole |
SCP04-1000-4A-0E-Q8 |
0 … 1000 |
0 … 10 V |
G1/4 B (EN 837) |
Device plug DT04 3-pole |
SCP04-1000-R5-06-Q8 |
0 … 1000 |
0,5 … 4,5 V (ratiometric) |
1/4 NPT |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-1000-R5-07-Q8 |
0 … 1000 |
0,5 … 4,5 V (ratiometric) |
1/4 NPT |
Circular connector M12x1 4-pole |
SCP04-1000-R5-0E-Q8 |
0 … 1000 |
0,5 … 4,5 V (ratiometric) |
1/4 NPT |
Device plug DT04 3-pole |
SCP04-1000-R7-06-Q8 |
0 … 1000 |
0,5 … 4,5 V (ratiometric) |
7/16"-20UNF-2A |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-1000-R7-07-Q8 |
0 … 1000 |
0,5 … 4,5 V (ratiometric) |
7/16"-20UNF-2A |
Circular connector M12x1 4-pole |
SCP04-1000-R7-0E-Q8 |
0 … 1000 |
0,5 … 4,5 V (ratiometric) |
7/16"-20UNF-2A |
Device plug DT04 3-pole |
SCP04-1000-RA-06-Q8 |
0 … 1000 |
0,5 … 4,5 V (ratiometric) |
G1/4 B (EN 837) |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-1000-RA-07-Q8 |
0 … 1000 |
0,5 … 4,5 V (ratiometric) |
G1/4 B (EN 837) |
Circular connector M12x1 4-pole |
SCP04-1000-RA-0E-Q8 |
0 … 1000 |
0,5 … 4,5 V (ratiometric) |
G1/4 B (EN 837) |
Device plug DT04 3-pole |
SCP04-400-35-06-Q8 |
0 … 400 |
4 … 20 mA (2-wire) |
1/4 NPT |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-400-35-07-Q8 |
0 … 400 |
4 … 20 mA (2-wire) |
1/4 NPT |
Circular connector M12x1 4-pole |
SCP04-400-35-0E-Q8 |
0 … 400 |
4 … 20 mA (2-wire) |
1/4 NPT |
Device plug DT04 3-pole |
SCP04-400-37-06-Q8 |
0 … 400 |
4 … 20 mA (2-wire) |
7/16"-20UNF-2A |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-400-37-07-Q8 |
0 … 400 |
4 … 20 mA (2-wire) |
7/16"-20UNF-2A |
Circular connector M12x1 4-pole |
SCP04-400-37-0E-Q8 |
0 … 400 |
4 … 20 mA (2-wire) |
7/16"-20UNF-2A |
Device plug DT04 3-pole |
SCP04-400-3A-06-Q8 |
0 … 400 |
4 … 20 mA (2-wire) |
G1/4 B (EN 837) |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-400-3A-07-Q8 |
0 … 400 |
4 … 20 mA (2-wire) |
G1/4 B (EN 837) |
Circular connector M12x1 4-pole |
SCP04-400-3A-0E-Q8 |
0 … 400 |
4 … 20 mA (2-wire) |
G1/4 B (EN 837) |
Device plug DT04 3-pole |
SCP04-400-45-06-Q8 |
0 … 400 |
0 … 10 V |
1/4 NPT |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-400-45-07-Q8 |
0 … 400 |
0 … 10 V |
1/4 NPT |
Circular connector M12x1 4-pole |
SCP04-400-45-0E-Q8 |
0 … 400 |
0 … 10 V |
1/4 NPT |
Device plug DT04 3-pole |
SCP04-400-47-06-Q8 |
0 … 400 |
0 … 10 V |
7/16"-20UNF-2A |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-400-47-07-Q8 |
0 … 400 |
0 … 10 V |
7/16"-20UNF-2A |
Circular connector M12x1 4-pole |
SCP04-400-47-0E-Q8 |
0 … 400 |
0 … 10 V |
7/16"-20UNF-2A |
Device plug DT04 3-pole |
SCP04-400-4A-06-Q8 |
0 … 400 |
0 … 10 V |
G1/4 B (EN 837) |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-400-4A-07-Q8 |
0 … 400 |
0 … 10 V |
G1/4 B (EN 837) |
Circular connector M12x1 4-pole |
SCP04-400-4A-0E-Q8 |
0 … 400 |
0 … 10 V |
G1/4 B (EN 837) |
Device plug DT04 3-pole |
SCP04-400-R5-06-Q8 |
0 … 400 |
0,5 … 4,5 V (ratiometric) |
1/4 NPT |
Device connector DIN EN 175301-803 Form A 4-pole |
部件 |
工作压力 |
输出类型 |
端口尺寸 |
电气连接 |
SCP04-400-R5-07-Q8 |
0 … 400 |
0,5 … 4,5 V (ratiometric) |
1/4 NPT |
Circular connector M12x1 4-pole |
SCP04-400-R5-0E-Q8 |
0 … 400 |
0,5 … 4,5 V (ratiometric) |
1/4 NPT |
Device plug DT04 3-pole |
SCP04-400-R7-06-Q8 |
0 … 400 |
0,5 … 4,5 V (ratiometric) |
7/16"-20UNF-2A |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-400-R7-07-Q8 |
0 … 400 |
0,5 … 4,5 V (ratiometric) |
7/16"-20UNF-2A |
Circular connector M12x1 4-pole |
SCP04-400-R7-0E-Q8 |
0 … 400 |
0,5 … 4,5 V (ratiometric) |
7/16"-20UNF-2A |
Device plug DT04 3-pole |
SCP04-400-RA-06-Q8 |
0 … 400 |
0,5 … 4,5 V (ratiometric) |
G1/4 B (EN 837) |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-400-RA-07-Q8 |
0 … 400 |
0,5 … 4,5 V (ratiometric) |
G1/4 B (EN 837) |
Circular connector M12x1 4-pole |
SCP04-400-RA-0E-Q8 |
0 … 400 |
0,5 … 4,5 V (ratiometric) |
G1/4 B (EN 837) |
Device plug DT04 3-pole |
SCP04-500-35-06-Q8 |
0 … 500 |
4 … 20 mA (2-wire) |
1/4 NPT |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-500-35-07-Q8 |
0 … 500 |
4 … 20 mA (2-wire) |
1/4 NPT |
Circular connector M12x1 4-pole |
SCP04-500-35-0E-Q8 |
0 … 500 |
4 … 20 mA (2-wire) |
1/4 NPT |
Device plug DT04 3-pole |
SCP04-500-37-06-Q8 |
0 … 500 |
4 … 20 mA (2-wire) |
7/16"-20UNF-2A |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-500-37-07-Q8 |
0 … 500 |
4 … 20 mA (2-wire) |
7/16"-20UNF-2A |
Circular connector M12x1 4-pole |
SCP04-500-37-0E-Q8 |
0 … 500 |
4 … 20 mA (2-wire) |
7/16"-20UNF-2A |
Device plug DT04 3-pole |
SCP04-500-3A-06-Q8 |
0 … 500 |
4 … 20 mA (2-wire) |
G1/4 B (EN 837) |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-500-3A-07-Q8 |
0 … 500 |
4 … 20 mA (2-wire) |
G1/4 B (EN 837) |
Circular connector M12x1 4-pole |
SCP04-500-3A-0E-Q8 |
0 … 500 |
4 … 20 mA (2-wire) |
G1/4 B (EN 837) |
Device plug DT04 3-pole |
SCP04-500-45-06-Q8 |
0 … 500 |
0 … 10 V |
1/4 NPT |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-500-45-07-Q8 |
0 … 500 |
0 … 10 V |
1/4 NPT |
Circular connector M12x1 4-pole |
SCP04-500-45-0E-Q8 |
0 … 500 |
0 … 10 V |
1/4 NPT |
Device plug DT04 3-pole |
SCP04-500-47-06-Q8 |
0 … 500 |
0 … 10 V |
7/16"-20UNF-2A |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-500-47-07-Q8 |
0 … 500 |
0 … 10 V |
7/16"-20UNF-2A |
Circular connector M12x1 4-pole |
SCP04-500-47-0E-Q8 |
0 … 500 |
0 … 10 V |
7/16"-20UNF-2A |
Device plug DT04 3-pole |
SCP04-500-4A-06-Q8 |
0 … 500 |
0 … 10 V |
G1/4 B (EN 837) |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-500-4A-07-Q8 |
0 … 500 |
0 … 10 V |
G1/4 B (EN 837) |
Circular connector M12x1 4-pole |
SCP04-500-4A-0E-Q8 |
0 … 500 |
0 … 10 V |
G1/4 B (EN 837) |
Device plug DT04 3-pole |
SCP04-500-R5-06-Q8 |
0 … 500 |
0,5 … 4,5 V (ratiometric) |
1/4 NPT |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-500-R5-07-Q8 |
0 … 500 |
0,5 … 4,5 V (ratiometric) |
1/4 NPT |
Circular connector M12x1 4-pole |
SCP04-500-R5-0E-Q8 |
0 … 500 |
0,5 … 4,5 V (ratiometric) |
1/4 NPT |
Device plug DT04 3-pole |
SCP04-500-R7-06-Q8 |
0 … 500 |
0,5 … 4,5 V (ratiometric) |
7/16"-20UNF-2A |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-500-R7-07-Q8 |
0 … 500 |
0,5 … 4,5 V (ratiometric) |
7/16"-20UNF-2A |
Circular connector M12x1 4-pole |
SCP04-500-R7-0E-Q8 |
0 … 500 |
0,5 … 4,5 V (ratiometric) |
7/16"-20UNF-2A |
Device plug DT04 3-pole |
SCP04-500-RA-06-Q8 |
0 … 500 |
0,5 … 4,5 V (ratiometric) |
G1/4 B (EN 837) |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-500-RA-07-Q8 |
0 … 500 |
0,5 … 4,5 V (ratiometric) |
G1/4 B (EN 837) |
Circular connector M12x1 4-pole |
SCP04-500-RA-0E-Q8 |
0 … 500 |
0,5 … 4,5 V (ratiometric) |
G1/4 B (EN 837) |
Device plug DT04 3-pole |
SCP04-600-35-06-Q8 |
0 … 600 |
4 … 20 mA (2-wire) |
1/4 NPT |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-600-35-07-Q8 |
0 … 600 |
4 … 20 mA (2-wire) |
1/4 NPT |
Circular connector M12x1 4-pole |
SCP04-600-35-0E-Q8 |
0 … 600 |
4 … 20 mA (2-wire) |
1/4 NPT |
Device plug DT04 3-pole |
SCP04-600-37-06-Q8 |
0 … 600 |
4 … 20 mA (2-wire) |
7/16"-20UNF-2A |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-600-37-07-Q8 |
0 … 600 |
4 … 20 mA (2-wire) |
7/16"-20UNF-2A |
Circular connector M12x1 4-pole |
SCP04-600-37-0E-Q8 |
0 … 600 |
4 … 20 mA (2-wire) |
7/16"-20UNF-2A |
Device plug DT04 3-pole |
SCP04-600-3A-06-Q8 |
0 … 600 |
4 … 20 mA (2-wire) |
G1/4 B (EN 837) |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-600-3A-07-Q8 |
0 … 600 |
4 … 20 mA (2-wire) |
G1/4 B (EN 837) |
Circular connector M12x1 4-pole |
SCP04-600-3A-0E-Q8 |
0 … 600 |
4 … 20 mA (2-wire) |
G1/4 B (EN 837) |
Device plug DT04 3-pole |
SCP04-600-45-06-Q8 |
0 … 600 |
0 … 10 V |
1/4 NPT |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-600-45-07-Q8 |
0 … 600 |
0 … 10 V |
1/4 NPT |
Circular connector M12x1 4-pole |
SCP04-600-45-0E-Q8 |
0 … 600 |
0 … 10 V |
1/4 NPT |
Device plug DT04 3-pole |
SCP04-600-47-06-Q8 |
0 … 600 |
0 … 10 V |
7/16"-20UNF-2A |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-600-47-07-Q8 |
0 … 600 |
0 … 10 V |
7/16"-20UNF-2A |
Circular connector M12x1 4-pole |
SCP04-600-47-0E-Q8 |
0 … 600 |
0 … 10 V |
7/16"-20UNF-2A |
Device plug DT04 3-pole |
部件 |
工作压力 |
输出类型 |
端口尺寸 |
电气连接 |
SCP04-600-4A-06-Q8 |
0 … 600 |
0 … 10 V |
G1/4 B (EN 837) |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-600-4A-07-Q8 |
0 … 600 |
0 … 10 V |
G1/4 B (EN 837) |
Circular connector M12x1 4-pole |
SCP04-600-4A-0E-Q8 |
0 … 600 |
0 … 10 V |
G1/4 B (EN 837) |
Device plug DT04 3-pole |
SCP04-600-R5-06-Q8 |
0 … 600 |
0,5 … 4,5 V (ratiometric) |
1/4 NPT |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-600-R5-07-Q8 |
0 … 600 |
0,5 … 4,5 V (ratiometric) |
1/4 NPT |
Circular connector M12x1 4-pole |
SCP04-600-R5-0E-Q8 |
0 … 600 |
0,5 … 4,5 V (ratiometric) |
1/4 NPT |
Device plug DT04 3-pole |
SCP04-600-R7-06-Q8 |
0 … 600 |
0,5 … 4,5 V (ratiometric) |
7/16"-20UNF-2A |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-600-R7-07-Q8 |
0 … 600 |
0,5 … 4,5 V (ratiometric) |
7/16"-20UNF-2A |
Circular connector M12x1 4-pole |
SCP04-600-R7-0E-Q8 |
0 … 600 |
0,5 … 4,5 V (ratiometric) |
7/16"-20UNF-2A |
Device plug DT04 3-pole |
SCP04-600-RA-06-Q8 |
0 … 600 |
0,5 … 4,5 V (ratiometric) |
G1/4 B (EN 837) |
Device connector DIN EN 175301-803 Form A 4-pole |
SCP04-600-RA-07-Q8 |
0 … 600 |
0,5 … 4,5 V (ratiometric) |
G1/4 B (EN 837) |
Circular connector M12x1 4-pole |
SCP04-600-RA-0E-Q8 |
0 … 600 |
0,5 … 4,5 V (ratiometric) |
G1/4 B (EN 837) |
Device plug DT04 3-pole |
|
