高级诊断测试仪,测量/记录/分析,模拟或CAN传感器,派克测试仪套件包 Service Master Plus

派克的 SensoControl Service Master Plus 诊断测试套件是测量,记录和分析任何液压或气动系统的关键系统数据的明智之选。可存储10亿个数据点。派克传感器产品 Service Master Plus是一款结合了数据测量,显示和屏幕分析的高级多功能诊断仪器。借助CAN总线传感器通信和传统模拟输入,派克Service Master Plus具有24个通道,用于各种输入和输出。该系列强大的测试仪器可以存储多达十亿个测量值。并可提供多种测试套件形式可选。

技术规格:
技术选件: CAN bus
测量范围1(psi): -14.5 to 220 psi (blue)
传感器类型: (2) Pressure transducers
测量范围2(psi): 0 to 2175 psi (yellow)
连接器类型: PD
诊断仪表类型: 派克Service Master Plus
电源电压: 120 Volt AC
软件: SensoWin
壳体类型: 大型行李箱
应用: 液压或气动系统诊断
包括: (2)传感器电缆 - 5m,(1)带终端电阻的CAN Y电缆,(1)USB电缆,(1)LAN电缆 - 5类
品牌: 传感控制

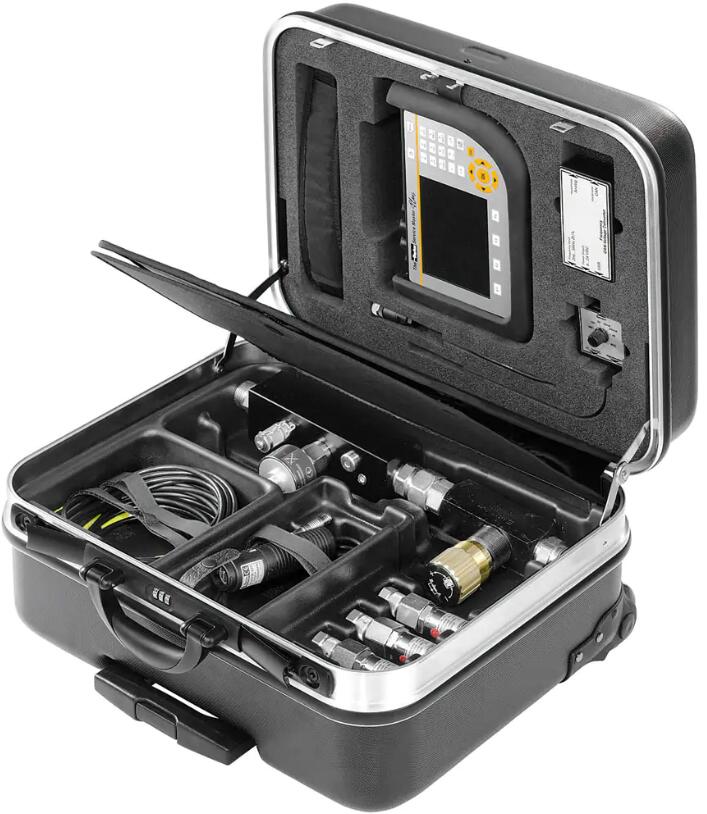

压力测试套件包括:
- 派克Service Master Plus主机
- 存储箱
- 2 个传感器(不同测量范围选择,PD或EMA连接方式,模拟或CAN通讯技术)
- 2 根传感器电缆
- 电池
- SensoWin 软件及文件
- USB 连接电缆
- 快速使用手册
可选套件扩展包包括:其他适配的传感器,流量传感器,温度传感器,转速传感器,电压转换器, 电缆(额外订购)。

派克传感器产品Service Master Plus是测量,记录和分析包括系统压力等多参数测量的工具。多种附件可用于测量流量,流体温度,电流,电压和转速。如需扩展基本压力测试套件包的功能,请购买这些附加的传感附件:压力变送器,流量传感器,温度传感器,转速传感器,电压转换器,电缆(单独订购)。

市场:
- 工业
- 建筑机械
- 模具成型
- 测试
- 维护和维修,MRO

特点与优势:
- 压力套件包可以通过订购派克传感附件进行轻松扩展,以充分利用派克Service Master Plus测试仪的诊断功能
- 在线分析功能可用于现场系统诊断,而无需将数据下载到PC或笔记本电脑。
- 全彩色数据显示,带图表化查看选项
- 1ms扫描速率
- 总存储量高达10亿个数据点
- 多个CAN总线和模拟输入口
- 24通道用于各种输入和输出
- 功能强大的多功能诊断仪器,具有IP64等级保护
- 压力传感器使用颜色编码,与压力范围相对应,便于可视化
- 适用于液压和气动系统

应用:
- 工程机械
- 冷却系统
- 工业液压系统
- 流体或空气系统维护和故障排除
- 系统性能优化
- 系统验证





部件号

传感器类型

技术选件

连接器类型

测量范围 1 ( psi)

测量范围 2 ( psi)

PDSMP50-2-01-15-CAN

(2) Pressure transducers

CAN bus

PD

-14.5 to 220 psi (blue)

0 to 2175 psi (yellow)

PDSMP50-2-06-06-CAN

(2) Pressure transducers

CAN bus

PD

0 to 870 psi (green)

0 to 870 psi (green)

PDSMP50-2-06-40-CAN

(2) Pressure transducers

CAN bus

PD

0 to 870 psi (green)

0 to 5800 psi (orange)

PDSMP50-2-15-15

(2) Pressure transducers

Analog

PD

0 to 2175 psi (yellow)

0 to 2175 psi (yellow)

PDSMP50-2-40-40

(2) Pressure transducers

Analog

PD

0 to 5800 psi (orange)

0 to 5800 psi (orange)

PDSMP50-2-40-40-CAN

(2) Pressure transducers

CAN bus

PD

0 to 5800 psi (orange)

0 to 5800 psi (orange)

PDSMP50-6-01-01-CAN

(2) Pressure transducers

CAN bus

EMA

-14.5 to 220 psi (blue)

-14.5 to 220 psi (blue)

PDSMP50-6-01-40

(2) Pressure transducers

Analog

EMA

-14.5 to 220 psi (blue)

0 to 5800 psi (orange)

PDSMP50-6-01-40-CAN

(2) Pressure transducers

CAN bus

EMA

-14.5 to 220 psi (blue)

0 to 5800 psi (orange)

PDSMP50-6-01-60-CAN

(2) Pressure transducers

CAN bus

EMA

-14.5 to 220 psi (blue)

0 to 8700 psi (red)

PDSMP50-6-06-06

(2) Pressure transducers

Analog

EMA

0 to 870 psi (green)

0 to 870 psi (green)

PDSMP50-6-06-40

(2) Pressure transducers

Analog

EMA

0 to 870 psi (green)

0 to 5800 psi (orange)

PDSMP50-6-06-60

(2) Pressure transducers

Analog

EMA

0 to 870 psi (green)

0 to 8700 psi (red)

PDSMP50-6-06-60-CAN

(2) Pressure transducers

CAN bus

EMA

0 to 870 psi (green)

0 to 8700 psi (red)

PDSMP50-6-15-15

(2) Pressure transducers

Analog

EMA

0 to 2175 psi (yellow)

0 to 2175 psi (yellow)

PDSMP50-6-15-15-CAN

(2) Pressure transducers

CAN bus

EMA

0 to 2175 psi (yellow)

0 to 2175 psi (yellow)

PDSMP50-6-15-40-CAN

(2) Pressure transducers

CAN bus

EMA

0 to 2175 psi (yellow)

0 to 5800 psi (orange)

PDSMP50-6-15-60

(2) Pressure transducers

Analog

EMA

0 to 2175 psi (yellow)

0 to 8700 psi (red)

PDSMP50-6-40-40

(2) Pressure transducers

Analog

EMA

0 to 5800 psi (orange)

0 to 5800 psi (orange)

PDSMP50-6-40-40-CAN

(2) Pressure transducers

CAN bus

EMA

0 to 5800 psi (orange)

0 to 5800 psi (orange)

PDSMP50-6-60-60

(2) Pressure transducers

Analog

EMA

0 to 8700 psi (red)

0 to 8700 psi (red)

PDSMP50-6-60-60-CAN

(2) Pressure transducers

CAN bus

EMA

0 to 8700 psi (red)

0 to 8700 psi (red)
