诊断测试仪和附件，使用模拟或CAN传感器进行测量和记录，派克测试仪套件包Serviceman Plus

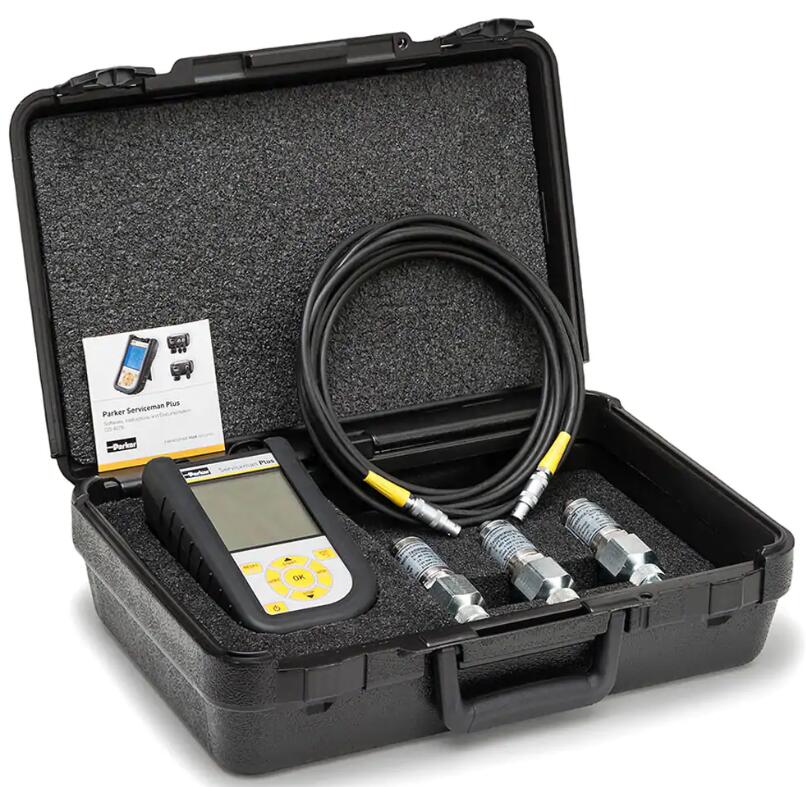

SensoControl Serviceman Plus diagnostic kit
派克 SensoControl Serviceman Plus 诊断测试套件是测量和记录任何液压或气动系统的关键系统数据的理想选择。派克传感器产品Serviceman Plus是一款坚固，便携，易于使用的诊断测试仪。派克Serviceman Plus有CAN总线通信和传统模拟输入两种形式可供选择，可提供2个模拟输入或CAN接口，最多可连接3个CAN传感器。该系列紧凑型测试仪可测量压力，流量，温度和转速。可提供各种压力测试工具包。
CAN型压力测试套件包括：
- 派克Serviceman Plus测试仪(CAN)
- 设备箱
- 1个或 2个压力传感器（可选择压力范围和连接形式）
- 1根或2根传感器电缆
- CAN Y型电缆（套件中仅有2个压力传感器）
- 电源
- 终端电阻
- SensoWin软件和文档
- USB连接电缆
- Nano USB存储 - 1GB
可选套件包扩展包括：其他适配的压力传感器，流量传感器，温度传感器，转速传感器，电压转换器， 电缆（额外订购）。
模拟型压力测试套件包括：
- 派克Serviceman Plus测试仪（模拟型）
- 设备箱
- 1个或 2个压力变送器（可选择压力范围和连接形式）
- 1根或2根传感器电缆
- 电源
- SensoWin软件和文档
- USB连接电缆
- Nano USB 存储 - 1GB
可选套件包扩展包括： 其他适配的压力传感器，流量传感器，温度传感器，转速传感器，电压转换器， 电缆（额外订购）。
派克传感器产品Serviceman Plus是测量，记录和分析包括系统压力等多参数测量的工具。多种附件可用于测量流量，流体温度，电流，电压和转速。如需扩展基本压力测试套件包的功能，请购买这些附加的传感附件：压力变送器，流量传感器，温度传感器，转速传感器，电压转换器，电缆（单独订购）。
市场：
- 工业
- 建筑机械
- 模具
- 测试
- 维护和维修，MRO
特点与优势：
- 压力套件包可以通过订购派克传感附件进行轻松扩展，以充分利用派克Serviceman Plus测试仪的诊断功能。
- 压力传感器使用颜色编码，与压力范围相对应，便于可视化管理
- SensoWin软件允许下载到Windows操作系统进行分析数据
- 简单直观的操作
- 适用于测量液压和气动系统压力
应用：
- 工程机械
- 冷却系统
- 工业液压系统
- 流体或空气系统维护和故障排除
- 系统性能优化
- 系统验证
技术规格：
技术选件： Analog
连接器类型： na
测量范围1（psi)： na
传感器类型： (0) Pressure transducers
测量范围2（psi)： na
诊断仪表类型： 派克Serviceman Plus
存储器类型： Nano USB闪存盘 - 1GB
电源电压： 120 Volt AC
软件： SensoWin
壳体类型： 小型手提箱
应用： 液压或气动系统诊断
包括： （1）USB电缆 - 1m
品牌： 传感控制
部件号 |
传感器类型 |
技术选件 |
连接器类型 |
测量范围 1 （ psi) |
测量范围 2 （ psi) |
PDS4-0-00-00 |
(0) Pressure transducers |
Analog |
na |
na |
na |
PDS4-0-00-00-CAN |
(0) Pressure transducers |
CAN bus |
na |
na |
na |
PDS4-2-01 |
(1) Pressure transducer |
Analog |
PD |
-14.5 to 220 psi (blue) |
na |
PDS4-2-01-01 |
(2) Pressure transducers |
Analog |
PD |
-14.5 to 220 psi (blue) |
-14.5 to 220 psi (blue) |
PDS4-2-01-01-CAN |
(2) Pressure transducers |
CAN bus |
PD |
-14.5 to 220 psi (blue) |
-14.5 to 220 psi (blue) |
PDS4-2-01-06 |
(2) Pressure transducers |
Analog |
PD |
-14.5 to 220 psi (blue) |
0 to 870 psi (green) |
PDS4-2-01-06-CAN |
(2) Pressure transducers |
CAN bus |
PD |
-14.5 to 220 psi (blue) |
0 to 870 psi (green) |
PDS4-2-01-15 |
(2) Pressure transducers |
Analog |
PD |
-14.5 to 220 psi (blue) |
0 to 2175 psi (yellow) |
PDS4-2-01-15-CAN |
(2) Pressure transducers |
CAN bus |
PD |
-14.5 to 220 psi (blue) |
0 to 2175 psi (yellow) |
PDS4-2-01-40 |
(2) Pressure transducers |
Analog |
PD |
-14.5 to 220 psi (blue) |
0 to 5800 psi (orange) |
PDS4-2-01-40-CAN |
(2) Pressure transducers |
CAN bus |
PD |
-14.5 to 220 psi (blue) |
0 to 5800 psi (orange) |
PDS4-2-01-60 |
(2) Pressure transducers |
Analog |
PD |
-14.5 to 220 psi (blue) |
0 to 8700 psi (red) |
PDS4-2-01-60-CAN |
(2) Pressure transducers |
CAN bus |
PD |
-14.5 to 220 psi (blue) |
0 to 8700 psi (red) |
PDS4-2-01-CAN |
(1) Pressure transducer |
CAN bus |
PD |
-14.5 to 220 psi (blue) |
na |
PDS4-2-06 |
(1) Pressure transducer |
Analog |
PD |
0 to 870 psi (green) |
na |
PDS4-2-06-06 |
(2) Pressure transducers |
Analog |
PD |
0 to 870 psi (green) |
0 to 870 psi (green) |
PDS4-2-06-06-CAN |
(2) Pressure transducers |
CAN bus |
PD |
0 to 870 psi (green) |
0 to 870 psi (green) |
PDS4-2-06-15 |
(2) Pressure transducers |
Analog |
PD |
0 to 870 psi (green) |
0 to 2175 psi (yellow) |
PDS4-2-06-15-CAN |
(2) Pressure transducers |
CAN bus |
PD |
0 to 870 psi (green) |
0 to 2175 psi (yellow) |
PDS4-2-06-40 |
(2) Pressure transducers |
Analog |
PD |
0 to 870 psi (green) |
0 to 5800 psi (orange) |
PDS4-2-06-40-CAN |
(2) Pressure transducers |
CAN bus |
PD |
0 to 870 psi (green) |
0 to 5800 psi (orange) |
PDS4-2-06-60 |
(2) Pressure transducers |
Analog |
PD |
0 to 870 psi (green) |
0 to 8700 psi (red) |
PDS4-2-06-60-CAN |
(2) Pressure transducers |
CAN bus |
PD |
0 to 870 psi (green) |
0 to 8700 psi (red) |
PDS4-2-06-CAN |
(1) Pressure transducer |
CAN bus |
PD |
0 to 870 psi (green) |
na |
PDS4-2-15 |
(1) Pressure transducer |
Analog |
PD |
0 to 2175 psi (yellow) |
na |
PDS4-2-15-15 |
(2) Pressure transducers |
Analog |
PD |
0 to 2175 psi (yellow) |
0 to 2175 psi (yellow) |
PDS4-2-15-15-CAN |
(2) Pressure transducers |
CAN bus |
PD |
0 to 2175 psi (yellow) |
0 to 2175 psi (yellow) |
PDS4-2-15-40 |
(2) Pressure transducers |
Analog |
PD |
0 to 2175 psi (yellow) |
0 to 5800 psi (orange) |
PDS4-2-15-40-CAN |
(2) Pressure transducers |
CAN bus |
PD |
0 to 2175 psi (yellow) |
0 to 5800 psi (orange) |
PDS4-2-15-60 |
(2) Pressure transducers |
Analog |
PD |
0 to 2175 psi (yellow) |
0 to 8700 psi (red) |
PDS4-2-15-60-CAN |
(2) Pressure transducers |
CAN bus |
PD |
0 to 2175 psi (yellow) |
0 to 8700 psi (red) |
PDS4-2-15-CAN |
(1) Pressure transducer |
CAN bus |
PD |
0 to 2175 psi (yellow) |
na |
PDS4-2-40 |
(1) Pressure transducer |
Analog |
PD |
0 to 5800 psi (orange) |
na |
PDS4-2-40-40 |
(2) Pressure transducers |
Analog |
PD |
0 to 5800 psi (orange) |
0 to 5800 psi (orange) |
PDS4-2-40-40-CAN |
(2) Pressure transducers |
CAN bus |
PD |
0 to 5800 psi (orange) |
0 to 5800 psi (orange) |
PDS4-2-40-60 |
(2) Pressure transducers |
Analog |
PD |
0 to 5800 psi (orange) |
0 to 8700 psi (red) |
PDS4-2-40-60-CAN |
(2) Pressure transducers |
CAN bus |
PD |
0 to 5800 psi (orange) |
0 to 8700 psi (red) |
PDS4-2-40-CAN |
(1) Pressure transducer |
CAN bus |
PD |
0 to 5800 psi (orange) |
na |
PDS4-2-60 |
(1) Pressure transducer |
Analog |
PD |
0 to 8700 psi (red) |
na |
PDS4-2-60-60 |
(2) Pressure transducers |
Analog |
PD |
0 to 8700 psi (red) |
0 to 8700 psi (red) |
PDS4-2-60-60-CAN |
(2) Pressure transducers |
CAN bus |
PD |
0 to 8700 psi (red) |
0 to 8700 psi (red) |
PDS4-2-60-CAN |
(1) Pressure transducer |
CAN bus |
PD |
0 to 8700 psi (red) |
na |
PDS4-4-01 |
(1) Pressure transducer |
Analog |
PDP |
-14.5 to 220 psi (blue) |
na |
PDS4-4-01-01 |
(2) Pressure transducers |
Analog |
PDP |
-14.5 to 220 psi (blue) |
-14.5 to 220 psi (blue) |
PDS4-4-01-06 |
(2) Pressure transducers |
Analog |
PDP |
-14.5 to 220 psi (blue) |
0 to 870 psi (green) |
PDS4-4-01-15 |
(2) Pressure transducers |
Analog |
PDP |
-14.5 to 220 psi (blue) |
0 to 2175 psi (yellow) |
PDS4-4-01-40 |
(2) Pressure transducers |
Analog |
PDP |
-14.5 to 220 psi (blue) |
0 to 5800 psi (orange) |
PDS4-4-01-60 |
(2) Pressure transducers |
Analog |
PDP |
-14.5 to 220 psi (blue) |
0 to 8700 psi (red) |
PDS4-4-06 |
(1) Pressure transducer |
Analog |
PDP |
0 to 870 psi (green) |
na |
PDS4-4-06-06 |
(2) Pressure transducers |
Analog |
PDP |
0 to 870 psi (green) |
0 to 870 psi (green) |
部件号 |
传感器类型 |
技术选件 |
连接器类型 |
测量范围 1 （ psi) |
测量范围 2 （ psi) |
PDS4-4-06-15 |
(2) Pressure transducers |
Analog |
PDP |
0 to 870 psi (green) |
0 to 2175 psi (yellow) |
PDS4-4-06-40 |
(2) Pressure transducers |
Analog |
PDP |
0 to 870 psi (green) |
0 to 5800 psi (orange) |
PDS4-4-06-60 |
(2) Pressure transducers |
Analog |
PDP |
0 to 870 psi (green) |
0 to 8700 psi (red) |
PDS4-4-15 |
(1) Pressure transducer |
Analog |
PDP |
0 to 2175 psi (yellow) |
na |
PDS4-4-15-15 |
(2) Pressure transducers |
Analog |
PDP |
0 to 2175 psi (yellow) |
0 to 2175 psi (yellow) |
PDS4-4-15-40 |
(2) Pressure transducers |
Analog |
PDP |
0 to 2175 psi (yellow) |
0 to 5800 psi (orange) |
PDS4-4-15-60 |
(2) Pressure transducers |
Analog |
PDP |
0 to 2175 psi (yellow) |
0 to 8700 psi (red) |
PDS4-4-40 |
(1) Pressure transducer |
Analog |
PDP |
0 to 5800 psi (orange) |
na |
PDS4-4-40-40 |
(2) Pressure transducers |
Analog |
PDP |
0 to 5800 psi (orange) |
0 to 5800 psi (orange) |
PDS4-4-40-60 |
(2) Pressure transducers |
Analog |
PDP |
0 to 5800 psi (orange) |
0 to 8700 psi (red) |
PDS4-4-60 |
(1) Pressure transducer |
Analog |
PDP |
0 to 8700 psi (red) |
na |
PDS4-4-60-60 |
(2) Pressure transducers |
Analog |
PDP |
0 to 8700 psi (red) |
0 to 8700 psi (red) |
PDS4-6-01 |
(1) Pressure transducer |
Analog |
EMA |
-14.5 to 220 psi (blue) |
na |
PDS4-6-01-01 |
(2) Pressure transducers |
Analog |
EMA |
-14.5 to 220 psi (blue) |
-14.5 to 220 psi (blue) |
PDS4-6-01-01-CAN |
(2) Pressure transducers |
CAN bus |
EMA |
-14.5 to 220 psi (blue) |
-14.5 to 220 psi (blue) |
PDS4-6-01-06 |
(2) Pressure transducers |
Analog |
EMA |
-14.5 to 220 psi (blue) |
0 to 870 psi (green) |
PDS4-6-01-06-CAN |
(2) Pressure transducers |
CAN bus |
EMA |
-14.5 to 220 psi (blue) |
0 to 870 psi (green) |
PDS4-6-01-15 |
(2) Pressure transducers |
Analog |
EMA |
-14.5 to 220 psi (blue) |
0 to 2175 psi (yellow) |
PDS4-6-01-15-CAN |
(2) Pressure transducers |
CAN bus |
EMA |
-14.5 to 220 psi (blue) |
0 to 2175 psi (yellow) |
PDS4-6-01-40 |
(2) Pressure transducers |
Analog |
EMA |
-14.5 to 220 psi (blue) |
0 to 5800 psi (orange) |
PDS4-6-01-40-CAN |
(2) Pressure transducers |
CAN bus |
EMA |
-14.5 to 220 psi (blue) |
0 to 5800 psi (orange) |
PDS4-6-01-60 |
(2) Pressure transducers |
Analog |
EMA |
-14.5 to 220 psi (blue) |
0 to 8700 psi (red) |
PDS4-6-01-60-CAN |
(2) Pressure transducers |
CAN bus |
EMA |
-14.5 to 220 psi (blue) |
0 to 8700 psi (red) |
PDS4-6-01-CAN |
(1) Pressure transducer |
CAN bus |
EMA |
-14.5 to 220 psi (blue) |
na |
PDS4-6-06 |
(1) Pressure transducer |
Analog |
EMA |
0 to 870 psi (green) |
na |
PDS4-6-06-06 |
(2) Pressure transducers |
Analog |
EMA |
0 to 870 psi (green) |
0 to 870 psi (green) |
PDS4-6-06-06-CAN |
(2) Pressure transducers |
CAN bus |
EMA |
0 to 870 psi (green) |
0 to 870 psi (green) |
PDS4-6-06-15 |
(2) Pressure transducers |
Analog |
EMA |
0 to 870 psi (green) |
0 to 2175 psi (yellow) |
PDS4-6-06-15-CAN |
(2) Pressure transducers |
CAN bus |
EMA |
0 to 870 psi (green) |
0 to 2175 psi (yellow) |
PDS4-6-06-40 |
(2) Pressure transducers |
Analog |
EMA |
0 to 870 psi (green) |
0 to 5800 psi (orange) |
PDS4-6-06-40-CAN |
(2) Pressure transducers |
CAN bus |
EMA |
0 to 870 psi (green) |
0 to 5800 psi (orange) |
PDS4-6-06-60 |
(2) Pressure transducers |
Analog |
EMA |
0 to 870 psi (green) |
0 to 8700 psi (red) |
PDS4-6-06-60-CAN |
(2) Pressure transducers |
CAN bus |
EMA |
0 to 870 psi (green) |
0 to 8700 psi (red) |
PDS4-6-06-CAN |
(1) Pressure transducer |
CAN bus |
EMA |
0 to 870 psi (green) |
na |
PDS4-6-15 |
(1) Pressure transducer |
Analog |
EMA |
0 to 2175 psi (yellow) |
na |
PDS4-6-15-15 |
(2) Pressure transducers |
Analog |
EMA |
0 to 2175 psi (yellow) |
0 to 2175 psi (yellow) |
PDS4-6-15-15-CAN |
(2) Pressure transducers |
CAN bus |
EMA |
0 to 2175 psi (yellow) |
0 to 2175 psi (yellow) |
PDS4-6-15-40 |
(2) Pressure transducers |
Analog |
EMA |
0 to 2175 psi (yellow) |
0 to 5800 psi (orange) |
PDS4-6-15-40-CAN |
(2) Pressure transducers |
CAN bus |
EMA |
0 to 2175 psi (yellow) |
0 to 5800 psi (orange) |
PDS4-6-15-60 |
(2) Pressure transducers |
Analog |
EMA |
0 to 2175 psi (yellow) |
0 to 8700 psi (red) |
PDS4-6-15-60-CAN |
(2) Pressure transducers |
CAN bus |
EMA |
0 to 2175 psi (yellow) |
0 to 8700 psi (red) |
PDS4-6-15-CAN |
(1) Pressure transducer |
CAN bus |
EMA |
0 to 2175 psi (yellow) |
na |
PDS4-6-40 |
(1) Pressure transducer |
Analog |
EMA |
0 to 5800 psi (orange) |
na |
PDS4-6-40-40 |
(2) Pressure transducers |
Analog |
EMA |
0 to 5800 psi (orange) |
0 to 5800 psi (orange) |
PDS4-6-40-40-CAN |
(2) Pressure transducers |
CAN bus |
EMA |
0 to 5800 psi (orange) |
0 to 5800 psi (orange) |
PDS4-6-40-60 |
(2) Pressure transducers |
Analog |
EMA |
0 to 5800 psi (orange) |
0 to 8700 psi (red) |
PDS4-6-40-60-CAN |
(2) Pressure transducers |
CAN bus |
EMA |
0 to 5800 psi (orange) |
0 to 8700 psi (red) |
PDS4-6-40-CAN |
(1) Pressure transducer |
CAN bus |
EMA |
0 to 5800 psi (orange) |
na |
PDS4-6-60 |
(1) Pressure transducer |
Analog |
EMA |
0 to 8700 psi (red) |
na |
PDS4-6-60-60 |
(2) Pressure transducers |
Analog |
EMA |
0 to 8700 psi (red) |
0 to 8700 psi (red) |
部件号 |
传感器类型 |
技术选件 |
连接器类型 |
测量范围 1 （ psi) |
测量范围 2 （ psi) |
PDS4-6-60-60-CAN |
(2) Pressure transducers |
CAN bus |
EMA |
0 to 8700 psi (red) |
0 to 8700 psi (red) |
PDS4-6-60-CAN |
(1) Pressure transducer |
CAN bus |
EMA |
0 to 8700 psi (red) |
na |
|
fcg.cnmec@parkerdistribution.com.cn
