Parker NSS Series系列半导体行业液冷不锈钢快速接头-NSS 系列高流量液压、无泄漏、推接式接头
Parker NSS Series non-spill couplings Connect with Confidence

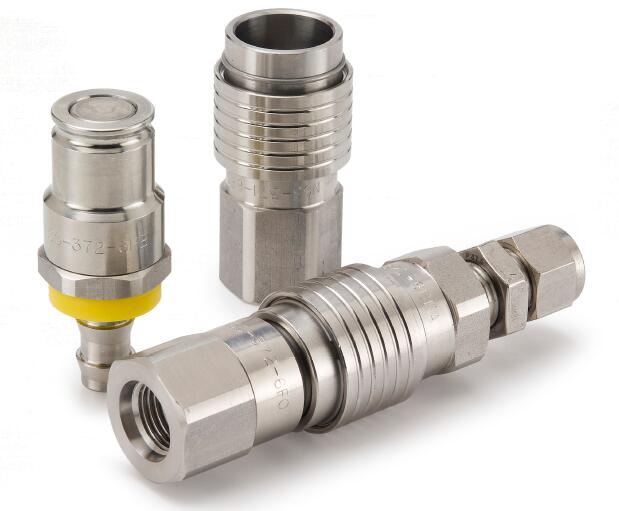

Parker NSS Series Compact, Non-Spill Stainless Steel Quick Couplings

当您的应用涉及到一个关键的工艺环境，其中流体损失或空气夹杂可能导致重大质量或安全问题时，Parker的NSS系列无泄漏连接器提供安全连接。NSS快速接头由耐腐蚀、介质相容的材料制成，设计用于执行。它们紧凑的尺寸和引导式的对齐方式节省了在有限空间连接流体管线的时间和挫折感。NSS联轴器提供高流速，具有良好的流量与压降特性，以保持佳系统性能和效率。用于电子、服务器和超级计算机的液体冷却和热管理应用的快速连接、无泄漏快速接头。When your application involves a critical process environment where fluid loss or air inclusion can cause significant quality or safety issues, Parker’s NSS Series non-spill couplings provide a secure connection. Constructed of corrosion resistant, media compatible materials, NSS quick couplings are designed to perform. Their compact size and guided alignment save time and frustration when connecting fluid lines in confined spaces. NSS couplings deliver high flow rates with excellent flow vs pressure drop characteristics to maintain optimum system performance and efficiency.

Parker NSS Series系列不锈钢快速接头技术资料下载
Parker NSS Series non-spill couplings Connect with Confidence data sheet
Parker NSS Series Compact, Non-Spill Stainless Steel Quick Couplings pdf catalog download

Parker NSS Series Features
性能特点:

- 防泄漏阀确保小的液体损失和低空气含量。Non-spill valving ensures minimal fluid loss and low air inclusion
- 简单的推接操作和引导对准。Easy push to connect operation with guided alignment
- 高流量和紧凑尺寸。High flow and compact size
- 不锈钢结构。 Stainless steel construction
- 密封材料和端部配件选项。Seal material and end fitting options

Engineered to Meet the Stringent Requirements of High Tech Industries
为满足高科技行业的严格要求而设计

NSS系列产品应用领域
Applications:

- 热管理系统的冷却管线 Cooling Lines for Thermal Management Systems
- 排放/加注管路 Drain/Fill Lines
- 实验室设备 Lab Equipment
- 化学制剂 Chemical Dispensing
- 食品和饮料行业 Food and Beverage Service
- 去离子水 Deionized Water Lines
- 化学品输送管线Chemical Transfer Lines
- 高纯度系统 High Purity Systems
- 洁净室应用Clean Room Applications
- 分析仪器Analyzers
- 药品生产行业 Pharmaceutical Production

NSS快速接头提供高流速和出色的流量与压降特性，以保持佳的系统性能和效率。高科技行业冷却应用的理想选择，接头和接头采用 316 不锈钢，带有乙烯丙烯密封件。在狭窄空间内连接流体管线时，它们紧凑的机身尺寸和引导对准可节省时间和挫败感。

技术特性：
- 尺寸：3/8” 和 1/2”
- 材??料：不锈钢
- 端口端：内螺纹 ORB、Push-Lok? 软管倒钩、A-Lok、隔板和面板安装
- 密封选项：EPDM

Markets :
- 液体冷却
- 热管理
- 数据中心
- 超级计算机
- 电子产品
- 服务器
- 机架式服务器系统

特性/优点：
- 无泄漏阀确保小的流体损失和低空气夹杂物
- 耐腐蚀不锈钢结构
- 易于推动连接操作，引导对准
- 高流量和紧凑尺寸

应用：
- 冷却管线
- 化学品输送生产线
- 高纯度系统
- 实验室设备

- NSS Series Compact, Non-Spill Stainless Steel Quick Couplings

NSS Series Couplers - Female Thread
Part Number
NSS-371-6FO
NSS-371-8FO
NSS-501-10FO
NSS-501-12FO

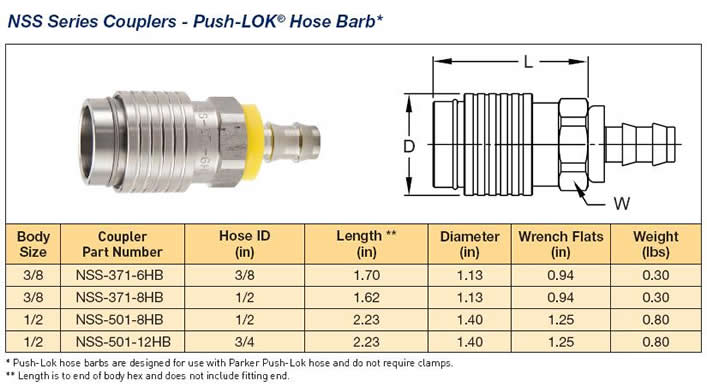

NSS Series Couplers - Push-LOK. Hose Barb*
NSS-371-6HB
NSS-371-8HB
NSS-501-8HB
NSS-501-12HB

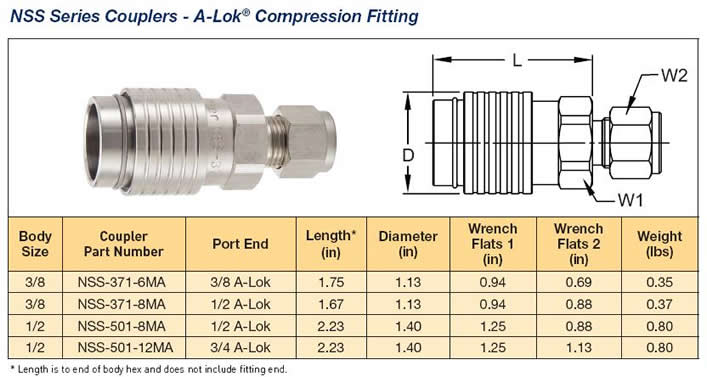

NSS Series Couplers - A-Lok. Compression Fitting
Body Size Coupler
Part Number
NSS-371-6MA
NSS-371-8MA
NSS-501-8MA
NSS-501-12MA
NSS Series Couplers - A-Lok. Compression Fitting / Bulkhead Mount
Part Number
NSS-371-6BMA
NSS-501-8BMA
NSS-501-12BMA

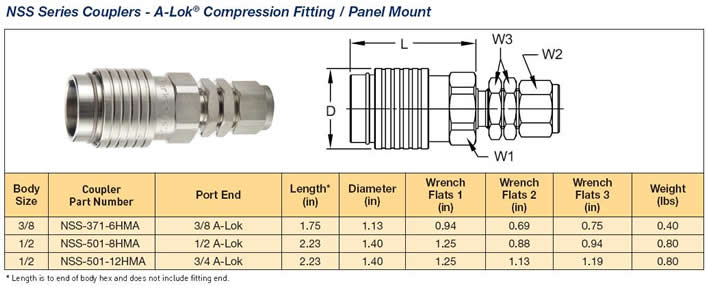

NSS Series Couplers - A-Lok. Compression Fitting / Panel Mount
NSS-371-6HMA
NSS-501-8HMA
NSS-501-12HMA

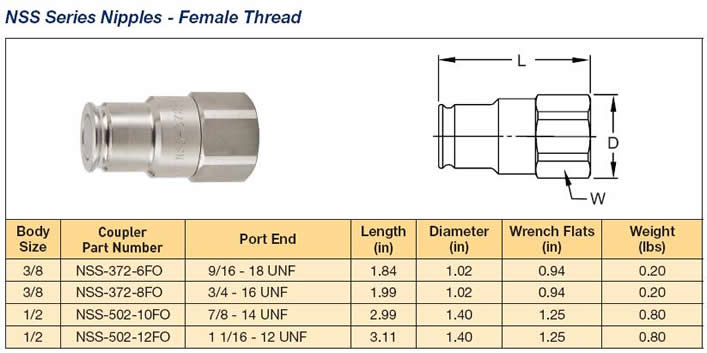

NSS-372-6FO
NSS-372-8FO
NSS-502-10FO
NSS-502-12FO

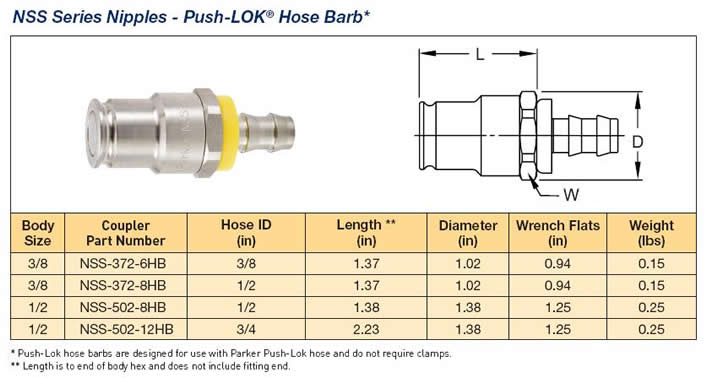

NSS-372-6HB
NSS-372-8HB
NSS-502-8HB
NSS-502-12HB

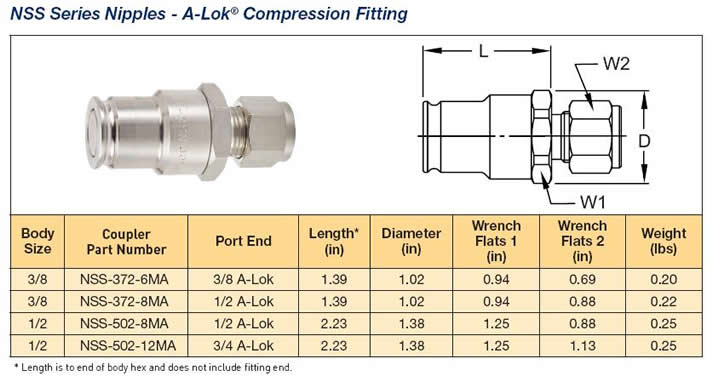

NSS Series Nipples - A-Lok. Compression Fitting
NSS-372-6MA
NSS-372-8MA
NSS-502-8MA
NSS-502-12MA
NSS Series Nipples - A-Lok. Compression Fitting / Bulkhead Mount
NSS-372-6BMA
NSS-502-8BMA
NSS-502-12BMA
NSS Series Nipples - A-Lok. Compression Fitting / Panel Mount
NSS-372-6HMA
NSS-502-8HMA
NSS-502-12HMA
