油气软管解决方案
Oil and Gas Hose Solutions

帕克提供了生产适应当今石油和天然气行业恶劣条件的软管所需的知识。帕克的软管用于可靠、连续的海上/陆上上游应用，以及中游/转运应用。平衡控制成本的需要，同时扩大勘探需要一个供应商谁可以解决这些挑战，并带来创新和质量，通过产品和服务。

派克软管通过提供卓越的实际操作性能，满足了石油和天然气行业的需求。通配符商标名称表明，该软管是为油田应用中的优质服务而设计和制造的，并通过压接接头认证，提供行业领先的安全、耐用和可靠的工业软管组件。

恒定工作压力软管设计用于满足石油和天然气行业中最常见的工作压力。选择恒定工作压力的软管简化了选择过程，无论软管直径如何。

GlobalCore提供了一个简单的解决方案，强大的液压软管设计，以承受艰苦的条件和满足最依赖的工作压力在工业上。根据ISO 18752规范设计、制造和测试，这些高性能软管有标准、强韧和超硬覆盖选项，是石油和天然气勘探的理想选择。

Part numbers:

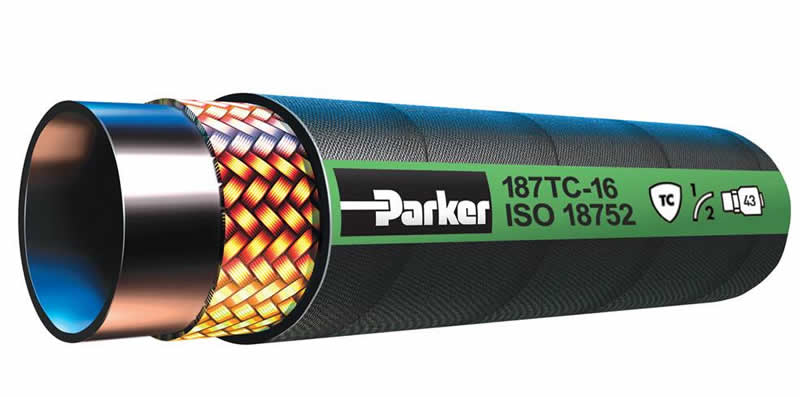

Hydraulic Constant Working Pressure Hose 1000 PSI - GlobalCore 187 Hose 1,000 psi / 7 MPa

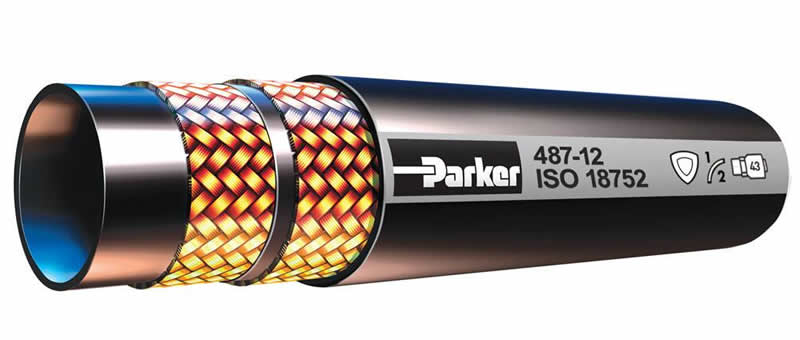

Hydraulic Constant Working Pressure Hose 4000 PSI - GlobalCore 487 Hose 4,000 psi / 28 MPa

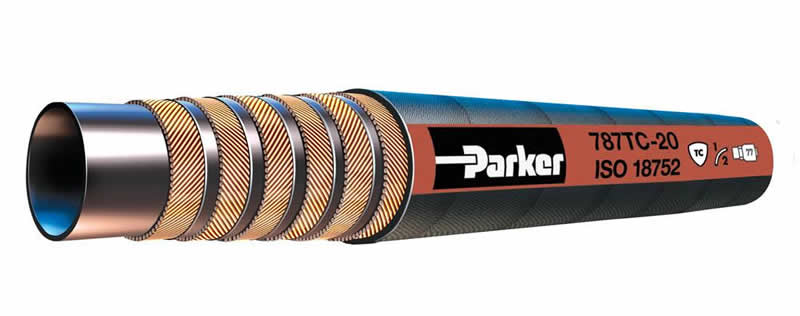

Hydraulic Constant Working Pressure Hose 5000 PSI - GlobalCore 787 Hose 5,000 psi / 35 MPa

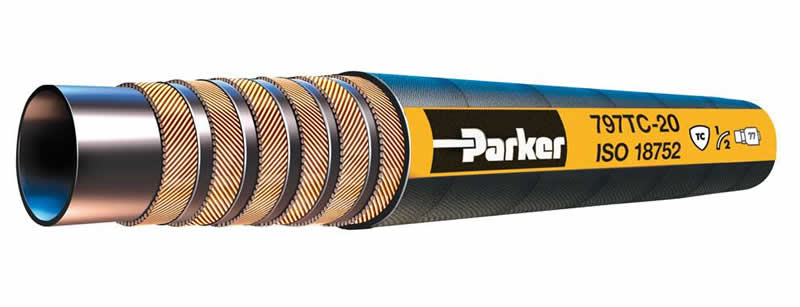

Hydraulic Constant Working Pressure Hose 6000 PSI - GlobalCore 797 Hose 6,000 psi / 42 MPa

吸入和回流管软管结合起来，以满足广泛的吸入和回流应用要求。这些液压石油软管由耐油和耐候的合成橡胶盖构成，由多层螺旋纤维和一根螺旋钢丝加固。
Suction and Return Line Hose 62-300 PSI – 811 Hose
Suction and Return Line Hose 62-300 PSI – 881 Hose
High Temperature Suction and Return Line Hose 62-300 PSI – 811HT Hose

零件号：

防喷器软管BOP是为满足油田勘探和深井钻井的最严格要求而研制的。我们的高性能防喷器钻井软管专为液压用途而设计，经认证可在安全关键应用中承受火灾、高温和高压。所有防火装甲防喷器软管总成均通过劳埃德船级社的测试和批准，符合美国石油工业API 16D指南，在1300°F下达到并超过OD/1000/499火焰测试5分钟。

P56和P35水泥浆胶管可显著缩短油井的使用安装时间。帕克公司的P56和P35液压软管总成是专门为高压水泥泵送应用而设计的，过去需要数小时才能将多根铁管拖到合适的位置。Parker的P56和P35水泥浆软管与我们创新的一体式锤式管接头配合使用，该管接头采用分段设计，便于从软管总成上拆卸翼形螺母。

零件号：

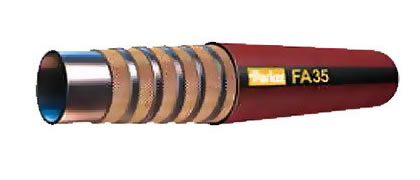

Fire Resistant Blow Out Preventer (BOP) Hoses – 3000/5000 PSI – FA21/FA35 hose

Parker provides the knowledge needed to produce hoses fit for severe conditions in today’s oil and gas industry. Parker's hoses are made for reliable, continuous use in offshore/onshore upstream applications, as well as midstream/transfer applications. Balancing the need to control costs while expanding exploration requires a supplier who can address these challenges and bring innovation and quality through products and services.

Parker hose meets the demands of the oil and gas industry by providing superior hands-on performance. The Wildcatter trade name indicates the hose is designed and manufactured for premium service in oilfield applications and is qualified with crimp couplings, providing industry-leading safe, durable and reliable industrial hose assemblies.

Constant Working Pressure hoses are designed to meet the most common working pressures within the oil and gas industry. Choosing a constant working pressure hose simplifies the selection process no matter what hose diameter.

Suction and Return Line hoses combine to meet a wide range of suction and return applications requirements. Constructed with an oil- and weather-resistant synthetic rubber cover, these hydraulic petroleum hoses are reinforced with multiple layers of fiber spiral and one helical wire.

Part numbers:

Blowout Preventer hoses (BOP) are developed to meet the most rigorous demands of oilfield exploration and deep drilling. Our high-performance BOP drilling hoses are designed for hydraulic use and certified to withstand fire, high heat, and high pressures in safety-critical applications. All Fire Armor BOP hose assemblies are tested and approved by Lloyd’s Register, complying with American Petroleum Industry API 16D guidelines to meet and exceed OD/1000/499 flame testing at 1300° F for five minutes.

Part number:

P56 and P35 Cement Slurry hose can reduce well service set up times dramatically. What used to take hours to drag and connect multiple lengths of iron pipe into position can take minutes with Parker's P56 and P35 hydraulic hose assembly specifically designed for high-pressure cement-pumping applications. Parker's P56 and P35 Cement Slurry Hose work in conjunction with our innovative one-piece hammer union that incorporates a segmented design, allowing for easy removal of the wing nut from the hose assembly.

Part numbers:
