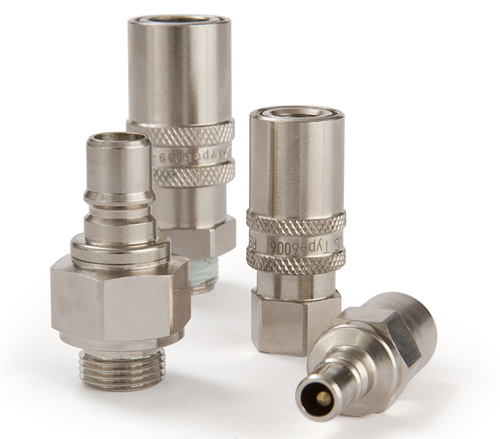

Parker RECTUS 6006/6009/6012/6016系列快换接头，符合法国FRENCHMATIC I标准结构
Parker RECTUS 6006/6009/6012/6016系列模具行业加热或者冷却回路快换接头



RECTUS 6006/6009/6012/6016系列快换接头公称通径是6/9/12/16mm，主要用于加热或者冷却回路，耐压可达20bar。该系列快换结构设计符合法国Frenchmatic I标准结构。接头材料：黄铜/碳钢。派克6006/6009/6012/6016系列快换接头可替换法国标准结构系列。Frenchmatic I标准下的这四种公称通径，可供货形式有单截止型及双截止型这两种形式。

使用锁紧钢珠可以保证即使有侧向力的情况下，公头与母头之间也具有足够的抓紧力。 6006/6009/6012/6016系列快换接头优化了流量设计，使流阻降到最低。Quick coupling system with nominal diameter 6/9/12/16 for tempering and cooling applications up to 20 bar. Coupling system with Frenchmatic I profile. Available made of brass/steel.Parker's Quick Coupling Series 6006/6009/6012/6016 was constructed with valves as an alternative to the French profiles. All four nominal diameters in our Frenchmatic I range are available as single shut-off and double shut-off version.The locking balls guarantee an optimum hold by the insert connection even with forces acting from the side. The Series 6006/6009/6012/6016 stands out for its optimum flow rate with absolute minimal flow resistance.



Parker RECTUS 6006/6009/6012/6016系列模具行业加热或者冷却回路快换接头



市场：
- 工业

特征/优势：
- 优化了流量设计，使流阻降到最低

性能特点

长度 (MM) 30 至 112,5
外六角 (MM) 8 至 34
外径 (MM) 9,4 至 32
材料 黄铜，碳钢
密封材料 氟橡胶
最低工作温度(°C) -15
最高工作温度 (C) 200
最大工作压力 (BAR) 20

应用：
- 模具行业
- 冷却及加热回路

LITERATURE AND REFERENCE MATERIALS
- Catalogue Page Parker Rectus Series 6006/6009/6012/6016





Part

Diameter Nominal (DN)

Type

Valving

Connection Type

Connection Thread Size (inch)

Hose I.D.

6006KBAW13MVN

6

Coupling

with

Male Thread

1/4

na

6006KBIW13MVN

6

Coupling

with

Female Thread

1/4

na

6006KBTF08MVN

6

Coupling

with

Hose Barb

na

8

6006KBTR08MVN

6

Coupling

with

Hose Barb 90°

na

8

6006SBAO10MVN

6

Plug

with

Male Thread with additional Seal

1/8

na

6006SBIW10MVN

6

Plug

with

Female Thread

1/8

na

6006SFAK10MXN

6

Plug

without

Male Thread with Internal Hexagon

1/8

na

6006SFIW13MXN

6

Plug

without

Female Thread

1/4

na

6009KBAW17MVN

9

Coupling

with

Male Thread

3/8

na

6009KBIW17MVN

9

Coupling

with

Female Thread

3/8

na

6009KBTF12MVN

9

Coupling

with

Hose Barb

na

12

6009KBTR10MVN

9

Coupling

with

Hose Barb 90°

na

10

6009KBTR12MVN

9

Coupling

with

Hose Barb 90°

na

12

6009SBAO13MVN

9

Plug

with

Male Thread with additional Seal

1/4

na

6009SBAO17MVN

9

Plug

with

Male Thread with additional Seal

3/8

na

6009SBAO21MVN

9

Plug

with

Male Thread with additional Seal

1/2

na

6009SBAW21MVN

9

Plug

with

Male Thread

1/2

na

6009SBIW13MVN

9

Plug

with

Female Thread

1/4

na

6009SBIW17MVN

9

Plug

with

Female Thread

3/8

na

6009SFAK13MXN

9

Plug

without

Male Thread with Internal Hexagon

1/4

na

6009SFAK17MXN

9

Plug

without

Male Thread with Internal Hexagon

3/8

na

6009SFAW21MXN

9

Plug

without

Male Thread

1/2

na

6009SFIW17MXN

9

Plug

without

Female Thread

3/8

na

6012KBAW21MVN

12

Coupling

with

Male Thread

1/2

na

6012KBIW21MVN

12

Coupling

with

Female Thread

1/2

na

6012KBTF16MVN

12

Coupling

with

Hose Barb

na

16

6012SBAO17MVN

12

Plug

with

Male Thread with additional Seal

3/8

na

6012SBAO21MVN

12

Plug

with

Male Thread with additional Seal

1/2

na

6012SBAO26MVN

12

Plug

with

Male Thread with additional Seal

3/4

na

6012SBAW26MVN

12

Plug

with

Male Thread

3/4

na

6012SFAK17MXN

12

Plug

without

Male Thread with Internal Hexagon

3/8

na

6012SFAK21MXN

12

Plug

without

Male Thread

1/2

na

6012SFAW26MXN

12

Plug

without

Male Thread

3/4

na

6012SFIW21MXN

12

Plug

without

Female Thread

1/2

na

6016KBAW26MVN

16

Coupling

with

Male Thread

3/4

na

6016KBIW26MVN

16

Coupling

with

Female Thread

3/4

na

6016KBTF19MVN

16

Coupling

with

Hose Barb

na

19

6016SBAO26SVZ

16

Plug

with

Male Thread with additional Seal

3/4

na

6016SBAO33SVZ

16

Plug

with

Male Thread with additional Seal

1

na

6016SBAW33SVZ

16

Plug

with

Male Thread

1

na

6016SBIW26SVZ

16

Plug

with

Female Thread

3/4

na

6016SFAK26SXZ

16

Plug

without

Male Thread

3/4

na

6016SFIW26SXZ

16

Plug

without

Female Thread

3/4

na
