Parker Rectus 7000系列用于流体输送应用热管理快换接头
Parker Rectus 7000 Series Quick Coupling for Fluid Handling Applications
该系列快换接头，公称通径9/12/16/20mm，用于冷却的应用，如铁路机组，目前可供材料为黄铜或者不锈钢。
Parker Rectus派克7000系列快换接头目前可供四种不同公称通径的产品，该系列的最大特点是性能可靠，主要是使用密封来实现的。当与阴接头连接后，在阀芯打开之前，阳接头已经进行密封。在管路成功连接后，有双密封作用，从而确保连接的可靠性。Parker Rectus 7000 系列的阴接头与阳接头，有额外的外部密封圈，适合户外的应用，因此当连接成功后，快换的锁紧系统，能够完全的防止灰尘或者盐雾进入到系统内。Parker Quick Connect Coupling Series 7000 is available in four different nominal diameters. It stands out for the very high level of reliability with respect to the seal, as the plug already seals in the coupling before the valves open when engaging the coupling and seals the connection reliably with a double seal when connected.Series 7000 has an additional external seal in the coupling and plug specifically for outdoor applications, so that the locking system is completely protected from dirt and spray water when connected.
Parker's 7000 Series Quick Connect Coupling
Quick Coupling for Fluid Handling Applications, Series 7000

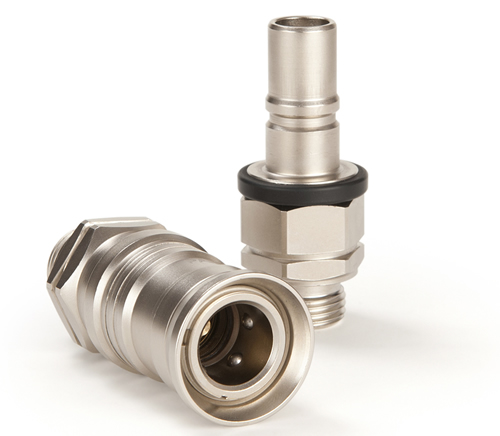

Parker's Quick Connect Coupling Series 7000 is available in four different nominal diameters. It stands out for the very high level of reliability with respect to the seal, as the plug already seals in the coupling before the valves open when engaging the coupling and seals the connection reliably with a double seal when connected.
Series 7000 has an additional external seal in the coupling and plug specifically for outdoor applications, so that the locking system is completely protected from dirt and spray water when connected.
市场：
- 工业
- 铁路
- 电子冷却
- 交通
特点/优点：
- 额外的外部锁紧系统密封圈能够适合用于外部应用
- 防尘盖，带不锈钢的钢锁，可咨询订货
- 防溅设计，即在连接过程中没有水排放
- 连接时双重密封保护
性能特点
标称直径 (DN) 9, 12, 16, 20
阀门 是
型号 双截止
软管内径 10, 16, 19, 25
外径 (MM) 27 高达 54
材料 - 密封件 EPDM
最低工作温度: (°C) -40
MAXIMUM WORKING TEMPERATURE (°C) 150
最大工作压力 (BAR) 16
应用 轨道交通 - 铁路
应用：
- 电子元件冷却
- 流体输送
- 水和冷却液管路
- 高流量水应用
LITERATURE AND REFERENCE MATERIALS
- Catalogue Page Parker Rectus Series 7000
- Market Brochure - Transportation Railway
Part |
Type |
Connection Type |
Connection Thread Size (inch) |
Material |
Length (mm) |
7009KBAD18MED |
Coupling |
Male thread with 24° sealing cone in accordance with ISO 8434-1 |
18x1,5 |
Brass chemical nickel plated |
67 |
7009KBAD18REX |
Coupling |
Male thread with 24° sealing cone in accordance with ISO 8434-1 |
18x1,5 |
AISI 303 |
67 |
7009KBAO17MED |
Coupling |
Male Thread with front O-ring |
3/8 |
Brass chemical nickel plated |
65 |
7009KBAO17REX |
Coupling |
Male Thread with front O-ring |
3/8 |
AISI 303 |
65 |
7009KBIW17MED |
Coupling |
Female Thread |
3/8 |
Brass chemical nickel plated |
65 |
7009KBIW17REX |
Coupling |
Female Thread |
3/8 |
AISI 303 |
65 |
7009KBTP10MED |
Coupling |
Parker Push-Lok |
na |
Brass chemical nickel plated |
84 |
7009KBTP10REX |
Coupling |
Parker Push-Lok |
na |
AISI 303 |
84 |
7009SBAD18MED |
Plug |
Male thread with 24° sealing cone in accordance with ISO 8434-1 |
18x1,5 |
Brass chemical nickel plated |
62 |
7009SBAD18REX |
Plug |
Male thread with 24° sealing cone in accordance with ISO 8434-1 |
18x1,5 |
AISI 303 |
62 |
7009SBAO17MED |
Plug |
Male Thread with front O-ring |
3/8 |
Brass chemical nickel plated |
60 |
7009SBAO17REX |
Plug |
Male Thread with front O-ring |
3/8 |
AISI 303 |
60 |
7009SBIW17MED |
Plug |
Female Thread |
3/8 |
Brass chemical nickel plated |
60 |
7009SBIW17REX |
Plug |
Female Thread |
3/8 |
AISI 303 |
60 |
7009SBTP10MED |
Plug |
Parker Push-Lok |
na |
Brass chemical nickel plated |
82 |
7009SBTP10REX |
Plug |
Parker Push-Lok |
na |
AISI 303 |
82 |
7012KBAD26MED |
Coupling |
Male thread with 24° sealing cone in accordance with ISO 8434-1 |
26x1,5 |
Brass chemical nickel plated |
82 |
7012KBAD26REX |
Coupling |
Male thread with 24° sealing cone in accordance with ISO 8434-1 |
26x1,5 |
AISI 303 |
82 |
7012KBAO21MED |
Coupling |
Male Thread with front O-ring |
1/2 |
Brass chemical nickel plated |
82 |
7012KBAO21REX |
Coupling |
Male Thread with front O-ring |
1/2 |
AISI 303 |
82 |
7012KBIW21MED |
Coupling |
Female Thread |
1/2 |
Brass chemical nickel plated |
82 |
7012KBIW21REX |
Coupling |
Female Thread |
1/2 |
AISI 303 |
82 |
7012KBTP16MED |
Coupling |
Parker Push-Lok |
na |
Brass chemical nickel plated |
111 |
7012KBTP16REX |
Coupling |
Parker Push-Lok |
na |
AISI 303 |
111 |
7012SBAD26MED |
Plug |
Male thread with 24° sealing cone in accordance with ISO 8434-1 |
26x1,5 |
Brass chemical nickel plated |
73,5 |
7012SBAD26REX |
Plug |
Male thread with 24° sealing cone in accordance with ISO 8434-1 |
26x1,5 |
AISI 303 |
73,5 |
7012SBAO21MED |
Plug |
Male Thread with front O-ring |
1/2 |
Brass chemical nickel plated |
73,5 |
7012SBAO21REX |
Plug |
Male Thread with front O-ring |
1/2 |
AISI 303 |
73,5 |
7012SBIW21MED |
Plug |
Female Thread |
1/2 |
Brass chemical nickel plated |
73,5 |
7012SBIW21REX |
Plug |
Female Thread |
1/2 |
AISI 303 |
73,5 |
7012SBTP16MED |
Plug |
Parker Push-Lok |
na |
Brass chemical nickel plated |
101,5 |
7012SBTP16REX |
Plug |
Parker Push-Lok |
na |
AISI 303 |
101,5 |
7016KBAD30MED |
Coupling |
Male thread with 24° sealing cone in accordance with ISO 8434-1 |
30x2 |
Brass chemical nickel plated |
100,5 |
7016KBAD30REX |
Coupling |
Male thread with 24° sealing cone in accordance with ISO 8434-1 |
30x2 |
AISI 303 |
100,5 |
7016KBAO26MED |
Coupling |
Male Thread with front O-ring |
3/4 |
Brass chemical nickel plated |
103 |
7016KBAO26REX |
Coupling |
Male Thread with front O-ring |
3/4 |
AISI 303 |
103 |
7016KBIW26MED |
Coupling |
Female Thread |
3/4 |
Brass chemical nickel plated |
101 |
7016KBIW26REX |
Coupling |
Female Thread |
3/4 |
AISI 303 |
101 |
7016KBTP19MED |
Coupling |
Parker Push-Lok |
na |
Brass chemical nickel plated |
125 |
7016KBTP19REX |
Coupling |
Parker Push-Lok |
na |
AISI 303 |
125 |
7016SBAD30MED |
Plug |
Male thread with 24° sealing cone in accordance with ISO 8434-1 |
30x2 |
Brass chemical nickel plated |
95,5 |
7016SBAD30REX |
Plug |
Male thread with 24° sealing cone in accordance with ISO 8434-1 |
30x2 |
AISI 303 |
95,5 |
7016SBAO26MED |
Plug |
Male Thread with front O-ring |
3/4 |
Brass chemical nickel plated |
98,5 |
7016SBAO26REX |
Plug |
Male Thread with front O-ring |
3/4 |
AISI 303 |
98,5 |
7016SBIW26MED |
Plug |
Female Thread |
3/4 |
Brass chemical nickel plated |
97,5 |
7016SBIW26REX |
Plug |
Female Thread |
3/4 |
AISI 303 |
97,5 |
7016SBTP19MED |
Plug |
Parker Push-Lok |
na |
Brass chemical nickel plated |
124,5 |
7016SBTP19REX |
Plug |
Parker Push-Lok |
na |
AISI 303 |
124,5 |
7020KBAD36MED |
Coupling |
Male thread with 24° sealing cone in accordance with ISO 8434-1 |
36x2 |
Brass chemical nickel plated |
121 |
7020KBAD36REX |
Coupling |
Male thread with 24° sealing cone in accordance with ISO 8434-1 |
36x2 |
AISI 303 |
121 |
Part |
Type |
Connection Type |
Connection Thread Size (inch) |
Material |
Length (mm) |
7020KBAO33MED |
Coupling |
Male Thread with front O-ring |
1 |
Brass chemical nickel plated |
127 |
7020KBAO33REX |
Coupling |
Male Thread with front O-ring |
1 |
AISI 303 |
127 |
7020KBIW33MED |
Coupling |
Female Thread |
1 |
Brass chemical nickel plated |
127 |
7020KBIW33REX |
Coupling |
Female Thread |
1 |
AISI 303 |
127 |
7020KBTP25MED |
Coupling |
Parker Push-Lok |
na |
Brass chemical nickel plated |
146 |
7020KBTP25REX |
Coupling |
Parker Push-Lok |
na |
AISI 303 |
146 |
7020SBAD36MED |
Plug |
Male thread with 24° sealing cone in accordance with ISO 8434-1 |
36x2 |
Brass chemical nickel plated |
126,5 |
7020SBAD36REX |
Plug |
Male thread with 24° sealing cone in accordance with ISO 8434-1 |
36x2 |
AISI 303 |
126,5 |
7020SBAO33MED |
Plug |
Male Thread with front O-ring |
1 |
Brass chemical nickel plated |
132,5 |
7020SBAO33REX |
Plug |
Male Thread with front O-ring |
1 |
AISI 303 |
132,5 |
7020SBIW33MED |
Plug |
Female Thread |
1 |
Brass chemical nickel plated |
130,5 |
7020SBIW33REX |
Plug |
Female Thread |
1 |
AISI 303 |
130,5 |
7020SBTP25MED |
Plug |
Parker Push-Lok |
na |
Brass chemical nickel plated |
152,5 |
7020SBTP25REX |
Plug |
Parker Push-Lok |
na |
AISI 303 |
152,5 |
|
