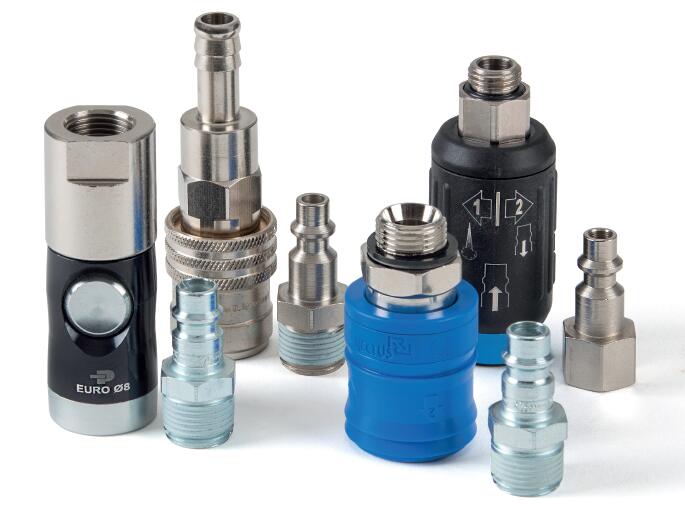

Parker Rectus KP Series Push-button Safety Coupling
Safety Push Button Quick Coupling, Series KP
Self-venting quick coupling system

PARKER派克的安全快速接头系列KP是一种带有按钮的安全接头，集成了符合ISO 6150 B、ISO 6150 C和欧洲标准的自动排气系统。在断开连接的过程中，分两步进行自动排气-无压力软管被甩的风险。当推压一次后，插头松开，但仍保持锁定状态。耦合阀关闭，空气同时从空气管路中排出。只有再次按下按钮，才能安全地进行解钩。该系统满足ISO 4414-工作场所安全标准的要求，使用方便。Parker's Safety Quick Coupling Series KP is a safety coupling with pushing button integrating self-venting system according to ISO 6150 B, ISO 6150 C and EURO. The self-venting takes place during disconnection in 2 steps – no risk of pressurized hoses being tossed around. When the pushing buttind is pressed one time, the plug is released yet remains locked in. The coupling valve closes and the air is vented from the air line at the same time. Only then, by pressing the button again, can uncoupling take place safely. The system fulfils the requirements of ISO 4414 – increased safety standards in the work place and make the use easy.

Parker Safety Self-Venting Couplers for Pneumatic Applications

The right plug for self-venting series KP can be found as followings :
- ISO 6150 B; DN 5,5 : Plug series 23
- ISO 6150 B; DN 8 : Plug series 30
- ISO 6150 C; DN 5,5 : Plug series 18
- ISO 6150 B; DN 8 : Plug series 84
- EURO; DN 7,4 : Plug series 25

Markets:
- Machinery Construction
- Automotive
- Industrial process factory

Features/Benefits:
- Safety coupling with self-venting mechanism
- No whiplash effect due to the self-venting which takes place during disconnection
- Easy to connect and discconnet with one hand

Applications:
- Workshops
- Cleaning
- Blowing
- Pneumatics
- Air-Operated Tools
- Ring Main Circuits
- Packaging

Safety Push Button Quick Coupling, Series KP

Self-venting quick coupling system with push button, nominal diameter from 5.5 to 8 mm for pneumatic applications up to 12 bar. Coupling system with ISO B, ISO C and Euro profile. Made of anodised aluminium/nickel plated brass/NBR seals.
