Rectus MD Series Quick Couplings Quick Coupling for Medical Technology
Parker Rectus MD系列医疗用热塑材料快换接头

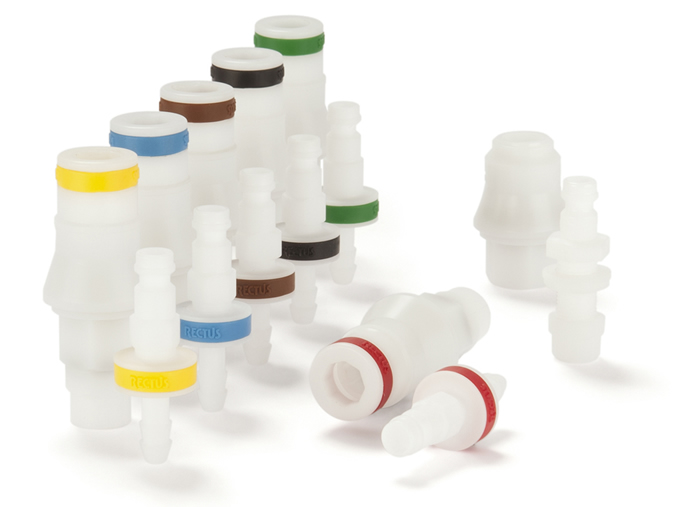

Rectus MD Series Quick Coupling



Rectus MD Series系列派克快换接头,公称通径是5 mm,耐压可达10 bar,可供材料:热塑材料(聚甲醛)派克MD系列快换接头,是用于医疗行业的专用快换接头。接头材料为符合USPVI级要求的聚甲醛材料,设计是符合这个尺寸下世界上最常用的结构形式。对于液体以及气体的应用,MD 系列的流量性能表现都高于同类型产品。该系列快换接头可使用单手操作。并且使用了便利的套筒锁紧系统,从而扩大了其应用范围。快换阴接头以及阳接头都有独特的颜色以及机械标识系统,从而能够保证连接不同流体回路时不会混淆。该系列接头还可以提供直通形式(不带阀)。


Rectus MD Series Quick Couplings Quick Coupling for Medical Technology

市场:

- 生命科学Life Science
- 过程控制Process

特征/优势:

- 快换阴接头以及阳接头都有独特的颜色以及机械标识系统,从而能够保证连接不同流体回路时不会混淆。No mix-ups between media due to the color and mechanical coding of coupling and plug
- 单手操作系统,连接时简单快速Single-hand operation for easy and fast connection

性能特点

标称直径 (DN) 5
阀门 是, 否
长度 (MM) 32 高达 83,5
外六角 (MM) na, 14, 17
外径 (MM) 25,5 高达 28
材料 聚甲醛,USP 等级VI,白色
密封材料 三元乙丙橡胶,USP 等级VI,na
最低工作温度(°C) -20
最高工作温度 (C) 80
最大工作压力 (BAR) 10
流速 (LPM) 300, 490

应用Applications:

- 手术设备 Surgical devices
- 无创血压 NIBP
- 病人监测 Patient monitoring
- 温度及压力治疗 Temperature & compression therapy

Parker's Quick Coupling Series MD is a coupling system for the medical field in POM of USP class VI with the world's most popular profile in this nominal diameter. Series MD stands out for its above average flow performance for liquid and gaseous media.This coupling system is developed for single-hand operation. The new type of plastic locking system with handy sleeve considerably expands the applications. The color and mechanical coding of the coupling and plug offers a guarantee for avoiding mix-ups between media when coupling. The coupling is also available straight-through (with no valve).


LITERATURE AND REFERENCE MATERIALS
- Catalogue Page Parker Rectus Series MD



MD系列医疗技术快速接头

RECTUS MD Series Quick Coupling for Medical Technology
标称直径为5的快速连接系统,用于医疗应用,压力高达10 bar。可用热塑性塑料(POM)制成。Quick coupling system with nominal diameter 5 for medical applications up to 10 bar. Available made of thermoplastic (POM).

派克的快速接头系列MD是用于USP VI级POM的医疗领域的接头系统,其公称直径是世界上最受欢迎的型材。MD系列因其在液体和气体介质中的平均流动性能出色而脱颖而出。
该耦合系统专为单手操作而开发。新型带方便套的塑料锁定系统大大扩展了应用范围。联轴器和插头的颜色和机械编码为联轴器避免介质之间的混淆提供了保证。联轴器也可直接使用(无阀)。Parker's Quick Coupling Series MD is a coupling system for the medical field in POM of USP class VI with the world's most popular profile in this nominal diameter. Series MD stands out for its above average flow performance for liquid and gaseous media.This coupling system is developed for single-hand operation. The new type of plastic locking system with handy sleeve considerably expands the applications. The color and mechanical coding of the coupling and plug offers a guarantee for avoiding mix-ups between media when coupling. The coupling is also available straight-through (with no valve).



市场:
-生命科学
-工艺

特点/优点:
-由于耦合器和插头的颜色和机械编码,介质之间没有混淆
-单手操作,方便快捷地连接

应用:
-手术器械
-无创血压
-患者监护
-温度和压缩疗法
Markets:
- Life Science
- Process

Features/Benefits:
- No mix-ups between media due to the color and mechanical coding of coupling and plug
- Single-hand operation for easy and fast connection

Applications:
- Surgical devices
- NIBP
- Patient monitoring
- Temperature & compression therapy



技术指标
最低工作温度: -20°摄氏度
直径: 标称:5毫米
应用: 医疗技术
牌: 直肌
配件连接类型: 各种
交换类型: 直肌简介
最大工作压力: 145磅/平方英寸,10巴
最高工作温度: 176°F,80°C
媒体: 化学流体,气体,气动介质,水
阀门类型: 提升阀
阀门包括: 是或否 到版本
长度: 32至83.5毫米
十六进制大小: 14至17毫米
外径: 25.5至28毫米
结构材料: POM,USP VI级,白色
密封材料: EPDM USP VI级
流量: 300至490 L / min





Part

Type

Version

Connection Type

Connection Thread Size (inch)

Hose I.D.

Color

MD-M51-2FB

Coupling

Double Shut-Off

Female Thread

1/8

na

na

MD-M51-2FB-K0

Coupling

Single Shut-Off

Female Thread

1/8

na

green - 0

MD-M51-2FB-K2

Coupling

Single Shut-Off

Female Thread

1/8

na

black - 2

MD-M51-2FB-K3

Coupling

Single Shut-Off

Female Thread

1/8

na

brown - 3

MD-M51-2FB-K5

Coupling

Single Shut-Off

Female Thread

1/8

na

yellow - 5

MD-M51-2FB-K6

Coupling

Single Shut-Off

Female Thread

1/8

na

blue - 6

MD-M51-2FB-K8

Coupling

Single Shut-Off

Female Thread

1/8

na

red - 8

MD-M51-2MB

Coupling

Double Shut-Off

Male Thread

1/8

na

na

MD-M51-2MB-K0

Coupling

Single Shut-Off

Male Thread

1/8

na

green - 0

MD-M51-2MB-K2

Coupling

Single Shut-Off

Male Thread

1/8

na

black - 2

MD-M51-2MB-K3

Coupling

Single Shut-Off

Male Thread

1/8

na

brown - 3

MD-M51-2MB-K5

Coupling

Single Shut-Off

Male Thread

1/8

na

yellow - 5

MD-M51-2MB-K6

Coupling

Single Shut-Off

Male Thread

1/8

na

blue - 6

MD-M51-2MB-K8

Coupling

Single Shut-Off

Male Thread

1/8

na

red - 8

MD-M51-4FB

Coupling

Double Shut-Off

Female Thread

1/4

na

na

MD-M51-4FB-K0

Coupling

Single Shut-Off

Female Thread

1/4

na

green - 0

MD-M51-4FB-K2

Coupling

Single Shut-Off

Female Thread

1/4

na

black - 2

MD-M51-4FB-K3

Coupling

Single Shut-Off

Female Thread

1/4

na

brown - 3

MD-M51-4FB-K5

Coupling

Single Shut-Off

Female Thread

1/4

na

yellow - 5

MD-M51-4FB-K6

Coupling

Single Shut-Off

Female Thread

1/4

na

blue - 6

MD-M51-4FB-K8

Coupling

Single Shut-Off

Female Thread

1/4

na

red - 8

MD-M51-4MB

Coupling

Double Shut-Off

Male Thread

1/4

na

na

MD-M51-4MB-K0

Coupling

Single Shut-Off

Male Thread

1/4

na

green - 0

MD-M51-4MB-K2

Coupling

Single Shut-Off

Male Thread

1/4

na

black - 2

MD-M51-4MB-K3

Coupling

Single Shut-Off

Male Thread

1/4

na

brown - 3

MD-M51-4MB-K5

Coupling

Single Shut-Off

Male Thread

1/4

na

yellow - 5

MD-M51-4MB-K6

Coupling

Single Shut-Off

Male Thread

1/4

na

blue - 6

MD-M51-4MB-K8

Coupling

Single Shut-Off

Male Thread

1/4

na

red - 8

MD-M51-HM4HB

Coupling

Double Shut-Off

Panel Mount with Hose Barb

na

4

na

MD-M51-HM4HB-K0

Coupling

Single Shut-Off

Panel Mount with Hose Barb

na

4

green - 0

MD-M51-HM4HB-K2

Coupling

Single Shut-Off

Panel Mount with Hose Barb

na

4

black - 2

MD-M51-HM4HB-K3

Coupling

Single Shut-Off

Panel Mount with Hose Barb

na

4

brown - 3

MD-M51-HM4HB-K5

Coupling

Single Shut-Off

Panel Mount with Hose Barb

na

4

yellow - 5

MD-M51-HM4HB-K6

Coupling

Single Shut-Off

Panel Mount with Hose Barb

na

4

blue - 6

MD-M51-HM4HB-K8

Coupling

Single Shut-Off

Panel Mount with Hose Barb

na

4

red - 8

MD-M51-HM6CSP

Coupling

Double Shut-Off

Panel Mount with Plastic Hose Connection

na

4x6

na

MD-M51-HM6CSP-K0

Coupling

Single Shut-Off

Panel Mount with Plastic Hose Connection

na

4x6

green - 0

MD-M51-HM6CSP-K2

Coupling

Single Shut-Off

Panel Mount with Plastic Hose Connection

na

4x6

black - 2

MD-M51-HM6CSP-K3

Coupling

Single Shut-Off

Panel Mount with Plastic Hose Connection

na

4x6

brown - 3

MD-M51-HM6CSP-K5

Coupling

Single Shut-Off

Panel Mount with Plastic Hose Connection

na

4x6

yellow - 5

MD-M51-HM6CSP-K6

Coupling

Single Shut-Off

Panel Mount with Plastic Hose Connection

na

4x6

blue - 6

MD-M51-HM6CSP-K8

Coupling

Single Shut-Off

Panel Mount with Plastic Hose Connection

na

4x6

red - 8

MD-M51-HM6HB

Coupling

Double Shut-Off

Panel Mount with Hose Barb

na

6

na

MD-M51-HM6HB-K0

Coupling

Single Shut-Off

Panel Mount with Hose Barb

na

6

green - 0

MD-M51-HM6HB-K2

Coupling

Single Shut-Off

Panel Mount with Hose Barb

na

6

black - 2

MD-M51-HM6HB-K3

Coupling

Single Shut-Off

Panel Mount with Hose Barb

na

6

brown - 3

MD-M51-HM6HB-K5

Coupling

Single Shut-Off

Panel Mount with Hose Barb

na

6

yellow - 5

MD-M51-HM6HB-K6

Coupling

Single Shut-Off

Panel Mount with Hose Barb

na

6

blue - 6

MD-M51-HM6HB-K8

Coupling

Single Shut-Off

Panel Mount with Hose Barb

na

6

red - 8

MD-M51-HM8CSP

Coupling

Double Shut-Off

Panel Mount with Plastic Hose Connection

na

6x8

na



Part

Type

Version

Connection Type

Connection Thread Size (inch)

Hose I.D.

Color

MD-M51-HM8CSP-K0

Coupling

Single Shut-Off

Panel Mount with Plastic Hose Connection

na

6x8

green - 0

MD-M51-HM8CSP-K2

Coupling

Single Shut-Off

Panel Mount with Plastic Hose Connection

na

6x8

black - 2

MD-M51-HM8CSP-K3

Coupling

Single Shut-Off

Panel Mount with Plastic Hose Connection

na

6x8

brown - 3

MD-M51-HM8CSP-K5

Coupling

Single Shut-Off

Panel Mount with Plastic Hose Connection

na

6x8

yellow - 5

MD-M51-HM8CSP-K6

Coupling

Single Shut-Off

Panel Mount with Plastic Hose Connection

na

6x8

blue - 6

MD-M51-HM8CSP-K8

Coupling

Single Shut-Off

Panel Mount with Plastic Hose Connection

na

6x8

red - 8

MD-M51-M4HB

Coupling

Double Shut-Off

Hose Barb

na

4

na

MD-M51-M4HB-K0

Coupling

Single Shut-Off

Hose Barb

na

4

green - 0

MD-M51-M4HB-K2

Coupling

Single Shut-Off

Hose Barb

na

4

black - 2

MD-M51-M4HB-K3

Coupling

Single Shut-Off

Hose Barb

na

4

brown - 3

MD-M51-M4HB-K5

Coupling

Single Shut-Off

Hose Barb

na

4

yellow - 5

MD-M51-M4HB-K6

Coupling

Single Shut-Off

Hose Barb

na

4

blue - 6

MD-M51-M4HB-K8

Coupling

Single Shut-Off

Hose Barb

na

4

red - 8

MD-M51-M6CSP

Coupling

Double Shut-Off

with Plastic Hose Connection

na

4x6

na

MD-M51-M6CSP-K0

Coupling

Single Shut-Off

with Plastic Hose Connection

na

4x6

green - 0

MD-M51-M6CSP-K2

Coupling

Single Shut-Off

with Plastic Hose Connection

na

4x6

black - 2

MD-M51-M6CSP-K3

Coupling

Single Shut-Off

with Plastic Hose Connection

na

4x6

brown - 3

MD-M51-M6CSP-K5

Coupling

Single Shut-Off

with Plastic Hose Connection

na

4x6

yellow - 5

MD-M51-M6CSP-K6

Coupling

Single Shut-Off

with Plastic Hose Connection

na

4x6

blue - 6

MD-M51-M6CSP-K8

Coupling

Single Shut-Off

with Plastic Hose Connection

na

4x6

red - 8

MD-M51-M6HB

Coupling

Double Shut-Off

Hose Barb

na

6

na

MD-M51-M6HB-K0

Coupling

Single Shut-Off

Hose Barb

na

6

green - 0

MD-M51-M6HB-K2

Coupling

Single Shut-Off

Hose Barb

na

6

black - 2

MD-M51-M6HB-K3

Coupling

Single Shut-Off

Hose Barb

na

6

brown - 3

MD-M51-M6HB-K5

Coupling

Single Shut-Off

Hose Barb

na

6

yellow - 5

MD-M51-M6HB-K6

Coupling

Single Shut-Off

Hose Barb

na

6

blue - 6

MD-M51-M6HB-K8

Coupling

Single Shut-Off

Hose Barb

na

6

red - 8

MD-M51-M8CSP

Coupling

Double Shut-Off

with Plastic Hose Connection

na

6x8

na

MD-M51-M8CSP-K0

Coupling

Single Shut-Off

with Plastic Hose Connection

na

6x8

green - 0

MD-M51-M8CSP-K2

Coupling

Single Shut-Off

with Plastic Hose Connection

na

6x8

black - 2

MD-M51-M8CSP-K3

Coupling

Single Shut-Off

with Plastic Hose Connection

na

6x8

brown - 3

MD-M51-M8CSP-K5

Coupling

Single Shut-Off

with Plastic Hose Connection

na

6x8

yellow - 5

MD-M51-M8CSP-K6

Coupling

Single Shut-Off

with Plastic Hose Connection

na

6x8

blue - 6

MD-M51-M8CSP-K8

Coupling

Single Shut-Off

with Plastic Hose Connection

na

6x8

red - 8

MD-M51-QM4HB

Coupling

Double Shut-Off

Hose Barb, Flush Mount

na

4

na

MD-M51-QM6CSP

Coupling

Double Shut-Off

Plastic Hose Connection, Flush Mount

na

4x6

na

MD-M51-QM6HB

Coupling

Double Shut-Off

Hose Barb, Flush Mount

na

6

na

MD-M51-QM8CSP

Coupling

Double Shut-Off

Plastic Hose Connection, Flush Mount

na

6x8

na

MD-M52-2FB

Plug

Double Shut-Off

Female Thread

1/8

na

na

MD-M52-2MB

Plug

Double Shut-Off

Male Thread

1/8

na

na

MD-M52-4FB

Plug

Double Shut-Off

Female Thread

1/4

na

na

MD-M52-4MB

Plug

Double Shut-Off

Male Thread

1/4

na

na

MD-M52-HM4HB

Plug

Double Shut-Off

Panel Mount with Hose Barb

na

4

na

MD-M52-HM6CSP

Plug

Double Shut-Off

Panel Mount with Plastic Hose Connection

na

4x6

na

MD-M52-HM6HB

Plug

Double Shut-Off

Panel Mount with Hose Barb

na

6

na

MD-M52-HM8CSP

Plug

Double Shut-Off

Panel Mount with Plastic Hose Connection

na

6x8

na

MD-M52-M4HB

Plug

Double Shut-Off

Hose Barb

na

4

na

MD-M52-M6CSP

Plug

Double Shut-Off

with Plastic Hose Connection

na

4x6

na

MD-M52-M6HB

Plug

Double Shut-Off

Hose Barb

na

6

na

MD-M52-M8CSP

Plug

Double Shut-Off

with Plastic Hose Connection

na

6x8

na



Part

Type

Version

Connection Type

Connection Thread Size (inch)

Hose I.D.

Color

MD-M54-HM4HB

Plug

Single Shut-Off

Panel Mount with Hose Barb

na

4x6

na

MD-M54-HM6CSP

Plug

Single Shut-Off

Panel Mount with Plastic Hose Connection

na

4x6

na

MD-M54-HM6HB

Plug

Single Shut-Off

Panel Mount with Hose Barb

na

6x8

na

MD-M54-HM8CSP

Plug

Single Shut-Off

Panel Mount with Plastic Hose Connection

na

6x8

na

MD-M54-M10HB-K0

Plug

Single Shut-Off

Hose Barb

na

10

green - 0

MD-M54-M10HB-K2

Plug

Single Shut-Off

Hose Barb

na

10

black - 2

MD-M54-M10HB-K3

Plug

Single Shut-Off

Hose Barb

na

10

brown - 3

MD-M54-M10HB-K5

Plug

Single Shut-Off

Hose Barb

na

10

yellow - 5

MD-M54-M10HB-K6

Plug

Single Shut-Off

Hose Barb

na

10

blue - 6

MD-M54-M10HB-K8

Plug

Single Shut-Off

Hose Barb

na

10

red - 8

MD-M54-M4HB

Plug

Single Shut-Off

Hose Barb

na

4

na

MD-M54-M4HB-K0

Plug

Single Shut-Off

Hose Barb

na

4

green - 0

MD-M54-M4HB-K2

Plug

Single Shut-Off

Hose Barb

na

4

black - 2

MD-M54-M4HB-K3

Plug

Single Shut-Off

Hose Barb

na

4

brown - 3

MD-M54-M4HB-K5

Plug

Single Shut-Off

Hose Barb

na

4

yellow - 5

MD-M54-M4HB-K6

Plug

Single Shut-Off

Hose Barb

na

4

blue - 6

MD-M54-M4HB-K8

Plug

Single Shut-Off

Hose Barb

na

4

red - 8

MD-M54-M6HB

Plug

Single Shut-Off

Hose Barb

na

6

na

MD-M54-M6HB-K0

Plug

Single Shut-Off

Hose Barb

na

6

green - 0

MD-M54-M6HB-K2

Plug

Single Shut-Off

Hose Barb

na

6

black - 2

MD-M54-M6HB-K3

Plug

Single Shut-Off

Hose Barb

na

6

brown - 3

MD-M54-M6HB-K5

Plug

Single Shut-Off

Hose Barb

na

6

yellow - 5

MD-M54-M6HB-K6

Plug

Single Shut-Off

Hose Barb

na

6

blue - 6

MD-M54-M6HB-K8

Plug

Single Shut-Off

Hose Barb

na

6

red - 8








美国DMK Engineering Solutions公司
信德迈科技(北京)有限公司 CNMEC Technology


E-mail:sales@cnmec.biz fcg.cnmec@parkerdistribution.com.cn
地址:北京市朝阳区望京街10号望京SOHO塔1C座2115室
邮编:100102
电话:010-8428 2935, 8428 9077, 8428 3983
手机:139 101 22694
Http://www.cnmec.biz
传真:010-8428 8762


京ICP备08000876号-1
京公网安备 11010502019740
Since 2007 Strong Distribution & Powerful Partnerships
