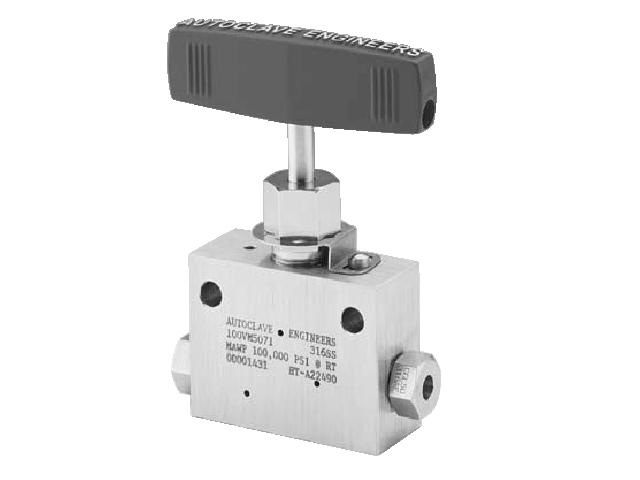

100VM Series High Pressure Needle Valves 高压针阀 - VM 系列 100,000 PSI | #100VM4071
派克 Autoclave 的 100VM 系列针阀采用非旋转升杆设计，工作压力为 100,000 psi (6895 bar)，带有 ?” 至 9/16”” 端接。这些阀门有 316 不锈钢材质和两种阀体样式。派克 Autoclave 的 100VM 系列针阀采用非旋转升降杆设计，工作压力高达 100,000 psi (6895 bar)。管道尺寸范围从 ?” 到 9/16”。管道连接采用派克 Autoclave 锥体和螺纹设计。带有 PTFE 填料的标准高压针阀可以在 0°F (-17.8°C) 至 450°F (232°C) 和 230°F (110°C) 的温度范围内使用尼龙皮革填料。这些高压针阀在螺纹下方具有可调节填料，以防止介质接触动力螺纹，并避免在驱动过程中引起磨损。
这些阀具有许多特点，可在各种应用中提供可靠且无故障的服务。
市场：
- 石油和天然气
- 石化
特性/优势：
- 管道尺寸为 1/4“ 至 9/16”。
- 非旋转阀杆可防止阀杆/阀座磨损。
- 上升杆/棒材主体设计。
- 金属对金属阀座可实现气密关闭、更长的阀杆/阀座在磨料流中的使用寿命、更高的重复开/关循环的耐用性和出色的耐腐蚀性。
- 为了可靠的阀杆和阀体密封，阀门配有聚四氟乙烯封装填料。
- 选择了阀杆套筒和填料压盖材料以延长螺纹循环寿命并降低手柄扭矩。
- 可选择V 形或调节阀杆尖端。
- 三种车身模式的选择
应用：
- 高压滑板
- 高压流体处理系统
- 研究系统
High Pressure Valve Features :
- Tubing sizes from 1/4” to 3/8”.
- Non-rotating stem prevents stem/seat galling.
- 100,000 PSI (6900 bar) max pressure
- Metal-to-metal seating achieves bubble-tight shut- off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles and excellent corrosion resistance.
- Stem sleeve and packing gland materials have been selected to achieve extended thread cycle life and reduced handle torque.
- Choice of Vee or Regulating stem tips.
- Cold-worked type 316 stainless steel body with aluminum bronze packing gland and non-rotating stem.
- Nylon and leather packing below stem threads.
Autoclave valves are complemented by a complete line of high pressure fittings and tubing. The high pressure series uses Autoclave's coned-and-threaded connections for dependable performance in gas or liquid service.
The 100V Series valves are furnished complete with connection components, unless otherwise specified.
Panel mounting drill size: 0.22" all valves.
All dimensions for reference only and subject to change.
For prompt service 'Autoclave stocks select products' Consult factory.
All general terms and conditions of sale, including limitations of our liability, apply to all products and services sold.
Parts |
Maximum Working Pressure (psi) |
Tube O.D. (mm) |
Stem Type |
Valve Type |
100VM4071 |
100,000 |
6.35 mm |
VEE |
2-Way Straight |
100VM4072 |
100,000 |
6.35 mm |
VEE |
2-Way Angle |
100VM4073 |
100,000 |
6.35 mm |
VEE |
3-Way / 2 on Pressure |
100VM4872 |
100,000 |
6.35 mm |
VEE |
2-Way Angle / Replacement Seat |
100VM5071 |
100,000 |
7.93 mm |
VEE |
2-Way Straight |
100VM5072 |
100,000 |
7.93 mm |
VEE |
2-Way Angle |
100VM5073 |
100,000 |
7.93 mm |
VEE |
3-Way / 2 on Pressure |
100VM5872 |
100,000 |
7.93 mm |
VEE |
2-Way Angle / Replacement Seat |
100VM6071 |
100,000 |
9.53 mm |
VEE |
2-Way Straight |
100VM6072 |
100,000 |
9.53 mm |
VEE |
2-Way Angle |
100VM6073 |
100,000 |
9.53 mm |
VEE |
3-Way / 2 on Pressure |
100VM6872 |
100,000 |
9.53 mm |
VEE |
2-Way Angle / Replacement Seat |
30VM4071 |
30,000 |
6.35 mm |
VEE |
2-Way Straight |
30VM4072 |
30,000 |
6.35 mm |
VEE |
2-Way Angle |
30VM4073 |
30,000 |
6.35 mm |
VEE |
3-Way / 2 on Pressure |
30VM4074 |
30,000 |
6.35 mm |
VEE |
3-Way / 1 on Pressure |
30VM4075 |
30,000 |
6.35 mm |
VEE |
3-Way / 2-Stem Manifold |
30VM4081 |
30,000 |
6.35 mm |
REG |
2-Way Straight |
30VM4082 |
30,000 |
6.35 mm |
REG |
2-Way Angle |
30VM4083 |
30,000 |
6.35 mm |
REG |
3-Way / 2 on Pressure |
30VM4084 |
30,000 |
6.35 mm |
REG |
3-Way / 1 on Pressure |
30VM4085 |
30,000 |
6.35 mm |
REG |
3-Way / 2-Stem Manifold |
30VM4872 |
30,000 |
6.35 mm |
VEE |
2-Way Angle / Replaceable Seat |
30VM4882 |
30,000 |
6.35 mm |
REG |
2-Way Angle / Replaceable Seat |
30VM6071 |
30,000 |
9.53 mm |
VEE |
2-Way Straight |
30VM6072 |
30,000 |
9.53 mm |
VEE |
2-Way Angle |
30VM6073 |
30,000 |
9.53 mm |
VEE |
3-Way / 2 on Pressure |
30VM6074 |
30,000 |
9.53 mm |
VEE |
3-Way / 1 on Pressure |
30VM6075 |
30,000 |
9.53 mm |
VEE |
3-Way / 2-Stem Manifold |
30VM6081 |
30,000 |
9.53 mm |
REG |
2-Way Straight |
30VM6082 |
30,000 |
9.53 mm |
REG |
2-Way Angle |
30VM6083 |
30,000 |
9.53 mm |
REG |
3-Way / 2 on Pressure |
30VM6084 |
30,000 |
9.53 mm |
REG |
3-Way / 1 on Pressure |
30VM6085 |
30,000 |
9.53 mm |
REG |
3-Way / 2-Stem Manifold |
30VM6872 |
30,000 |
9.53 mm |
VEE |
2-Way Angle / Replaceable Seat |
30VM6882 |
30,000 |
9.53 mm |
REG |
2-Way Angle / Replaceable Seat |
30VM9071 |
30,000 |
14.29 mm |
VEE |
2-Way Straight |
30VM9072 |
30,000 |
14.29 mm |
VEE |
2-Way Angle |
30VM9073 |
30,000 |
14.29 mm |
VEE |
3-Way / 2 on Pressure |
30VM9074 |
30,000 |
14.29 mm |
VEE |
3-Way / 1 on Pressure |
30VM9075 |
30,000 |
14.29 mm |
VEE |
3-Way / 2-Stem Manifold |
30VM9081 |
30,000 |
14.29 mm |
REG |
2-Way Straight |
30VM9082 |
30,000 |
14.29 mm |
REG |
2-Way Angle |
30VM9083 |
30,000 |
14.29 mm |
REG |
3-Way / 2 on Pressure |
30VM9084 |
30,000 |
14.29 mm |
REG |
3-Way / 1 on Pressure |
30VM9085 |
30,000 |
14.29 mm |
REG |
3-Way / 2-Stem Manifold |
30VM9872 |
30,000 |
14.29 mm |
VEE |
2-Way Angle / Replaceable Seat |
30VM9882 |
30,000 |
14.29 mm |
REG |
2-Way Angle / Replaceable Seat |
40VM9071 |
40,000 |
14.29 mm |
VEE |
2-Way Straight |
40VM9072 |
40,000 |
14.29 mm |
VEE |
2-Way Angle |
Parts |
Maximum Working Pressure (psi) |
Tube O.D. (mm) |
Stem Type |
Valve Type |
40VM9075 |
40,000 |
14.29 mm |
VEE |
3-Way / 2-Stem Manifold |
40VM9081 |
40,000 |
14.29 mm |
REG |
2-Way Straight |
40VM9082 |
40,000 |
14.29 mm |
REG |
2-Way Angle |
40VM9085 |
40,000 |
14.29 mm |
REG |
3-Way / 2-Stem Manifold |
60VM4071 |
60,000 |
6.35 mm |
VEE |
2-Way Straight |
60VM4072 |
60,000 |
6.35 mm |
VEE |
2-Way Angle |
60VM4073 |
60,000 |
6.35 mm |
VEE |
3-Way / 2 on Pressure |
60VM4074 |
60,000 |
6.35 mm |
VEE |
3-Way / 1 on Pressure |
60VM4075 |
60,000 |
6.35 mm |
VEE |
3-Way / 2-Stem Manifold |
60VM4081 |
60,000 |
6.35 mm |
REG |
2-Way Straight |
60VM4082 |
60,000 |
6.35 mm |
REG |
2-Way Angle |
60VM4083 |
60,000 |
6.35 mm |
REG |
3-Way / 2 on Pressure |
60VM4084 |
60,000 |
6.35 mm |
REG |
3-Way / 1 on Pressure |
60VM4085 |
60,000 |
6.35 mm |
REG |
3-Way / 2-Stem Manifold |
60VM4872 |
60,000 |
6.35 mm |
VEE |
2-Way Angle / Replaceable Seat |
60VM4882 |
60,000 |
6.35 mm |
REG |
2-Way Angle / Replaceable Seat |
60VM6071 |
60,000 |
9.53 mm |
VEE |
2-Way Straight |
60VM6072 |
60,000 |
9.53 mm |
VEE |
2-Way Angle |
60VM6073 |
60,000 |
9.53 mm |
VEE |
3-Way / 2 on Pressure |
60VM6074 |
60,000 |
9.53 mm |
VEE |
3-Way / 1 on Pressure |
60VM6075 |
60,000 |
9.53 mm |
VEE |
3-Way / 2-Stem Manifold |
60VM6081 |
60,000 |
9.53 mm |
REG |
2-Way Straight |
60VM6082 |
60,000 |
9.53 mm |
REG |
2-Way Angle |
60VM6083 |
60,000 |
9.53 mm |
REG |
3-Way / 2 on Pressure |
60VM6084 |
60,000 |
9.53 mm |
REG |
3-Way / 1 on Pressure |
60VM6085 |
60,000 |
9.53 mm |
REG |
3-Way / 2-Stem Manifold |
60VM6872 |
60,000 |
9.53 mm |
VEE |
2-Way Angle / Replaceable Seat |
60VM6882 |
60,000 |
9.53 mm |
REG |
2-Way Angle / Replaceable Seat |
60VM9071 |
60,000 |
14.29 mm |
VEE |
2-Way Straight |
60VM9072 |
60,000 |
14.29 mm |
VEE |
2-Way Angle |
60VM9073 |
60,000 |
14.29 mm |
VEE |
3-Way / 2 on Pressure |
60VM9074 |
60,000 |
14.29 mm |
VEE |
3-Way / 1 on Pressure |
60VM9075 |
60,000 |
14.29 mm |
VEE |
3-Way / 2-Stem Manifold |
60VM9081 |
60,000 |
14.29 mm |
REG |
2-Way Straight |
60VM9082 |
60,000 |
14.29 mm |
REG |
2-Way Angle |
60VM9083 |
60,000 |
14.29 mm |
REG |
3-Way / 2 on Pressure |
60VM9084 |
60,000 |
14.29 mm |
REG |
3-Way / 1 on Pressure |
60VM9085 |
60,000 |
14.29 mm |
REG |
3-Way / 2-Stem Manifold |
60VM9872 |
60,000 |
14.29 mm |
VEE |
2-Way Angle / Replaceable Seat |
60VM9882 |
60,000 |
14.29 mm |
REG |
2-Way Angle / Replaceable Seat |
| Item # |
Pressure Rating at Room Temperature |
Outside Diameter Tube |
Stem Type |
Valve Pattern |
Connection Type |
Orifice Diameter |
| 100VM4071 |
100000 psi
6895 bar |
1/4 Inch
6.35 mm |
VEE |
2-Way Straight |
F312C150 |
0.062 Inch
1.57 mm |
| 100VM5071 |
100000 psi
6895 bar |
5/16 Inch
7.93 mm |
VEE |
2-Way Straight |
F312C150 |
0.062 Inch
1.57 mm |
| 100VM6071 |
100000 psi
6895 bar |
3/8 Inch
9.53 mm |
VEE |
2-Way Straight |
F312C150 |
0.062 Inch
1.57 mm |
| 100VM4072 |
100000 psi
6895 bar |
1/4 Inch
6.35 mm |
VEE |
2-Way Angle |
F312C150 |
0.062 Inch
1.57 mm |
| 100VM5072 |
100000 psi
6895 bar |
5/16 Inch
7.93 mm |
VEE |
2-Way Angle |
F312C150 |
0.062 Inch
1.57 mm |
| 100VM6072 |
100000 psi
6895 bar |
3/8 Inch
9.53 mm |
VEE |
2-Way Angle |
F312C150 |
0.062 Inch
1.57 mm |
| 100VM4073 |
100000 psi
6895 bar |
1/4 Inch
6.35 mm |
VEE |
3-Way / 2 on Pressure |
F312C150 |
0.062 Inch
1.57 mm |
| 100VM5073 |
100000 psi
6895 bar |
5/16 Inch
7.93 mm |
VEE |
3-Way / 2 on Pressure |
F312C150 |
0.062 Inch
1.57 mm |
| 100VM6073 |
100000 psi
6895 bar |
3/8 Inch
9.53 mm |
VEE |
3-Way / 2 on Pressure |
F312C150 |
0.062 Inch
1.57 mm |
| 100VM4872 |
100000 psi
6895 bar |
1/4 Inch
6.35 mm |
VEE |
2-Way Angle / Replacement Seat |
F312C150 |
0.062 Inch
1.57 mm |
| 100VM5872 |
100000 psi
6895 bar |
5/16 Inch
7.93 mm |
VEE |
2-Way Angle / Replacement Seat |
F312C150 |
0.062 Inch
1.57 mm |
| 100VM6872 |
100000 psi
6895 bar |
3/8 Inch
9.53 mm |
VEE |
2-Way Angle / Replacement Seat |
F312C150 |
0.062 Inch
1.57 mm |
|
