74 Series - Snap-tite's 74 Series ISO 16028 interchange coupling



Snap-tite 74 Series应用:工程机械、液压工具和大型液压站以及洁净度要求高和存在热膨胀的场合。

Snap-tite 74 Series 产品特性:
球锁式一按即连结构;
平面设计,基本杜绝介质泄漏和气泡混入,同时便于系统检查和清洗;
1/2″能够带压操作;
4倍安全系数;
材质:高强度钢耐腐蚀镀层;
• 尺寸规格:1/4″—1″;
工作压力:2900—4568psi;
符合ISO16028标准,3/8规格的同时符合HTMA ANSI/NFPAT3.20.15-1991标准;
选型资料(插入链接)
Flush Face/Dry Break Design - facilitates easy cleaning prior to connection
Connect Under Pressure Capability - Currently available in 1/2" size in either coupler or nipple half
4:1 Safety Factor
Conforms to HTMA Standards - 3/8" size conforms to Hydraulic Tool Manufacturers Association
Industry Interchangeability - mates with other manufacturers' ISO 16028 couplings
Heavy Duty Construction - High strength steel with zinc yellow dichromate plating
Range of Sizes - 1/4" thru 1"
Push-to-Connect Design
Wide Range of End Fitting Options

Snap-tite 74 Series ISO 16028 interchange coupling PDF _下载

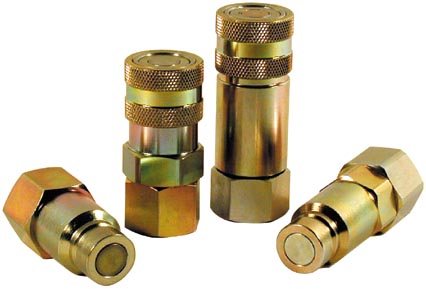

Snap-tite 74 Series - Snap-tite's 74 Series ISO 16028 interchange coupling is designed to meet or exceed the requirements called out in ISO 16028 as well as all HTMA specifications. Additionally, Snap-tite's patented CP74 option allows users to connect against trapped pressure, whether residual or created by thermal expansion, up to 3625 psi (250 bar). The CP74 coupler or nipple easily connects to the 74 Series or any other ISO 16028 mate of the same size.

74 Series : Drybreak, Non-Spill Couplings
Flat Face, Dry Break, ISO 16028 and HTMA Interchange Hydraulic Couplings

BENEFITS

Durability, reliability and concern for the environment were considered when designing Snap-tite's 74 Series coupling. The CP option allows for connection against static pressures without spillage or damage to the coupling. Construction, portable hydraulic tools and utility equipment are a few of the many industries where the connect-under-pressure option saves valuable time & money.

Part No # Coupling Half Coupling Size End Fitting Size End Fitting Type Body Material Seal Material Maximum Operating Pressure
74C6-6F Coupler (Female) 3/8 in. 3/8 in. Female NPTF Steel Buna-N (Nitrile) 3625 psi
250 bar
74C6-8F Coupler (Female) 3/8 in. 1/2 in. Female NPTF Steel Buna-N (Nitrile) 3625 psi
250 bar
74C6-8EF Coupler (Female) 3/8 in. 1/2 in. Female SAE Steel Buna-N (Nitrile) 3625 psi
250 bar
74C8-8F Coupler (Female) 1/2 in. 1/2 in. Female NPTF Steel Buna-N (Nitrile) 3625 psi
250 bar
74C8-8EF Coupler (Female) 1/2 in. 1/2 in. Female SAE Steel Buna-N (Nitrile) 3625 psi
250 bar
74C8-12EF Coupler (Female) 1/2 in. 3/4 in. Female SAE Steel Buna-N (Nitrile) 3625 psi
250 bar
74C10-12EF Coupler (Female) 5/8 in. 3/4 in. Female SAE Steel Buna-N (Nitrile) 3625 psi
250 bar
74C12-12F Coupler (Female) 3/4 in. 3/4 in. Female SAE Steel Buna-N (Nitrile) 3625 psi
250 bar
74N6-6F Nipple (Male) 3/8 in. 3/8 in. Female NPTF Steel Buna-N (Nitrile) 3625 psi
250 bar
74N6-8F Nipple (Male) 3/8 in. 1/2 in. Female NPTF Steel Buna-N (Nitrile) 3625 psi
250 bar
74N6-8EF Nipple (Male) 3/8 in. 1/2 in. Female SAE Steel Buna-N (Nitrile) 3625 psi
250 bar
74N8-8F Nipple (Male) 1/2 in. 1/2 in. Female NPTF Steel Buna-N (Nitrile) 3625 psi
250 bar
74N8-8EF Nipple (Male) 1/2 in. 1/2 in. Female SAE Steel Buna-N (Nitrile) 3625 psi
250 bar
74N8-12EF Nipple (Male) 1/2 in. 3/4 in. Female SAE Steel Buna-N (Nitrile) 3625 psi
250 bar
74N10-12EF Nipple (Male) 5/8 in. 3/4 in. Female SAE Steel Buna-N (Nitrile) 3625 psi
250 bar
74N12-12F Nipple (Male) 3/4 in. 3/4 in. Female NPTF Steel Buna-N (Nitrile) 3625 psi
250 bar
