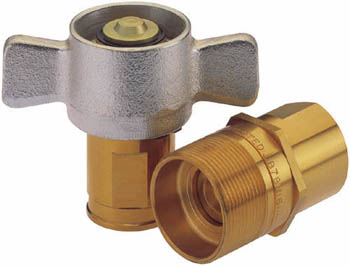

Thread-to-Connect, Drybreak, No-Spill Quick Disconnect Coupling - Snap-tite 78 Series



Snap-tite 78 Series应用
油田设备、矿山机械、沙和盐撒布机、垃圾清理车、传动平板车和其它重型液压机械。

产品特性

• 螺纹连接处带有蝶形或六角螺母,易于连接;
• 可以与Aeroquip FD5100系列和Parker6100系列互换;
• 平面设计,基本杜绝介质泄漏和气泡混入,同时便于系统检查和清洗;
• 胶接密封可以在没有冲刷式密封的情况下连接和拆卸;
• 材质:黄铜
• 工作压力:最高到3000psi;
• 尺寸规格:3/4″—11/2″
• 选型资料(插入链接)
• Rugged Construction - Brass body with zinc yellow dichromate plated sleeve
• Heavy Duty Wing Nut or Hex Nut - allows for easy connection of threaded units
• Interchangeable with Competition - Aeroquip 5100, Parker 6100, Hansen 96, & Perfecting W Series
• Sizes Available - 3/4" thru 1-1/2"
Working Pressure - up to 3,000 psi (207 bar) with 4,500 psi (310 bar) proof pressure


Snap-tite 78 Series couplings PDF_下载


Snap-tite 78 Series - Snap-tite's heavy duty 78 Series thread-to-connect couplings are designed for most industrial fluid applications plus they are ideal for oil well equipment, sand and salt spreaders, dump and demolition trailers, live bed trailers and other heavy duty applications. The 78 Series is interchangeable with many other manufacturers compatible coupling.

Snap-tite 78 Series : Drybreak, Non-Spill Couplings
Thread-to-Connect, Dry Break, Hydraulic Interchange coupling

BENEFITS

Snap-tite 78 Series couplings also connect under pressure due to a bonded valve seal which prevents seal washout. The operating pressure of 3,000 psi (207 bar) is possible in both the connected and disconnected modes and a steel flange is available for bulkhead mounting of the nipple half. This unit can also handle vacuum applications.

Part No # Coupling Half Coupling Size End Fitting Size End Fitting Type Body Material Seal Material Interchanges With Maximum Operating Pressure
B78C12-12F Coupler (Female) 3/4 in. 3/4 in. Female NPTF Brass Buna-N (Nitrile) Aeroquip 5100 and Parker 6100 Series 3000 psi
210 bar
B78C16-16F Coupler (Female) 1 in. 1 in. Female NPTF Brass Buna-N (Nitrile) Aeroquip 5100 and Parker 6100 Series 3000 psi
210 bar
B78C20-20F Coupler (Female) 1 1/4 in. 1 1/4 in. Female NPTF Brass Buna-N (Nitrile) Aeroquip 5100 and Parker 6100 Series 2750 psi
190 bar
B78C24-24F Coupler (Female) 1 1/2 in. 1 1/2 in. Female NPTF Brass Buna-N (Nitrile) Aeroquip 5100 and Parker 6100 Series 2500 psi
175 bar
B78N12-12F Nipple (Male) 3/4 in. 3/4 in. Female NPTF Brass Buna-N (Nitrile) Aeroquip 5100 and Parker 6100 Series 3000 psi
210 bar
B78N16-16F Nipple (Male) 1 in. 1 in. Female NPTF Brass Buna-N (Nitrile) Aeroquip 5100 and Parker 6100 Series 3000 psi
210 bar
B78N20-20F Nipple (Male) 1 1/4 in. 1 1/4 in. Female NPTF Brass Buna-N (Nitrile) Aeroquip 5100 and Parker 6100 Series 2750 psi
190 bar
B78N24-24F Nipple (Male) 1 1/2 in. 1 1/2 in. Female NPTF Brass Buna-N (Nitrile) Aeroquip 5100 and Parker 6100 Series 2500 psi
175 bar
