高压应用球阀

Parker Autoclave Engineers球阀专为高压大流量开关应用所设计。阀门完全打开时，直通设计可减小压降，其一体式耳轴阀杆设计可消除剪切应力破坏，減少两段式设计中出现的側向载荷效应。可重复力矩旋紧阀座压盖以增强阀座寿命。低摩擦阀杄密封，减少操作力矩，延长阀门使用寿命。

Parker Autoclave Engineers球阀在高达20，0psi200°F(1380bara93°C的压力和500°FG5，000psi(260＂CG345barl的温度条件下可安全运作。 Parker Autoclave Engineers球阀具有二通、三通、四通交又转换和切换接口形式可选。

Autoclave Engineers公司是高温、高压系列阀门制造商，隶属美国SNAP-TITE公司。其产品广泛应用于电厂的一次门、二次门和排污门以及石油化工领域的高温、高压、航天领域和深冷等方面的工作、其高压球阀最高工作压力可达150，000psi(10000Kgf/cm2)，温度范围：-153℃~649℃。

从1945年开始，Autoclave Engineers开始生产具有安全、可靠操作性的高压阀系统，它们可以适用于各种温度、压力和环境状况今天，Autoclave Engineers已经发展成为各类高压行业提供可靠的高压阀、接头和管子。 产品性能是Autoclave Engineers对客户的承诺，Autoclave的高压球阀、高压针阀、高压安全阀、接头和管子满足严格的标准，它的压力可以从0到150,000 psi(10343 bar) ，温度从 0 到 1200°F (650°C)有上千种变化。没有别的供应商能比Autoclave Engineers在高压要求方面做得更好，比Autoclave Engineers做的系统更可靠和具有创新的特性。Autoclave Engineers的产品为满足客户的各种需求而设计，并且具有品质高，交货准时，价格适当的特点。

Ball Valves
	2-Way Quarter- Turn High Pressure Ball Valves 2通球阀 球阀，2 通 2B 系列 - 20,000 PSI 1/4", 3/8", 1/2" & 1" to 20,000 psi (1379 bar) 派克 Autoclave 的 2B 系列球阀是直角回转手动二通阀。这些球阀可在高达 20,000 psi (1,379 bar) 的压力下工作，并带有各种端部连接。这些阀门还具有安装在耳轴上的阀杆。High pressure manual 2 way ball valves. 1/4", 3/8", 1/2" and 1" with working pressures to 20,000 psi ( 1379 bar). Features our one piece trunion mounted stem.

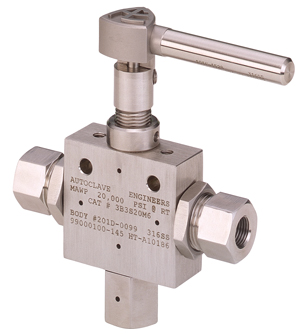

	3-Way High Pressure Ball Valves 三通球阀 球阀，3 通 3B 系列 - 20,000 PSI 3/16", 3/8", and 1/2" to 20,000 psi ( 1379 bar) Parker Autoclave 的 3B 系列球阀是手动三通阀。这些球阀可在高达 20,000 psi (1,379 bar) 的压力下工作，并带有各种端部连接。这些阀门的特点是安装在耳轴上的阀杆带有 3/16" 到 1/2" 的球孔。 High pressure manual 3 way ball valves. 1/4", 3/8", and 1/2" with working pressures to 20,000 psi ( 1379 bar). Features our one piece trunion mounted stem.

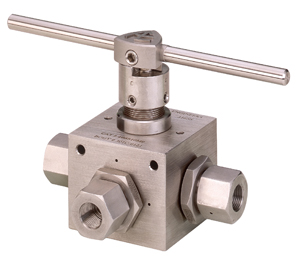

	4-Way High Pressure Ball Valves 四通球阀 球阀，4 通 4B 系列 - 10,000 PSI 3/8" to 10,000 psi ( 690 bar) 派克 Autoclave 的 4B 系列 4 通球阀设计用于在高达 10,000 psi (690 bar) 的压力下工作。一个关键的性能特点是一体式耳轴安装阀杆，可消除两件式设计中的剪切故障。High pressure manual 4 way ball valves. 3/8" with working pressures to 10,000 psi ( 690 bar). Features our one-piece trunion mounted stem.
	Double Block and Bleed, Ball, Ball, Needle DBB双隔断球阀阀组 3/8" to 15,000 psi (1034 bar) High Pressure manual double block, two stem ball valve with a needle vent valve.

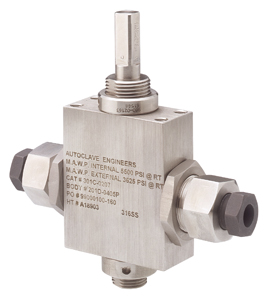

	Subsea Ball Valves 海底应用水下阀门 _ 海底球阀 3/16", 1/4", 3/8", 1/2", and 1" to 20,000 psi ( 1379 bar) 用于海底作业的高压球阀。压力达 20,000 psi (1379 bar)，水深达 12,500 英尺（3810 米） 20,000 PSI - 海底系列球阀 派克 Autoclave 的高压海底球阀能够在 20,000 psi (1379 bar) 和 12,500 英尺（3810 米）的深度下工作，尺寸有 3/16"、1/4"、3/8" 和 1/2" . 标准球阀采用 316 不锈钢制成，并提供特殊材料。我们独特的设计创新包括一体式耳轴安装球体和阀杆，消除了两件式设计中常见的剪切故障，可重新拧紧的阀座压盖可延长阀座寿命，以及低摩擦阀杆密封，可降低驱动扭矩并提高循环生活。 High pressure ball valves for subsea operation. Pressures to 20,000 psi (1379 bar) and water depths to 12,500 feet (3810 meters)

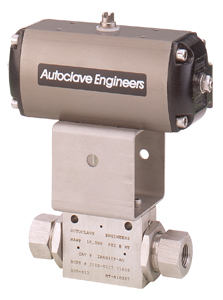

	Ball Valve Actuators 球阀 气动和电动执行机构Air and electric operators 派克 Autoclave Engineers 球阀执行器可提供多种功能和选项。操作员提供气动或电动驱动。气动和电动操作器可提供多种功能和选项。操作器的尺寸适合每个阀门系列，以提供可靠和无故障的操作。Pneumatic and electric actuators for Autoclave Engineers ball valves.
	Ball Valve Options/Details Optional items available and connection details High temperature seals, optional material, limit switches, handles, lockouts, and connection details.

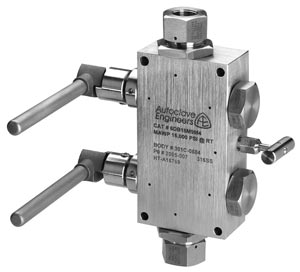

	Ball Valve, Double Block and Bleed 6DB Series - 15,000 PS 球阀，双关断和排放 6DB 系列 - 15,000 PSI 派克 Autoclave 的 6DB 系列高压双关断和泄放球阀能够在 15,000 psi (1034 bar) 下运行，并提供各种连接。标准球阀采用 316 不锈钢制成，并提供特殊材料。 Parker Autoclave's 6DB Series high pressure double block and bleed ball valve is capable of operating to15,000 psi (1034 bar) and is available various connections. Standard ball valves are furnished in 316 SS with specials materials available.Parker Autoclave's 6DB Series double block and bleed ball valves have been designed to provide superior quality for maximum performance within a variety of end connections. Some of the more unique design innovations include an integral one-piece trunnion mounted style ball and stem that eliminates the possibility of "stem-turnout" common with other valves designed for similar service. In addition, these specialty ball valves have re-torqueable seat glands that result in longer seat life, and a low friction stem seal that reduces actuation torque and enhances cycle life.

Autoclave Engineers 10000psi-20000psi 两通高压球阀
公称压力：10000psi/15000psi/20000psi
尺寸：1/8″-1″
阀体材质：316SS
阀座：PEEK
连接方式:NPT等

设计特点：

1、一体固定式式中轴钢球设计，避免中轴和钢球之间的剪切力破坏，降低分体式设计中轴钢球之间单侧负荷的影响；
2、可旋转收紧的阀座压盖，可延长阀座寿命
3、PEEK阀座设计，对于化学物品，高温，磨损有着极其卓越的性能
4、全通径流道降低压力损失
5、316不锈钢冷加工结构
6、低摩擦阻力的RTFE中轴密封提升中轴的旋转寿命，降低阀门启闭扭矩；
7、90°启闭含定位块
8、VITON O-型圈应用于-17.8°C-204°C
9、可选O-型圈应用于高温场合；
10、可以选配气动执行器和电动执行器

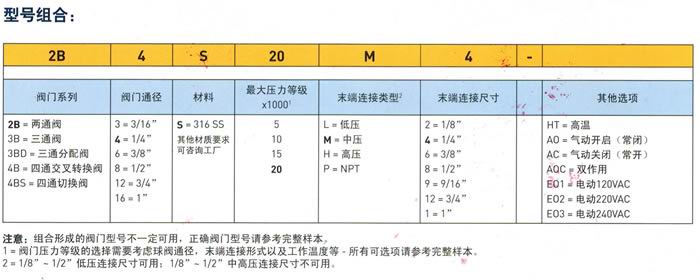

高压球阀型号：

2 WAY BALL VALVE
AE PRESSURE ORIFICE
P/N psi (bar) in (mm)

2B4S20 20,000 (1379) 0.25 (6.4)
2B6S20 20,000 (1379) 0.375 (9.5)
2B8S10 10,000 (690) 0.50 (12.7)

3 WAY BALL VALVE
AE PRESSURE ORIFICE
P/N psi (bar) in (mm)

3B3S20 20,000 (1379) 0.187 (4.7)
3B6S15 15,000 (1034) 0.375 (9.5)
3B8S10 10,000 (690) 0.50 (12.7)

3 WAY DIVERTER
AE PRESSURE ORIFICE
P/N psi (bar) in (mm)

3BD3S20 15,000 (1034) 0.187 (4.7)
3BD6S15 15,000 (1034) 0.375 (9.5)
3BD8S10 10,000 (690) 0.50 (12.7)

Options: Pneumatic Actuator
AO: Air-to-open/spring to close
AOC: Air-to-open-and-close
(double action)
Electric Actuator
EO1: 120 volt AC 50/60 Hz
EO2: 220 volt AC 50/60 Hz
High Temperature Option
HT: For media temperature up to 500°F (260°C)
Autoclave球阀-中国总代理的详细描述：

Autoclave球阀规格
类型：两通阀、三通阀、四通阀、DBB阀
最大工作压力：137.9 MPa
工作温度范围：0℉ (-17.8℃) 到500℉ (260℃)
连接尺寸：1/8”到1”
流通尺寸：0.094”（2.39mm）到1.00”（25.4mm）
材质：316SS

Autoclave高压阀门：高压针阀、高压球阀、安全阀、仪表阀、特制的阀和阀组、接头、管子、压力表、热电偶、气动执行器。
应用领域:海上油井.石油化工及航天领域。

Autoclave高压球阀型号

4B6S10L8 4BS6S10L8 4B6S10M6 4BS6S10M6 4B6S10M94BS6S10M94B6S10M12 4BS6S10M12
4B6S10P4 4BS6S10P4 4B6S10P6 4BS6S10P64B6S10P84BS6S10P8

3B3S15L2 3BD3S15L2 3B3S15L4 3BD3S15L4 3B3S15L63BD3S15L63B3S10L8 3BD3S10L8
3B3S20M4 3BD3S20M4 3B3S20M6 3BD3S20M63B3S20M93BD3S20M9 3B3S20H4 3BD3S20H4
3B3S20H6 3BD3S20H6 3B3S20H93BD3S20H93B3S15P2 3BD3S15P2 3B3S15P4 3BD3S15P4
3B3S15P6 3BD3S15P63B3S15P83BD3S15P8 3B6S10L8 3BD6S10L8 3B6S15M6 3BD6S15M6
3B6S15M93BD6S15M93B6S15M12 3BD6S15M12 3B6S15P4 3BD6S15P4 3B6S15P6
3BD6S15P63B6S15P83BD6S15P8 3B8S10M12 3BD8S10M12 3B8S10M16
3BD8S10M163B8S10P123BD8S10P12 3B8S10P16 3BD8S10P16

2B4S15L2 2B4S15L4 2B4S15L6 2B4S10L8 2B4S20M42B4S20M62B4S20M9 2B4S20H4 2B4S20H6
2B4S20H9 2B4S15P2 2B4S15P42B4S15P62B4S15P8 2B6S10L8 2B6S20M6 2B6S20M9 2B6S20M12
2B6S15P42B6S15P62B6S15P8 2B8S15M12 2B8S15M16 2B8S10P12
2B8S10P162B16S10MA242B16S10S16 2B16S10P16 2B12S15M16
2B12S15P82B12S10P122B12S10P16

6DB10L8P4 6DB15M6M4 6DB15M9M4 6DB15M12M46DB15P4P46DB15P6P4 6DB15P8P4
