CPIFF 系列软阀座管式直通单向阀 (5000 psi / 350 bar), 单片式阀体, 内螺纹管接头油口端
Snap-tite CPIFF Series Soft Seat Check Valves单向阀
PDF 下载

Parker派克Snap-tite CPIFF Series内联单向阀
Soft Seat In-Line Check Valves (5000 psi) One Piece Body, Female Fitting Ends - CPIFF


派克单向阀是单向流动的控制装置, 主要用于液压系统, 以防止由于液流的背压而造成的损害。 凭借软密封(几乎零泄露)引导的提升阀设计和4:1的安全系数,CPIFF系列单向阀非常适用于允许一个方向自由流动但反方向不能流动的应用场合。这些简化的软密封提升阀对流动产生的限制最小,并可实现反向截流,多种开启压力和密封件可选,可兼容大部分流体。CPIFF 系列单向阀 (5,000 psi / 350 bar) 是软阀座、无泄漏座阀型单向阀, 采用紧凑的单片阀体结构, 标准的开启压力为 5, 15, 25 及 65 psi (0.35, 1.05, 1.75 及 4.55 bar)。可供货的规格范围很广, 可大至 1""。带内螺纹接头油口, 通流能力至 30 gpm (113 lpm)。

CPIFF 系列软阀座管式直通单向阀 (5000 psi / 350 bar), 单片式阀体, 内螺纹管接头油口端
CPIFF Series Soft Seat Check Valves PDF Catalog free download


单向阀是流体系统的重要元件, 但在系统建立时却常常被忽视。单向阀可通过以下方式优化系统的性能:
- 促使液流只在一个方向上流动
- 减少由背压引起的损坏隐患
- 隔离系统的分支或系统元件

基本的单向阀由带有进、出油口的阀体和由弹簧压力控制的内部可移动座阀芯组成。大多数情况下单向阀是常闭的, 当液流的压力高于弹簧所产生的背压 (开启压力) 时, 单向阀开启, 允许液流只在一个方向上流动。当反向液流试图流进出口时, 阀芯关闭, 阻止反向流动。

软阀座单向阀在阀芯和阀体之间带有一个 O 型圈或类似的弹性密封结构, 从而改善了防泄漏的性能。 这种软阀座设计与 "清洁" 系统相容, 但对存在大流量冲击的系统不适用。其密封材料决定了阀的使用温度范围。

技术参数:
- 规格: 1/4"" 至 1""
- 材料: 碳钢, 黄铜
- 密封材料: 氟碳橡胶
- 标准开启压力 (psi/bar): 5, 15, 25 及 65 / 0.35, 1.05, 1.75 及 4.55
- 油口端: NPSF 内螺纹, SAE 内螺纹, BS 2779 内直管螺纹
- 开启压力可选
- 节流阀功能可选
- 客户定制形状及配置

注: 有些选项可能是非标配置, 请与快换接头事业部 (Quick Coupling Division) 联系, 以确认可否供货。

适销市场:
- 工业设备
- 建筑业
- 农业
- 运输业
- MRO

特点/优点:
- 只允许液流在一个方向上流动, 保护系统免受流体背压的影响
- 软密封座阀创建了一个无泄漏密封
- 氟碳橡胶密封是标准的配置
- 可应要求提供可选的开启压力
- 节流阀功能选项可在阀关闭时提供节流功能, 节流孔尺寸可按应用要求确定
- 客户定制形状及配置可以集成一些特殊的功能, 从而减少系统元件的数量与潜在的泄漏点

应用领域:
- 工业设备、工程机械以及建筑设备
- 单向节流回路
- 高/低压泵组回路
- 慢进/快回回路
- 油冷却器旁路回路
- 顺序动作回路
- 先导压力回路
- 蓄能器回路

特点和优势

- 提升阀 软密封
- 流速达30 GPM, 115L/M
- 碳钢结构,也可提供其他材质
- 五种尺寸1/4’’ 、3/8’’、 1/2、 3/4 和1’’
- SAE、NPSF和BS2779内螺纹连接
- 工作压力可达5000 psi ,45 bar



SNAP-TITE CPIFF Series : Check Valves One Piece Inline Check Valves



Marker Applications用途

- 泵口和蒸汽应用
- 增压压缩机
- 冷却水
- 空气干燥器和仪表空气管线
- 燃料储存罐

Snap-Tite CPIFF Check Valves The soft seat guided poppet design and 4:1 safety factor make this check valve an excellent choice for a wide variety of applications where free flow in one direction and blocked flow in the reverse direction is required. The streamlined soft seated poppet offers minimum restriction to flow and positive shut-off.

CPIFF Series - The soft seat guided poppet design and 4:1 safety factor make this check valve an excellent choice for a wide variety of applications where free flow in one direction and blocked flow in the reverse direction is required. The streamlined soft seated poppet offers minimum restriction to flow and positive shut-off.

CPIFF Series : Check Valves One Piece Inline Check Valves

FEATURES

Soft Seat Poppet Style
Flow Rates to 30 gpm (115 l/min)
Construction - Zinc yellow dichromate plated steel. For other materials, consult factory.
Size Range - Available in sizes 1/4" thru 1"
Compact Design
Working Pressure - Up to 5,000 psi (345 bar)
Various End Fittings Available

BENEFITS

The CPIFF Series is an economical check valve that competes against the competition supplied ball style check valves and offers higher quality at the same or lesser pricing. Snap-tite also offers an orificed poppet for use as a fixed flow control when required. A variety of seals and crack pressures are offered to handle a wide range of media and systems.

CPC, CAC, CAV & CAD Series - These cartridge style check valves were designed for hydraulic circuit applications where virtually zero leakage in the checked direction is required. The pilot operated style will lock an actuator or part of a circuit until pilot pressure is applied. Features include a durable molded nylon poppet seal, dampening port in the poppet guide, and a hardened steel body and poppet.

CPC, CAC, CAV & CAD Series : Check Valves Cartridge, Pilot & Dual Pilot Check Valves

FEATURES
Three Sizes Based on Flow - 10 gpm, 25 gpm, & 50 gpm (38, 95 & 189 l/min respectively)
Three Standard Spring Pressures - 15, 25, & 60 psi (1, 1.7, & 4 bar respectively)
Working Pressure - to 3,500 psi (241 bar), 5,000 psi (345 bar) intermittently
4:1 Pilot Ratio on Pilot Operated Check Valves
Construction - Plated steel cartridges, anodized aluminum blocks
Air Pilot Option Available

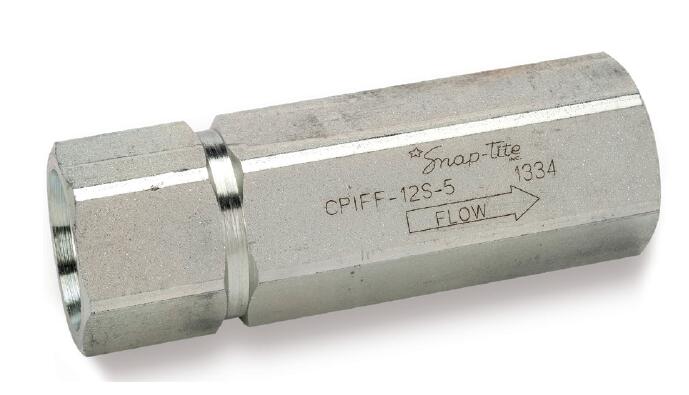

Snap-tite CPIFF-2P-5 Inline check valves; poppet style; female inlet & outlet; 1/4in npsf; 5 psi
Snap-tite CPIFF-3P-120A Inline check valves; poppet style; female inlet & outlet; 3/8in npsf; 120 psi; buna
Snap-tite CPIFF-3P-15A Inline check valves; poppet style; female inlet/outlet; 3/8in npsf; 25 psi; buna
Snap-tite CPIFF-3P-25A Inline check valves; poppet style; female inlet & outlet; 3/8in npsf; 5 psi; buna
Snap-tite CPIFF-3P-5A Inline check valves; poppet style; female inlet & outlet; 3/8in npsf; 65 psi; buna
Snap-tite CPIFF-3P-65A Inline check valves; poppet style; female inlet & outlet; 1/2in npsf; 65 psi; buna
Snap-tite CPIFF-4P-65A Inline check valves; poppet style; female inlet & outlet; 3/4in npsf; 65 psi; buna
Snap-tite CPIFF-6P-65A Inline check valves; poppet style; female inlet & outlet; 1in npsf; 5 psi; buna
Snap-tite CPIFF-8P-5A Inline check valves; poppet style; female inlet & outlet; 1in npsf; 65 psi; buna
Snap-tite CPIFF-8P-65A
Snap-Tite CPIFF-2P-5 1/4" 5psi Check Valves - 5000 Psi

CPIFF-12S-15 3/4" Female SAE-15 psi Spring
CPIFF-12S-15A 3/4" Female SAE-15 psi Spring
CPIFF-12S-25 3/4" Female SAE-25 psi Spring
CPIFF-12S-25A 3/4" Female SAE-25 psi Spring
CPIFF-12S-5 3/4" Female SAE-5 psi Spring
CPIFF-12S-5A 3/4" Female SAE-5 psi Spring
CPIFF-12S-65 3/4" Female SAE-65 psi Spring
CPIFF-12S-65A 3/4" Female SAE-65 psi Spring
CPIFF-16S-15 1" Female SAE-15 psi Spring
CPIFF-16S-15A 1" Female SAE-15 psi Spring
CPIFF-16S-25 1" Female SAE-25 psi Spring
CPIFF-16S-25A 1" Female SAE-25 psi Spring
CPIFF-16S-5 1" Female SAE-5 psi Spring
CPIFF-16S-5A 1" Female SAE-5 psi Spring
CPIFF-16S-65 1" Female SAE-65 psi Spring
CPIFF-16S-65A 1" Female SAE-65 psi Spring
CPIFF-2P-15 1/4" NPTF-15 psi Spring Pressure
CPIFF-2P-15A 1/4" NPTF-15 psi Spring Pressure
CPIFF-2P-25 1/4" NPTF-25 psi Spring Pressure
CPIFF-2P-25A 1/4" NPTF-25 psi Spring Pressure
CPIFF-2P-5 1/4" NPTF-5 psi Spring Pressure
CPIFF-2P-5A 1/4" NPTF-5 psi Spring Pressure
CPIFF-2P-65 1/4" NPTF-65 psi Spring Pressure
CPIFF-2P-65A 1/4" NPTF-65 psi Spring Pressure
CPIFF-2RP-15 1/4" BSPF-15 psi Spring Pressure
CPIFF-2RP-65 1/4" BSPF-65 psi Spring Pressure
CPIFF-3P-15 3/8" NPTF-15 psi Spring Pressure
CPIFF-3P-15A 3/8" NPTF-15 psi Spring Pressure
CPIFF-3P-25 3/8" NPTF-25 psi Spring Pressure
CPIFF-3P-25A 3/8" NPTF-25 psi Spring Pressure
CPIFF-3P-5 3/8" NPTF-5 psi Spring Pressure
CPIFF-3P-5A 3/8" NPTF-5 psi Spring Pressure
CPIFF-3P-65 3/8" NPTF-65 psi Spring Pressure
CPIFF-3P-65A 3/8" NPTF-65 psi Spring Pressure
CPIFF-3RP-15 3/8" BSPF-15 psi Spring Pressure
CPIFF-3RP-15A 3/8" BSPF-15 psi Spring Pressure
CPIFF-3RP-5A 3/8" BSPF-5 psi Spring Pressure
CPIFF-3RP-65 3/8" BSPF-65 psi Spring Pressure
CPIFF-4P-15 1/2" NPTF-15 psi Spring Pressure
CPIFF-4P-15A 1/2" NPTF-15 psi Spring Pressure
CPIFF-4P-25 1/2" NPTF-25 psi Spring Pressure
CPIFF-4P-25A 1/2" NPTF-25 psi Spring Pressure
CPIFF-4P-5 1/2" NPTF-5 psi Spring Pressure
CPIFF-4P-5A 1/2" NPTF-5 psi Spring Pressure
CPIFF-4P-65 1/2" NPTF-65 psi Spring Pressure
CPIFF-4P-65A 1/2" NPTF-65 psi Spring Pressure
CPIFF-4RP-15 1/2" BSPF-15 psi Spring Pressure
CPIFF-6P-15 3/4" NPTF-15 psi Spring Pressure
CPIFF-6P-15A 3/4" NPTF-15 psi Spring Pressure
CPIFF-6P-25 3/4" NPTF-25 psi Spring Pressure
CPIFF-6P-25A 3/4" NPTF-25 psi Spring Pressure
CPIFF-6P-5 3/4" NPTF-5 psi Spring Pressure
CPIFF-6P-5A 3/4" NPTF-5 psi Spring Pressure
CPIFF-6P-65 3/4" NPTF-65 psi Spring Pressure
CPIFF-6P-65A 3/4" NPTF-65 psi Spring Pressure
CPIFF-6RP-15 3/4" BSPF-15 psi Spring Pressure
CPIFF-6RP-25 3/4" BSPF-25 psi Spring Pressure
CPIFF-6RP-5 3/4" BSPF-5 psi Spring Pressure
CPIFF-8P-15 1" NPTF-15 psi Spring Pressure
CPIFF-8P-15A 1" NPTF-15 psi Spring Pressure
CPIFF-8P-25 1" NPTF-25 psi Spring Pressure
CPIFF-8P-25A 1" NPTF-25 psi Spring Pressure
CPIFF-8P-5 1" NPTF-5 psi Spring
CPIFF-8P-5A 1" NPTF-5 psi Spring Pressure Buna
CPIFF-8P-65 1" NPTF-65 psi Spring Pressure
CPIFF-8P-65A 1" NPTF-65 psi Spring Pressure
CPIFF-8RP-15 1" BSPF-15 psi Spring Pressure
CPIFF-8RP-5 1" BSPF-5 psi Spring Pressure
CPIFF-8S-15 1/2" Female SAE-15 psi Spring
CPIFF-8S-15A 1/2" Female SAE-15 psi Spring
CPIFF-8S-25 1/2" Female SAE-25 psi Spring
CPIFF-8S-25A 1/2" Female SAE-25 psi Spring
CPIFF-8S-5 1/2" Female SAE-5 psi Spring
CPIFF-8S-5A 1/2" Female SAE-5 psi Spring
CPIFF-8S-65 1/2" Female SAE-65 psi Spring
CPIFF-8S-65A 1/2" Female SAE-65 psi Spring

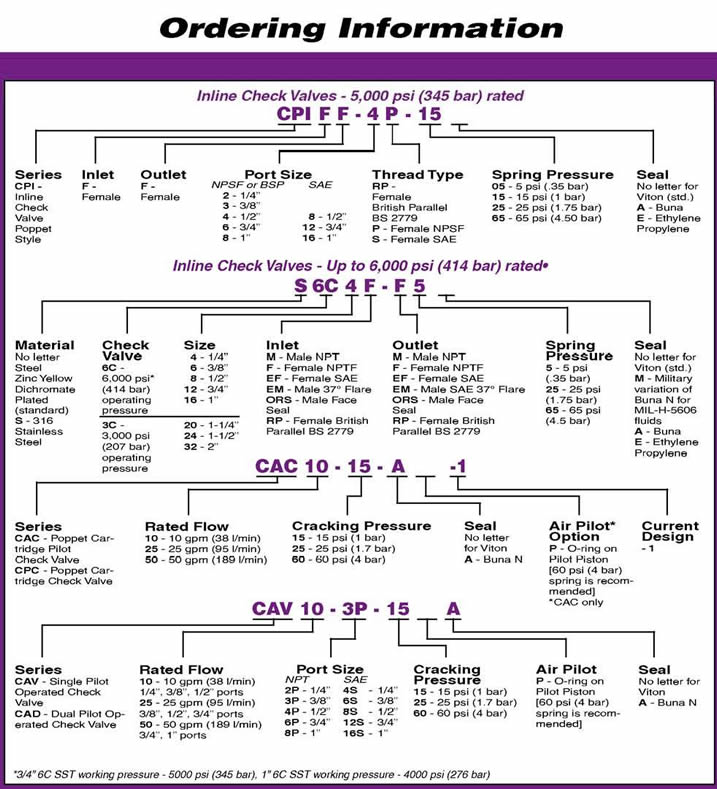

- 如何订货Ordering Informations:
