聚氨酯软管-95U / 95UM系列 | # 95U-12-125-0100
Flexible Polyurethane Tubing -95U / 95UM Series | # 95U-12-125-0100
半导体设备 - 机器人 - 分析仪器 - 真空设备 - 低至中压气动装置，焊接飞溅不需要电阻- 气动控制应用聚氨酯软管

聚氨酯管提供最大的柔韧性和抗扭结性以及任何橡胶或热塑性管的卓越耐磨性。聚氨酯管坚韧、抗扭结性强且比其他橡胶或热塑性管更柔韧。聚氨酯管常用于低压气动应用。其极高的灵活性允许紧密布线而不会塌陷或扭结。无损伤表面不会损坏成品表面，PU 管为塑料管提供了最佳的耐磨性和抗撕裂性。它提供多种透明和不透明颜色，用于系统颜色编码。Polyurethane tubing offers the greatest flexibility and kink resistance along with exceptional abrasion resistance of any rubber or thermoplastic tubing.Polyurethane tubing is tough, highly kink resistant and more flexible than other rubber or thermoplastic tubing. Polyurethane tubing is commonly used in low pressure pneumatic applications. Its extreme flexibility allows for tight routing without collapse or kinking. The non-marring surface will not damage finished surfaces and PU tubing offers the best abrasion and tear resistance available for plastic tubing. It is supplied in multiple transparent and opaque colors for system color coding.



聚氨酯软管-95U/95UM系列| #95U-12-125-0100 Flexible Polyurethane Tubing

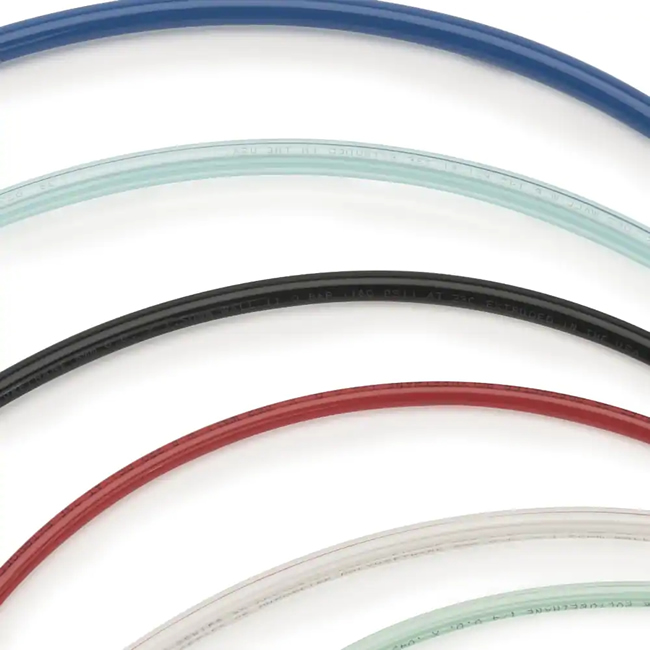

Flexible Polyurethane Tubing -95U/95UM Series



聚氨酯软管市场：

- 工业气动
- 机器人
- 气动控制
- 通用仪表


聚氨酯软管特点：

- 极高的灵活性和抗扭结性
- 出色的耐磨性和耐磨性减少了管道更换
- 聚醚型聚氨酯提供出色的水解稳定性，确保在水基应用中使用时不会降解
- 灵活且易于组装到指定的配件上
- 90 至 95 肖氏 A 硬度

聚氨酯软管应用：

- 气动控制
- 低至中压气动装置，焊接飞溅不需要电阻
- 真空设备
- 分析仪器
- 机器人
- 半导体设备

聚氨酯软管技术规格：

- 提供分数英制和公制尺寸
- 不透明和透明的颜色可 额定为73°F / 23°C- 工作和爆破压力
- 选择尺寸可在 100 英尺 EZ 盒中使用


Markets:
- Industrial Pneumatics
- Robotics
- Pneumatic Controls
- General Purpose Instrumentation

Features:
- Extreme flexibility and kink resistance
- Excellent abrasion and wear resistance reduces tubing replacement
- Polyether based polyurethane provides excellent hydrolytic stability, ensuring it will not degrade when used in water based applications
- Flexible and easy to assemble onto designated fittings

- 90 to 95 Shore A durometer

Applications:

- Pneumatic controls
- Low to medium pressure pneumatics where weld spatter resistance is not required
- Vacuum equipment
- Analytical instrumentation
- Robotics
- Semiconductor equipment

Technical Specifications:
- Available in fractional inch and metric sizes
- Opaque and transparent colors are available
- Working and burst pressures rated at 73°F /23°C
- Select sizes available in 100 ft EZ Box



技术规格

  • 标准包装数量（英尺）： 100
  • 风格： 滑膛
  • 颜色： 自然
  • 管内径（毫米）： 12.7
  • 管外径（英寸）： 3/4
  • 免责声明： 用户通过自己的分析和测试，全权负责系统和组件的最终选择，并确保满足应用程序的所有性能、耐用性、维护、安全和警告要求。
  • 管外径： 3/4 英寸，19.1 毫米
  • 管内径： 0.5 英寸
  • 管壁厚度： 0.125 英寸，3.2 毫米
  • 最大工作压力： 145 磅/平方英寸，10 巴
  • 最小爆破压力： 435 磅/平方英寸，30 巴
  • 最低工作温度： -40°F，-40°C
  • 最高工作温度： 180°F，82°C
  • 应用： 仪器仪表、机床、气动、机器人、真空设备
  • 媒体： 空气、水
  • 兼容配件： Fast & Tite、TrueSeal、Par-Barb
  • 管材： 聚氨酯

Parts
Style
Tube O.D. (inch)
Tube I.D. (mm)
Color
Standard Pack Qty (ft)
95U-12-125-0100 Smoothbore 3/4 12.7 Natural 100
95U-2-031-0100 Smoothbore 1/8 1.6 Natural 100
95U-2-031-0500 Smoothbore 1/8 1.6 Natural 500
95U-2-031-BLK-0100 Smoothbore 1/8 1.6 Black 100
95U-2-031-BLK-0500 Smoothbore 1/8 1.6 Black 500
95U-2-031-BLU-0100 Smoothbore 1/8 1.6 Blue 100
95U-2-031-BLU-0500 Smoothbore 1/8 1.6 Blue 500
95U-2-031-GRN-0100 Smoothbore 1/8 1.6 Green 100
95U-2-031-RED-0100 Smoothbore 1/8 1.6 Red 100
95U-2-031-TBL-0100 Smoothbore 1/8 1.6 Trans. Blue 100
95U-2-031-YEL-0100 Smoothbore 1/8 1.6 Yellow 100
95U-2.5-031-0100 Smoothbore 5/32 2.4 Natural 100
95U-2.5-031-0500 Smoothbore 5/32 2.4 Natural 500
95U-2.5-031-BLK-0100 Smoothbore 5/32 2.4 Black 100
95U-2.5-031-BLK-0500 Smoothbore 5/32 2.4 Black 500
95U-2.5-031-BLU-0100 Smoothbore 5/32 2.4 Blue 100
95U-2.5-031-BLU-0500 Smoothbore 5/32 2.4 Blue 500
95U-2.5-031-GRN-0500 Smoothbore 5/32 2.4 Green 500
95U-2.5-031-RED-0500 Smoothbore 5/32 2.4 Red 500
95U-2.5-031-YEL-0500 Smoothbore 5/32 2.4 Yellow 500
95U-4-045-1000 Smoothbore 1/4 4.1 Natural 1000
95U-4-062-0100 Smoothbore 1/4 3.2 Natural 100
95U-4-062-0500 Smoothbore 1/4 3.2 Natural 500
95U-4-062-1000 Smoothbore 1/4 3.2 Natural 1000
95U-4-062-BLK-0100 Smoothbore 1/4 3.2 Black 100
95U-4-062-BLK-0500 Smoothbore 1/4 3.2 Black 500
95U-4-062-BLK-1000 Smoothbore 1/4 3.2 Black 1000
95U-4-062-BLU-0100 Smoothbore 1/4 3.2 Blue 100
95U-4-062-BLU-0500 Smoothbore 1/4 3.2 Blue 500
95U-4-062-BLU-1000 Smoothbore 1/4 3.2 Blue 1000
95U-4-062-GRN-0100 Smoothbore 1/4 3.2 Green 100
95U-4-062-GRN-0500 Smoothbore 1/4 3.2 Green 500
95U-4-062-RED-0100 Smoothbore 1/4 3.2 Red 100
95U-4-062-RED-0500 Smoothbore 1/4 3.2 Red 500
95U-4-062-TBL-0100 Smoothbore 1/4 3.2 Trans. Blue 100
95U-4-062-TBL-0500 Smoothbore 1/4 3.2 Trans. Blue 500
95U-4-062-YEL-0100 Smoothbore 1/4 3.2 Yellow 100
95U-4-062-YEL-0500 Smoothbore 1/4 3.2 Yellow 500
95U-6-062-0100 Smoothbore 3/8 6.4 Natural 100
95U-6-062-0500 Smoothbore 3/8 6.4 Natural 500
95U-6-062-BLK-0100 Smoothbore 3/8 6.4 Black 100
95U-6-062-BLK-0500 Smoothbore 3/8 6.4 Black 500
95U-6-062-BLU-0100 Smoothbore 3/8 6.4 Blue 100
95U-6-062-BLU-0500 Smoothbore 3/8 6.4 Blue 500
95U-6-062-GRN-0100 Smoothbore 3/8 6.4 Green 100
95U-6-062-RED-0100 Smoothbore 3/8 6.4 Red 100
95U-6-062-RED-0500 Smoothbore 3/8 6.4 Red 500
95U-6-062-TBL-0100 Smoothbore 3/8 6.4 Trans. Blue 100
95U-6-062-TBL-0500 Smoothbore 3/8 6.4 Trans. Blue 500
95U-6-062-YEL-0100 Smoothbore 3/8 6.4 Yellow 100
95U-8-062-0100 Smoothbore 1/2 9.5 Natural 100
95U-8-062-0250 Smoothbore 1/2 9.5 Natural 250
95U-8-062-BLK-0100 Smoothbore 1/2 9.5 Black 100
95U-8-062-BLK-0250 Smoothbore 1/2 9.5 Black 250
95U-8-062-BLU-0250 Smoothbore 1/2 9.5 Blue 250
95U-8-062-RED-0100 Smoothbore 1/2 9.5 Red 100
95U-8-062-TBL-0100 Smoothbore 1/2 9.5 Trans. Blue 100
95U-8-090-0100 Smoothbore 1/2 8.1 Natural 100
95U-8-090-0250 Smoothbore 1/2 8.1 Natural 250
95U-8-090-BLK-0100 Smoothbore 1/2 8.1 Black 100
95U-8-090-BLK-0250 Smoothbore 1/2 8.1 Black 250
95U-8-090-BLU-0100 Smoothbore 1/2 8.1 Blue 100
95U-8-090-BLU-0250 Smoothbore 1/2 8.1 Blue 250
95U-8-090-GRN-0100 Smoothbore 1/2 8.1 Green 100
95U-8-090-RED-0100 Smoothbore 1/2 8.1 Red 100
95U-8-090-TBL-0100 Smoothbore 1/2 8.1 Trans. Blue 100
95U-8-090-YEL-0100 Smoothbore 1/2 8.1 Yellow 100
95UM-10x1.75-0100 Smoothbore NA 6.5 Natural 100
95UM-10x1.75-0500 Smoothbore NA 6.5 Natural 500
95UM-10x1.75-BLK-0100 Smoothbore NA 6.5 Black 100
95UM-10x1.75-BLK-0500 Smoothbore NA 6.5 Black 500
95UM-10x1.75-BLU-0100 Smoothbore NA 6.5 Blue 100
95UM-10x1.75-BLU-0500 Smoothbore NA 6.5 Blue 500
95UM-10x1.75-TBL-0100 Smoothbore NA 6.5 Trans. Blue 100
95UM-10x1.75-TBL-0500 Smoothbore NA 6.5 Trans. Blue 500
95UM-12x2-0100 Smoothbore NA 8 Natural 100
95UM-12x2-0500 Smoothbore NA 8 Natural 500
95UM-12x2-BLK-0100 Smoothbore NA 8 Black 100
95UM-12x2-BLK-0500 Smoothbore NA 8 Black 500
95UM-12x2-BLU-0100 Smoothbore NA 8 Blue 100
95UM-12x2-BLU-0500 Smoothbore NA 8 Blue 500
95UM-12x2-TBL-0100 Smoothbore NA 8 Trans. Blue 100
95UM-12x2-TBL-0500 Smoothbore NA 8 Trans. Blue 500
95UM-4x.75-0100 Smoothbore NA 2.5 Natural 100
95UM-4x.75-0500 Smoothbore NA 2.5 Natural 500
95UM-4x.75-BLK-0100 Smoothbore NA 2.5 Black 100
95UM-4x.75-BLK-0500 Smoothbore NA 2.5 Black 500
95UM-4x.75-BLU-0100 Smoothbore NA 2.5 Blue 100
95UM-4x.75-BLU-0500 Smoothbore NA 2.5 Blue 500
95UM-4x.75-GRN-0100 Smoothbore NA 2.5 Green 100
95UM-4x.75-RED-0100 Smoothbore NA 2.5 Red 100
95UM-4x.75-TBL-0100 Smoothbore NA 2.5 Trans. Blue 100
95UM-4x.75-YEL-0100 Smoothbore NA 2.5 Yellow 100
95UM-6x1-0100 Smoothbore NA 4 Natural 100
95UM-6x1-0500 Smoothbore NA 4 Natural 500
95UM-6x1-BLK-0100 Smoothbore NA 4 Black 100
95UM-6x1-BLK-0500 Smoothbore NA 4 Black 500
95UM-6x1-BLU-0100 Smoothbore NA 4 Blue 100
95UM-6x1-BLU-0500 Smoothbore NA 4 Blue 500
95UM-6x1-GRN-0100 Smoothbore NA 4 Green 100



Parts Style Tube O.D. (inch) Tube I.D. (mm) Color Standard Pack Qty (ft)
95UM-6x1-RED-0100 Smoothbore NA 4 Red 100
95UM-6x1-RED-0500 Smoothbore NA 4 Yellow 100
95UM-6x1-TBL-0500 Smoothbore NA 5 Trans. Blue 100
95UM-8x1.5-0100 Smoothbore NA 5 Natural 100
95UM-8x1.5-0500 Smoothbore NA 5 Natural 500
95UM-8x1.5-BLK-0100 Smoothbore NA 5 Black 100
95UM-8x1.5-BLK-0500 Smoothbore NA 5 Black 500
95UM-8x1.5-BLU-0100 Smoothbore NA 5 Blue 100
95UM-8x1.5-BLU-0500 Smoothbore NA 5 Blue 500
95UM-8x1.5-TBL-0100 Smoothbore NA 5 Green 100
95UM-8x1.5-TBL-0500 Smoothbore NA 5 Red 100
