New Parker Subsea Small Bore Valves 派克新的海底小口径阀门

满足深海油气勘探需求 更深的水、更远的海岸距离以及更高的储层温度和压力——石油和天然气勘探的新常态。 派克的新型海底阀门能够承受高盐含量海水的长期腐蚀影响，并在极端温度和压力条件下工作，使其成为巴西近海、墨西哥湾、北海、西非和亚洲等地区的理想选择. 这些阀门可采用多种耐腐蚀合金和多种连接方式，包括锥螺纹、对焊和 NPT。 这些阀门配有手柄或桨叶，旨在促进手动操作或远程操作车辆 (ROV) 作为选项进行操作。 这些阀门的设计符合或超过 API6A/17D PSL 3/3G 的严格鉴定测试要求。

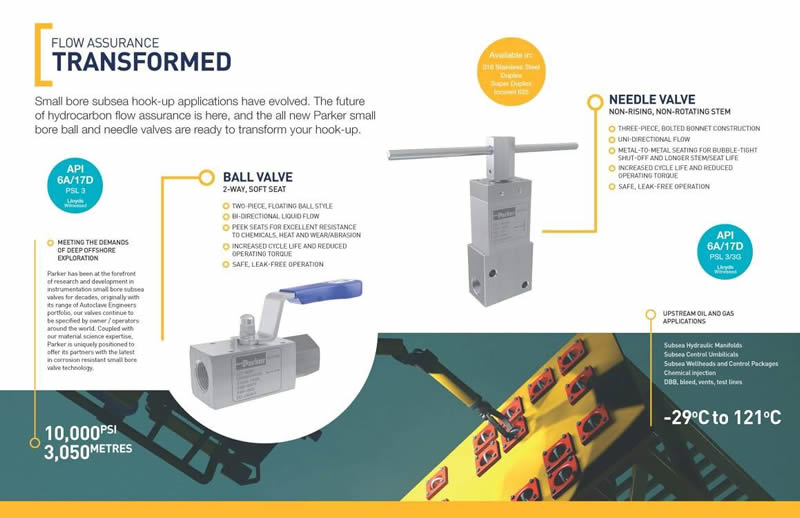

派克2 通软座球阀 两件式，浮球式，侧入式结构 双向液体流动 PEEK 阀座具有出色的耐化学性、耐热性和耐磨性 低摩擦、压力辅助的 PTFE 轴封可延长循环寿命并降低操作扭矩 额外的密封件设计用于防止水和淤泥进入任何螺纹或旋转部件 设计用于接受多种类型的管材和管端连接 提供多种耐腐蚀材料	派克海底针阀 非上升、非旋转阀杆 三件式螺栓阀盖结构 单向流动 金属对金属阀座实现了气密关闭、更长的阀杆/阀座寿命和更高的重复打开/关闭周期的耐用性 双 O 型环阀杆密封可防止海水和淤泥进入任何螺纹或旋转部件 低摩擦、压力辅助 PTFE/PEEK 轴封可延长循环寿命并降低操作扭矩。 非上升、非旋转阀杆可防止阀杆磨损和阀座损坏

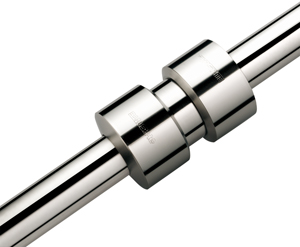

派克Phastite海底管件 Parker Phastite Tube Fittings For Subsea 派克的 Phastite? 永久压缩接头提供了一种非常快速、简单和简单的永久连接管道的方式。它的创新设计理念消除了昂贵的焊接要求，并将快速安装与信号组装过程相结合。	海底体验 几十年来，派克一直处于仪器仪表小型海底阀门研发的前沿，最初凭借其 Autoclave Engineers 工程师产品组合，我们的阀门继续被世界各地的所有者/运营商指定。

New Parker Subsea Small Bore Valves

Meeting the Demands of Deep Offshore Oil and Gas Exploration
Deeper water, greater distances from shore, and higher reservoir temperatures and pressures - The NEW NORMAL in Oil and gas exploration.

Parker's new subsea valves have the ability to withstand long-term corrosion effects from high salt content sea water and perform in extreme temperature and pressure conditions, making them ideal for regions such as offshore Brazil, Gulf of Mexico, North Sea, West Africa and Asia.

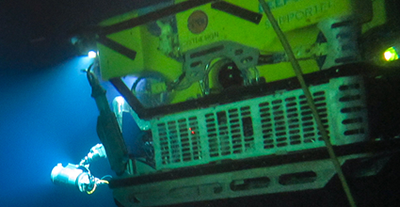

These valves are available in a range of corrosion resistant alloys and a wide range of connections including cone-and-thread, buttweld and NPT. Supplied with a handle or a paddle, the valves are designed to facilitate operation either manually or by a Remotely Operated Vehicle (ROV) as an option.

The valves have been designed to meet or exceed the rigorous qualification test requirements of API6A/17D PSL 3/3G.

New Parker Subsea Small-Bore Valves deliver leak-free, long-term performance in oil and gas exploration and production

Barnstaple, UK. 28. May 2020 – Parker Hannifin, the global leader in motion and control technologies, has launched a new range of small-bore subsea ball valves and subsea needle valves for leak-free and reliable, long-term performance in subsea applications up to 10,000 PSI (689 bar) and depths down to 3,050 m (10,000 ft).

Developed by Parker Instrumentation Products Division, Europe (IPDE) in response to the increasing challenges of oil and gas subsea exploration and production, these subsea valves have the ability to withstand long-term corrosion effects from high salt content sea water and perform in extreme temperature and pressure conditions, making them ideal for regions such as offshore Brazil, Gulf of Mexico, North Sea, West Africa and Asia.

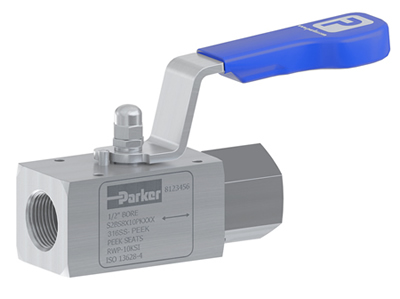

Parker’s small-bore subsea quarter turn ball valve, featuring floating ball design, utilises the same field-proven design technology as the standard Parker’s Hi-Pro series ball valve. This small-bore subsea ball valve design additionally incorporates shaft and end adaptor O-ring ingress seals, which prevent the ingress of sea water to any threaded or rotating parts of the valve.

The 2-way small-bore subsea ball valve design features PEEK self-relieving seat for excellent resistance to chemicals, heat, and wear/abrasion and PTFE packing for increased cycle life and reduced operating torque.

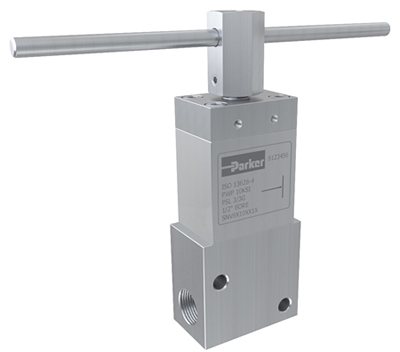

Parker’s non-rising, non-rotating stem subsea needle valve features metal-to-metal seat for bubble-tight shut-off, longer stem/seat life, greater durability for repeated on/off cycles and reinforced PTFE/PEEK chevron packing below stem threads for dependable stem and body sealing.

This subsea needle valve incorporates double O-ring stem ingress seals on bonnet housing to prevent water and silt ingress into the valve.

Franck Grignola, Parker IPDE subsea valves Product Manager, said: “Ensuring safe, leak-free and smooth operation in subsea conditions were the main priorities for us when developing these subsea valves. With owner / operators now having to go to deeper depths with increased pressure and temperatures, this range of small-bore subsea ball and needle valves meets the challenges the industry is facing. Coupled with our extensive expertise in material science, Parker is well placed to partner with engineering houses, OEMs and owner / operators”.

The subsea valves are available in a range of corrosion resistant alloys and a wide range of connections including cone-and-thread, buttweld and NPT.

Supplied with a handle or a paddle, the valves are designed to facilitate operation either manually or by a Remotely Operated Vehicle (ROV) as an option.

The valves have been designed to meet orexceed the rigorous qualification test requirements of API6A/17D PSL 3 (ball valves) and API6A/17D PSL 3/3G (needle valves) fortemperature classes P/V (-29oC to 121oC). The structural integrity and performance havebeen confirmed by independent third-party inspectors.

新型 Parker Subsea 小口径阀门在石油和天然气勘探和生产中提供无泄漏、长期性能

英国巴恩斯特普尔。 28. 2020 年 5 月 – 运动和控制技术的全球领导者派克汉尼汾推出了一系列新的小口径海底球阀和海底针阀，可在高达 10,000 次的海底应用中实现无泄漏且可靠的长期性能PSI (689 bar)，深度低至 3,050 m (10,000 ft)。

这些海底阀门由欧洲派克仪表产品部 (IPDE) 开发，以应对日益严峻的石油和天然气海底勘探和生产挑战，能够承受高盐含量海水的长期腐蚀影响并在极端温度下工作和压力条件，使其成为巴西近海、墨西哥湾、北海、西非和亚洲等地区的理想选择。

派克的小口径海底四分之一回转球阀采用浮球设计，采用与标准派克 Hi-Pro 系列球阀相同的经过现场验证的设计技术。这种小口径海底球阀设计还包含轴和端部适配器 O 形圈入口密封件，可防止海水进入阀门的任何螺纹或旋转部件。

2 通小口径海底球阀设计采用 PEEK 自卸式阀座，具有出色的耐化学性、耐热性和耐磨性，PTFE 填料可延长循环寿命并降低操作扭矩。

派克的非上升、非旋转阀杆海底针阀具有金属对金属阀座，可实现气密关闭、更长的阀杆/阀座寿命、更耐用的重复开/关循环以及阀杆下方的增强 PTFE/PEEK 人字形填料螺纹用于可靠的阀杆和阀体密封。

这种海底针阀在阀盖外壳上采用双 O 形环阀杆入口密封件，以防止水和淤泥进入阀门。

派克 IPDE 海底阀门产品经理 Franck Grignola 说：“在开发这些海底阀门时，确保在海底条件下安全、无泄漏和平稳运行是我们的主要优先事项。随着船东/运营商现在不得不随着压力和温度的增加进入更深的深度，这一系列小口径海底球阀和针阀可以应对行业面临的挑战。再加上我们在材料科学方面的广泛专业知识，派克有能力与工程公司、原始设备制造商和业主/运营商合作”。

海底阀门有多种耐腐蚀合金和多种连接方式，包括锥螺纹、对焊和 NPT。

这些阀门配有手柄或桨叶，旨在促进手动操作或远程操作车辆 (ROV) 作为选项进行操作。

这些阀门的设计满足或超过 API6A/17D PSL 3（球阀）和 API6A/17D PSL 3/3G（针阀）对温度等级 P/V（-29oC 至 121oC）的严格鉴定测试要求。结构完整性和性能已得到独立第三方检查员的确认。

Autoclave海底球阀 (1.379bar) 压力等级20,000psi
尺寸: 3/16~，1/4~，3/8~，1/2~和1英寸
用于海底操作的高压球阀，水深12,500英尺(3810米)

二通6.35m节流口径型号: S2B4S15L2，S2B4S15L4，S2B4S15L6，S2B4S10L8，S2B4S20K4，S2B4S20M6，S2B4S20，S2B4S20H4，S2B4S20H6，S2B4S20H9，S2B4S15P2，S2B4S15P4，S2B4S15P6.S2B4S15P8
二通9.52m节流口径型号: S2B6S10L8，S2B6S206，S2B6S20，S2B6S20M12，S2B6S15P4,S2B6S15P6， S2B6S15P8
二通12.7mm节流口径型号: S2B8S15M12，S2B8S15M16，S2B8S10P12，S2B8S10P16
二通4.77m节流口径型号: S3B3S15M4，S3BD3S15M4，S3B3S15M6，S3BD3S15M6，S3B3S15M9,S3BD3S15M3，S3B3S15H4S3BD3S15H4， S3B3S15H6，S3BD3S15H6，S3B3S15P4，S3BD3S15P4，S3B3S15P6，S3BD3S15P6二通8.33n节流口径型号: S3B6S10L8，S3BD6S10L8，S3B6S106，S3BD6S10M6，S3B6S10M9，S3BD6S10M9，S3B6S10M12,S3BD6S10M12，S3B6S10P4，S3BD6S10P4，S3B6S10P6，S3BD6S10P6，S3B6S10P8，S3BD6S10P8
二通12.7m节流口径型号: S3B8S10M12，S3BD8S10M12，S3E8S10M16，S3BD8S10M16，S3B8S10P12，S3BD8S10P12，S3B8S10P16.S3BD8S10P16
