Parker派克Phastite系列永久性推入式接头 Parker 接头 Parker Adapters
Phastite Series Permanent Ferrule Less Tube Fittings

Parker派克Phastite 是管连接系统的一项突破。其创新的设计理念消除了对焊接的昂贵要求，并将快速安装与信号组装过程相结合，从而实现了可用于高达21,400 psi / 1,470 bar的应用中的管连接器。从北海的海底勘探到哈萨克斯坦的天然气钻井，开发了一系列标准和耐腐蚀合金，以应对最苛刻的环境。Phastite 符合行业标准的所有相关性能和功能要求。在Phastite 的整个开发过程中，产品性能和完整性至关重要。包括热循环，冲击，振动，氦气泄漏，气密性和静水压测试在内的严格测试程序已经完成。

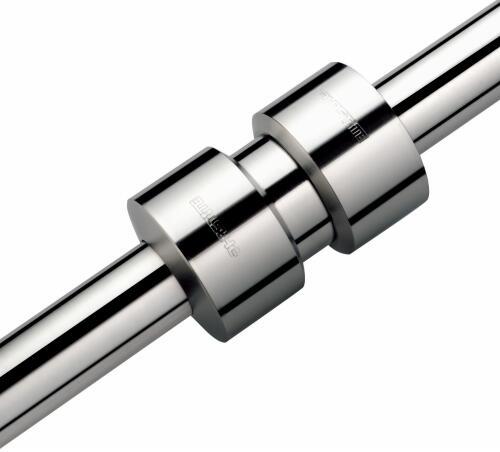

Parker's Phastite permanent compression fitting offers an extremely quick, easy and simple way of permanently connecting tube. When considering how much time it takes to weld tubing, Phastite? delivers a huge reduction in total installation cost. Phastite is a breakthrough in tube connection systems; its innovative design concept eliminates the costly requirement of welding and combines quick installation with a signal assembly process achieving a tube connector that can be used in applications up to 21,400 psi/1,470 bar. Developed in a range of standard and corrosion resistant alloys to cope with the most demanding environments, from subsea exploration in the north sea to natural gas drilling in Kazakhstan. Phastite? meets all the relevant performance and functional requirements of industry standards. Throughout the development of Phastite?, product performance and integrity were paramount. A rigorous testing program including Thermal Cycling, Shock, Vibration, Helium Leak, Gas Tight and Hydrostatic testing has been completed.

Permanent Ferrule Less Tube Fittings - Phastite Series

市场：
- 海上油气
- 陆上油气
- 石化
- 化学

特性/优点：
- 降低了安装成本
- 简化了组装过程
- 无需重新制作或重新测试
- 无需焊接
- 降低了油管成本
- 减轻了重量
- 否零件松散
- 组成简单
- 耐振动
- 无需高温作业

应用：
- 仪表线
- 液压动力装置
- 化学注入橇

用于管道的Phastite?将快速安装与简单组装相结合，可快速，轻松地实现永久的非焊接连接。使用台式安装的Parker Phastool 100将磷灰石配件轴向锻造到管道上。一旦将卡圈完全锁定到配件主体上，它就不会脱离-在短短几分钟内提供永久的无泄漏连接解决方??案！

管中的Phastite具有很高的抗振动，压力循环和外部载荷的能力，是高压管道的一项突破性技术。此外，它消除了无损检查（NDE），从而减少了整体焊接后的检查时间和成本。

非常适合液压，水和水/乙二醇，润滑和其他介质
兼容NPS / IPS计划管道尺寸?“，1”，1-1 / 2“和2”
承受高达10,000 psi / 700 bar的压力
设计用于在15,000英尺的海底深度执行
符合ASME B31.1和B31.3的要求
根据ASTM F1387测试
DNV RP-A203技术鉴定计划证书

Markets:
- Oil and Gas Offshore
- Oil and Gas Onshore
- Petrochemical
- Chemical

Features/Benefits:
- Reduced Installation Costs
- Simple assembly process
- No need to re-make or re-test
- No welding required
- Reduced tubing costs
- Weight reduction
- No loose parts
- Simple make-up
- Vibration tolerant
- No need for hot work

Applications:
- Instrumentation lines
- Hydraulic power units
- Chemical injection skids

Technical Specifications

Permanent Ferrule Less Tube Fittings - Phastite Series型号
Phastite Tube Connectors Permanent Instrument Tube Connectors
Phastite for Pipe Connection System A Non-Welded System for High-Pressure Piping
