DYNALCO SST-2000系列速度变送器描述：现场可选择4-20 mA（标准），0-5 Vdc或0-10 Vdc的比例输出。 包括标准的0-1 mAdc仪表输出。 带有多达四个警报设定点的型号。现场可选的频率范围； 现场可调灵敏度控制。 可对多种类型的传感器进行现场编程，包括触点闭合输入。 中继器输出驱动计数器和自供电数字转速表，例如Dynalco的SPD-100和SPD-700。 有源拾音器（例如M910），附件和数字仪表（例如DPM-105或MTH-103D）以及内部照明的SPD-100L和LST-100L的12 Vdc版本的稳压14 Vdc输出功率。 警报可针对DPDT（仅限SST-2400 A或-H），超速，欠速，通电，断电，闩锁，自动复位进行现场配置。 集成验证，需要外部仪表。 允许查看和设置设定值而无需操作继电器。 输入频率：满量程值，范围为0–0.1Hz（每分钟6个脉冲）至0–50,000 Hz。 功能：将频率输入（速度，速率）转换为线性比例直流输出。 提供超速和欠速控制以及顺序，启动和关闭切换的警报设置点。 信号源：包括电磁传感器，交流发电机，触点闭合，光电管；输出范围功能：始终包括高达50 mAdc输出的电流源；警报设定点：可用于两个或四个继电器。 也可不带继电器。 应用范围：包括引擎，机器，I / P驱动程序，仪器，过程控制，记录，测量。

DYNALCO SST-2000 Speed Switches/ Transmitters Product Data Sheet
SST-2000 Series Speed Switches/ Transmitters Manual

SST-2000A速度变送器

速度变送器， CSA总分类和CE认证。
接收来自无源或有源电磁传感器，轴编码器，触点闭合，流量计等的信号输入，以提供比例模拟输出。
SST-2000A 系列是高度可配置的产品。

SST-2000H速度变送器

速度变送器： CSA：第一类，第二类，玻璃C，D
接收来自无源或有源电磁传感器，轴编码器，触点闭合，流量计等的信号输入，以提供比例模拟输出。批准：CSA和CE批准。
SST-2000H系列是高度可配置的产品。

SST-2200A速度变送器

速度开关：过速/欠速保护，带有2个标准继电器设定值的变送器，CSA通用分类
SST-2200A具有2个继电器设定值，并接收来自无源或有源电磁传感器，轴编码器，触点闭合，流量计等的信号输入，以提供比例模拟输出。批准：CSA，CE批准。
SST-2000A系列是高度可配置的产品。

SST-2200H速度变送器

速度开关：过速/欠速保护，带有2个密封继电器设定值的变送器，CSA：Cls I，Div 2，Grp C，D。
SST-2200H具有2个密封的继电器设定值，并接收来自无源或有源电磁传感器，轴编码器，触点闭合，流量计等的信号输入，以提供比例模拟输出。批准：CSA和CE批准。
SST-2000H系列是高度可配置的产品。

SST-2400A速度变送器

速度开关： 过速/欠速保护，具有4个标准继电器设定值的变送器，CSA通用分类
SST-2400A具有4个继电器设定值，并接收来自无源或有源电磁传感器，轴编码器，触点闭合，流量计等的信号输入，以提供比例模拟输出。批准：CSA通用分类和CE批准。
SST-2400A 系列是高度可配置的产品。

SST-2400H速度变送器

速度变送器 CSA 1类，2类，C，D组
认证：CSA和CE认证。

SST-2400H系列是高度可配置的产品。

特征

DYNALCO Instrumentation & Controls
2-Year Warranty
两年质保

DYNALCO SST-2000A and SST-2000H Series 系列速度开关/变送器接收信号输入从一个被动的或主动磁传感器，轴编码器，触头闭合，流量计等，提供模拟量输出和比例是0，2，或4 setpoints继电器跳闸。SST-2000A and SST-2000H Series Speed Switches/Transmitters receive signal input from a passive or active magnetic pickup, shaft encoder, contact closure,flowmeter, etc., to provide proportional analogoutputs and either 0, 2, or 4 relay trip setpoints.

产品应用：包括发动机，机器，I/P驱动器，仪表，过程控制，记录，测量。Applications: Includes engines, machines, I/P drivers, instrumentation, process control,recording, measurement.??

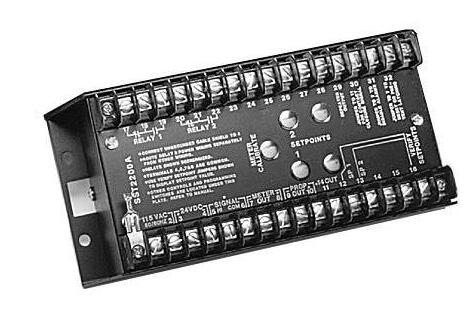

SST-2000A and SST-2000H Series Speed Switch/Transmitter

SST-2000A and SST-2000H Series Speed Switches/Transmitters receive signal input from a passive or active magnetic pickup, shaft encoder, contact closure, flowmeter, etc., to provide proportional analog outputs and either 0, 2, or 4 relay trip setpoints.

Features:

性能参数：

- Proportional outputs of either 4–20 mA (standard),0–5 Vdc, or 0–10 Vdc are fieldselectable.Standard 0-1 mAdc meter outputincluded.
- Models available with up to four alarm setpoints.
- Field-selectable frequency range.
- Field-adjustable sensitivity control.
- Field-programmable for many types of sensors,including contact closure input.
- Repeater output drives counters and self-powered digital tachometers such as Dynalco’s SPD-100 and SPD-700.
- Regulated 14 Vdc output powers active pickups (e.g. M910), accessories, and digital meters such as DPM-105 or MTH-103D, and the 12 Vdc versions of the internally lighted SPD-100L and LST-100L.
- Alarms are field-configurable for DPDT (SST-2400 A or -H only), overspeed,underspeed,energize, de-energize, latch, auto-reset.
- Integral VERIFY, requires external meter. Permits viewing and setting of setpoint value without actuating the relays.
- Input Frequency: Full-scale values from 0–0.1Hz (6 pulses per minute) to 0–50,000 Hz.
- Function: Converts frequency input (speed,rate) into linear proportional dc output. Provides alarm setpoints for over- and underspeed control and for sequential, startup, and shutdown switching.
- Signal Sources: Includes magnetic pickups, ac generators, contact closures, photocells. Output Range Capability: Current source up to 50 mAdc output always included.
- Alarm Setpoints: Available with two or four relays. Also available with no relays if only proportional outputs are required.
- Applications: Includes engines, machines, I/P drivers, instrumentation, process control,recording, measurement.
应用：包括发动机，机器，I/P驱动器，仪表，过程控制，记录，测量。

第三方认证：
See: THIRD PARTY APPROVALS *

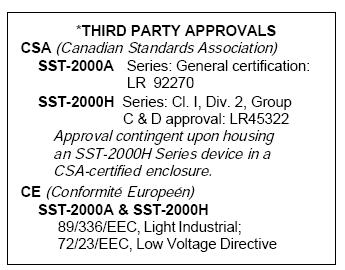

*THIRD PARTY APPROVALS

CSA (Canadian Standards Association)
SST-2000A Series: General certification:
LR 92270
SST-2000H Series: Cl. I, Div. 2, Group
C & D approval: LR45322
Approval contingent upon housing
an SST-2000H Series device in a
CSA-certified enclosure.

CE (Conformité Europeén)
SST-2000A & SST-2000H
89/336/EEC, Light Industrial;
72/23/EEC, Low Voltage Directive

SPECIFICATIONS
规格参数：

ELECTRICAL

Input Signal Frequency Range: Standard input range is field-selectable from 0–80 Hz to 0–20 kHz. Ranges as low as 0–0.1 Hz and up to 0–50,000 Hz are available options.
Input Signal Sensitivity: Field-adjustable from approximately 5 mVrms to 100 mVrms by internal sensitivity potentiometer.Normal factory setting is 25 mVrms. Maximum permissible signal is 50 Vrms for the standard unit.
Input Impedance: Nearly infinite at low signal levels; a minimum of 10 kΩ at signal levels exceeding +15.0 V peak or –1.0 V peak.
Power: 115 Vac ±10%, 47–420 Hz/22–30 Vdc, maximum 5 W or 150 mAdc. Optional: 220 Vac, ±10%, 50/60 Hz/22–30Vdc.
Proportional Output: 4–20 mAdc. The maximum load is 1kΩ with the unit powered by 115/220 Vac or 30 Vdc; and 750 ohms with the unit powered by 22 Vdc. The maximum load is approximately linear between 22 Vdc and 30 Vdc. Other custom ranges are available.
Auxiliary Meter Output: Proportional 0–1 mAdc, filtered, for meter or recorder loads up to 750 Ω.
Supply Output: Regulated +14 Vdc (±5%), at terminals 11(+) and 4(–); maximum load 40 mAdc.
Repeater Output: Square wave 14 V peak-to-peak, positive going, at terminals 29 and 4 to operate signal-powered digital tachometers SPD-100 and SPD-700.
Output Ripple and Noise: 0.1% of full-scale maximum over 10% to 100% of full-scale.
Verifying Setpoints: No input signal required. Jumpering specific terminals overrides the 0–1 mA auxiliary meter output at terminals 7 and 8; instead, the actual setpoint value is output and viewed using an external meter at terminal 7 and 8.
Response Time: 150 milliseconds, 10% to 90% rise, is standard. Full-scale frequency ranges below 80 Hz are proportionally slower.
Linearity: 0.1% of full-scale (0.05%, typical), all outputs.Output and Setpoint Stability: Less than 0.05% of full-scale change with a 10% change in supply voltage.

RELAYS

Logic: Field-programmable by switches for overspeed,underspeed, energize, de-energize, latch, auto-reset, and DPDT.*
Ratings:

“A” series: Contact rating: 6.0 A @ 28 Vdc or 115 Vac (resistive); 2.0 A @ 220 Vac. Maximum inductive load 75 Vdc, 1.0 A, into 500 mH, for up to 100,000 cycles; SPDT.*

“H” series: Contact rating: 5 A (resistive) @ 24 Vdc; 1.0 A @ 120 Vac; 0.5 A @ 220 Vac; SPDT.* *For DPDT, relays 1 & 3 and 2 & 4 work together as separate DPDT trips.

Alarm Setpoints: Relay setpoints are easily adjustable using 25–turn cermet potentiometers. Potentiometer adjustments are accessible through holes in the cover plate.
ALARM DISABLE: Jumpering terminal 31 to terminal 7 disables all alarms, allowing for startup conditions and special functions.
ALARM RESET: Momentary jumpering of terminal 32 to terminal 7 resets all latched alarms. Permanent jumpering converts all latching alarms to auto-reset.

OPTIONS
ENCLOSURES: XP and NEMA rated enclosures are available.
OPEN PICKUP: Relay 1 switches in the event of an open or disconnected magnetic pickup. Relay 1 will still react when its setpoint is traversed. NOTE: Not available with signal isolation transformer option.

PNEUMATIC TRIP: Pulses relay 1 for 100 milliseconds; trips optional Dynalco SPV-200 Solenoid Pneumatic Valve on overspeed.
UNDERSPEED CLASS “C” LOGIC: Arms relay 2 as setpoint
2 is traversed on increasing speed. Pulses relay 2 as setpoint
2 is traversed on decreasing speed. Use for tripping the
pneumatic SPV-200 on underspeed or for general underspeed electrical shutdown.

EXPANDED SCALE INPUT: Provides full meter output, full proportional output, and full setpoint range over a limited input range e.g. 0–1 mA and 4–20 mA over 800–1000 Hz input frequency.

ENVIRONMENTAL

TEMPERATURE RANGE: –40oF to +160oF (–40oC to +71oC)
operating. –40oF to +180oF (–40oC to +82oC) storage.
Weight: 2.6 lbs (1.17 kg)

HOW TO ORDER订货指南

- DYNALCO SST-2000 Series Speed Switches/ Transmitters Product

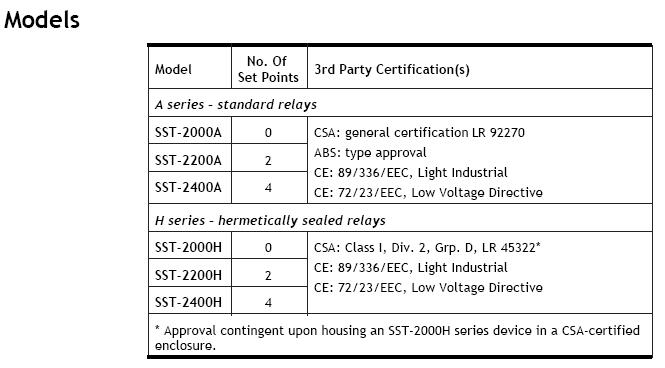

SST-2000A Speed Transmitter
SST-2000H Speed Transmitter
SST-2200A Speed Switch/Transmitter
SST-2200H Speed Switch/Transmitter
SST-2400A Speed Switch/Transmitter
SST-2400H Speed Switch/Transmitter
