Hydraulics Inc.快速接头COUPLINGS 5TV系列
COUPLINGS | 5TV - POPPET STYLE | COUPLER - FEMALE HALF | NIPPLE - MALE HALF

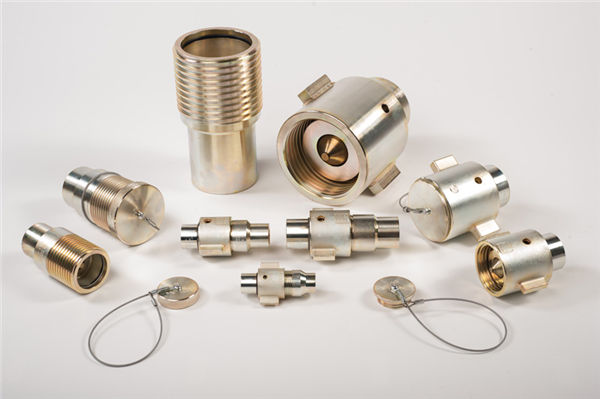

5TV - POPPET STYLE
应用领域Field of Application
从1968年开始，液压公司生产了5TV系列联轴器，用于极其坚固的恒功率大马力流体动力系统。如今，几乎每个制造部门都能在建筑、自然资源收集、运输、材料处理和许多其他领域的设备中找到这种可靠的耦合。标准联轴节尺寸为3/4“至3”孔径。Beginning in 1968, Hydraulics Inc. has produced the 5TV series coupling for service in extremely rugged constant duty high-horsepower fluid power systems. Today, world wide, virtually every manufacturing segment finds use for this dependable coupling in equipment for construction, natural resource gathering, transportation, material handling and many others. Standard coupling sizes are 3/4" through 3" bore size

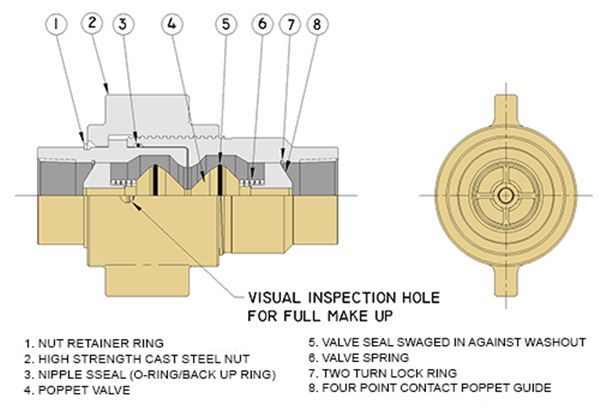

这里介绍的液压公司5TV系列连接管接头的螺纹由两个通过短梯形螺纹密封连接的半阀门组成。连接是通过手动旋转翼形螺纹螺母来克服阀门弹簧和阀门后面的任何流体压力。当螺纹完全啮合时，阀门完全打开。在螺纹完全脱离之前，阀门完全关闭。The Hydraulics Inc. 5TV series thread to connect coupling presented here consists of two valved halves retained in sealed connection by stub-acme threads. Connection is by winged thread nut rotated manually to overcome valve springs and any fluid pressure behind the valves. Valves are full open when threads are totally engaged. Valves become full closed before threads become totally disengaged.
操作极限：
5000 P.S.I.（34.5兆帕）一些螺纹端口选项被降级。
全4:1安全系数-所有尺寸
真空至28“Hg（1.0巴）
温度范围-30°F至+250°F（-34°C至+121°C）-标准丁腈橡胶密封
防护处理.黄色铬酸盐RoHS兼容表面镀锌
尺寸-3/4“至3”
Operating Limits:
5,000 P.S.I. (34.5 Mpa) Some thread port options are de-rated.
Full 4:1 Safety Factor - all sizes
Vacuum to 28" Hg (1.0 bar)
Temperature range -30°F to +250°F (-34°C to +121°C) - Standard Buna Seals
Protective Treatment - Zinc Plating with Yellow Chromate RoHS Compliant Finish
Sizes - 3/4" thru 3"
设计特点
连续工作应用的卓越流动特性。点击此处获取流量数据
高强度钢提升阀导承防止在高喘振和冲击条件下耦合阀破裂和冲刷
锤耳翼形螺母辅助在压力下组装联轴器
可在联轴器螺母检查孔处目测整个组件
平顶短梯形螺纹和所有钢结构可承受储存和装配损坏
黄铬酸RoHS兼容面漆镀锌的防护处理
提供各种端口选项，内螺纹NPTF，内螺纹SAE O形环端口，内螺纹BSPP
Design Features
Excellent flow characteristics for continuous duty applications. Click here for Flow data
High strength steel poppet guides prevent break up and washout of coupling valves during high surge and shock conditions
Hammer lug wing nut aides in assembly of coupling under pressure
Full assembly can be visually verified at coupler nut inspection hole
Flat crested stub-acme threads and all steel construction withstand storage and rig-up damage
Protective treatment of zinc plating with yellow chromate RoHS compliant finish
Various port options available, Female NPTF, Female SAE O-Ring Port, Female BSPP
一般来说，这些联轴节简化了长长度、大口径挠性软管组件的装配。它们设计用于在极端压力、结构和系统引起的浪涌和冲击载荷下的恶劣环境中工作。阀门结构允许在软管孔中流体热膨胀产生的压力下进行组装，并通过高强度锤形凸耳螺母进行组装。Generally stated, these couplings simplify the rigging of long length, large bore flex hose assemblies. They are designed to operating in rugged environments under extreme pressures as well as structural and system induced surges and shockloads. Valve construction permits assembly against pressure created by thermal expansion of fluid in the hose bore and make up is facilitated by a high strength hammer lug nut.
 |
 |
Coupler - Female Half |
Nipple - Male Half |
由于技术进步和产品改进，本网站上显示的所有设计和尺寸数据如有更改，恕不另行通知。技术资料是根据受控环境条件下的实际试验结果编制的，数据被认为是可靠的，但不能对其在各种现场条件下的准确性承担任何责任。Because of technological progress and product improvements, all design and dimensional data shown on this website is subject to change without notice. Technical information has been prepared from actual test results under controlled environmental conditions and data is considered to be reliable, but no responsibility can be assumed for its accuracy under varied field conditions.
警告！WARNING!
液压系统公司5TV和6TV管接头不可与其他制造商生产的类似管接头互换。液压系统，公司声明的耦合性能是基于配合真正的液压系统，公司5TV和6TV阀门和螺纹连接联轴节和接头。Hydraulics, Inc. 5TV & 6TV couplings are not considered interchangeable with similar couplings produced by other manufacturers. Hydraulics, Inc. stated coupling performance is based on mating genuine Hydraulics, Inc. 5TV & 6TV valved and thread-to-connect couplings and nipples.
警告！WARNING!
要延长5TV和6TV管接头的功能服务，请仅使用原装液压系统，包括更换部件。To extend functional service of 5TV & 6TV couplings, use only genuine Hydraulics, Inc. replacement components.
COUPLINGS | 5TV - POPPET STYLE | COUPLER - FEMALE HALF

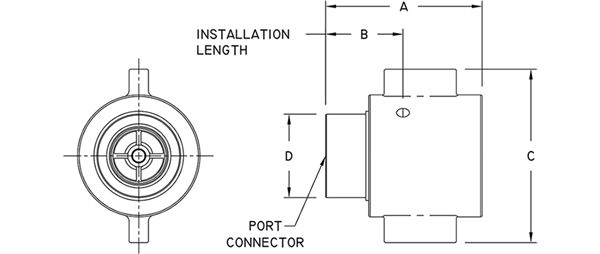

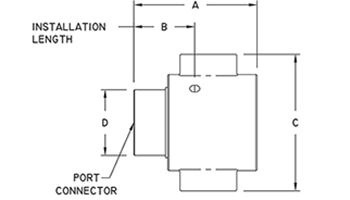

5TV COUPLER - FEMALE HALF
| Part Number |
T1 |
Port Connector |
Port Size |
A |
B |
C |
D |
| 5TV-C-12 |
3/4-14NPTF |
PF - Female Pipe |
-12 (3/4") |
2.84
72.1 mm |
1.59
40.4 mm |
3.00
76.2 mm |
1.35
34.3 mm |
| 5TV-HC-12 |
3/4-14NPTF |
PF - Female Pipe |
-12 (3/4") |
2.84
72.1 mm |
1.59
40.4 mm |
2.00
50.8 mm |
1.35
34.3 mm |
| 5TV-C-16 |
1-11 1/2NPTF |
PF - Female Pipe |
-16 (1") |
3.46
87.9 mm |
1.87
47.5 mm |
3.75
95.3 mm |
1.75
44.5 mm |
| 5TV-C-20 |
1 1/4-11 1/2NPTF |
PF - Female Pipe |
-20 (1 1/4") |
4.42
112.3 mm |
2.40
61.0 mm |
4.51
114.6 mm |
2.13
54.1 mm |
| 5TV-C-24 |
1 1/2-11 1/2NPTF |
PF - Female Pipe |
-24 (1 1/2") |
5.02
127.5 mm |
2.72
69.1 mm |
4.75
120.7 mm |
2.50
63.5 mm |
| 5TV-C-32 |
2-11 1/2NPTF |
PF - Female Pipe |
-32 (2") |
6.07
154.2 mm |
3.00
76.2 mm |
6.75
171.5 mm |
3.25
82.6 mm |
| 5TV-C-40 |
2 1/2-8NPTF |
PF - Female Pipe |
-40 (2 1/2") |
6.87
174.5 mm |
3.38
85.9 mm |
8.01
203.5 mm |
4.13
104.8 mm |
| 5TV-C-48 |
3-8NPTF |
PF - Female Pipe |
-48 (3") |
10.13 257.3 mm |
5.10
129.5 mm |
9.75
247.7 mm |
5.25
133.4 mm |
| 5TV-C-12OF |
1 1/16-12UN-2B |
OF - Female SAE O-Ring |
-12 (3/4") |
2.84
72.1 mm |
1.59
40.4 mm |
3.00 76.2 mm |
1.35
34.3 mm |
| 5TV-HC-12OF |
1 1/16-12UN-2B |
OF - Female SAE O-Ring |
-12 (3/4") |
2.84
72.1 mm |
1.59
40.4 mm |
2.00 50.8 mm |
1.35
34.3 mm |
| 5TV-C-16OF |
1 5/16-12UN-2B |
OF - Female SAE O-Ring |
-16 (1") |
3.46
87.9 mm |
1.87
47.5 mm |
3.75
95.3 mm |
1.75
44.5 mm |
| 5TV-C-20OF |
1 5/8-12UN-2B |
OF - Female SAE O-Ring |
-20 (1 1/4") |
4.42
112.3 mm |
2.40
61.0 mm |
4.51
114.6 mm |
2.13
54.1 mm |
| 5TV-C-24OF |
1 7/8-12UN-2B |
OF - Female SAE O-Ring |
-24 (1 1/2") |
5.02
127.5 mm |
2.72
69.1 mm |
4.75
120.7 mm |
2.50
63.5 mm |
| 5TV-C-32OF |
2 1/2-12UN-2B |
OF - Female SAE O-Ring |
-32 (2") |
6.07
154.2 mm |
3.00
76.2 mm |
6.75
171.5 mm |
3.25
82.6 mm |
| 5TV-C-12BF |
G 3/4-14BSPP |
BF - Female British Pipe |
-12 (3/4") |
2.84
72.1 mm |
1.59
40.4 mm |
3.00
76.2 mm |
1.35
34.3 mm |
| 5TV-HC-12BF |
G 3/4-14BSPP |
BF - Female British Pipe |
-12 (3/4") |
2.84
72.1 mm |
1.59
40.4 mm |
2.00
50.8 mm |
1.35
34.3 mm |
| 5TV-C-16BF |
G 1-11BSPP |
BF - Female British Pipe |
-16 (1") |
3.46
87.9 mm |
1.87
47.5 mm |
3.75
95.3 mm |
1.75
44.5 mm |
| 5TV-C-20BF |
G 1 1/4-11BSPP |
BF - Female British Pipe |
-20 (1 1/4") |
4.42
112.3 mm |
2.40
61.0 mm |
4.51
114.6 mm |
2.13
54.1 mm |
| 5TV-C-24BF |
G 1 1/2-11BSPP |
BF - Female British Pipe |
-24 (1 1/2") |
5.02
127.5 mm |
2.72
69.1 mm |
4.75
120.7 mm |
2.50
63.5 mm |
| 5TV-C-32BF |
G 2-11BSPP |
BF - Female British Pipe |
-32 (2") |
6.07
154.2 mm |
3.00
76.2 mm |
6.75
171.5 mm |
3.25
82.6 mm |
| 5TV-C-40BF |
G 2 1/2-11BSPP |
BF - Female British Pipe |
-40 (2 1/2") |
6.87
174.5 mm |
3.38
85.9 mm |
8.01
203.5 mm |
4.13
104.8 mm |
COUPLINGS | 5TV - POPPET STYLE | NIPPLE - MALE HALF

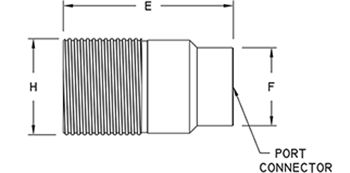

5TV NIPPLE - MALE HALF
| Part Number |
T1 |
Port Connector |
Port Size |
E |
F |
H |
| 5TV-N-12 |
3/4-14NPTF |
PF - Female Pipe |
-12 (3/4") |
3.27
83.1 mm |
1.35
34.3 mm |
1.75
44.5 mm |
| 5TV-N-16 |
1-11 1/2NPTF |
PF - Female Pipe |
-16 (1") |
4.18
106.2 mm |
1.75
44.5 mm |
2.25
57.2 mm |
| 5TV-N-20 |
1 1/4-11 1/2NPTF |
PF - Female Pipe |
-20 (1 1/4") |
5.35
135.9 mm |
2.25
57.2 mm |
2.63
66.8 mm |
| 5TV-N-24 |
1 1/2-11 1/2NPTF |
PF - Female Pipe |
-24 (1 1/2") |
5.97
151.6 mm |
2.50
63.5 mm |
3.25
82.6 mm |
| 5TV-N-32 |
2-11 1/2NPTF |
PF - Female Pipe |
-32 (2") |
7.05
179.1 mm |
3.87
98.3 mm |
4.00
101.6 mm |
| 5TV-N-40 |
2 1/2-8NPTF |
PF - Female Pipe |
-40 (2 1/2") |
8.70
221.0 mm |
4.13104.9 mm |
5.25
133.4 mm |
| 5TV-N-48 |
3-8NPTF |
PF - Female Pipe |
-48 (3") |
11.52
292.6 mm |
5.25
133.4 mm |
6.50
165.1 mm |
| 5TV-N-12OF |
1 1/16-12UN-2B |
OF - Female SAE O-Ring |
-12 (3/4") |
3.27
83.1 mm |
1.35
34.3 mm |
1.75
44.5 mm |
| 5TV-N-16OF |
1 5/16-12UN-2B |
OF - Female SAE O-Ring |
-16 (1") |
4.18
106.2 mm |
1.75
44.5 mm |
2.25
57.2 mm |
| 5TV-N-20OF |
1 5/8-12UN-2B |
OF - Female SAE O-Ring |
-20 (1 1/4") |
5.35
135.9 mm |
2.25
57.2 mm |
2.63
66.8 mm |
| 5TV-N-24OF |
1 7/8-12UN-2B |
OF - Female SAE O-Ring |
-24 (1 1/2") |
5.97
151.6 mm |
2.50
63.5 mm |
3.25
82.6 mm |
| 5TV-N-32OF |
2 1/2-12UN-2B |
OF - Female SAE O-Ring |
-32 (2") |
7.05
179.1 mm |
3.87
98.3 mm |
4.00
101.6 mm |
| 5TV-N-12BF |
G 3/4-14BSPP |
BF - Female British Pipe |
-12 (3/4") |
3.27
83.1 mm |
1.35
34.3 mm |
1.75
44.5 mm |
| 5TV-N-16BF |
G 1-11BSPP |
BF - Female British Pipe |
-16 (1") |
4.18
106.2 mm |
1.75
44.5 mm |
2.25
57.2 mm |
| 5TV-N-20BF |
G 1 1/4-11BSPP |
BF - Female British Pipe |
-20 (1 1/4") |
5.35
135.9 mm |
2.25
57.2 mm |
2.63
66.8 mm |
| 5TV-N-24BF |
G 1 1/2-11BSPP |
BF - Female British Pipe |
-24 (1 1/2") |
5.97
151.6 mm |
2.50
63.5 mm |
3.25
82.6 mm |
| 5TV-N-32BF |
G 2-11BSPP |
BF - Female British Pipe |
-32 (2") |
7.05
179.1 mm |
3.87
98.3 mm |
4.00
101.6 mm |
| 5TV-N-40BF |
G 2 1/2-11BSPP |
BF - Female British Pipe |
-40 (2 1/2") |
8.70
221.0 mm |
4.13
104.9 mm |
5.25
133.4 mm |
