Hydraulics, Inc. 旋转接头 SWIVELS
SWIVELS, COUPLINGS, AND CONTROLS FOR HYDRAULIC SYSTEMS
SWIVELS；S-Inline，HS-Heavy Duty Inline，9S-90° Swivel，9SS-Dual Plane Swivel，18S-Parallel Plane Swivel，Flange Swivels

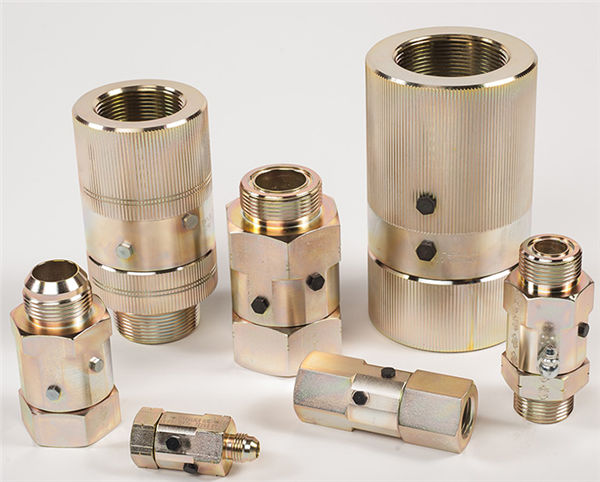

SWIVELS；HS-Heavy Duty Inline
“HS”系列直列式水龙头于2010年推出，以提供比标准“S”系列直列式水龙头更高的性能。这种重型直列式水龙头的设计压力高达5000磅/平方英寸，安全系数为4:1。经过改进的轴承设计以及双滚珠轴承座圈、高强度合金钢和其他设计特点，使“HS”系列获得了超长的使用寿命，并可在恶劣的应用环境中运行。The "HS" series in-line swivel was introduced in 2010 to offer expanded performance over the standard "S" series in-line swivel. This heavy duty in-line swivel is designed to operate at pressures up to 5,000 psi with a 4:1 safety factor. An improved bearing design along with dual ball races, higher strength alloy steel and other design features allow the “HS” series to achieve extremely long life and operate in severe applications.
Hydraulics, Inc. Design Features
通过硬化合金钢筒体和阀杆
大磨损面，角偏转，低扭矩
改进的轴承设计大大延长了使用寿命
双环设计提高了侧面负载的阻力
永久润滑轴承
铬合金固定球
标准O型环和备用环-现场可更换
抛光桶孔延长密封寿命
可选密封材料
低压降
防护处理.黄色铬酸盐RoHS兼容表面镀锌
Through hardened alloy steel barrel and stem
Large wear surface for angular deflection & low rotational torque
Improved bearing design greatly extends useful life
Dual race design improves resistance to side loads
Permanently lubricated bearing
Chrome retainer balls
Standard O-Ring and back up ring - Field replaceable
Burnished barrel bore for extended seal life
Optional seal materials available
Low pressure drop
Protective treatment - Zinc Plating with Yellow Chromate RoHS compliant finish
注意CAUTION:
不要试图在压力下断开和拆卸旋转装置。在压力下，不要从阀杆上拆下旋转筒。不要试图操作损坏的旋转接头，也不要操作显示油液泄漏和/或明显轴承磨损的旋转接头。考虑所选旋转装置的额定压力不能超过旋转装置及其所选端口的额定值。请参阅安全信息-选择和使用液压系统，包括旋转接头
Do not attempt to disconnect and disassemble swivels under pressure. Do not remove the swivel barrel from stem while under pressure. Do not attempt to operate damaged swivels and do not operate swivels displaying fluid leak and/or obvious bearing wear. Consider that a selected swivels rated pressure cannot exceed the lowest rating of the swivel and of it's selected ports. Refer to Safety Information - Selecting and Using Hydraulics, Inc. Swivel Joints.
压力限制Pressure Limitations:
“HS”系列转环的工作压力取决于所选的端口选择；然而，连接管道的额定压力可能高于或低于旋转阀。流体动力系统的额定工作压力不应超过其额定部件。Maximum working pressure for “HS” Series swivels is dependant on port options chosen; however, connecting plumbing may be rated higher or lower than that of the swivel. The rated working pressure of a fluid power system should not exceed the lowest rated component therein.
安装信息Installation Information:
Hydraulics, Inc. 的旋转接头通常被认为是流体动力系统中遇到的低速旋转。转速取决于系统环境，流体类型和与温度和压力有关的极端条件是考虑因素。可疑的应用应通过实验室或原型测试证明。安装时应避免污染，连接管道不应造成过度负荷。水龙头不应用作承重或结构构件。有关更多信息，请参阅安全信息-选择和使用液压系统，包括旋转接头。Hydraulics, Inc. swivel joints are generally considered for low speed rotation as encountered in fluid power systems. Maximum speed of rotation depends upon system environment, with fluid types and extreme conditions related to temperature and pressure being of prime consideration. Questionable applications should be proven by laboratory or prototype testing. Contamination at installation should be avoided and connecting plumbing should not cause undue loading. The swivel should not be used as a load bearing or structural member. Refer to Safety Information - Selecting and Using Hydraulics, Inc. Swivel Joints for additional information.
Options:
本网站上显示的旋转阀被视为液压公司的标准配置。有关本网站上未显示的压力额定值、端口选项或尺寸的其他要求，请与我们联系。可选择密封材料。Swivels shown on this website are considered standard to Hydraulics, Inc. For other requirements relative to pressure ratings, port options, or sizes not shown on this website, please contact us. Optional seal materials are available.
 |
 |
 |
| Male O-Ring Face Seal to Male O-Ring Face Seal |
MALE O-RING FACE SEAL TO FEMALE JIC |
Male O-Ring Face Seal to Female O-Ring Face Seal |
 |
 |
 |
| Male O-Ring Face Seal to Male SAE O-Ring Boss |
Male O-Ring Face Seal to Male Pipe |
Male JIC to Male O-Ring Face Seal |
 |
 |
 |
| Male JIC to Female O-Ring Face Seal |
Male JIC to Female JIC |
Male JIC to O-Male SAE O-Ring Boss |
 |
 |
 |
| Male JIC to Male Pipe |
Male JIC to Female Pipe |
Female Pipe to Male O-Ring Face Seal |
 |
 |
 |
| Female Pipe to Female O-Ring Face Seal |
Female Pipe to Female JIC |
Female Pipe to Male SAE O-Ring Boss |
 |
 |
 |
| Female Pipe to Male Pipe |
Female Pipe to Female Pipe |
Female British Pipe to Female B |
SWIVELS | HS-HEAVY DUTY INLINE | MALE O-RING FACE SEAL TO MALE O-RING FACE SEAL

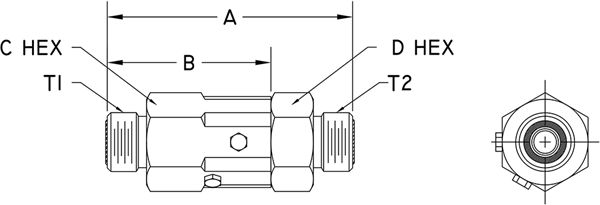

MALE O-RING FACE SEAL TO MALE O-RING FACE SEAL
male-o-ring-face-seal-to-male-o-ring-face-seal
| Part Number |
T1 |
T2 |
A |
B |
C Hex(* = Round) |
D Hex(* = Round) |
Max W.P. |
| HS6F6-F6 |
11/16-16 UN-2A |
11/16-16 UN-2A |
2.86 72.6 mm |
1.91 48.5 mm |
1.00 25.4 mm |
1.00 25.4 mm |
5,000 PSI 34.5 MPa |
| HS8F8-F8 |
13/16-16 UN-2A |
13/16-16 UN-2A |
3.18 80.8 mm |
2.10 53.3 mm |
1.25 31.8 mm |
1.25 31.8 mm |
5,000 PSI 34.5 MPa |
| HS8F10-F10 |
1-14 UNS-2A |
1-14 UNS-2A |
3.39 86.1 mm |
2.21 56.1 mm |
1.25 31.8 mm |
1.25 31.8 mm |
5,000 PSI 34.5 MPa |
| HS12F12-F12 |
1-3/16-12 UN-2A |
1-3/16-12 UN-2A |
3.67 93.2 mm |
2.42 61.5 mm |
1.50 38.1 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| HS16F16-F16 |
1-7/16-12 UN-2A |
1-7/16-12 UN-2A |
4.29 109.0 mm |
2.75 69.9 mm |
1.75 44.5 mm |
1.75 44.5 mm |
4,000 PSI 27.6 MPa |
| HS20F20-F20 |
1-11/16-12 UN-2A |
1-11/16-12 UN-2A |
4.58 116.3 mm |
2.81 71.4 mm |
2.25 57.2 mm |
2.00 50.8 mm |
4,000 PSI 27.6 MPa |
| HS24F24-F24 |
2-12 UN-2A |
2-12 UN-2A |
5.27 133.9 mm |
3.22 81.8 mm |
*2.75 69.9 mm |
*2.75 69.9 mm |
4,000 PSI 27.6 MPa |

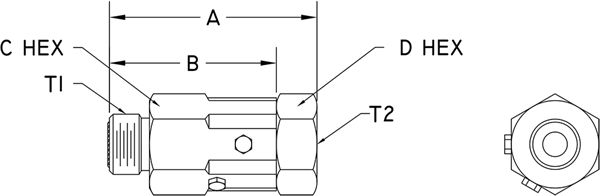

SWIVELS | HS-HEAVY DUTY INLINE | MALE O-RING FACE SEAL TO FEMALE JIC
MALE O-RING FACE SEAL TO FEMALE JIC
male-o-ring-face-seal-to-female-jic
| Part Number |
T1 |
T2 |
A |
B |
C Hex(* = Round) |
D Hex(* = Round) |
Max W.P. |
| HS6F6-JF6 |
11/16-16 UN-2A |
9/16-18 UNF-2B |
2.37 60.2 mm |
1.91 48.5 mm |
1.00 25.4 mm |
1.00 25.4 mm |
5,000 PSI 34.5 MPa |
| HS8F8-JF8 |
13/16-16 UN-2A |
3/4-16 UNF-2B |
2.72 69.1 mm |
2.10 53.3 mm |
1.25 31.8 mm |
1.25 31.8 mm |
5,000 PSI 34.5 MPa |
| HS8F10-JF10 |
1-14 UNS-2A |
7/8-14 UNF-2B |
2.96 75.2 mm |
2.21 56.1 mm |
1.25 31.8 mm |
1.25 31.8 mm |
5,000 PSI 34.5 MPa |
| HS12F12-JF12 |
1-3/16-12 UN-2A |
1-1/16-12 UN-2B |
3.09 78.5 mm |
2.42 61.5 mm |
1.50 38.1 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| HS16F16-JF16 |
1-7/16-12 UN-2A |
1-5/16-12 UN-2B |
3.57 90.7 mm |
2.75 69.9 mm |
1.75 44.5 mm |
1.75 44.5 mm |
4,000 PSI 27.6 MPa |
| HS20F20-JF20 |
1-11/16-12 UN-2A |
1-5/8-12 UN-2B |
3.73 94.7 mm |
2.81 71.4 mm |
2.25 57.2 mm |
2.00 50.8 mm |
4,000 PSI 27.6 MPa |
| HS24F24-JF24 |
2-12 UN-2A |
1-7/8-12 UN-2B |
4.22 107.2 mm |
3.22 81.8 mm |
*2.75 69.9 mm |
*2.75 69.9 mm |
4,000 PSI 27.6 MPa |
SWIVELS | HS-HEAVY DUTY INLINE | MALE O-RING FACE SEAL TO FEMALE O-RING FACE SEAL

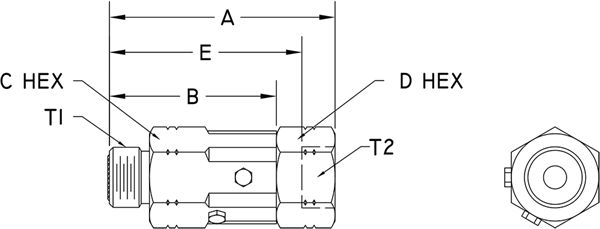

MALE O-RING FACE SEAL TO FEMALE O-RING FACE SEAL
male-o-ring-face-seal-to-female-o-ring-face-seal
| Part Number |
T1 |
T2 |
A |
B |
C Hex(* = Round) |
D Hex(* = Round) |
E |
Max W.P. |
| HS6F6-FF6 |
11/16-16 UN-2A |
11/16-16 UN-2B |
2.58 65.5 mm |
1.91 48.5 mm |
1.00 25.4 mm |
1.00 25.4 mm |
2.20 55.9 mm |
5,000 PSI 34.5 MPa |
| HS8F8-FF8 |
13/16-16 UN-2A |
13/16-16 UN-2B |
2.80 71.1 mm |
2.10 53.3 mm |
1.25 31.8 mm |
1.25 31.8 mm |
2.36 59.9 mm |
5,000 PSI 34.5 MPa |
| HS8F10-FF10 |
1-14 UNS-2A |
1-14 UNS-2B |
3.04 77.2 mm |
2.21 56.1 mm |
1.25 31.8 mm |
1.25 31.8 mm |
2.51 63.8 mm |
5,000 PSI 34.5 MPa |
| HS12F12-FF12 |
1-3/16-12 UN-2A |
1-3/16-12 UN-2B |
3.47 88.1 mm |
2.42 61.5 mm |
1.50 38.1 mm |
1.50 38.1 mm |
2.89 73.4 mm |
5,000 PSI 34.5 MPa |
| HS16F16-FF16 |
1-7/16-12 UN-2A |
1-7/16-12 UN-2B |
3.89 98.8 mm |
2.75 69.9 mm |
1.75 44.5 mm |
1.75 44.5 mm |
3.30 83.8 mm |
4,000 PSI 27.6 MPa |
| HS20F20-FF20 |
1-11/16-12 UN-2A |
1-11/16-12 UN-2B |
3.99 101.3 mm |
2.81 71.4 mm |
2.25 57.2 mm |
2.00 50.8 mm |
3.40 86.4 mm |
4,000 PSI 27.6 MPa |
| HS24F24-FF24 |
2-12 UN-2A |
2-12 UN-2B |
4.36 110.7 mm |
3.77 95.8 mm |
*2.75 69.9 mm |
*2.75 69.9 mm |
3.77 95.8 mm |
4,000 PSI 27.6 MPa |

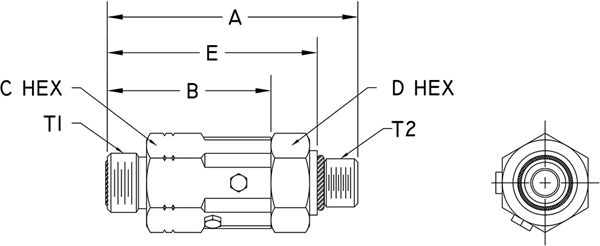

SWIVELS | HS-HEAVY DUTY INLINE | MALE O-RING FACE SEAL TO MALE SAE O-RING BOSS

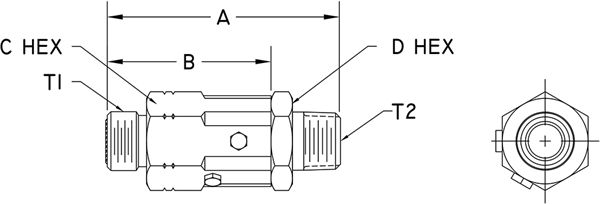

MALE O-RING FACE SEAL TO MALE SAE O-RING BOSS
male-o-ring-face-seal-to-male-sae-o-ring-boss
| Part Number |
T1 |
T2 |
A |
B |
C Hex(* = Round) |
D Hex(* = Round) |
E |
Max W.P. |
| HS6F6-O6 |
11/16-16 UN-2A |
9/16-18 UNF-2A |
2.92 74.2 mm |
1.91 48.5 mm |
1.00 25.4 mm |
1.00 25.4 mm |
2.45 62.2 mm |
5,000 PSI 34.5 MPa |
| HS8F8-O8 |
13/16-16 UN-2A |
3/4-16 UNF-2A |
3.28 83.3 mm |
2.10 53.3 mm |
1.25 31.8 mm |
1.25 31.8 mm |
2.73 69.3 mm |
5,000 PSI 34.5 MPa |
| HS8F10-O10 |
1-14 UNS-2A |
7/8-14 UNF-2A |
3.39 86.1 mm |
2.21 56.1 mm |
1.25 31.8 mm |
1.25 31.8 mm |
2.76 70.1 mm |
5,000 PSI 34.5 MPa |
| HS12F12-O12 |
1-3/16-12 UN-2A |
1-1/16-12 UN-2A |
3.84 97.5 mm |
2.42 61.5 mm |
1.50 38.1 mm |
1.50 38.1 mm |
3.11 79.0 mm |
5,000 PSI 34.5 MPa |
| HS16F16-O16 |
1-7/16-12 UN-2A |
1-5/16-12 UN-2A |
4.28 108.7 mm |
2.75 69.9 mm |
1.75 44.5 mm |
1.75 44.5 mm |
3.55 90.2 mm |
4,000 PSI 27.6 MPa |
| HS20F20-O20 |
1-11/16-12 UN-2A |
1-5/8-12 UN-2A |
4.53 115.1 mm |
2.81 71.4 mm |
2.25 57.2 mm |
2.00 50.8 mm |
3.80 96.5 mm |
4,000 PSI 27.6 MPa |
| HS24F24-O24 |
2-12 UN-2A |
1-7/8-12 UN-2A |
5.22 132.6 mm |
3.22 81.8 mm |
*2.75 69.9 mm |
*2.75 69.9 mm |
4.49 114.0 mm |
4,000 PSI 27.6 MPa |
SWIVELS | HS-HEAVY DUTY INLINE | MALE O-RING FACE SEAL TO MALE PIPE
MALE O-RING FACE SEAL TO MALE PIPE
male-o-ring-face-seal-to-male-pipe
| Part Number |
T1 |
T2 |
A |
B |
C Hex(* = Round) |
D Hex(* = Round) |
Max W.P. |
| HS6F6-P4 |
11/16-16 UN-2A |
1/4-18 NPTF |
2.72 69.1 mm |
1.91 48.5 mm |
1.00 25.4 mm |
1.00 25.4 mm |
5,000 PSI 34.5 MPa |
| HS6F6-P6 |
11/16-16 UN-2A |
3/8-18 NPTF |
2.72 69.1 mm |
1.91 48.5 mm |
1.00 25.4 mm |
1.00 25.4 mm |
5,000 PSI 34.5 MPa |
| HS8F8-P8 |
13/16-16 UN-2A |
1/2-14 NPTF |
3.16 80.3 mm |
2.10 53.3 mm |
1.25 31.8 mm |
1.25 31.8 mm |
5,000 PSI 34.5 MPa |
| HS8F10-P8 |
1-14 UNS-2A |
1/2-14 NPTF |
3.27 83.1 mm |
2.21 56.1 mm |
1.25 31.8 mm |
1.25 31.8 mm |
5,000 PSI 34.5 MPa |
| HS12F12-P12 |
1-3/16-12 UN-2A |
3/4-14 NPTF |
3.71 94.2 mm |
2.42 61.5 mm |
1.50 38.1 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| HS16F16-P16 |
1-7/16-12 UN-2A |
1-11 1/2 NPTF |
4.27 108.5 mm |
2.75 69.9 mm |
1.75 44.5 mm |
1.75 44.5 mm |
4,000 PSI 27.6 MPa |
| HS20F20-P20 |
1-11/16-12 UN-2A |
1 1/4-11 1/2 NPTF |
4.58 116.3 mm |
2.81 71.4 mm |
2.25 57.2 mm |
2.25 57.2 mm |
4,000 PSI 27.6 MPa |
| HS24F24-P24 |
2-12 UN-2A |
1 1/2-11 1/2 NPTF |
5.27 133.9 mm |
3.22 81.8 mm |
*2.75 69.9 mm |
*2.75 69.9 mm |
4,000 PSI 27.6 MPa |
SWIVELS | HS-HEAVY DUTY INLINE | MALE JIC TO MALE O-RING FACE SEAL
MALE JIC TO MALE O-RING FACE SEAL
male-jic-to-male-o-ring-face-seal
| Part Number |
T1 |
T2 |
A |
B |
C Hex(* = Round) |
D Hex(* = Round) |
Max W.P. |
| HS6J6-F6 |
9/16-18 UNF-2A |
11/16-16 UN-2A |
2.82 71.6 mm |
1.87 47.5 mm |
1.00 25.4 mm |
1.00 25.4 mm |
5,000 PSI 34.5 MPa |
| HS8J8-F8 |
3/4-16 UNF-2A |
13/16-16 UN-2A |
3.32 84.3 mm |
2.24 56.9 mm |
1.25 31.8 mm |
1.25 31.8 mm |
5,000 PSI 34.5 MPa |
| HS8J10-F10 |
7/8-14 UNF-2A |
1-14 UNS-2A |
3.52 89.4 mm |
2.34 59.4 mm |
1.25 31.8 mm |
1.25 31.8 mm |
5,000 PSI 34.5 MPa |
| HS12J12-F12 |
1-1/16-12 UN-2A |
1-3/16-12 UN-2A |
3.80 96.5 mm |
2.55 64.8 mm |
1.50 38.1 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| HS16J16-F16 |
1-5/16-12 UN-2A |
1-7/16-12 UN-2A |
4.19 106.4 mm |
2.65 67.3 mm |
1.75 44.5 mm |
1.75 44.5 mm |
4,000 PSI 27.6 MPa |
| HS20J20-F20 |
1-5/8-12 UN-2A |
1-11/16-12 UN-2A |
4.51 114.6 mm |
2.74 69.6 mm |
2.25 57.2 mm |
2.25 57.2 mm |
4,000 PSI 27.6 MPa |
| HS24J24-F24 |
1-7/8-12 UN-2A |
2-12 UN-2A |
5.17 131.3 mm |
3.12 79.2 mm |
*2.75 69.9 mm |
*2.75 69.9 mm |
4,000 PSI 27.6 MPa |

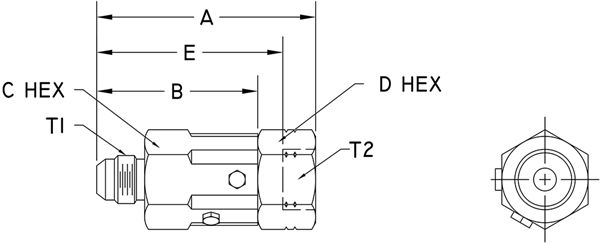

SWIVELS | HS-HEAVY DUTY INLINE | MALE JIC TO FEMALE O-RING FACE SEAL
MALE JIC TO FEMALE O-RING FACE SEAL
male-jic-to-female-o-ring-face-seal
| Part Number |
T1 |
T2 |
A |
B |
C Hex(* = Round) |
D Hex(* = Round) |
E |
Max W.P. |
| HS6J6-FF6 |
9/16-18 UNF-2A |
11/16-16 UN-2B |
2.54 64.5 mm |
1.87 47.5 mm |
1.00 25.4 mm |
1.00 25.4 mm |
2.16 54.9 mm |
5,000 PSI 34.5 MPa |
| HS8J8-FF8 |
3/4-16 UNF-2A |
13/16-16 UN-2B |
2.93 74.4 mm |
2.24 56.9 mm |
1.25 31.8 mm |
1.25 31.8 mm |
2.49 63.2 mm |
5,000 PSI 34.5 MPa |
| HS8J10-FF10 |
7/8-14 UNF-2A |
1-14 UNS-2B |
3.17 80.5 mm |
2.34 59.4 mm |
1.25 31.8 mm |
1.25 31.8 mm |
2.63 66.8 mm |
5,000 PSI 34.5 MPa |
| HS12J12-FF12 |
1-1/16-12 UN-2A |
1-3/16-12 UN-2B |
3.60 91.4 mm |
2.55 64.8 mm |
1.50 38.1 mm |
1.50 38.1 mm |
3.02 76.7 mm |
5,000 PSI 34.5 MPa |
| HS16J16-FF16 |
1-5/16-12 UN-2A |
1-7/16-12 UN-2B |
3.79 96.3 mm |
2.65 67.3 mm |
1.75 44.5 mm |
1.75 44.5 mm |
3.20 81.3 mm |
4,000 PSI 27.6 MPa |
| HS20J20-FF20 |
1-5/8-12 UN-2A |
1-11/16-12 UN-2B |
3.92 99.6 mm |
2.74 69.6 mm |
2.25 57.2 mm |
2.25 57.2 mm |
3.33 84.6 mm |
4,000 PSI 27.6 MPa |
| HS24J24-FF24 |
1-7/8-12 UN-2A |
2-12 UN-2B |
4.26 108.2 mm |
3.12 79.2 mm |
*2.75 69.9 mm |
*2.75 69.9 mm |
3.67 93.2 mm |
4,000 PSI 27.6 MPa |

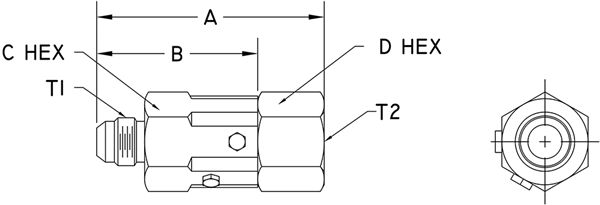

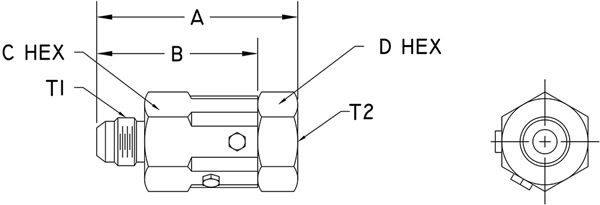

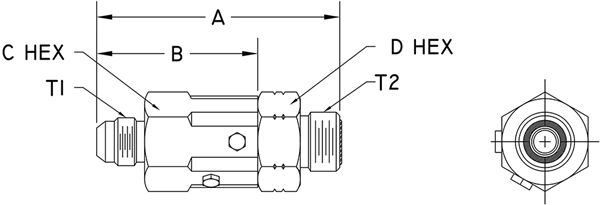

SWIVELS | HS-HEAVY DUTY INLINE | MALE JIC TO FEMALE JIC
MALE JIC TO FEMALE JIC
male-jic-to-female-jic
| Part Number |
T1 |
T2 |
A |
B |
C Hex(* = Round) |
D Hex(* = Round) |
Max W.P. |
| HS6J6-JF6 |
9/16-18 UNF-2A |
9/16-18 UNF-2B |
2.33 59.2 mm |
1.87 47.5 mm |
1.00 25.4 mm |
1.00 25.4 mm |
5,000 PSI 34.5 MPa |
| HS8J8-JF8 |
3/4-16 UNF-2A |
3/4-16 UNF-2B |
2.86 72.6 mm |
2.24 56.9 mm |
1.25 31.8 mm |
1.25 31.8 mm |
5,000 PSI 34.5 MPa |
| HS8J8-JF10 |
3/4-16 UNF-2A |
7/8-14 UNF-2B |
2.99 75.9 mm |
2.24 56.9 mm |
1.25 31.8 mm |
1.25 31.8 mm |
5,000 PSI 34.5 MPa |
| HS8J10-JF8 |
7/8-14 UNF-2A |
3/4-16 UNF-2B |
2.96 75.2 mm |
2.34 59.4 mm |
1.25 31.8 mm |
1.25 31.8 mm |
5,000 PSI 34.5 MPa |
| HS8J10-JF10 |
7/8-14 UNF-2A |
7/8-14 UNF-2B |
3.09 78.5 mm |
2.34 59.4 mm |
1.25 31.8 mm |
1.25 31.8 mm |
5,000 PSI 34.5 MPa |
| HS12J12-JF12 |
1-1/16-12 UN-2A |
1-1/16-12 UN-2B |
3.21 81.5 mm |
2.55 64.8 mm |
1.50 38.1 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| HS12J12-JF14 |
1-1/16-12 UN-2A |
1-3/16-12 UN-2B |
3.51 89.2 mm |
2.55 64.8 mm |
1.50 38.1 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| HS12J14-JF12 |
1-3/16-12 UN-2A |
1-1/16-12 UN-2B |
3.24 82.3 mm |
2.57 65.3 mm |
1.50 38.1 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| HS12J14-JF14 |
1-3/16-12 UN-2A |
1-3/16-12 UN-2B |
3.54 89.9 mm |
2.57 65.3 mm |
1.50 38.1 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| HS16J16-JF16 |
1-5/16-12 UN-2A |
1-5/16-12 UN-2B |
3.47 88.1 mm |
2.65 67.3 mm |
1.75 44.5 mm |
1.75 44.5 mm |
4,000 PSI 27.6 MPa |
| HS20J20-JF20 |
1-5/8-12 UN-2A |
1-5/8-12 UN-2B |
3.66 93.0 mm |
2.74 69.6 mm |
2.25 57.2 mm |
2.00 50.8 mm |
4,000 PSI 27.6 MPa |
| HS24J24-JF24 |
1-7/8-12 UN-2A |
1-7/8-12 UN-2B |
4.12 104.6 mm |
3.12 79.2 mm |
*2.75 69.9 mm |
*2.75 69.9 mm |
4,000 PSI 27.6 MPa |
| HS32J32-JF32 |
2-1/2-12 UN-2A |
2-1/2-12 UN-2B |
5.67 144.0 mm |
4.38 111.3 mm |
*3.50 88.9 mm |
*3.50 88.9 mm |
3,000 PSI 20.7 MPa |
SWIVELS | HS-HEAVY DUTY INLINE | MALE JIC TO MALE SAE O-RING BOSS
MALE JIC TO MALE SAE O-RING BOSS
male-jic-to-male-sae-o-ring-boss
| Part Number |
T1 |
T2 |
A |
B |
C Hex(* = Round) |
D Hex(* = Round) |
E |
Max W.P. |
| HS6J6-O6 |
9/16-18 UNF-2A |
9/16-18 UNF-2A |
2.88 73.2 mm |
1.87 47.5 mm |
1.00 25.4 mm |
1.00 25.4 mm |
2.41 61.2 mm |
5,000 PSI 34.5 MPa |
| HS8J8-O8 |
3/4-16 UNF-2A |
3/4-16 UNF-2A |
3.42 86.9 mm |
2.24 56.9 mm |
1.25 31.8 mm |
1.25 31.8 mm |
2.86 72.6 mm |
5,000 PSI 34.5 MPa |
| HS8J8-O10 |
3/4-16 UNF-2A |
7/8-14 UNF-2A |
3.42 86.9 mm |
2.24 56.9 mm |
1.25 31.8 mm |
1.25 31.8 mm |
2.79 70.9 mm |
5,000 PSI 34.5 MPa |
| HS8J10-O8 |
7/8-14 UNF-2A |
3/4-16 UNF-2A |
3.52 89.4 mm |
2.34 59.4 mm |
1.25 31.8 mm |
1.25 31.8 mm |
2.96 75.2 mm |
5,000 PSI 34.5 MPa |
| HS8J10-O10 |
7/8-14 UNF-2A |
7/8-14 UNF-2A |
3.52 89.4 mm |
2.34 59.4 mm |
1.25 31.8 mm |
1.25 31.8 mm |
2.89 73.4 mm |
5,000 PSI 34.5 MPa |
| HS12J12-O12 |
1-1/16-12 UN-2A |
1-1/16-12 UN-2A |
3.97 100.8 mm |
2.55 64.8 mm |
1.50 38.1 mm |
1.50 38.1 mm |
3.24 82.3 mm |
5,000 PSI 34.5 MPa |
| HS12J14-O12 |
1-3/16-12 UN-2A |
1-1/16-12 UN-2A |
3.99 101.3 mm |
2.57 65.3 mm |
1.50 38.1 mm |
1.50 38.1 mm |
3.27 83.1 mm |
5,000 PSI 34.5 MPa |
| HS16J16-O16 |
1-5/16-12 UN-2A |
1-5/16-12 UN-2A |
4.18 106.2 mm |
2.65 67.3 mm |
1.75 44.5 mm |
1.75 44.5 mm |
3.45 87.6 mm |
4,000 PSI 27.6 MPa |
| HS20J20-O20 |
1-5/8-12 UN-2A |
1-5/8-12 UN-2A |
4.46 113.3 mm |
2.74 69.6 mm |
2.25 57.2 mm |
2.00 50.8 mm |
3.73 94.7 mm |
4,000 PSI 27.6 MPa |
| HS24J24-O24 |
1-7/8-12 UN-2A |
1-7/8-12 UN-2A |
5.12 130.0 mm |
3.12 79.2 mm |
*2.75 69.9 mm |
*2.75 69.9 mm |
4.39 111.5 mm |
4,000 PSI 27.6 MPa |
| HS32J32-O32 |
2-1/2-12 UN-2A |
2-1/2-12 UN-2A |
6.95 176.5 mm |
4.38 111.3 mm |
*3.50 88.9 mm |
*3.50 88.9 mm |
6.23 158.2 mm |
3,000 PSI 20.7 MPa |

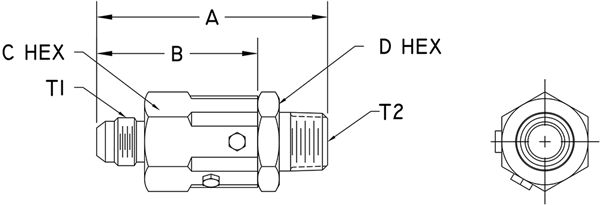

SWIVELS | HS-HEAVY DUTY INLINE | MALE JIC TO MALE PIPE
MALE JIC TO MALE PIPE
male-jic-to-male-pipe
| Part Number |
T1 |
T2 |
A |
B |
C Hex(* = Round) |
D Hex(* = Round) |
Max W.P. |
| HS6J6-P4 |
9/16-18 UNF-2A |
1/4-18 NPTF |
2.68 68.1 mm |
1.87 47.5 mm |
1.00 25.4 mm |
1.00 25.4 mm |
5,000 PSI 34.5 MPa |
| HS6J6-P6 |
9/16-18 UNF-2A |
3/8-18 NPTF |
2.68 68.1 mm |
1.87 47.5 mm |
1.00 25.4 mm |
1.00 25.4 mm |
5,000 PSI 34.5 MPa |
| HS8J8-P8 |
3/4-16 UNF-2A |
1/2-14 NPTF |
3.30 83.8 mm |
2.24 56.9 mm |
1.25 31.8 mm |
1.25 31.8 mm |
5,000 PSI 34.5 MPa |
| HS8J10-P8 |
7/8-14 UNF-2A |
1/2-14 NPTF |
3.40 86.4 mm |
2.34 59.4 mm |
1.25 31.8 mm |
1.25 31.8 mm |
5,000 PSI 34.5 MPa |
| HS12J12-P12 |
1-1/16-12 UN-2A |
3/4-14 NPTF |
3.84 97.5 mm |
2.55 64.8 mm |
1.50 38.1 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| HS12J14-P12 |
1-3/16-12 UN-2A |
3/4-14 NPTF |
3.87 98.3 mm |
2.57 65.3 mm |
1.50 38.1 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| HS16J16-P16 |
1-5/16-12 UN-2A |
1-11 1/2 NPTF |
4.17 105.9 mm |
2.65 67.3 mm |
1.75 44.5 mm |
1.75 44.5 mm |
4,000 PSI 27.6 MPa |
| HS20J20-P20 |
1-5/8-12 UN-2A |
1 1/4-11 1/2 NPTF |
4.51 114.6 mm |
2.74 69.6 mm |
2.25 57.2 mm |
2.00 50.8 mm |
4,000 PSI 27.6 MPa |
| HS24J24-P24 |
1-7/8-12 UN-2A |
1 1/2-11 1/2 NPTF |
5.17 131.3 mm |
3.12 79.2 mm |
*2.75 69.9 mm |
*2.75 69.9 mm |
4,000 PSI 27.6 MPa |
| HS32J32-P32 |
2-1/2-12 UN-2A |
2-11 1/2 NPTF |
6.95 176.5 mm |
4.38 111.3 mm |
*3.50 88.9 mm |
*3.50 88.9 mm |
3,000 PSI 20.7 MPa |

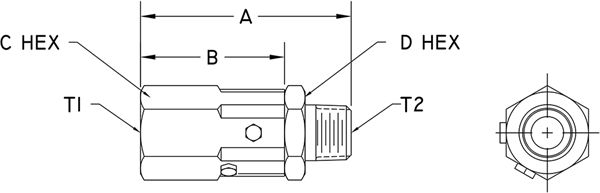

SWIVELS | HS-HEAVY DUTY INLINE | MALE JIC TO FEMALE PIPE
MALE JIC TO FEMALE PIPE
male-jic-to-female-pipe
| Part Number |
T1 |
T2 |
A |
B |
C Hex(* = Round) |
D Hex(* = Round) |
Max W.P. |
| HS6J6-PF4 |
9/16-18 UNF-2A |
1/4-18 NPTF |
2.64 67.1 mm |
1.87 47.5 mm |
1.00 25.4 mm |
1.00 25.4 mm |
5,000 PSI 34.5 MPa |
| HS6J6-PF6 |
9/16-18 UNF-2A |
3/8-18 NPTF |
2.64 67.1 mm |
1.87 47.5 mm |
1.00 25.4 mm |
1.00 25.4 mm |
5,000 PSI 34.5 MPa |
| HS8J8-PF8 |
3/4-16 UNF-2A |
1/2-14 NPTF |
3.42 86.9 mm |
2.24 56.9 mm |
1.25 31.8 mm |
1.25 31.8 mm |
5,000 PSI 34.5 MPa |
| HS8J10-PF8 |
7/8-14 UNF-2A |
1/2-14 NPTF |
3.52 89.4 mm |
2.34 59.4 mm |
1.25 31.8 mm |
1.25 31.8 mm |
5,000 PSI 34.5 MPa |
| HS12J12-PF12 |
1-1/16-12 UN-2A |
3/4-14 NPTF |
3.64 92.5 mm |
2.55 64.8 mm |
1.50 38.1 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| HS12J14-PF12 |
1-3/16-12 UN-2A |
3/4-14 NPTF |
3.67 93.2 mm |
2.57 65.3 mm |
1.50 38.1 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| HS16J16-PF16 |
1-5/16-12 UN-2A |
1-11 1/2 NPTF |
3.82 97.0 mm |
2.65 67.3 mm |
1.75 44.5 mm |
1.75 44.5 mm |
4,000 PSI 27.6 MPa |
| HS20J20-PF20 |
1-5/8-12 UN-2A |
1 1/4-11 1/2 NPTF |
4.10 104.1 mm |
2.74 69.6 mm |
2.25 57.2 mm |
2.00 50.8 mm |
4,000 PSI 27.6 MPa |
| HS24J24-PF24 |
1-7/8-12 UN-2A |
1 1/2-11 1/2 NPTF |
5.17 131.3 mm |
3.12 79.2 mm |
*2.75 69.9 mm |
*2.75 69.9 mm |
4,000 PSI 27.6 MPa |
| HS32J32-PF32 |
2-1/2-12 UN-2A |
2-11 1/2 NPTF |
6.15 156.2 mm |
4.38 111.3 mm |
*3.50 88.9 mm |
*3.50 88.9 mm |
3,000 PSI 20.7 MPa |

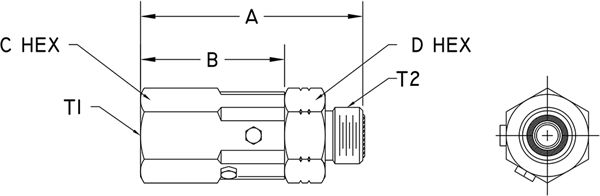

SWIVELS | HS-HEAVY DUTY INLINE | FEMALE PIPE TO MALE O-RING FACE SEAL
FEMALE PIPE TO MALE O-RING FACE SEAL
female-pipe-to-male-o-ring-face-seal
| Part Number |
T1 |
T2 |
A |
B |
C Hex(* = Round) |
D Hex(* = Round) |
Max W.P. |
| HS6PF4-F6 |
1/4-18 NPTF |
11/16-16 UN-2A |
2.70 68.6 mm |
1.75 44.5 mm |
1.00 25.4 mm |
1.00 25.4 mm |
5,000 PSI 34.5 MPa |
| HS6PF6-F6 |
3/8-18 NPTF |
11/16-16 UN-2A |
2.70 68.6 mm |
1.75 44.5 mm |
1.00 25.4 mm |
1.00 25.4 mm |
5,000 PSI 34.5 MPa |
| HS8PF8-F8 |
1/2-14 NPTF |
13/16-16 UN-2A |
3.25 82.6 mm |
2.17 55.1 mm |
1.25 31.8 mm |
1.25 31.8 mm |
5,000 PSI 34.5 MPa |
| HS8PF8-F10 |
1/2-14 NPTF |
1-14 UNS-2A |
3.36 85.3 mm |
2.17 55.1 mm |
1.25 31.8 mm |
1.25 31.8 mm |
5,000 PSI 34.5 MPa |
| HS12PF12-F12 |
3/4-14 NPTF |
1-3/16-12 UN-2A |
3.67 93.2 mm |
2.42 61.5 mm |
1.50 38.1 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| HS16PF16-F16 |
1-11 1/2 NPTF |
1-7/16-12 UN-2A |
3.98 101.1 mm |
2.44 62.0 mm |
1.75 44.5 mm |
1.75 44.5 mm |
4,000 PSI 27.6 MPa |
| HS20PF20-F20 |
1 1/4-11 1/2 NPTF |
1-11/16-12 UN-2A |
4.37 111.0 mm |
2.60 66.0 mm |
2.25 57.2 mm |
2.00 50.8 mm |
4,000 PSI 27.6 MPa |
| HS24PF24-F24 |
1 1/2-11 1/2 NPTF |
2-12 UN-2A |
5.27 133.9 mm |
3.22 81.8 mm |
*2.75 69.9 mm |
*2.75 69.9 mm |
4,000 PSI 27.6 MPa |

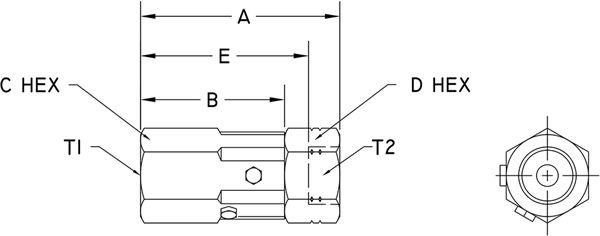

SWIVELS | HS-HEAVY DUTY INLINE | FEMALE PIPE TO FEMALE O-RING FACE SEAL
FEMALE PIPE TO FEMALE O-RING FACE SEAL
female-pipe-to-female-o-ring-face-seal
| Part Number |
T1 |
T2 |
A |
B |
C Hex(* = Round) |
D Hex(* = Round) |
E |
Max W.P. |
| HS6PF4-FF6 |
1/4-18 NPTF |
11/16-16 UN-2B |
2.42 61.5 mm |
1.75 44.5 mm |
1.00 25.4 mm |
1.00 25.4 mm |
2.04 51.8 mm |
5,000 PSI 34.5 MPa |
| HS6PF6-FF6 |
3/8-18 NPTF |
11/16-16 UN-2B |
2.42 61.5 mm |
1.75 44.5 mm |
1.00 25.4 mm |
1.00 25.4 mm |
2.04 51.8 mm |
5,000 PSI 34.5 MPa |
| HS8PF8-FF8 |
1/2-14 NPTF |
13/16-16 UN-2B |
2.86 72.6 mm |
2.17 55.1 mm |
1.25 31.8 mm |
1.25 31.8 mm |
2.43 61.7 mm |
5,000 PSI 34.5 MPa |
| HS8PF8-FF10 |
1/2-14 NPTF |
1-14 UNS-2B |
3.01 76.5 mm |
2.17 55.1 mm |
1.25 31.8 mm |
1.25 31.8 mm |
2.47 62.7 mm |
5,000 PSI 34.5 MPa |
| HS12PF12-FF12 |
3/4-14 NPTF |
1-3/16-12 UN-2B |
3.47 88.1 mm |
2.42 61.5 mm |
1.50 38.1 mm |
1.50 38.1 mm |
2.89 73.4 mm |
5,000 PSI 34.5 MPa |
| HS16PF16-FF16 |
1-11 1/2 NPTF |
1-7/16-12 UN-2B |
3.58 90.9 mm |
2.44 62.0 mm |
1.75 44.5 mm |
1.75 44.5 mm |
2.99 75.9 mm |
4,000 PSI 27.6 MPa |
| HS20PF20-FF20 |
1 1/4-11 1/2 NPTF |
1-11/16-12 UN-2B |
3.78 96.0 mm |
2.60 66.0 mm |
2.25 57.2 mm |
2.00 50.8 mm |
3.19 81.0 mm |
4,000 PSI 27.6 MPa |
| HS24PF24-FF24 |
1 1/2-11 1/2 NPTF |
2-12 UN-2B |
4.36 110.7 mm |
3.22 81.8 mm |
*2.75 69.9 mm |
*2.75 69.9 mm |
3.77 95.8 mm |
4,000 PSI 27.6 MPa |
SWIVELS | HS-HEAVY DUTY INLINE | FEMALE PIPE TO FEMALE JIC
FEMALE PIPE TO FEMALE JIC
female-pipe-to-female-jic
| Part Number |
T1 |
T2 |
A |
B |
C Hex(* = Round) |
D Hex(* = Round) |
Max W.P. |
| HS6PF4-JF6 |
1/4-18 NPTF |
9/16-18 UNF-2B |
2.21 56.1 mm |
1.75 44.5 mm |
1.00 25.4 mm |
1.00 25.4 mm |
5,000 PSI 34.5 MPa |
| HS6PF6-JF6 |
3/8-18 NPTF |
9/16-18 UNF-2B |
2.21 56.1 mm |
1.75 44.5 mm |
1.00 25.4 mm |
1.00 25.4 mm |
5,000 PSI 34.5 MPa |
| HS8PF8-JF8 |
1/2-14 NPTF |
3/4-16 UNF-2B |
2.79 70.9 mm |
2.17 55.1 mm |
1.25 31.8 mm |
1.25 31.8 mm |
5,000 PSI 34.5 MPa |
| HS8PF8-JF10 |
1/2-14 NPTF |
7/8-14 UNF-2B |
2.92 74.2 mm |
2.17 55.1 mm |
1.25 31.8 mm |
1.25 31.8 mm |
5,000 PSI 34.5 MPa |
| HS12PF12-JF12 |
3/4-14 NPTF |
1-1/16-12 UN-2B |
3.09 78.5 mm |
2.45 62.2 mm |
1.50 38.1 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| HS12PF12-JF14 |
3/4-14 NPTF |
1-3/16-12 UN-2B |
3.38 85.9 mm |
2.42 61.5 mm |
1.50 38.1 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| HS16PF16-JF16 |
1-11 1/2 NPTF |
1-5/16-12 UN-2B |
3.26 82.8 mm |
2.44 62.0 mm |
1.75 44.5 mm |
1.75 44.5 mm |
4,000 PSI 27.6 MPa |
| HS20PF20-JF20 |
1 1/4-11 1/2 NPTF |
1-5/8-12 UN-2B |
3.52 89.4 mm |
2.60 66.0 mm |
2.25 57.2 mm |
2.00 50.8 mm |
4,000 PSI 27.6 MPa |
| HS24PF24-JF24 |
1 1/2-11 1/2 NPTF |
1-7/8-12 UN-2B |
4.22 107.2 mm |
3.22 81.8 mm |
*2.75 69.9 mm |
*2.75 69.9 mm |
4,000 PSI 27.6 MPa |
| HS32PF32-JF32 |
2-11 1/2 NPTF |
2-1/2-12 UN-2B |
5.59 142.0 mm |
4.30 109.2 mm |
*3.50 88.9 mm |
*3.50 88.9 mm |
3,000 PSI 20.7 MPa |
SWIVELS | HS-HEAVY DUTY INLINE | FEMALE PIPE TO MALE SAE O-RING BOSS
FEMALE PIPE TO MALE SAE O-RING BOSS
female-pipe-to-male-sae-o-ring-boss
| Part Number |
T1 |
T2 |
A |
B |
C Hex(* = Round) |
D Hex(* = Round) |
E |
Max W.P. |
| HS6PF4-O6 |
1/4-18 NPTF |
9/16-18 UNF-2A |
2.76 70.1 mm |
1.75 44.5 mm |
1.00 25.4 mm |
1.00 25.4 mm |
2.29 58.2 mm |
5,000 PSI 34.5 MPa |
| HS6PF6-O6 |
3/8-18 NPTF |
9/16-18 UNF-2A |
2.76 70.1 mm |
1.75 44.5 mm |
1.00 25.4 mm |
1.00 25.4 mm |
2.29 58.2 mm |
5,000 PSI 34.5 MPa |
| HS8PF8-O8 |
1/2-14 NPTF |
3/4-16 UNF-2A |
3.35 85.1 mm |
2.17 55.1 mm |
1.25 31.8 mm |
1.25 31.8 mm |
2.80 71.1 mm |
5,000 PSI 34.5 MPa |
| HS8PF8-O10 |
1/2-14 NPTF |
7/8-14 UNF-2A |
3.35 85.1 mm |
2.17 55.1 mm |
1.25 31.8 mm |
1.25 31.8 mm |
2.72 69.1 mm |
5,000 PSI 34.5 MPa |
| HS12PF12-O12 |
3/4-14 NPTF |
1-1/16-12 UN-2A |
3.84 97.5 mm |
2.42 61.5 mm |
1.50 38.1 mm |
1.50 38.1 mm |
3.11 79.0 mm |
5,000 PSI 34.5 MPa |
| HS16PF16-O16 |
1-11 1/2 NPTF |
1-5/16-12 UN-2A |
3.97 100.8 mm |
2.44 62.0 mm |
1.75 44.5 mm |
1.75 44.5 mm |
3.24 82.3 mm |
4,000 PSI 27.6 MPa |
| HS20PF20-O20 |
1 1/4-11 1/2 NPTF |
1-5/8-12 UN-2A |
4.32 109.7 mm |
2.60 66.0 mm |
2.25 57.2 mm |
2.00 50.8 mm |
3.59 91.2 mm |
4,000 PSI 27.6 MPa |
| HS24PF24-O24 |
1 1/2-11 1/2 NPTF |
1-7/8-12 UN-2A |
5.22 132.6 mm |
3.22 81.8 mm |
*2.75 69.9 mm |
*2.75 69.9 mm |
4.49 114.0 mm |
4,000 PSI 27.6 MPa |
| HS32PF32-O32 |
2-11 1/2 NPTF |
2-1/2-12 UN-2A |
6.87 174.5 mm |
4.30 109.2 mm |
*3.50 88.9 mm |
*3.50 88.9 mm |
6.15 156.2 mm |
3,000 PSI 20.7 MPa |
SWIVELS | HS-HEAVY DUTY INLINE | FEMALE PIPE TO MALE PIPE
FEMALE PIPE TO MALE PIPE
female-pipe-to-male-pipe
| Part Number |
T1 |
T2 |
A |
B |
C Hex |
D Hex |
Max W.P. |
| HS6PF4-P4 |
1/4-18 NPTF |
1/4-18 NPTF |
2.56 65.0 mm |
1.75 44.5 mm |
1.00 25.4 mm |
1.00 25.4 mm |
5,000 PSI 34.5 MPa |
| HS6PF4-P6 |
1/4-18 NPTF |
3/8-18 NPTF |
2.56 65.0 mm |
1.75 44.5 mm |
1.00 25.4 mm |
1.00 25.4 mm |
5,000 PSI 34.5 MPa |
| HS6PF6-P4 |
3/8-18 NPTF |
1/4-18 NPTF |
2.56 65.0 mm |
1.75 44.5 mm |
1.00 25.4 mm |
1.00 25.4 mm |
5,000 PSI 34.5 MPa |
| HS6PF6-P6 |
3/8-18 NPTF |
3/8-18 NPTF |
2.56 65.0 mm |
1.75 44.5 mm |
1.00 25.4 mm |
1.00 25.4 mm |
5,000 PSI 34.5 MPa |
| HS8PF8-P8 |
1/2-14 NPTF |
1/2-14 NPTF |
3.23 82.0 mm |
2.17 55.1 mm |
1.25 31.8 mm |
1.25 31.8 mm |
5,000 PSI 34.5 MPa |
| HS12PF12-P12 |
3/4-14 NPTF |
3/4-14 NPTF |
3.71 94.2 mm |
2.42 61.5 mm |
1.50 38.1 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| HS16PF16-P16 |
1-11 1/2 NPTF |
1-11 1/2 NPTF |
3.96 100.6 mm |
2.44 62.0 mm |
1.75 44.5 mm |
1.75 44.5 mm |
4,000 PSI 27.6 MPa |
| HS20PF20-P20 |
1 1/4-11 1/2 NPTF |
1 1/4-11 1/2 NPTF |
4.37 111.0 mm |
2.60 66.0 mm |
2.25 57.2 mm |
2.00 50.8 mm |
4,000 PSI 27.6 MPa |
| HS24PF24-P24 |
1 1/2-11 1/2 NPTF |
1 1/2-11 1/2 NPTF |
5.27 133.9 mm |
3.22 81.8 mm |
*2.75 69.9 mm |
*2.75 69.9 mm |
4,000 PSI 27.6 MPa |
| HS32PF32-P32 |
2-11 1/2 NPTF |
2-11 1/2 NPTF |
6.87 174.5 mm |
4.30 109.2 mm |
*3.50 88.9 mm |
*3.50 88.9 mm |
3,000 PSI 20.7 MPa |

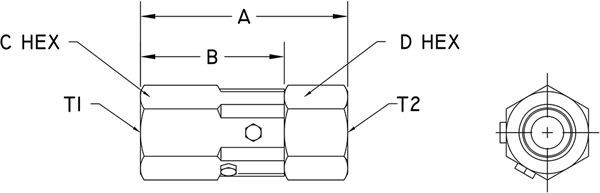

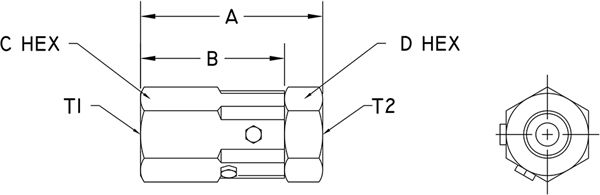

SWIVELS | HS-HEAVY DUTY INLINE | FEMALE PIPE TO FEMALE PIPE
FEMALE PIPE TO FEMALE PIPE
female-pipe-to-female-pipe
| Part Number |
T1 |
T2 |
A |
B |
C Hex(* = Round) |
D Hex(* = Round) |
Max W.P. |
| HS6PF4-PF4 |
1/4-18 NPTF |
1/4-18 NPTF |
2.52 64.0 mm |
1.75 44.5 mm |
1.00 25.4 mm |
1.00 25.4 mm |
5,000 PSI 34.5 MPa |
| HS6PF6-PF4 |
3/8-18 NPTF |
1/4-18 NPTF |
2.52 64.0 mm |
1.75 44.5 mm |
1.00 25.4 mm |
1.00 25.4 mm |
5,000 PSI 34.5 MPa |
| HS6PF6-PF6 |
3/8-18 NPTF |
3/8-18 NPTF |
2.52 64.0 mm |
1.75 44.5 mm |
1.00 25.4 mm |
1.00 25.4 mm |
5,000 PSI 34.5 MPa |
| HS8PF8-PF8 |
1/2-14 NPTF |
1/2-14 NPTF |
3.35 85.1 mm |
2.17 55.1 mm |
1.25 31.8 mm |
1.25 31.8 mm |
5,000 PSI 34.5 MPa |
| HS12PF12-PF12 |
3/4-14 NPTF |
3/4-14 NPTF |
3.51 89.2 mm |
2.42 61.5 mm |
1.50 38.1 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| HS16PF16-PF16 |
1-11 1/2 NPTF |
1-11 1/2 NPTF |
3.61 91.7 mm |
2.44 62.0 mm |
1.75 44.5 mm |
1.75 44.5 mm |
4,000 PSI 27.6 MPa |
| HS20PF20-PF20 |
1 1/4-11 1/2 NPTF |
1 1/4-11 1/2 NPTF |
3.96 100.6 mm |
2.60 66.0 mm |
2.25 57.2 mm |
2.00 50.8 mm |
4,000 PSI 27.6 MPa |
| HS24PF24-PF24 |
1 1/2-11 1/2 NPTF |
1 1/2-11 1/2 NPTF |
5.27 133.9 mm |
3.22 81.8 mm |
*2.75 69.9 mm |
*2.75 69.9 mm |
4,000 PSI 27.6 MPa |
| HS32PF32-PF32 |
2-11 1/2 NPTF |
2-11 1/2 NPTF |
6.07 154.2 mm |
4.30 109.2 mm |
*3.50 88.9 mm |
*3.50 88.9 mm |
3,000 PSI 20.7 MPa |
SWIVELS | HS-HEAVY DUTY INLINE | FEMALE BRITISH PIPE TO FEMALE BRITISH PIPE
FEMALE BRITISH PIPE TO FEMALE BRITISH PIPE
female-british-pipe-to-female-british-pipe
| Part Number |
T1 |
T2 |
A |
B |
C Hex(* = Round) |
D Hex(* = Round) |
Max W.P. |
| HS6BF4-BF4 |
G 1/4 BSPP |
G 1/4 BSPP |
2.52 64.0 mm |
1.75 44.5 mm |
1.00 25.4 mm |
1.00 25.4 mm |
5,000 PSI 34.5 MPa |
| HS6BF6-BF4 |
G 3/8 BSPP |
G 1/4 BSPP |
2.52 64.0 mm |
1.75 44.5 mm |
1.00 25.4 mm |
1.00 25.4 mm |
5,000 PSI 34.5 MPa |
| HS6BF6-BF6 |
G 3/8 BSPP |
G 3/8 BSPP |
2.52 64.0 mm |
1.75 44.5 mm |
1.00 25.4 mm |
1.00 25.4 mm |
5,000 PSI 34.5 MPa |
| HS8BF8-BF8 |
G 1/2 BSPP |
G 1/2 BSPP |
3.35 85.1 mm |
2.17 55.1 mm |
1.25 31.8 mm |
1.25 31.8 mm |
5,000 PSI 34.5 MPa |
| HS12BF12-BF12 |
G 3/4 BSPP |
G 3/4 BSPP |
3.51 89.2 mm |
2.42 61.5 mm |
1.50 38.1 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| HS16BF16-BF16 |
G 1 BSPP |
G 1 BSPP |
3.61 91.7 mm |
2.44 62.0 mm |
1.75 44.5 mm |
1.75 44.5 mm |
4,000 PSI 27.6 MPa |
| HS20BF20-BF20 |
G 1 1/4 BSPP |
G 1 1/4 BSPP |
3.96 100.6 mm |
2.60 66.0 mm |
2.25 57.2 mm |
2.00 50.8 mm |
4,000 PSI 27.6 MPa |
| HS24BF24-BF24 |
G 1 1/2 BSPP |
G 1 1/2 BSPP |
5.27 133.9 mm |
3.22 81.8 mm |
*2.75 69.9 mm |
*2.75 69.9 mm |
4,000 PSI 27.6 MPa |
| HS32BF32-BF32 |
G 2 BSPP |
G 2 BSPP |
6.07 154.2 mm |
4.30 109.2 mm |
*3.50 88.9 mm |
*3.50 88.9 mm |
3,000 PSI 20.7 MPa |
Male O-Ring Face Seal to Male O-Ring Face Seal
MALE O-RING FACE SEAL TO FEMALE JIC
Male O-Ring Face Seal to Female O-Ring Face Seal
Male O-Ring Face Seal to Male SAE O-Ring Boss
Male O-Ring Face Seal to Male Pipe
Male JIC to Male O-Ring Face Seal
Male JIC to Female O-Ring Face Seal
Male JIC to Female JIC
Male JIC to O-Male SAE O-Ring Boss
Male JIC to Male Pipe
Male JIC to Female Pipe
Female Pipe to Male O-Ring Face Seal
Female Pipe to Female O-Ring Face Seal
Female Pipe to Female JIC
Female Pipe to Male SAE O-Ring Boss
Female Pipe to Male Pipe
Female Pipe to Female Pipe
Female British Pipe to Female B
Part Number
HS6F6-F6
HS8F8-F8
HS8F10-F10
HS12F12-F12
HS16F16-F16
HS20F20-F20
HS24F24-F24
Part Number
HS6F6-JF6
HS8F8-JF8
HS8F10-JF10
HS12F12-JF12
HS16F16-JF16
HS20F20-JF20
HS24F24-JF24
Part Number
HS6F6-FF6
HS8F8-FF8
HS8F10-FF10
HS12F12-FF12
HS16F16-FF16
HS20F20-FF20
HS24F24-FF24
Part Number
HS6F6-O6
HS8F8-O8
HS8F10-O10
HS12F12-O12
HS16F16-O16
HS20F20-O20
HS24F24-O24
Part Number
HS6F6-P4
HS6F6-P6
HS8F8-P8
HS8F10-P8
HS12F12-P12
HS16F16-P16
HS20F20-P20
HS24F24-P24
Part Number
HS6J6-F6
HS8J8-F8
HS8J10-F10
HS12J12-F12
HS16J16-F16
HS20J20-F20
HS24J24-F24
Part Number
HS6J6-FF6
HS8J8-FF8
HS8J10-FF10
HS12J12-FF12
HS16J16-FF16
HS20J20-FF20
HS24J24-FF24
Part Number
HS6J6-JF6
HS8J8-JF8
HS8J8-JF10
HS8J10-JF8
HS8J10-JF10
HS12J12-JF12
HS12J12-JF14
HS12J14-JF12
HS12J14-JF14
HS16J16-JF16
HS20J20-JF20
HS24J24-JF24
HS32J32-JF32
Part Number
HS6J6-O6
HS8J8-O8
HS8J8-O10
HS8J10-O8
HS8J10-O10
HS12J12-O12
HS12J14-O12
HS16J16-O16
HS20J20-O20
HS24J24-O24
HS32J32-O32
Part Number
HS6J6-P4
HS6J6-P6
HS8J8-P8
HS8J10-P8
HS12J12-P12
HS12J14-P12
HS16J16-P16
HS20J20-P20
HS24J24-P24
HS32J32-P32
Part Number
HS6J6-PF4
HS6J6-PF6
HS8J8-PF8
HS8J10-PF8
HS12J12-PF12
HS12J14-PF12
HS16J16-PF16
HS20J20-PF20
HS24J24-PF24
HS32J32-PF32
Part Number
HS6PF4-F6
HS6PF6-F6
HS8PF8-F8
HS8PF8-F10
HS12PF12-F12
HS16PF16-F16
HS20PF20-F20
HS24PF24-F24
Part Number
HS6PF4-FF6
HS6PF6-FF6
HS8PF8-FF8
HS8PF8-FF10
HS12PF12-FF12
HS16PF16-FF16
HS20PF20-FF20
HS24PF24-FF24
Part Number
HS6PF4-JF6
HS6PF6-JF6
HS8PF8-JF8
HS8PF8-JF10
HS12PF12-JF12
HS12PF12-JF14
HS16PF16-JF16
HS20PF20-JF20
HS24PF24-JF24
HS32PF32-JF32
Part Number
HS6PF4-O6
HS6PF6-O6
HS8PF8-O8
HS8PF8-O10
HS12PF12-O12
HS16PF16-O16
HS20PF20-O20
HS24PF24-O24
HS32PF32-O32
Part Number
HS6PF4-P4
HS6PF4-P6
HS6PF6-P4
HS6PF6-P6
HS8PF8-P8
HS12PF12-P12
HS16PF16-P16
HS20PF20-P20
HS24PF24-P24
HS32PF32-P32
Part Number
HS6PF4-PF4
HS6PF6-PF4
HS6PF6-PF6
HS8PF8-PF8
HS12PF12-PF12
HS16PF16-PF16
HS20PF20-PF20
HS24PF24-PF24
HS32PF32-PF32
Part Number
HS6BF4-BF4
HS6BF6-BF4
HS6BF6-BF6
HS8BF8-BF8
HS12BF12-BF12
HS16BF16-BF16
HS20BF20-BF20
HS24BF24-BF24
HS32BF32-BF32
|
