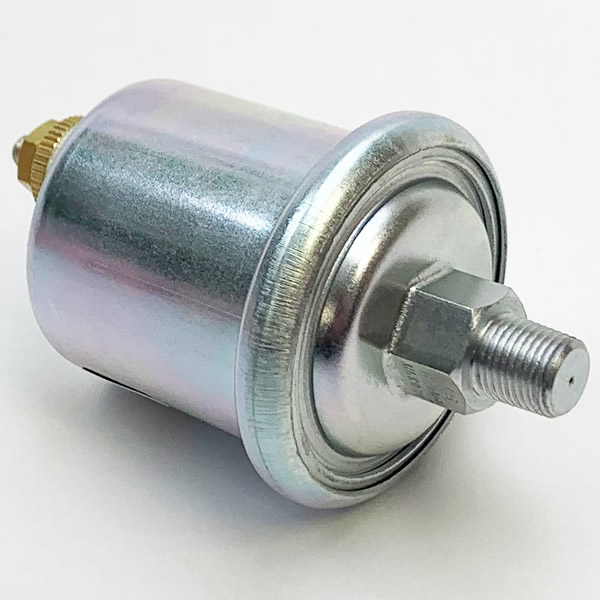

Murphy ESP-100 压力传感器 （05701857）
ESP-100 Pressure Sender (05701857)

ESP-100：1 线对地压力发送器，用于电压力表; 最大 100 Psi （05701857）
ESP-100 是一款 1 线对地压力发送器，用于电动压力计。该压力发送器的额定压力最大为 100 psi （689 kPa） [6.89 bar]。制造商建议在设备外安装。ESP-100 设计用于与我们的 EG 系列 Swichgage? 仪器以及 CAN I/O 模块配合使用。注意： 始终使用保险丝或断路器提供适当的电路保护。

Murphy ESP-100 压力传感器 （05701857）
ESP-100 Pressure Sender (05701857)

文献：

销售公告
电动量具系列手册
安装说明 （1999）
安装说明 （2008）
齿轮油压力发送器非设备安装套件 #30000213 的安装说明
用于电表压力发送器的电阻表

Murphy ESP-100 Pressure Sender (05701857)

ESP-100: 1-Wire-To-Ground Pressure Sender For Use With Electric Pressure Gages; 100 Psi Maximum (05701857)
The ESP-100 is a 1-wire-to-ground pressure sender for use with electric pressure gages. This pressure sender is rated at 100 psi (689 kPa) [6.89 bar] maximum. The manufacturer recommends mounting off-equipment. The ESP-100 is designed to be used in conjunction with our EG Series Swichgage? Instruments as well as CAN I/O modules. NOTE: Always provide proper circuit protection with fuses or circuit breakers.

Literature:

Sales Bulletin
Electric Gage Series Brochure
Installation Instructions (1999)
Installation Instructions (2008)
Installation Instructions for Off-Equipment Mounting Kit #30000213 of Gear Oil Pressure Sender
Resistive Table for Electric Gage Pressure Senders

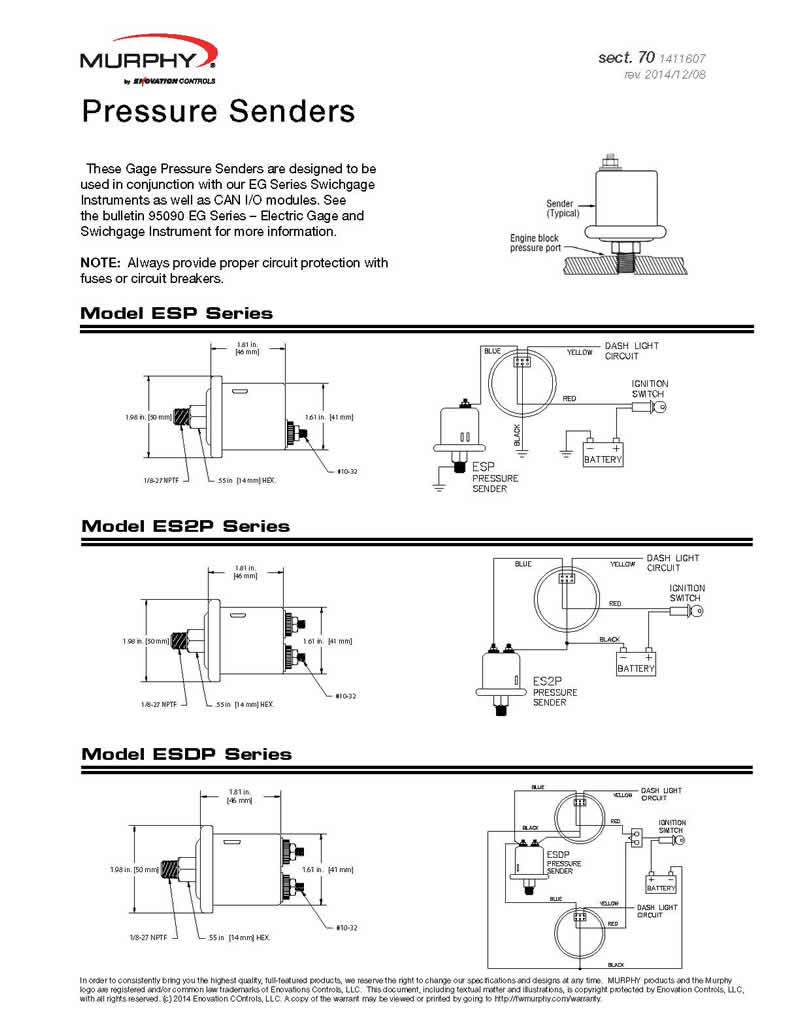

sect. 70 1411607 rev. 2014/12/08
Pressure Senders

These Gage Pressure Senders are designed to be used in conjunction with our EG Series Swichgage Instruments as well as CAN I/O modules. See the bulletin 95090 EG Series – Electric Gage and Swichgage Instrument for more information.
NOTE: Always provide proper circuit protection with fuses or circuit breakers.
Model ESP Series

Model ES2P Series

Model ESDP Series

#10-32

In order to consistently bring you the highest quality, full-featured products, we reserve the right to change our specifications and designs at any time. MURPHY products and the Murphy logo are registered and/or common law trademarks of Enovations Controls, LLC. This document, including textual matter and illustrations, is copyright protected by Enovation Controls, LLC, with all rights reserved. (c) 2014 Enovation COntrols, LLC. A copy of the warrant may be viewed or printed by going to http://fwmurphy.com/warranty.

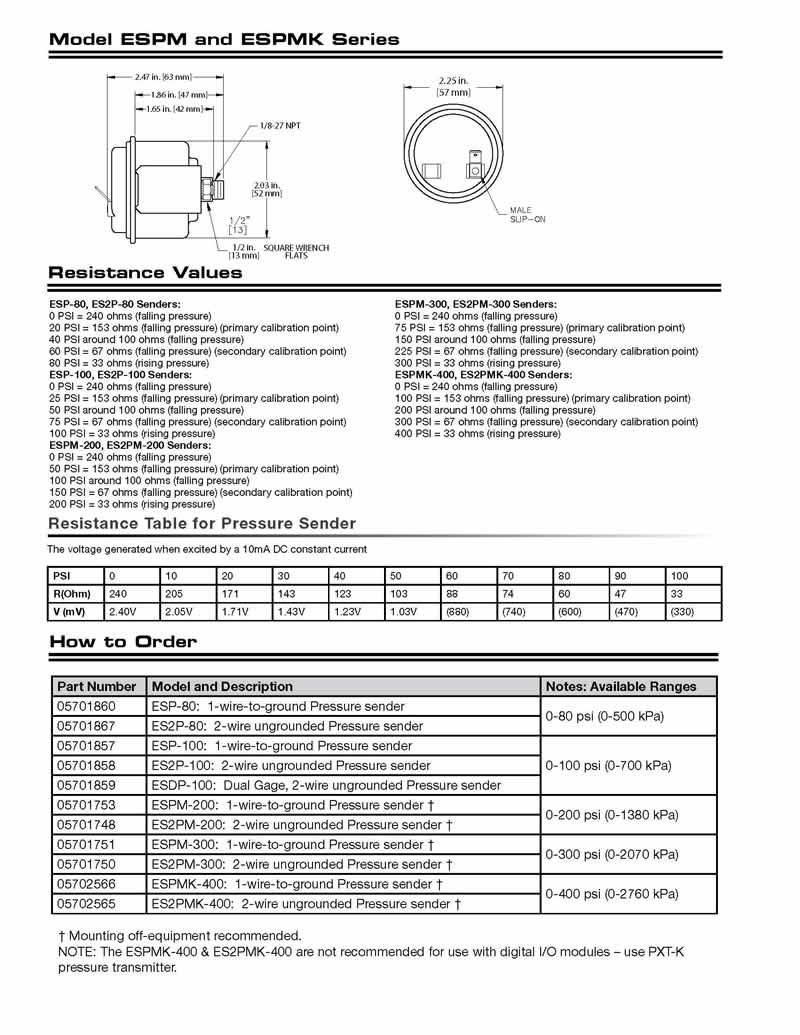

Model ESPM and ESPMK Series

2.25 in.
1/8-27 NPT

1/2 in.SQUARE WRENCH[13 mm] FLATS

Resistance Values
ESP-80, ES2P-80 Senders:
0 PSI = 240 ohms (falling pressure)
20 PSI = 153 ohms (falling pressure) (primary calibration point)
40 PSI around 100 ohms (falling pressure)
60 PSI = 67 ohms (falling pressure) (secondary calibration point)
80 PSI = 33 ohms (rising pressure)

ESP-100, ES2P-100 Senders:
0 PSI = 240 ohms (falling pressure)
25 PSI = 153 ohms (falling pressure) (primary calibration point)
50 PSI around 100 ohms (falling pressure)
75 PSI = 67 ohms (falling pressure) (secondary calibration point)
100 PSI = 33 ohms (rising pressure)

ESPM-200, ES2PM-200 Senders:
0 PSI = 240 ohms (falling pressure)
50 PSI = 153 ohms (falling pressure) (primary calibration point)
100 PSI around 100 ohms (falling pressure)
150 PSI = 67 ohms (falling pressure) (secondary calibration point)
200 PSI = 33 ohms (rising pressure)

Resistance Table for Pressure Sender
ESPM-300, ES2PM-300 Senders:
0 PSI = 240 ohms (falling pressure)
75 PSI = 153 ohms (falling pressure) (primary calibration point)
150 PSI around 100 ohms (falling pressure)
225 PSI = 67 ohms (falling pressure) (secondary calibration point)
300 PSI = 33 ohms (rising pressure)

ESPMK-400, ES2PMK-400 Senders:
0 PSI = 240 ohms (falling pressure)
100 PSI = 153 ohms (falling pressure) (primary calibration point)
200 PSI around 100 ohms (falling pressure)
300 PSI = 67 ohms (falling pressure) (secondary calibration point)
400 PSI = 33 ohms (rising pressure)

The voltage generated when excited by a 10mA DC constant current
PSI 0 10 20 30 40 50 60 70 80 90 100
R(Ohm) 240 205 171 143 123 103 88 74 60 47 33
V (mV) 2.40V 2.05V 1.71V 1.43V 1.23V 1.03V (880) (740) (600) (470) (330)

How to Order

05701860 05701867 05701857 05701858 05701859 05701753 05701748 05701751 05701750 05702566 05702565
ESP-80: 1-wire-to-ground Pressure sender
ES2P-80: 2-wire ungrounded Pressure sender
ESP-100: 1-wire-to-ground Pressure sender
ES2P-100: 2-wire ungrounded Pressure sender
ESDP-100: Dual Gage, 2-wire ungrounded Pressure sender
ESPM-200: 1-wire-to-ground Pressure sender .
ES2PM-200: 2-wire ungrounded Pressure sender .
ESPM-300: 1-wire-to-ground Pressure sender .
ES2PM-300: 2-wire ungrounded Pressure sender .
ESPMK-400: 1-wire-to-ground Pressure sender .
ES2PMK-400: 2-wire ungrounded Pressure sender .

0-80 psi (0-500 kPa) 0-100 psi (0-700 kPa) 0-200 psi (0-1380 kPa)
0-300 psi (0-2070 kPa) 0-400 psi (0-2760 kPa)

. Mounting off-equipment recommended.
NOTE: The ESPMK-400 & ES2PMK-400 are not recommended for use with digital I/O modules – use PXT-K pressure transmitter.
