Pressure & Vacuum 20DP, 25DP, A20DP, A25DP Differential Pressure Swichgage? for Filter Restriction
压差表

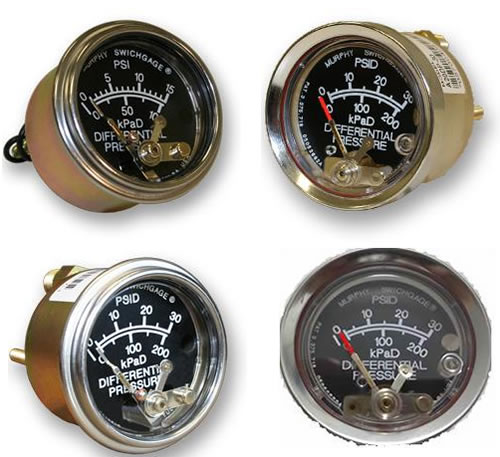

The 20DP and A20DP series (2 inch / 51 mm dial) and the 25DP and A25DP series (2? inch/64 mm dial) Swichgage? models are diaphragm-actuated, differential pressure indicating gauges with a built-in electrical switch. The Swichgage? indicates the pressure difference between 2 inlet ports, and provides a closing contact when the user-set limit is exceeded.

These gauges are intended to monitor for oil, fuel or water filter restriction: they can reduce the risk of dangerously high pressure which may rupture the filter, resulting in contaminants entering the system; they can also trigger automatic flushing (backwash) in irrigation systems.

规格参数特点:
Monitors oil, fuel and water filters
Combination indicating gauge and user-set limit switch
Actuates alarm, shutdown or backwash when filter becomes clogged
Signals coolant loss or aeration on engine water pump
Metal case, ground return (20DP/25DP) or polycarbonate case, insulated return (A20DP/A25DP)
Available in dual (PSID/kPa) or single (Bar) scales
经典的继电式仪表设计；
带报警点输出的压力指示；
带报警点可视并可从表面调节；报警点输出可用于触发报警及停机等功能；
产品技术指标超过通用的SAE标准。
