Ashcroft SB Subsea Pressure Gauge深海压力表
Ashcroft SB & SC 316不锈钢压力表专为海底环境应用设计,具有IP68防护等级和耐盐水腐蚀性能,深度可达2,500米(SC)和6,000米(SB),是安全压力测量的选择。
The Ashcroft SB subsea pressure gauge provides exceptional durability for undersea environments. The fully-welded measurement system and materials of construction assures reliability and corrosion resistance, while the various sizes and mounting serve many installation points to depths of 6,000 meters.

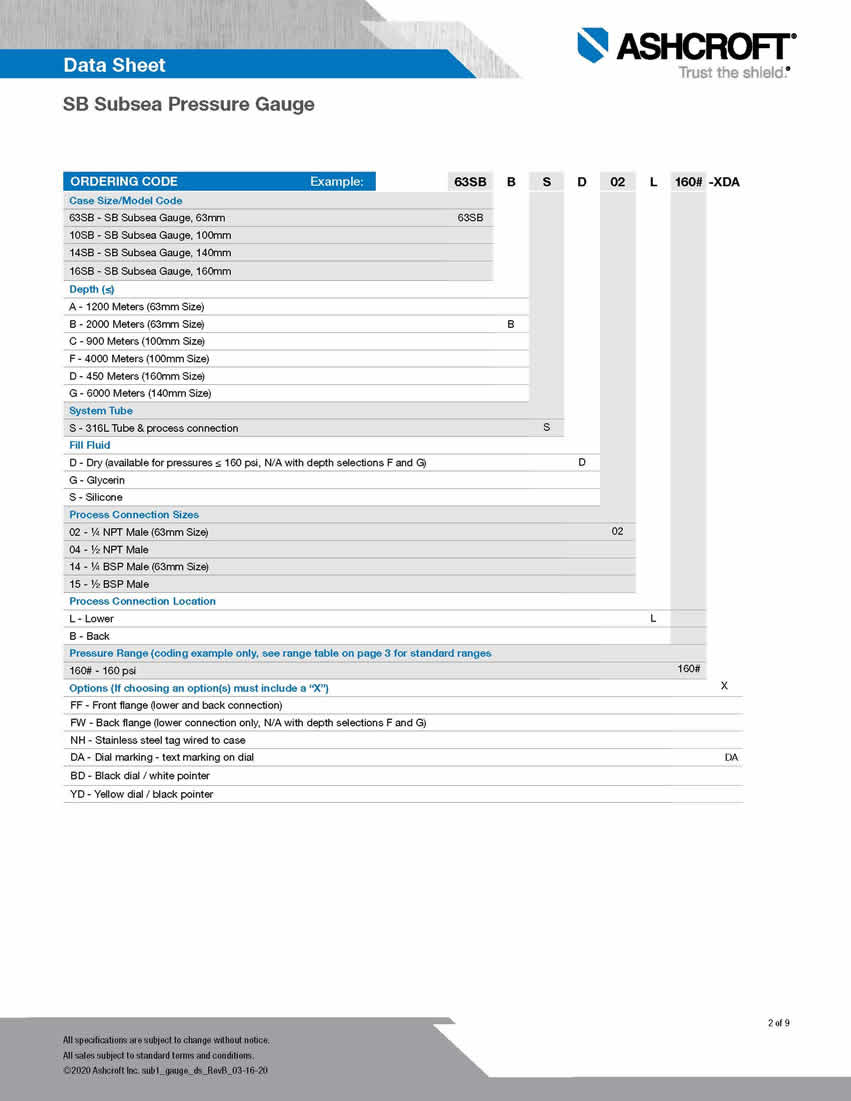

Datasheet SB Subsea Pressure Gauge - ashcroft
Key Features:
Depths to 6,000 meters
Rugged construction for extreme undersea environments
Solid drilled, bar stock cases
316L stainless steel wetted material and case
Corrosion resistant construction
Specifications:
Accuracy:
±1.0% of span - 100mm, 140mm and 160mm
±1.6% of span - 63mm
Pressure Ranges:
15 psi to 15,000 psi (63mm)
90 psi to 20,000 psi (100mm, 140mm and 160mm)
Case size: 63mm, 100mm, 140mm and 160mm
Process Connection: 1/4, 1/2 NPT or BSP
Mounting Options: stem, panel or wall
The SB subsea pressure gauge is ideal where safe and reliable pressure measurement is essential:
Process Markets:
Offshore
Specialized Deep Depth Equipment
Hyperbaric Conditions
CE
|
