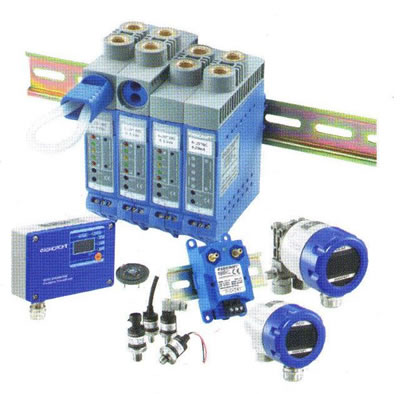

Ashcroft Transducers and Transmitters Industrial & Explosion Proof Transducers
Ashcroft压力传感器和压力变送器产品



Ashcroft压力传感器/变送器-Ashcroft压力传感器对于大多数一般通用行业和工业监测控制应用来说是理想的选择。我们的传感器技术,可从低压到高压范围内进行控制,从0.05''H2O至20000psi的范围精度可达到0.02%,0.25%,0.50%和1%。高性能压力传感器可用于暖空设备和系统监测控制设备,低压传感器使用Si-Glass技术,旨在延长传感器使用寿命。低压工作模式在静压状态或真空压力状态。


- 微差压变送器为高性能高灵敏度多晶硅可变电容原理
- 压力传感器具有多种输出以及接口配置,用于广泛工业场合
- 适用于气体和液体多种场合
* 液压专用压力传感器
* 过程控制压力传感器,具有多种输出以及接口配置,用于广泛工业场合
* 微差压变送器为高性能高灵敏度多晶硅可变电容原理



Ashcroft KM46 高压传感器轻巧紧凑,采用全钛合金接液材质。 它可以测量高达72,000 psi的压力,且在苛刻的应用中保持出色的耐用性。Ashcroft KM46高压传感器是高压测量的理想选择。典型应用:水射流、高压清洗、测试台和压力容器泄漏测试。



Ashcroft压力传感器/变送器
产品分类

This heavy industrial and hazardous location transducer is perfecdt for compressor controal, hydraulic systems, oil field equipment, etc. It is explosion proof and intrinsically safe. It is available from 5 psi to 10,000 psi in accuracies +0.25%, +0.5%, and +1.0%.

Ashcroft KM46 pressure transducer
KM46高压传感器


Ashcroft KM46高压传感器是高压测量的理想选择。

精度: -4至185°F(-20至85°C)±2.00% 满量程
输出: 4-20mA, 1-5Vdc, 0-10Vdc
量程: 30,000 - 72,000 psi, 2500 - 5000 bar

Ashcroft KM46高压传感器是高压测量的理想选择。
典型应用
水射流
高压清洗
测试台
压力容器泄漏测试

Ashcroft T2 High Performance Pressure Transducer

This transducer is perfect for general industrial applications can comes in +0.25% accuracy. It is available in ranges from 30 psi all the way to 20,000 psi. It is highly configurable and has multiple outputs available.

Ashcroft K1 Series Thin Film Pressure Transducer


The K1 series from Ashcroft is perfect for hydraulic, refrigeration, machine tool, test/measurement, and other applications. The metal diaphragm and polysilicon bridge are virtually unaffected by shock, vibration or mounting. This transducer can come in 0.5% and 1.0% accuracies, and is available in compound ranges all the way to 20,000 psi.


Ashcroft K2 Series Thin Film Pressure Transducer


The K2 is similar to the K1 series except for offering mV/V output options. The K2 series from Ashcroft is perfect for hydraulic, refrigeration, machine tool, test/measurement, and other applications. The metal diaphragm and polysilicon bridge are virtually unaffected by shock, vibration or mounting. This transducer can come in 0.5% and 1.0% accuracies, and is available in compound ranges all the way to 20,000 psi.

Ashcroft K8 Thin Film Pressure Transducer

This transducer is a miniature version of the K1 and K2 models. It has a millivolt output and can have ranges from 45 to 20,000 psi. A wide range of electrical connections are available and it can come in 0.5% or 1.0% accuracies.

Ashcroft KS Sanitary Transducer


This transducer is perfect for dairy, food, pharmaceutical, and any other 3A sanitary application. The KS is 316SS and comes with a 1 1/2" or 2" tri-clamp connection. It has multiple output options as well as electrial connections.

Ashcroft KX Flush Mount Transducer


The KX is not a 3A approved transducer, and is used more in wast water, pulp/paper, and all heavy medium pumping process. It is made of 316SS and has a NEMA 4X enclosure. It comes with a current/voltage output and is offered in sttndard pressure ranges.

Ashcroft GC51 Rangeable Transmitter
量程可调数显式压力变送器


This transmitter is up to 8 times smaller than conventional, more common transmitters. Its smaller size is great where limited space is available and its ideal for monitoring pressures in hydraulic, waster water, pumping, etc. It has a NEMA 4X enclosure and backlit LED display. Has ranges available from 50 psi to 7,500 psi and has a 2 wire 4/20mA output
Ashcroft GC55 Wet Wet Differential Transmitter
Ashcroft GC55 湿/湿数显式差压传感器,带开关量输出



This two sensor transmitter design is great for high differential pressure ranges. It has a bright LED display and switch status to go along with its aluminum cast casing. Ranges are available from 75 to 300 psi and 3 wire 4/20mA or voltage outputs. Internal push button feature allows quick user pressure range changes or trip point settings for on-board switch contacts.
Ashcroft X1009 Xmitr Stainless Steel Transmitter Gauge

The X1009 is perfect for applications where an analog reading as well as an electronic output is desired. The wetted materials are Stainless Steel which makes it compatible for corrosive material. Its ranges consist of compound up to 15,000 psi.
Ashcroft X1032 Xmitr Sanitary Transmitter Gauge

The X1032 Xmitr is a unique gauge to Ashcroft. This sanitary gauge gives an analog reading as well as a 4/20ma output. The dial size is 2 1/2" dial and can come in 1 1/2" or 2" tri-clamp connections. This instrument meets 3A sanitary standards and ranges compound to 1,000 psi.
Ashcroft X1005 Xmitr Transmitter Gauge

This 2 in 1 analog gauge and transducer is perfect for OEM applications where an analog readout and an electronic output is needed. This transmitter has brass internals and a 1% accuracy. Ranges are available from vacuum to 5,000 psi.
Ashcroft DXD 系列数字压力传感器
Ashcroft Model DXD Series Digital Pressure Transducer



Ashcroft DXD 系列数字压力传感器具有领先的性价比。提供数字信号输出,简明的界面以及支持软件。

精度: 0,02 % TEB

量程: 公制单位量程Min: 0 ... 0,4 bar, 公制单位量程Max: 0 ... 517 bar, 英制单位量程: Min: 0 ... 5 psi, 英制单位量程Max: 0 ... 7500 psi

更新速度: 15mS

Ashcroft Model DM61 Digital Panel Meter
Ashcroft DM61 数字面板指示器是多功能可编程的指示器

适用于控制/监测水位,流量或压力应用。
主要特点:
自定义编程按钮
超大LED显示
现场可选输出:电流/电压
可选通讯接口,继电器和扩展模块
规格详述: 精度: ±0.10%
满量程显示: LED (两排 - 6 digit)
电源: 12 或 24 Vdc

Ashcroft GC35 是一种紧凑型数字显示压力传感器
Ashcroft Model GC35 Digital Pressure Sensor



Ashcroft GC35 是一种紧凑型数字显示压力传感器,带模拟量及开关量输出。结合了可靠的Thin Film传感元件技术,这款产品可以广泛用于压力监控和测量,具有很高的性价比。

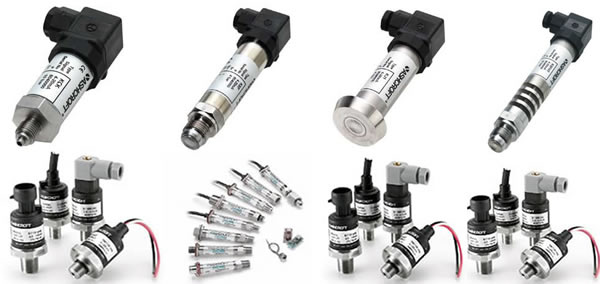

Ashcroft Pressure transmitters & transducers


High Pressure: General Ashcroft designation for pressure transducers / transmitters designed for pressure ranges 0-5 psi through 0-20,000 psi to include vacuum / compound ranges and differential pressure ranges from 0-100 to 0-300 psid.

Includes Models A2, A2X, A4, G2, GC31, GC35, GC51, GC55, K1, K2, K8, KM10, KM15, KS, KX, T2.

A2 Pressure Transmitter is a heavy industrial pressure transmitter used on test stands, compressor control, hydraulic systems, process automation, pump and pneumatic systems control.

A2X Pressure Transmitter is cUL and ATEX listed explosion proof/flame proof pressure transmitter used with oil field equipment, upstream oil and gas production, natural gas compression and transfer control as well as alternative energy projects.

A4 Pressure Transmitter is CSA and FM listed; these are Intrinsically Safe and Non-Incendive pressure transmitters used in oil field equipment, upstream oil and gas production, natural gas compression and transfer control as well as alternative energy projects.

G2 Pressure Transducer is a high performance pressure transducer for tough OEM applications. Used on off-road equipment, construction machinery, compressor control, HVAC and refrigeration, agricultural implements, process automation and control, hydraulic and pneumatic sensing and pressure monitoring.

GC31 3-in-1 Pressure Transducer is an ultra-compact pressure sensor with 3-in-1 digital pressure gauge, transducer and switch capabilities. Hydraulic presses, stamping equipment, lifts, tire press vulcanization, pressure monitoring, water/refrigerant/ammonia based cooling systems, pressure monitoring on lubrication systems, and alarm & control are some of the applications.

GC35 3-in-1 Pressure Transducer is a heavy duty pressure sensor with 3-in-1 digital pressure gauge, transducer and switch capabilities. Typical applications include hydraulic presses/stamping equipment/lifts, water/wastewater pressure control, pressure monitoring, water/refrigerant or ammonia based cooling systems, and pressure monitoring on lubrication systems.


GC51 Pressure Transmitter is an industrial rangeable pressure transmitter with integral digital display. It is used for general industrial use for pump control, hydraulic systems, compressor control, process automation and municipal water tank level.

GC55 Differential Pressure Transducer is a wet/wet differential pressure transducer with integral digital display, user rangeable with (2) adjustable switch points. Applications include pump monitoring of building hydronic heating and cooling systems, filter monitoring in water purification and hydraulic systems, and level measurement for large and/or pressurized tanks.

K1 Pressure Transducer is an industrial pressure transducer with optional intrinsically safe/non-incendive approvals. They are used on hydraulic system monitoring and control, HVAC/refrigeration, machine tool, pump control and general purpose.

K2 Pressure Transducer is an industrial pressure transducer with conditioned millivolt output that is used for hydraulic system monitoring and control, test and measurement and general purpose industrial process applications.

K8 Pressure Sensor/Transducer is a pressure sensor/transducer with unconditioned output; it is used for OEM hydraulic systems and control valves as well as pump control and medical.

KM10/KM15 Pressure Transducers is a rugged, compact pressure transducer for the high volume OEM; it is also RoHS Compliant. It is used for off-road equipment, mobile hydraulic systems, construction machinery, HVAC/R, compressors and pump control.

KS Sanitary Pressure Transmitter is a sanitary pressure transmitter that is used for dairy, food, pharmaceutical and 3A sanitary applications.

KX Pressure Transmitter is a flush mount pressure transmitter used in the pulp and paper, paint booths, food processing, printing presses and agricultural spraying applications.

T2 Pressure Transmitter is a high performance pressure transmitter for general industrial applications such as process automation, compressor control, hydraulic system monitoring and control, pump control, pneumatics, presses and general industrial applications.

Low Differential Pressure: General Ashcroft designation for pressure transducers / transmitters designed for pressure ranges 0-0.1 through 0-400 IWC (inches of water column) uni-directional or bi-directional differential or gauge pressure.

Includes Models CXLdp, DXLdp, GC30, GC52, IXLdp, RXLdp, XLdp.

CXLdp Pressure Transmitter is a HVAC, comfort control, differential pressure transmitter for static or velocity pressure measurement for ducts, building pressure, filter efficiency, VAV boxes and room pressurization.

DXLdp Pressure Transmitter is used for pharmaceutical, critical room control, differential pressure transmitter which features SpoolCal?. Applications include bio-pharm, bio-tech, room pressurization and control, velocity pressures and applications requiring high stability measurements.

GC30 3-in-1 Pressure Transducer is an ultra-compact differential pressure sensor with 3-in-1 digital pressure gauge, transducer and switch capabilities. Applications include filter monitoring, clean room pressure differential, combustion intake flow, fan speed control airflow, alarm & control and digital gauge.

GC52 Pressure Transmitter is a rangeable wet/wet differential pressure transmitter with integral digital display. They are used for pressurized and non-pressurized tank levels, flow measurement (liquid or gas) and fume hoods.

IXLdp Pressure Transmitter is an industrial rugged type low differential pressure transmitter, NEMA 4X housing and an optional intrinsically safe approval. Applications include HVAC – critical environment control, fume hood control, lab/clean room pressurization, laminar flow, furnace/stack draft, leak detection, pollution monitoring, fan tracking, filter monitoring and velocity measurements.

RXLdp Pressure Transmitter is a low differential pressure transmitter with user and OEM packaging options. Applications include HVAC, medical – lung function/breathing equipment, fume hood control, lab/clean room pressurization, laminar flow, leak detection, fan tracking, as well as glovebox and velocity measurements.

XLdp Pressure Transmitter is a low differential pressure transmitter for critical environments. HVAC, fume hood control, lab/clean/hospital room pressurization, medical-lung function/breathing equipment, fan tracking, filter monitoring and low velocity measurements are among its applications.





Ashcroft雅斯科传感器与变送器

Ashcroft A2系列重工业和防爆变送器 防爆型压力传感器
Ashcroft G2高性能压力传感器
Ashcroft GC51型量程可调压力变送器
Ashcroft GC52型差压变送器
Ashcroft GC55型湿/湿差压变送器
ASHCROFT k1/k2系列工业用压力传感器
ASHCROFT KX/KS系列卫生型压力传感器
Ashcroft K8系列带有mV信号传感器
Ashcroft KM10 OEM传感器
Ashcroft雅斯科KM11高性能压力传感器
ASHCROFT 2279 DURATRAN压力变送器
Ashcroft轨道安装/盘式安装/墙面CXLdp微差压变送器
Ashcroft雅斯科DXLdp 微差压传感器/变送器
ASHCROFT RXLDP微差压传感器/变送器
Ashcroft T2高性能压力传感器
Ashcroft XLdp微差压传感器/变送器
Ashcroft SL17 submersible transmitter
Ashcroft T2 pressure transducer
Ashcroft G2 Pressure Transducer
Ashcroft G3 pressure transducer
Ashcroft A2 industrial pressure transmitter
Ashcroft A4 pressure transmitter
Ashcroft A2X Explosion/Flame Proof Pressure Transmitter
Ashcroft K1 Pressure Transducer/Transmitter
Ashcroft K2 Pressure Transducer with Millivolt Output
Ashcroft KS sanitary pressure transducer/transmitter
Ashcroft K8 Pressure Sensor
Ashcroft KM15 OEM Pressure Transducer
Ashcroft GC31 Indicating Pressure Transducer with Switch Outputs
Ashcroft GC35 Indicating Pressure Transducer with Switch Outputs
Ashcroft GC51 Rangeable Indicating Pressure Transmitter
Ashcroft GC55 Wet/Wet Indicating Differential Pressure Transducer with Switch Outputs
Ashcroft GC30 Indicating Differential Pressure Transducer with Switch Outputs
Ashcroft GC52 Rangeable Wet/Wet Differential Pressure Transmitter
Ashcroft CXLdp Differential Pressure Transmitter
Ashcroft GL42 Indicating Differential Pressure Transmitter
Ashcroft DXLdp Differential Pressure Transmitter
Ashcroft RXLdp Differential Pressure Transmitter
Ashcroft XLdp Differential Pressure Transmitter
Ashcroft IXLdp Differential Pressure Transmitter
Ashcroft AXLdp Low Differential Pressure Transducer
Ashcroft Transducers and Transmitters



Ashcroft压力传感器及变送器系列:

Ashcroft Datasheet A2 Transducer
Ashcroft Datasheet A2X Transducer
Ashcroft Datasheet A4 Transducer
Ashcroft Datasheet Axldp Transducer
Ashcroft Datasheet CXLDP High Accuracy Differential Transducer
Ashcroft Datasheet CXLDP Transducer
Ashcroft Datasheet DM61 Transmitter
Ashcroft Datasheet DXLDP Transducer
Ashcroft Datasheet G2 Pressure Transducer
Ashcroft Datasheet G3 Pressure Transducer
Ashcroft Datasheet GC30 Transducer
Ashcroft Datasheet GC31 Transducer
Ashcroft Datasheet GC35 Transducer
Ashcroft Datasheet GC51 Transducer
Ashcroft Datasheet GC52 Transducer
Ashcroft Datasheet GC55 Transducer
Ashcroft Datasheet GL42 Transducer
Ashcroft Datasheet IXLDP Tranducer
Ashcroft Datasheet k1 Transducer
Ashcroft Datasheet k2 Transducer
Ashcroft Datasheet k8 Transducer
Ashcroft Datasheet KM15 Transducer
Ashcroft Datasheet KS Sanitary Transducer
Ashcroft Datasheet KX Transducer
Ashcroft Datasheet RXLDP Tranducer
Ashcroft Datasheet SL17 Submersible Transmitter
Ashcroft Datasheet SL17-TTS Accessories
Ashcroft Datasheet T2 Transducer
Ashcroft Datasheet XLDP Tranducer
Ashcroft Datasheet 4080-4480 Pneumatic Transmitter
