Ashcroft Test Instruments
精密压力测试测量设备用于工业现场和实验室

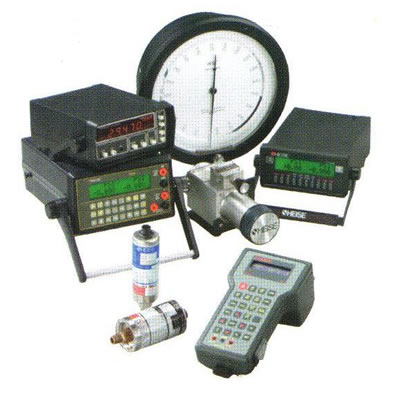

Ashcroft高精度压力校验设备包括：数显式压力校验仪、精密测试压力表、容积式压力调节器和液压校验仪。

● 压力校验仪
● 压力传感器
● 压力指示仪
● 压力表

Digital Pressure Indicators - The Ashcroft ATE-100 digital pressure indicator is a calibration system with a vast array of capabilities. The base unit contains a wide variety of application-specific firmware as well as the ability to measure both current and voltage inputs. The ST-2A is the perfect bench companion product to the Ashcroft? ATE-100 field handheld calibrator. This bench top (or panel mounting) package shares the same pressure and temperature modules and interfaces with the same software package as the Ashcroft? ATE-100. The Ashcroft? PT is a digital pressure indicator is an extremely versatile pressure measurement and test instrument. It can simultaneously display the output of two pressure sensors, two RTD's or one of each. It offers 12 standard user selectable engineering units and one custom value.

Hand Operated Vacuum/Pressure Pumps & Controllers - Ashcroft offers three types of pressure pumps: low, medium and high. Ashcroft's low and medium pressure pump have a pneumatic pressure medium and the high pressure pump has a hydraulic pressure medium. The available range for the pressure pumps is from 60 psi to 10,000 psi and all carry vernier control for fine adjustment. The Ashcroft volume controllers have a piston/cylinder device that provides fine adjustment in closed pneumatic systems. The range of these volume controllers are from vacuum to 3,000 psi. Ashcroft's precision-pressure volume controllers provide a quick-and-easy method for precisely setting a pressure in a closed pneumatic system. They are ideal for use with Ashcroft's Test Gauges for the calibration of other pressure-measurement and control devices.

Mechanical Test Gauges - The analog test gauge offered by Ashcroft comes in available ranges from vacuum to 10,000 psi. The test gauge Type 1082 has a mirror band dial with dial sizes of 4.5”, 6” and 8.5”. The Type 1084 Pocket Test Gauge has a 3” dial size and carries ±0.5% of accuracy span. The pocket test gauge is made of 316 stainless steel and has a range of vacuum to 1,000 psi. The A4A Precision Dial Pressure Gauge yields consistent, reliable accuracy through the use of state-of-the-art precision machining and the world's most refined Bourdon tube technology. It has ±0.1% of accuracy span and ranges from 15 to 100,000 psi.

Digital Test Gauges - Ashcroft offers the Type 2084, 2086 and 2089 digital test gauges with a range from ±0.05 to ±0.25 of span accuracy. The precision test gauges have a menu driven display that allows configuration of update rate, language, dampening, backlight auto off and unit auto off. These reliable digital test gauges come in 12 selectable engineering units.

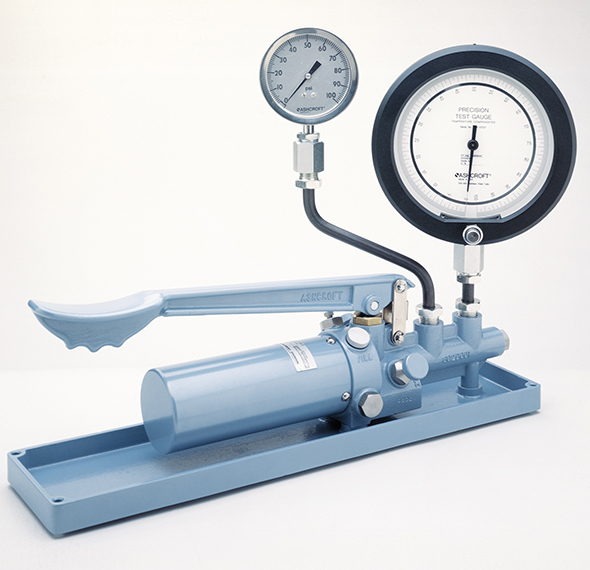

Hydraulic Testers & Comparators - Ashcroft Type 1305D deadweight testers provide an easy means of precisely generating pressure to an accuracy of 0.1% of reading. Ashcroft? 1305D units are available for operating ranges up to 10,000 psi. Ashcroft's pressure gauge comparator Types 1327D and 1327CM are designed to be field-portable pressure generation and test systems. Both units include the Ashcroft? two-stage hydraulic pressure pump. A build-in shuttle valve allows for rapid pressure increase when in low pressures. The Type 1327CM gauge includes a temperature compensation which maintains the ±0.1% F.S. accuracy over an operating range of -25°F to +125°F. Available ranges include 30, 100, 500, 1,000, 5,000 and 10,000 psi. The Type 1327D is available with between one and four Ashcroft's gauges covering the operating range of 0 through 10,000 psi.

高精度压力校验设备

数显式压力校验仪、精密测试压力表、容积式压力调节器、液压校验仪

数显式压力校验仪

精密测试压力表

容积式压力调节器

液压校验仪

Ashcroft精密测试压力表

1084 测试表
Ashcroft 1084口袋式测试表用于检查校验和确认关键位置的校验。

精度 表盘尺寸和壳体材质 量程
ASME B40.100 Grade 2A (±0.5% 满量程) 3" 300系列抛光不锈钢壳体 真空- 1,000 psi

A4A 精密压力表
Ashcroft A4A是一款高精密指针式压力表。

精度 表盘尺寸和壳体材质 量程
ASME B40.100 Grade 4A (±0.10% 满量程) 6", 8.5", 12", 16" 铸铝壳体 正压,复合联程, 真空 & 绝压, 15- 100,000 psi

1082 测试表
Ashcroft 1082是一款广受好评的精准可靠安全的精密压力表。

精度 表盘尺寸和壳体材质 量程
ASME B40.100 Grade 3A (±0.25% 满量程) 4.5", 6", 8.5"铝制壳体 真空 - 10,000 psi

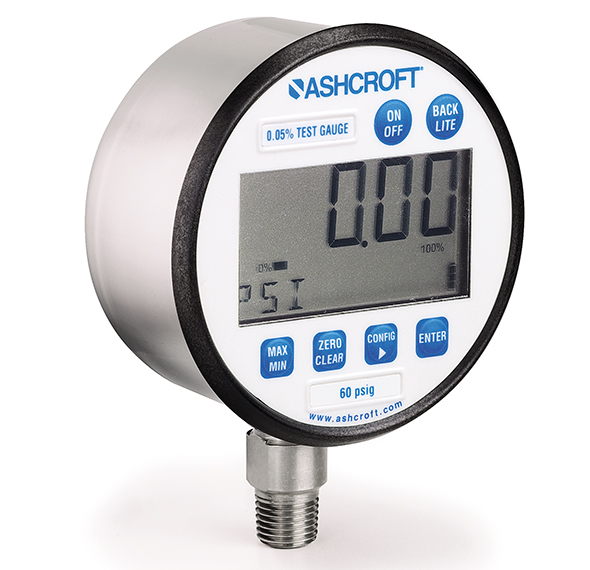

2084, 2086 及 2089 数显测试仪压力表

Ashcroft 2084, 2086 及2089 高精度数显测试压力表具有可靠精密等卓越性能。

精度 表盘尺寸和壳体材质 量程
±0.05%, 0.10% or 0.25% 满量程 3" 300 系列不锈钢 真空, 5 psi thru 7,000 psi 包括联程和绝压
