丹佛斯HK特殊配置 丹佛斯LL2HK-MS流体输送和液压应用
Danfoss LL2HK-MS Fluid transfer & Hydraulic application
Danfoss HK special configuration

丹佛斯汉森LL2HK-MS系列是专为特定应用而设计的特殊HK系列。该快速接头由303不锈钢制成。锁定机构为推/拉式。这种特殊的快速接头是为测试航空航天应用的地面设备而制造的。它是基于HK系列（不锈钢）创建的。它是一种独特的外形，不能与2HK系列互换。

Danfoss LL2HK-MS Fluid transfer & Hydraulic application
Danfoss HK special configuration

产品特点

-不锈钢结构
-尺寸?英寸
-专有配置文件

应用

-液压应用
-航空航天工业
-具体应用

Danfoss HK special configuration
Danfoss LL2HK-MS Fluid transfer & Hydraulic application

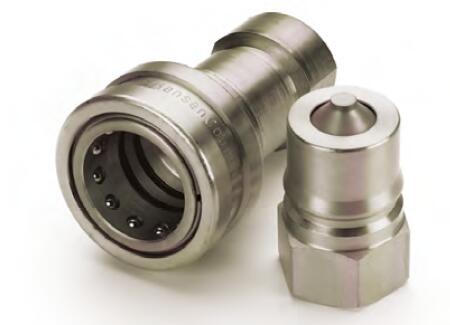

Danfoss Hansen LL2HK-MS series is a special HK series made for specific application. This coupling is made of 303 stainless steel. The locking mechanism is push/pull. This specific coupling has been made for testing ground equipment for aerospace application. It was created based on the HK series (stainless steel). It is a unique profile which is not interchangeable with the 2HK series.

Product features

- Stainless steel construction
- Size 1/4''
- Proprietary profile

Application

- Hydraulic application
- Aerospace industry
- Specific application

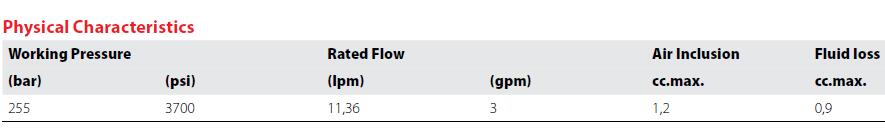

工作压力：255bar, 3700 psi
接头尺寸： 1/4''

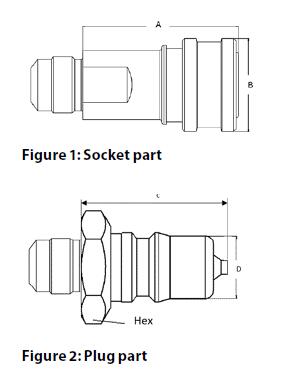

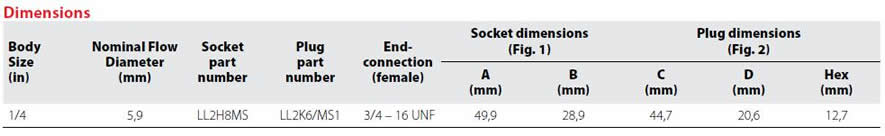

Socket part number LL2H8MS
Plug part number LL2K6/MS1
End connection (female) : 3/4 – 16 UNF
