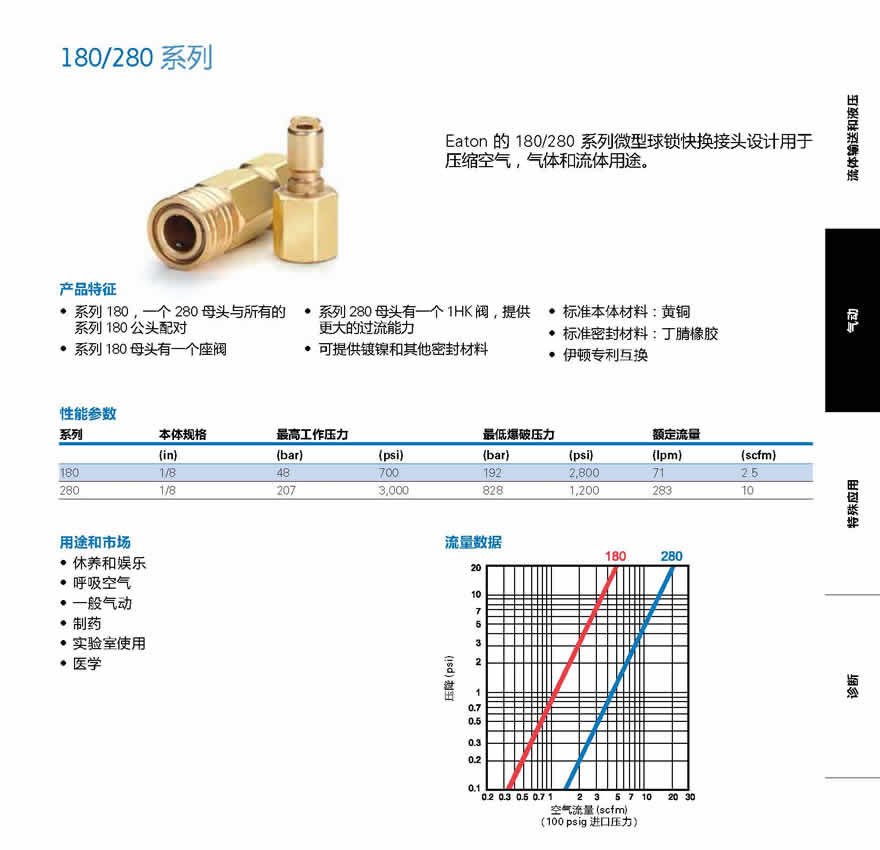

EATON Hansen 180 & 280系列快速接头 Hansen 180/280 series miniature couplings
PNEUMATIC 气动接头(单向关断)
180&280： 小型球形锁快速连接接头设计用于处理压缩空气、煤气和流体。
产品描述:
180/280系列是小型接头,设计用于处理压缩空气,气体,液体及水.
应用:
这种小型接头应用于诸如潜水设备,制药,医学及实验室等领域。 Hansen 180/280 series miniature couplings offer a compact coupling design for compressed air and other fluid handling applications.
主体尺寸:
1/8''
材质:
黄铜
螺纹连接形式:
NPT 坡口连接
工作压力:
180系列:700psi(48bar)
280系列:2,500psi(172bar)

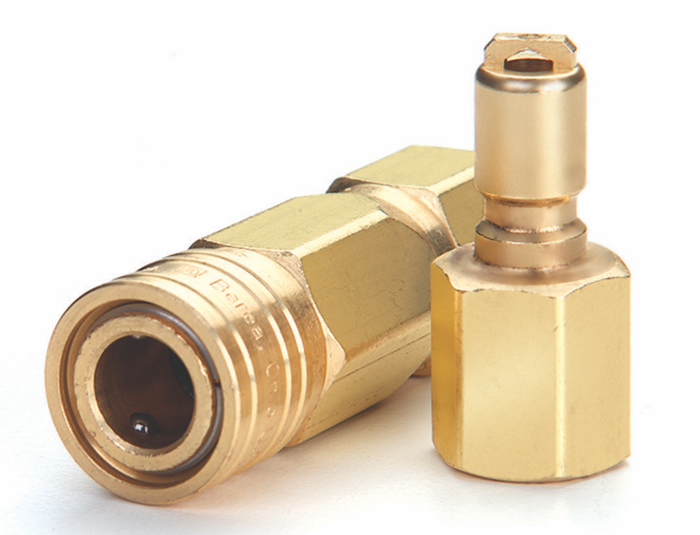

Hansen 180 & 280系列快速接头 Hansen 180/280 series miniature couplings
PDF资料下载
特点和优势
- 球形锁
- 手动操作
- 180和280系列母头都使用180系列公头
- 180和280系列母头配有专用单向阀
280系列配有1-HK系列单向阀，可以提供更大的流量
- VITON橡胶密封件可供选择，订购时在母头产品编号后添加-143后缀
标准材质：
母头
- 黄铜主体和套筒
- 单向阀
180 黄铜镀镍 专用单向阀
280 黄铜1-HK系列单向阀
- 丁晴橡胶密封圈 NBR
- 不锈钢弹簧
- 不锈钢球形锁
公头
- 黄铜
| Body Size |
Part Number |
Material |
NPT Male |
NPT Female |
Hose Stem |
Coupling |
| 1/8 |
180 |
Brass |
1/8 - 27 |
- |
- |
Socket |
| 1/8 |
28S-25M |
Brass |
1/4 - 18 |
- |
- |
Socket |
| 1/8 |
185E |
Brass |
1/8 - 27 |
- |
- |
Plug |
| 1/8 |
186 |
Brass |
1/4 - 18 |
- |
- |
Plug |
| 1/8 |
28S-12F |
Brass |
- |
1/8 - 27 |
- |
Socket |
| 1/8 |
183 |
Brass |
- |
1/8 - 27 |
- |
Plug |
| 1/8 |
187 |
Brass |
- |
- |
1/8 |
Plug |
| 1/8 |
189 |
Brass |
- |
- |
3/16 |
Plug |
| Series 180 & 280 |
Hansen |
 |
| One-Way
Couplings |
Sockets |
Male End
Connections |
Part No. |
Thread |
Dimensions |
Brass |
Size |
A |
B |
HEX |
180 |
8-27 NPTF |
1.41 |
0.63 |
0.56 |
28S-25M |
4-18 NPTF |
1.38 |
0.63 |
0.56 |
Female End
Connections |
Par No. |
Thread |
Dimensions |
Brass |
Size |
A |
B |
HEX |
28S-12F |
8-27 NPTF |
1.78 |
0.63 |
0.56 |
Plugs |
Male End
Connections |
Part No. |
Thread |
Dimensions |
Brass |
Size |
C |
D |
HEX |
185 |
1/8-27 NPTF |
1.16 |
0.49 |
0.44 |
186 |
1/4-18 NPTF |
1.44 |
0.63 |
0.56 |
Female End
Connections |
Part No. |
Thread |
Dimensions |
Brass |
Size |
C |
D |
HEX |
183 |
1/8" NPTF |
1.19 |
0.63 |
0.56 |
Hose Stem End
Connections |
Part No. |
Thread |
Dimensions |
|
Brass |
Size |
C |
D |
|
187 |
1/8" |
1.25 |
0.38 |
|
189 |
3/16" |
1.50 |
0.38 |
|
| All dimensions in
inches. |
|
|
