Features include:
Automatic push-to-connect
Pin-lock design
Compact design
Applications include: air tools, ring mains etc.

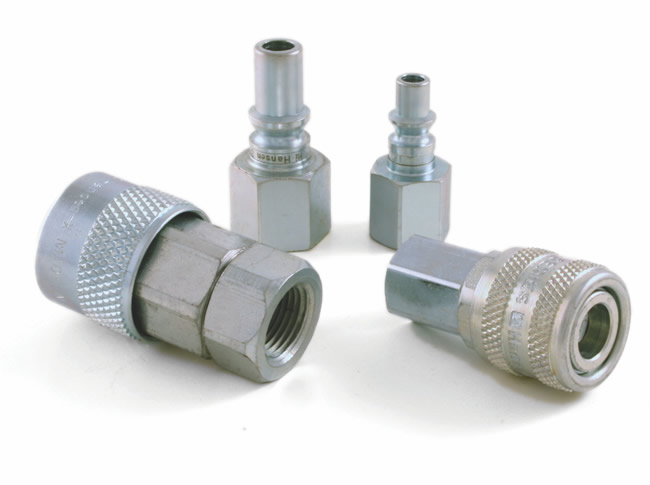

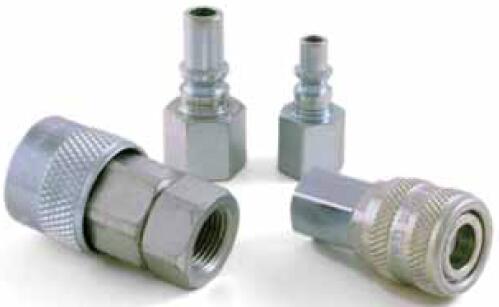

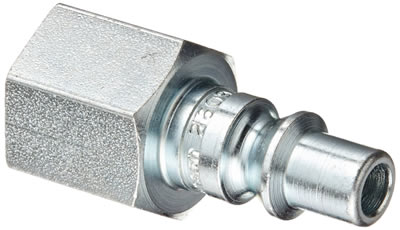

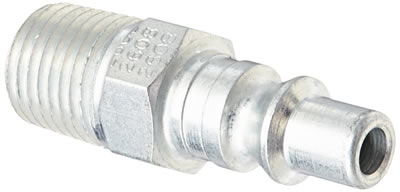

Hansen Aro-type 210 and 310 air couplings Hansen Aro 210/310 series couplings

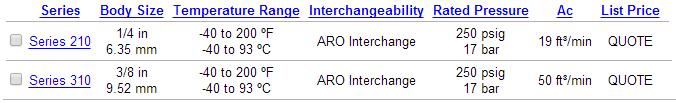

The 210 and 310 Interchange Series
are 1/4" and 3/8" capacity automatic, pin-type couplings
designed for one-way shutoff operation.
FEATURES
- Automatic push-to-connect
- Pin-lock design
Applications & markets
- Construction
- Maintenance & Repair
- In-Plant/Industrial
- Pneumatic Tools
| Body Size |
Part Number |
Material |
NPT Male Thread |
BSP Male Thread |
NPT Female Thread |
BSP Female Thread |
Hose Stem |
Coupling Type |
| 1/4 |
210-212 |
Steel |
1/4 - 18 |
- |
- |
- |
- |
Socket |
| 1/4 |
210-213 |
Steel |
3/8 - 18 |
- |
- |
- |
- |
Socket |
| 1/4 |
2607 |
Steel |
1/8 - 27 |
- |
- |
- |
- |
Plug |
| 1/4 |
2608 |
Steel |
1/4 - 18 |
- |
- |
- |
- |
Plug |
| 1/4 |
2608B |
Steel |
- |
1/4 - 19 |
- |
- |
- |
Plug |
| 1/4 |
20AP-37M |
Steel |
3/8 - 18 |
- |
- |
- |
- |
Plug |
| 1/4 |
210 |
Steel |
- |
- |
1/4 - 18 |
- |
- |
Socket |
| 1/4 |
62210 |
Steel |
- |
- |
1/4 - 18 |
- |
- |
Socket |
| 1/4 |
210B |
Steel |
- |
- |
- |
1/4 - 19 |
- |
Socket |
| 1/4 |
2609 |
Steel |
- |
- |
1/4 - 18 |
- |
- |
Plug |
| 1/4 |
2609B |
Steel |
- |
- |
- |
1/4 - 19 |
- |
Plug |
| 1/4 |
20AP-37F |
Steel |
- |
- |
3/8 - 18 |
- |
- |
Plug |
| 1/4 |
210-022 |
Steel |
- |
- |
- |
- |
1/4 |
Socket |
| 1/4 |
210-215 |
Steel |
- |
- |
- |
- |
3/8 |
Socket |
| 1/4 |
3946 |
Steel |
- |
- |
- |
- |
1/4 |
Plug |
| 1/4 |
3947 |
Steel |
- |
- |
- |
- |
5/16 |
Plug |
| 1/4 |
222-38E |
Steel |
- |
- |
- |
- |
3/8 |
Plug |
| 3/8 |
310-313 |
Steel |
3/8 - 18 |
- |
- |
- |
- |
Socket |
| 3/8 |
222-39E |
Steel |
1/4 - 18 |
- |
- |
- |
- |
Plug |
| 3/8 |
3807 |
Steel |
3/8 - 18 |
- |
- |
- |
- |
Plug |
| 3/8 |
310 |
Steel |
- |
- |
3/8 - 18 |
- |
- |
Socket |
| 3/8 |
3806 |
Steel |
- |
- |
3/8 - 18 |
- |
- |
Plug |
| 3/8 |
310-222 |
Steel |
- |
- |
- |
- |
3/8 |
Socket |
| 3/8 |
3807 |
Steel |
- |
- |
- |
- |
3/8 |
Plug |
Interchangeability
- ARO Interchange
Materials
Socket:
- Carbon Steel
- Hard Drawn Steel Springs
- Buna-N Valve Washer
- Alloy Steel Locking Pins
Plug:
- Carbon Steel
1/4" to 3/8" nominal
(6.35 mm to 9.52 mm)
-40° F to 200° F
-40° C to 93° C
Rated Pressure
250 psig (17 Bar)
ARO 210/310 Interchange
210 & 310 Series
Male End Connections
Female End Connections
Hose Stem End Connections
Part No.
Steel Thread Size
Dimensions
A B HEX
210 1/4" NPT 1.87 1.02 0.69
62210* 1/4" NPT 1.87 1.02 0.69
Part No.
Steel Hose I.D.
Dimensions
A B
210022 1/4" 2.39 1.02
210215 3/8" 2.39 1.02
Part No.
Steel Thread Size
Dimensions
A B HEX
210212 1/4" NPT 1.95 1.02 0.69
210213 3/8" NPT 1.91 1.02 0.69
Part No.
Steel Hose I.D.
Dimensions
C D
3946 1/4" 2.14 0.50
3947 5/16" 2.14 0.50
22238 3/8" 2.14 0.50
* Same as Model 210 but with brass valve
210 SERIES SOCKETS PLUGS
Male End Connections
Female End Connections
Hose Stem End Connections
Part No.
Steel Thread Size
Dimensions
A B HEX
310 3/8" NPT 2.10 1.21 0.94
Part No.
Steel Hose I.D.
Dimensions
A B
310222 3/8" 2.97 1.21
Part No.
Steel Thread Size
Dimensions
A B HEX
310313 3/8" NPT 2.38 1.21 0.94
Part No.
Steel Thread Size
Dimensions
D E HEX
22239 1/4" NPT 1.91 0.72 0.63
3804 3/8" NPT 1.91 0.79 0.69
Part No.
Steel Hose I.D.
Dimensions
C D
3807 3/8" 2.37 0.63
|
