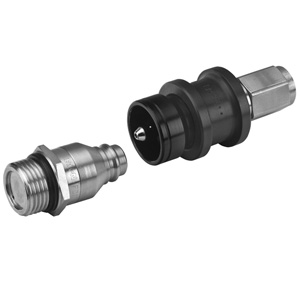

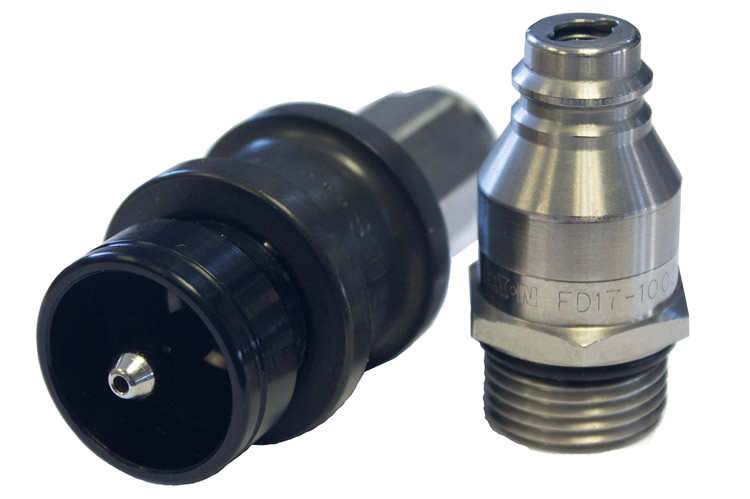

Eaton FD17 high pressure coupling
Eaton FD17系列消防和救援设备车辆配套用高压快速接头

Eaton FD17系列高压快速接头设计用于适于吸入的空气transfilling的应用。使用在SCBA设备证明了到NIOSH、NFPA和CBRN标准。该系列的前身为 Aeroquip FD17 品牌，是一种高压接头，可在高达 4,500 psi/310 bar 的压力下手动连接。特点包括在高达 4,500 psi/310 bar 的压力下连接和断开；通过符合 NIOSH、NFPA 1981 和 CRN 要求的 SCBA 设备认证 符合 NFPA 1981。FD17高压接头应用包括：SCBA 换气和伙伴呼吸应用等。 Eaton FD17 high pressure coupling can be connected by hand while under pressure up to 4,500 psi/310 bar. This quick disconnect coupling is most commonly used in SCBA transfilling and buddy breathing applications and is commonly found on SCBA equipment certified to various NIOSH, NFPA and CBRN standards.

Eaton FD17 high pressure coupling | EATON Quick Disconnect Couplings

特点

• 连接并且分开在压力下由 5,500 psi决定。 Connect and disconnect under pressure up to 4,500 psi/310 bar
• 标准身体材料：不锈钢和铝 Standard body material: Stainless steel, aluminum
• 能力用于低(- 40oF)和更高的温度(+160oF)应用
• Complies with NFPA 1981
• Certified on SCBA equipment that meets NIOSH, NFPA, and CBRN requirements

车辆

• 消防和救援设备

• 消防设备

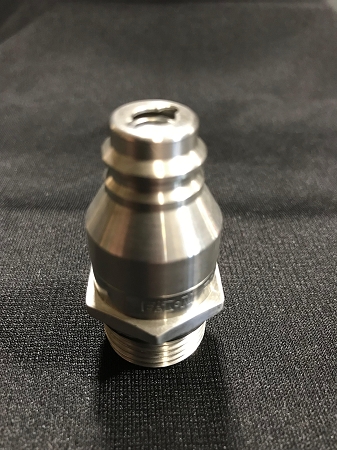

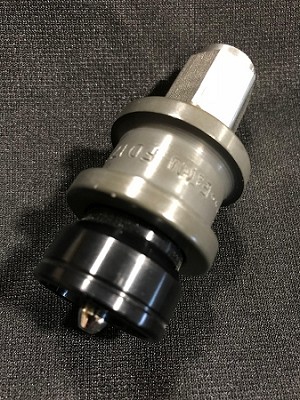

FD17-1003-04-04 AEROQUIP QUICK DISCONNECT 5500PSI FEMALE COUPLER - HP BREATHING AIR	FD17-1002-10-04 AEROQUIP QUICK DISCONNECT 5500PSI MALE NIPPLE - HIGH PRESSURE BREATHING AIR

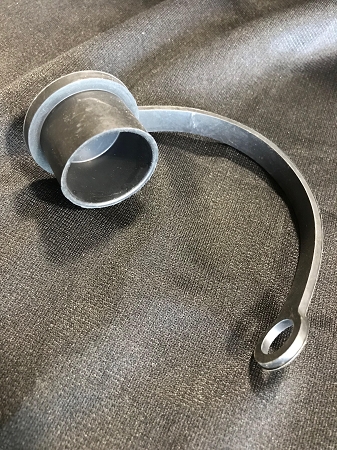

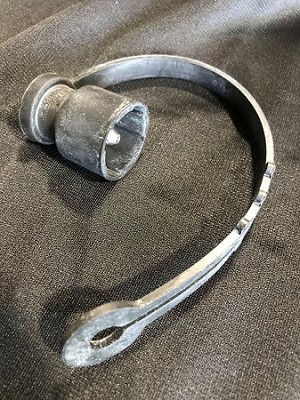

FD17-1062-04 AEROQUIP QUICK DISCONNECT 5500PSI FEMALE DUSTCAP - HIGH PRESSURE BREATHING AIR	FD17-1064-04 AEROQUIP QUICK DISCONNECT 5500PSI MALE DUSTCAP - HP BREATHING AIR

- Eaton Quick Disconnect Couplings Overview - Fluid Conveyance Interconnection Solutions.
