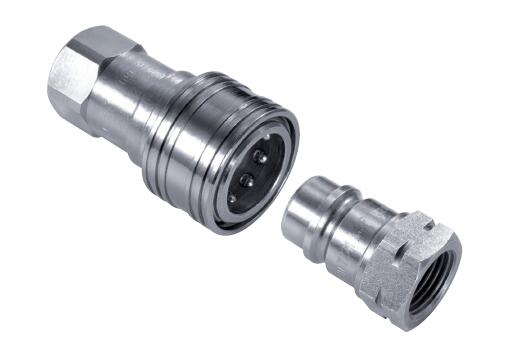

Gromelle H15000 系列自密封快速接头
Gromelle H15000 series self-sealing couplings -
H15000 Series ISO 7241-1 A Interchange
H15000 系列快速接头是通用液压和流体输送联轴器，符合 ISO7241-1 A 系列的尺寸要求。Series H15000 couplings are general purpose hydraulic and fluid transfer couplings that conform to the dimensional requirements of ISO7241-1 Series A. Gromelle H15000 Series is a general purpose industrial interchange coupling that meets the ISO 7241-1 Series A standard. The H15000 Series features a rugged ball latch mechanism with self-sealing poppet valves.
产品特征
- 满足 ISO 7241-1 系列 A 要求 . 可提供 1/2" 规格的推拉连接形式. 标准本体材料：镀锌（三价）钢
- 设计和制造按照欧洲压力设备指令 （双作用套筒，隔板安装）
- 标准密封材料：丁腈橡胶97/23 EC 的 3.3 条
- 带球锁的双阀结构
- 尺寸从 1/4" 到 1"
- NPTF 和 BSPP 端接
- 丁腈橡胶密封件
- Body size from 1/4" to 1"
- NPTF and BSPP end connections
- Nitrile seals
应用包括Applications include：液压设备等。hydraulic equipment etc.

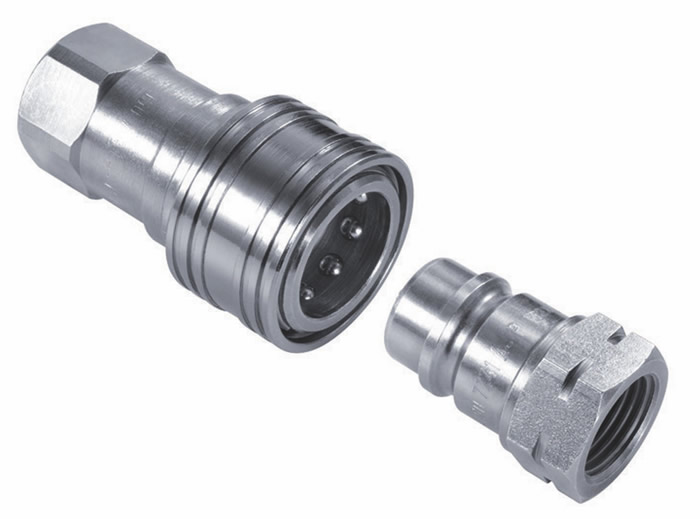

Gromelle H15000 series self-sealing couplings - H15000 Series ISO 7241-1 A Interchange
Gromelle H15000 系列自密封快速接头
用途和市场
- 液压回路和设备
- 液压流体
- 农业
| Body Size |
Part Number |
Material |
NPT Female thread |
BSPP Female thread |
Coupling Type |
| 1/4 |
HA1501100 |
Steel |
- |
1/4 |
Socket |
| 1/4 |
HA1521100 |
Steel |
1/4 |
- |
Socket |
| 3/8 |
HA1502100 |
Steel |
- |
3/8 |
Socket |
| 3/8 |
HA1522100 |
Steel |
3/8 |
- |
Socket |
| 1/2 |
HA1503100 |
Steel |
- |
1/2 |
Socket |
| 1/2 |
HA1503600 |
Steel |
- |
1/2 (Push-to Connect) |
Socket |
| 1/2 |
HA1523100 |
Steel |
1/2 |
- |
Socket |
| 3/4 |
HA1504100 |
Steel |
- |
3/4 |
Socket |
| 3/4 |
HA1524100 |
Steel |
3/4 |
- |
Socket |
| 1 |
HA1505100 |
Steel |
- |
1 |
Socket |
| 1 |
HA1525100 |
Steel |
1 |
- |
Socket |
| 1/4 |
HA1501200 |
Steel |
- |
1/4 |
Plug |
| 1/4 |
HA1521200 |
Steel |
1/4 |
- |
Plug |
| 3/8 |
HA1502200 |
Steel |
- |
3/8 |
Plug |
| 3/8 |
HA1522200 |
Steel |
3/8 |
- |
Plug |
| 1/2 |
HA1503200 |
Steel |
- |
1/2 |
Plug |
| 1/2 |
HA1523200 |
Steel |
1/2 |
- |
Plug |
| 3/4 |
HA1504200 |
Steel |
- |
3/4 |
Plug |
| 3/4 |
HA1524200 |
Steel |
3/4 |
- |
Plug |
| 1 |
HA1505200 |
Steel |
- |
1 |
Plug |
| 1 |
HA1525200 |
Steel |
1 |
- |
Plug |

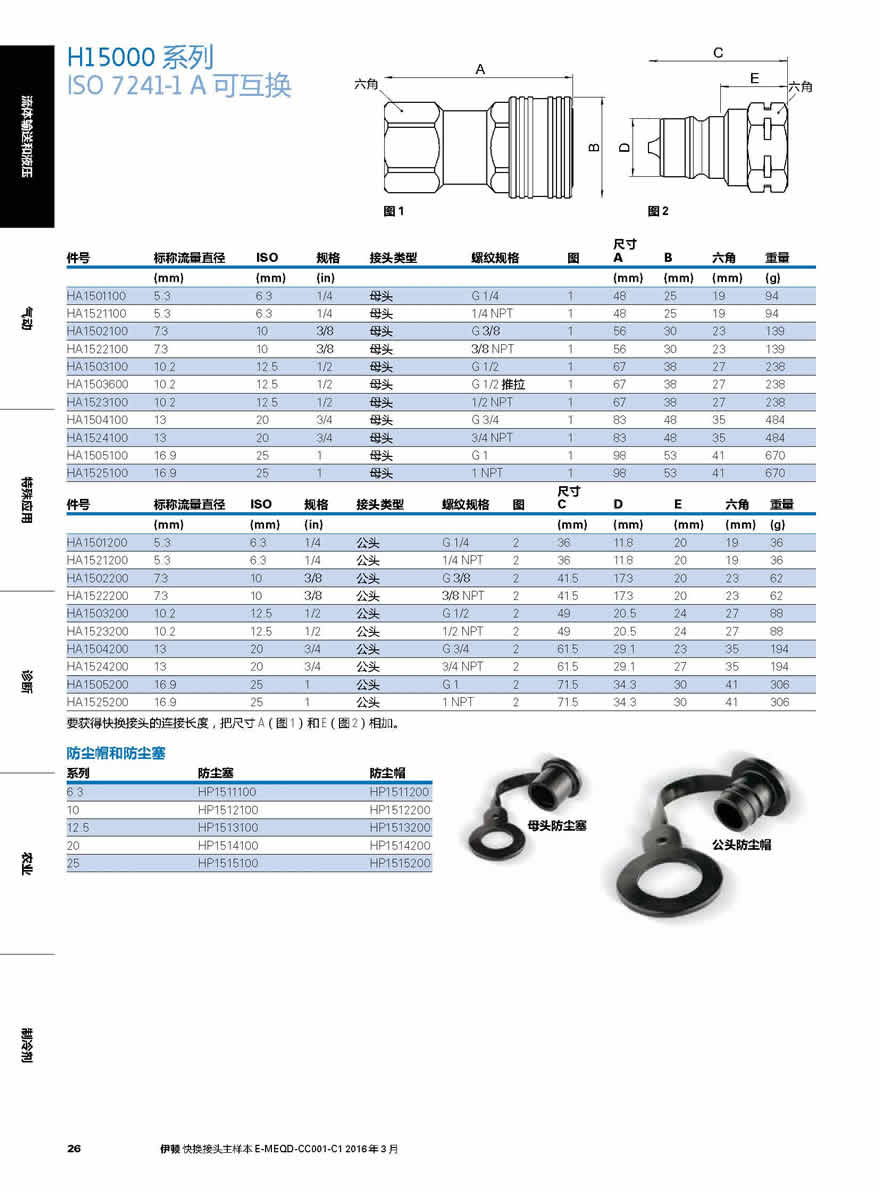

件号 标称流量直径 ISO 规格 接头类型 螺纹规格 图 A B 六角 重量
(mm) (mm) (in) (mm) (mm) (mm) (g)
HA1501100 5.3 6.3 1/4 母头 G 1/4 1 48 25 19 94
HA1521100 5.3 6.3 1/4 母头 1/4 NPT 1 48 25 19 94
HA1502100 7.3 10 3/8 母头 G 3/8 1 56 30 23 139
HA1522100 7.3 10 3/8 母头 3/8 NPT 1 56 30 23 139
HA1503100 10.2 12.5 1/2 母头 G 1/2 1 67 38 27 238
HA1503600 10.2 12.5 1/2 母头 G 1/2推拉 1 67 38 27 238
HA1523100 10.2 12.5 1/2 母头 1/2 NPT 1 67 38 27 238
HA1504100 13 20 3/4 母头 G 3/4 1 83 48 35 484
HA1524100 13 20 3/4 母头 3/4 NPT 1 83 48 35 484
HA1505100 16.9 25 1 母头 G 1 1 98 53 41 670
图 1图 2
HA1525100 16.9 25 1母头 1 NPT 1 98 53 41 670
尺寸件号标称流量直径 ISO 规格接头类型螺纹规格图 C D E 六角重量
(mm) (mm) (in) (mm) (mm) (mm) (mm) (g)
HA1501200 5.3 6.3 1/4 公头 G 1/4 2 36 11.8 20 19 36
HA1521200 5.3 6.3 1/4 公头 1/4 NPT 2 36 11.8 20 19 36
HA1502200 7.3 10 3/8 公头 G 3/8 2 41.5 17.3 20 23 62
HA1522200 7.3 10 3/8 公头 3/8 NPT 2 41.5 17.3 20 23 62
HA1503200 10.2 12.5 1/2 公头 G 1/2 2 49 20.5 24 27 88
HA1523200 10.2 12.5 1/2 公头 1/2 NPT 2 49 20.5 24 27 88
HA1504200 13 20 3/4 公头 G 3/4 2 61.5 29.1 23 35 194
HA1524200 13 20 3/4 公头 3/4 NPT 2 61.5 29.1 27 35 194
HA1505200 16.9 25 1 公头 G 1 2 71.5 34.3 30 41 306
HA1525200 16.9 25 1公头 1 NPT 2 71.5 34.3 30 41 306
要获得快换接头的连接长度，把尺寸 A（图 1）和 E（图 2）相加。
防尘帽和防尘塞
系列防尘塞防尘帽
HP1512100 HP1512200
HP1514100 HP1514200
|
