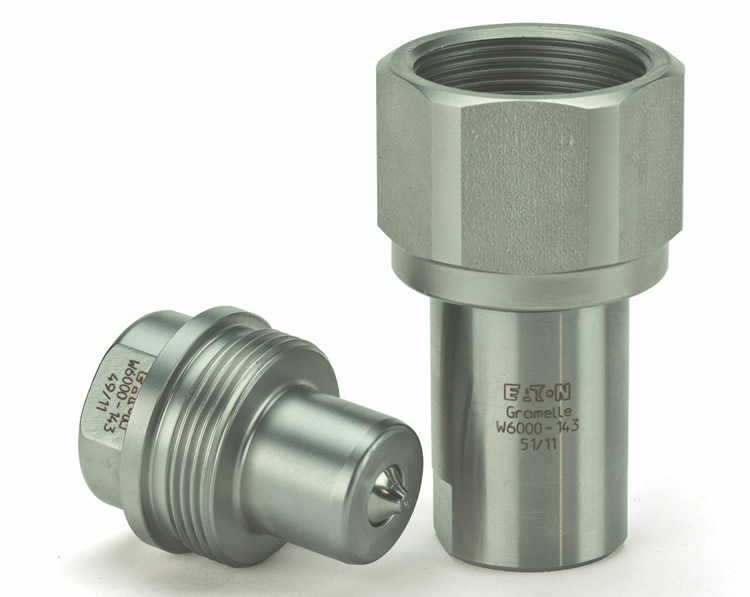

Gromelle W6000 系列螺纹连接快速接头 Eaton W6000 Series stainless steel quick disconnect coupling
Gromelle W6000 series screw-to-connect self-sealing couplings

Gromelle W6000 系列螺纹连接快速接头对严重的液压负载具有出色的抵抗力。它们有镀钢和不锈钢两种。Gromelle W6000 series screw-to-connect couplings give exceptional resistance to severe hydraulic loads. They are available in plated steel and in stainless steel.

性能特点
- 坚固的一体式机身
- 断开时两半自动关闭
- 压力等级高达 1100 bar
- 可连接残余压力*
- 尺寸范围 1/4" 至 2"

应用包括：高压液压——离岸、一般高压液压、一般工业液体。

有关此系列联轴器的技术手册和安全信息声明可在上面显示的下载（选项卡）部分中找到。在使用前，所有负责使用和/或选择该系列接头的个人都应分发和阅读这些文件的副本。

Gromelle W6000 接头也可以作为即用型软管组件的一部分提供 。

* 最大连接/断开压力：30 bar 所有尺寸。

Rugged, one-piece body
Automatic shut-off in both halves on disconnection
Pressure ratings up to 1100 bar
Can be connected against residual pressure*
Size range 1/4" to 2"
Applications include: high pressure hydraulics – off shore, general high pressure hydraulics, general industrial liquids.


Gromelle W6000 series screw-to-connect self-sealing couplings
Gromelle W6000 系列螺纹连接快速接头





Body Size Part Number (NBR Seal) Part Number (FKM Seal) Part Number (EPDM Seal) Material NPT female thread BSP female thread Metric female thread Coupling Type
1/4 WA0601700 WA06017V0 WA06017E0 Steel - 1/4-19 - Socket
1/4 WA0621700 WA06217V0 WA06217E0 Steel 1/4-18 - - Socket
3/8 WA0602700 WA06027V0 WA06027E0 Steel - 3/8-19 - Socket
3/8 WA0622700 WA06227V0 WA06227E0 Steel 3/8-19 - - Socket
1/2 WA0603700 WA06037V0 WA06037E0 Steel - 1/2-14 - Socket
1/2 WA0623700 WA06237V0 WA06237E0 Steel 1/2-14 - - Socket
1/2 WA0633700 WA06337V0 WA06337E0 Steel - - M22x1.5 Socket
3/4 WA0604700 WA06047V0 WA06047E0 Steel - 3/4-14 - Socket
3/4 WA0624700 WA06247V0 WA06247E0 Steel 3/4-14 - - Socket
1 WA0605700 WA06057V0 WA06057E0 Steel - 1-11 - Socket
1 WA0625700 WA06257V0 WA06257E0 Steel 1-11.1/2 - - Socket
1 WA0635700 WA06357V0 WA06357E0 Steel - - M33x1.5 Socket
1.1/4 WA0606700 WA06067V0 WA06067E0 Steel - 1.1/4-11 - Socket
1.1/4 WA0626700 WA06267V0 WA06267E0 Steel 1.1/4-11.1/2 - - Socket
1.1/2 WA0607700 WA06077V0 WA06077E0 Steel - 1.1/2-11 - Socket
1.1/2 WA0627700 WA06277V0 WA06277E0 Steel 1.1/2-11.1/2 -- - Socket
2 WA0609700 WA06097V0 WA06097E0 Steel - 2-11 - Socket
2 WA0629700 WA06297V0 WA06297E0 Steel 2-11.1/2 - - Socket
1/4 WA0601400 WA06014V0 WA06014E0 Steel - 1/4-19 - Plug
1/4 WA0621400 WA06214V0 WA06214E0 Steel 1/4-18 - - Plug
3/8 WA0602400 WA06024V0 WA06024E0 Steel - 3/8-19 - Plug
3/8 WA0602400 WA06024V0 WA06024E Steel 3/8-18 - - Plug
1/2 WA0603400 WA06034V0 WA06034E0 Steel - 1/2-14 - Plug
1/2 WA0623400 WA06234V0 WA06234E0 Steel 1/2-14 - - Plug
1/2 WA0633400 WA06334V0 WA06334E0 Steel - - M22x1.5 Plug
3/4 WA0604400 WA06044V0 WA06044E0 Steel - 3/4-14 - Plug
3/4 WA0624400 WA06244V0 WA06244E0 Steel 3/4-14 - - Plug
1 WA0605400 WA06054V0 WA06054E0 Steel - 1-11 - Plug
1 WA0625400 WA06254V0 WA06254E0 Steel 1-11.1/2 - - Plug
1 WA0635400 WA06354V0 WA06354E0 Steel - - M33x1.5 Plug
1.1/4 WA0606400 WA06064V0 WA06064E0 Steel - 1.1/4-11 - Plug
1.1/4 WA0626400 WA06264V0 WA06264E0 Steel 1.1/4-11.1/2 - - Plug
1.1/2 WA0607400 WA06074V0 WA06074V0 Steel - 1.1/2-11 - Plug
1.1/2 WA0627400 WA06274V0 WA06274E0 Steel 1.1/2-11.1/2 - - Plug
2 WA0609400 WA06094V0 WA06094E0 Steel - 2-11 - Plug
2 WA0629400 WA06294V0 WA06294E0 Steel 2-11.1/2 - - Plug
1/4 - WV06017V0 WV06017E0 Stainless Steel - 1/4-19 - Socket
1/4 - WV06217V0 WV06217E0 Stainless Steel 1/4-18 - - Socket
3/8 - WV06027V0 WV06027E0 Stainless Steel - 3/8-19 - Socket
3/8 - WV06227V0 WV06227E0 Stainless Steel 3/8-18 - - Socket
1/2 - WV06037V0 WV06037E0 Stainless Steel - 1/2-14 - Socket
1/2 - WV06237V0 WV06237E0 Stainless Steel 1/2-14 - - Socket
3/4 - WV06047V0 WV06047E0 Stainless Steel - 3/4-14 - Socket
3/4 - WV06247V0 WV06247E0 Stainless Steel 3/4-14 - - Socket
1 - WV06057V0 WV06057E0 Stainless Steel - 1-11 - Socket
1 - WV06257V0 WV06257E0 Stainless Steel 1-11.1/2 - - Socket
1.1/4 - WV06067V0 WV06067E0 Stainless Steel - 1.1/4-11 - Socket
1.1/4 - WV06267V0 WV06267E0 Stainless Steel 1.1/4-11.1/2 - - Socket
1.1/2 - WV06077V0 WV06077E0 Stainless Steel - 1.1/2-11 - Socket
1.1/2 - WV06277V0 WV06277E0 Stainless Steel 1.1/2-11.1/2 - - Socket
2 - WV06097V0 WV06097E0 Stainless Steel - 2-11 - Socket
2 - WV06297V0 WV06297E0 Stainless Steel 2-11.1/2 - - Socket
1/4 - WV06014V0 WV06014E0 Stainless Steel - 1/4-19 - Plug
1/4 - WV06214V0 WV06214E0 Stainless Steel 1/4-18 - - Plug
3/8 - WV06024V0 WV06024E0 Stainless Steel - 3/8-19 - Plug
3/8 - WV06224V0 WV06224E0 Stainless Steel 3/8-18 - - Plug
1/2 - WV06034V0 WV06034E0 Stainless Steel - 1/2-14 - Plug
1/2 - WV06234V0 WV06234E0 Stainless Steel 1/2-14 - - Plug
3/4 - WV06044V0 WV06044E0 Stainless Steel - 3/4-14 - Plug
3/4 - WV06244V0 WV06244E0 Stainless Steel 3/4-14 - - Plug
1 - WV06054V0 WV06054E0 Stainless Steel - 1-11 - Plug
1 - WV06254V0 WV06254E0 Stainless Steel 1-11.1/2 - - Plug
1.1/4 - WV06064V0 WV06064E0 Stainless Steel - 1.1/4-11 - Plug
1.1/4 - WV06264V0 WV06264E0 Stainless Steel 1.1/4-11.1/2 - - Plug
1.1/2 - WV06074V0 WV06074E0 Stainless Steel - 1.1/2-11 - Plug
1.1/2 - WV06274V0 WV06274E0 Stainless Steel 1.1/2-11.1/2 - - Plug
2 - WV06094V0 WV06094E0 Stainless Steel - 2-11 - Plug
2 - WV06294V0 WV06294E0 Stainless Steel 2-11.1/2 - - Plug
