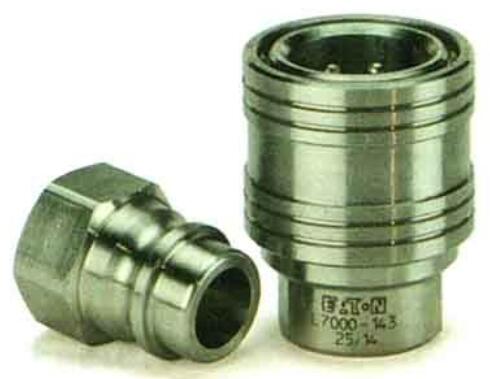

Gromelle L7000 series straight through couplings直通式快速接头

Product Code: L7000

Gromelle L7000 series straight-through couplings provide excellent flow capacities where shut off of lines is not required. Available from 1/8" through to 2" BSPP female threads.L7000系列快速接头可以提供黄铜、碳钢和不锈钢AISI 316L材质。应用于要求大流量的场合、压力清洗、某些蒸汽清洁装置、流体输送管路、制冷管路以及液压流体（水，蒸汽和石油）。可提供从1/8 " 到 2"尺寸快速接头。

特点包括：

- 提供黄铜、钢和 316L 阀体和套筒材料
- 各种密封选项
- 优于凸轮锁定型联轴器的额定压力


应用包括：水、冷却水、冲洗、油脂润滑剂、一般流体输送。

Applications include: water, cooling water, washdown, grease lubricant, general fluid transfer. For specific applications and working conditionsGromelle L7000 series couplings can also be supplied as part of a ready-to-use flexible hose assembl

Body Size Part Number (NBR Seal) Part Number (FKM Seal) Part Number (EPDM Seal) Part Number (No Seal - Plug) Material BSP female thread Coupling Type
1/8 LA0700100 LA07001V0 LA07001E0 - Steel 1/8-28 Socket
1/4 LA0701100 LA07011V0 LA07011E0 - Steel 1/4-19 Socket
3/8 LA0702100 LA07021V0 LA07021E0 - Steel 3/8-19 Socket
1/2 LA0703100 LA07031V0 LA07031E0 - Steel 1/2-14 Socket
3/4 LA0704100 LA07041V0 LA07041E0 - Steel 3/4-14 Socket
1 LA0705100 LA07051V0 LA07051E0 - Steel 1-11 Socket
1.1/4 - LA07061V0 LA07061E0 - Steel 1.1/4-11 Socket
1.1/2 - LA07071V0 LA07071E0 - Steel 1.1/2-11 Socket
2 - LA07091V0 LA07091E0 - Steel 2-11 Socket
1/8 - - - LA0700200 Steel 1/8-28 Plug
1/4 - - - LA0701200 Steel 1/4-19 Plug
3/8 - - - LA0702200 Steel 3/8-19 Plug
1/2 - - - LA0703200 Steel 1/2-14 Plug
3/4 - - - LA0704200 Steel 3/4-14 Plug
1 - - - LA0705200 Steel 1-11 Plug
1.1/4 - - - LA0706200 Steel 1.1/4-11 Plug
1.1/2 - - - LA0707200 Steel 1.1/2-11 Plug
2 - - - LA0708200 Steel 2-11 Plug
1/8 LL0700100 LL07001V0 LL07001E0 - Brass 1/8-28 Socket
1/4 LL0701100 LL07011V0 LL07011E0 - Brass 1/4-19 Socket
3/8 LL0702100 LL07021V0 LL07021E0 - Brass 3/8-19 Socket
1/2 LL0703100 LL07031V0 LL07031E0 - Brass 1/2-14 Socket
3/4 LL0704100 LL07041V0 LL07041E0 - Brass 3/4-14 Socket
1 LL0705100 LL07051V0 LL07051E0 - Brass 1-11 Socket
1.1/4 - LL07061V0 LL07061E0 - Brass 1.1/4-11 Socket
1.1/2 - LL07071V0 LL07071E0 - Brass 1.1/2-11 Socket
2 - LL07091V0 LL07091E0 - Brass 2-11 Socket
1/8 - - - LL0700200 Brass 1/8-28 Plug
1/4 - - - LL0701200 Brass 1/4-19 Plug
3/8 - - - LL0702200 Brass 3/8-19 Plug
1/2 - - - LL0703200 Brass 1/2-14 Plug
3/4 - - - LL0704200 Brass 3/4-14 Plug
1 - - - LL0705200 Brass 1-11 Plug
1.1/4 - - - LL0706200 Brass 1.1/4-11 Plug
1.1/2 - - - LL0707200 Brass 1.1/4-11 Plug
2 - - - LL0709200 Brass 2-11 Plug
1/8 - LZ07001V0 LZ07001E0 - Stainless Steel 1/8-28 Socket
1/4 - LZ07011V0 LZ07011E0 - Stainless Steel 1/4-19 Socket
3/8 - LZ07021V0 LZ07021E0 - Stainless Steel 3/8-19 Socket
1/2 - LZ07031V0 LZ07031E0 - Stainless Steel 1/2-14 Socket
3/4 - LZ07041V0 LZ07041E0 - Stainless Steel 3/4-14 Socket
1 - LZ07051V0 LZ07051E0 - Stainless Steel 1-11 Socket
1.1/4 - LZ07061V0 LZ07061E0 - Stainless Steel 1.1/4-11 Socket
1.1/2 - LZ07071V0 LZ07071E0 - Stainless Steel 1.1/2-11 Socket
2 - LZ07091V0 LZ07091E0 - Stainless Steel 2-11 Socket
1/8 - - - LZ0700200 Stainless Steel 1/8-28 Plug
1/4 - - - LZ0701200 Stainless Steel 1/4-19 Plug
3/8 - - - LZ0702200 Stainless Steel 3/8-19 Plug
1/2 - - - LZ0703200 Stainless Steel 1/2-14 Plug
3/4 - - - LZ0704200 Stainless Steel 3/4-14 Plug
1 - - - LZ0705200 Stainless Steel 1-11 Plug
1.1/4 - - - LZ0706200 Stainless Steel 1.1/4-11 Plug
1.1/2 - - - LZ0707200 Stainless Steel 1.1/2-11 Plug
2 - - - LZ0709200 Stainless Steel 2-11 Plug
