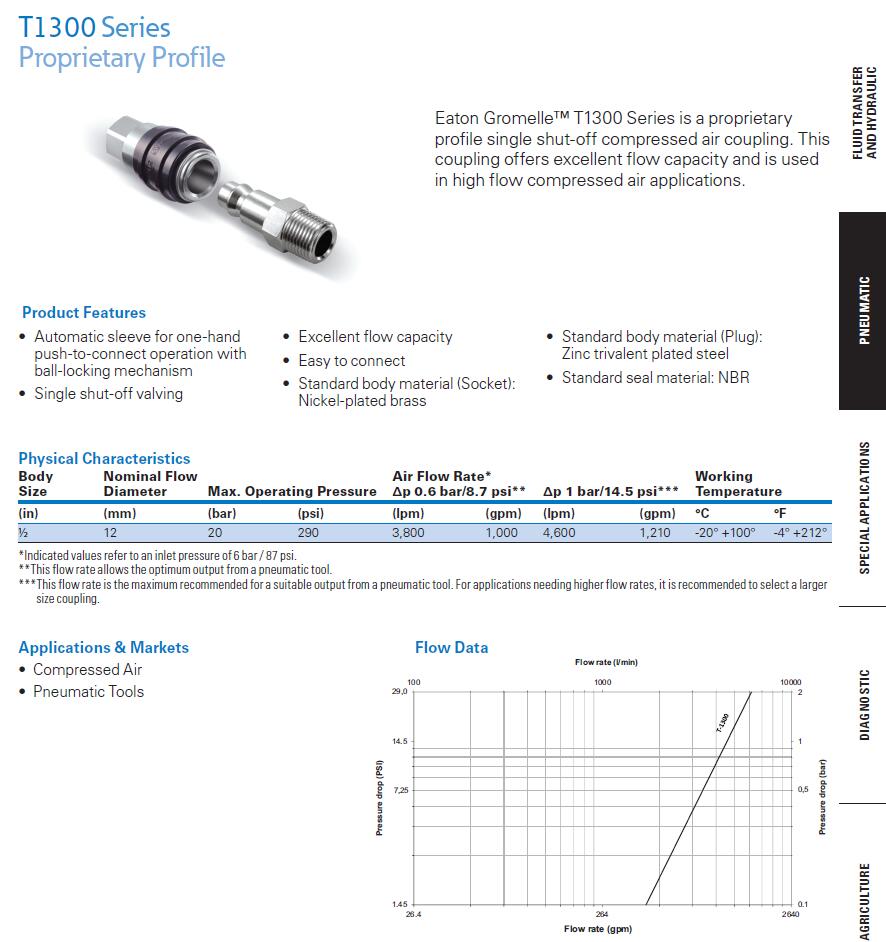

T1300 Series Proprietary Profile T1300 系列单关断压缩空气快速接头

伊顿 Gromelle-T1300 系列是专有型材单关断压缩空气快速接头 - 该快速接头具有出色的流量能力，用于高流量压缩空气应用。Eaton Gromelle- T1300 Series is a proprietary profile single shut-off compressed air coupling- This coupling offers excellent flow capacity and is used in high flow compressed air applications.

T1300 Series Proprietary Profile T1300 系列单关断压缩空气快速接头

产品特点

- 自动套筒，用于单手推动连接操作，带球锁机构
- 优秀的流通能力
- 标准主体材料（插头）：镀锌三价钢
- 标准主体材料（插座）：镀镍黄铜
- 易于连接
- 标准密封材料：NBR
- 单截止阀

应用与市场

- 压缩的空气
- 气动工具

Product Features
- Automatic sleeve for one-hand push-to-connect operation with ball-locking mechanism
- Excellent flow capacity
- Standard body material (Plug): Zinc trivalent plated steel
- Standard body material (Socket): Nickel-plated brass
- Easy to connect
- Standard seal material: NBR
- Single shut-off valving

Applications & Markets

- Compressed Air
- Pneumatic Tools

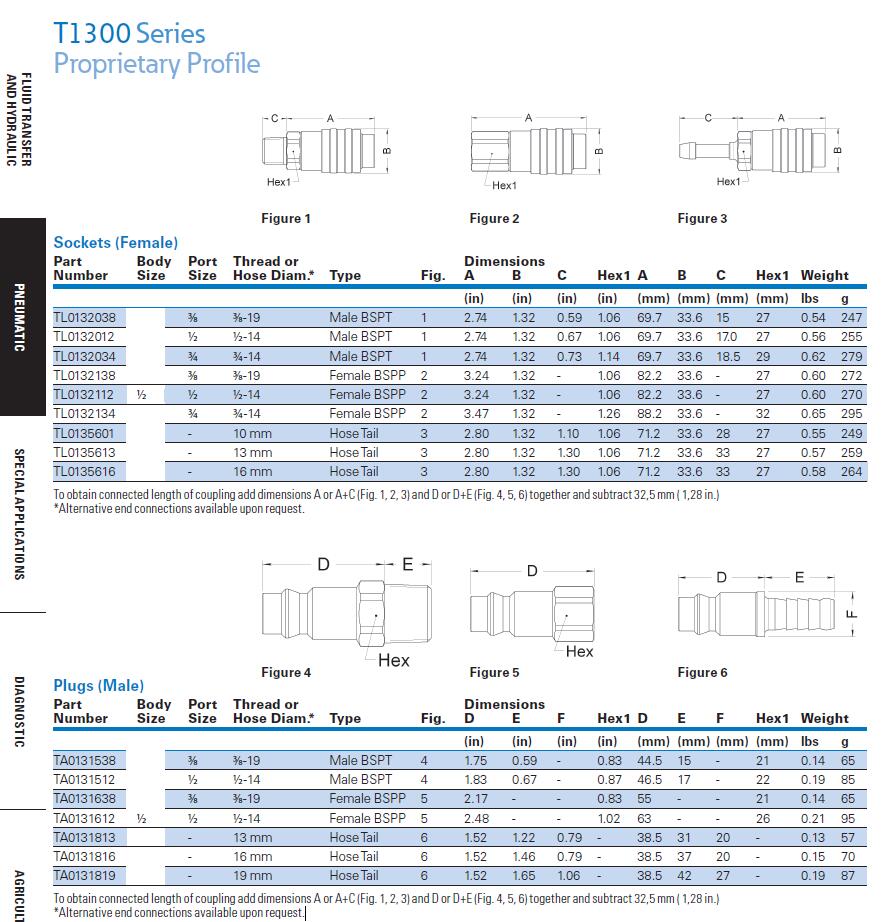

T1300 Series Proprietary Profile

Figure 1 Figure 2 Figure 3
Sockets (Female)
Part Body Port Thread or Dimensions
Number Size Size Hose Diam.* Type Fig. A B C Hex1 A B C Hex1 Weight
(in) (in) (in) (in) (mm) (mm) (mm) (mm) lbs g
TL0132038 3/8 3/8 -19 Male BSPT 1 2.74 1.32 0.59 1.06 69.7 33.6 15 27 0.54 247
TL0132012 1/2 1/2 -14 Male BSPT 1 2.74 1.32 0.67 1.06 69.7 33.6 17.0 27 0.56 255
TL0132034 ? ? -14 Male BSPT 1 2.74 1.32 0.73 1.14 69.7 33.6 18.5 29 0.62 279
TL0132138 3/8 3/8 -19 Female BSPP 2 3.24 1.32 - 1.06 82.2 33.6 - 27 0.60 272
TL0132112 1/2 1/2 1/2 -14 Female BSPP 2 3.24 1.32 - 1.06 82.2 33.6 - 27 0.60 270
TL0132134 ? ? -14 Female BSPP 2 3.47 1.32 - 1.26 88.2 33.6 - 32 0.65 295
TL0135601 - 10 mm Hose Tail 3 2.80 1.32 1.10 1.06 71.2 33.6 28 27 0.55 249
TL0135613 - 13 mm Hose Tail 3 2.80 1.32 1.30 1.06 71.2 33.6 33 27 0.57 259
TL0135616 - 16 mm Hose Tail 3 2.80 1.32 1.30 1.06 71.2 33.6 33 27 0.58 264
To obtain connected length of coupling add dimensions A or A+C (Fig. 1, 2, 3) and D or D+E (Fig. 4, 5, 6) together and subtract 32,5 mm ( 1,28 in.)
*Alternative end connections available upon request.
Plugs (Male)
Part Body Port Thread or Dimensions
Number Size Size Hose Diam.* Type Fig. D E F Hex1 D E F Hex1 Weight
Figure 4 Figure 5 Figure 6
(in) (in) (in) (in) (mm) (mm) (mm) (mm) lbs g
TA0131538 3/8 3/8 -19 Male BSPT 4 1.75 0.59 - 0.83 44.5 15 - 21 0.14 65
TA0131512 1/2 1/2 -14 Male BSPT 4 1.83 0.67 - 0.87 46.5 17 - 22 0.19 85
TA0131638 3/8 3/8 -19 Female BSPP 5 2.17 - - 0.83 55 - - 21 0.14 65
TA0131612 1/2 1/2 1/2 -14 Female BSPP 5 2.48 - - 1.02 63 - - 26 0.21 95
TA0131813 - 13 mm Hose Tail 6 1.52 1.22 0.79 - 38.5 31 20 - 0.13 57
TA0131816 - 16 mm Hose Tail 6 1.52 1.46 0.79 - 38.5 37 20 - 0.15 70
TA0131819 - 19 mm Hose Tail 6 1.52 1.65 1.06 - 38.5 42 27 - 0.19 87
To obtain connected length of coupling add dimensions A or A+C (Fig. 1, 2, 3) and D or D+E (Fig. 4, 5, 6) together and subtract 32,5 mm ( 1,28 in.)
*Alternative end connections available upon request.
