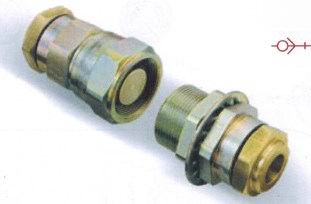

【EATON Hansen W10000制冷专用接头】
EATON Hansen制冷专用接头采用干式连接以及HNBR和NERO等特殊密封材料，对冷媒有良好的耐性，拥有众多的配件可以满足现场不同需求。 应用：专门应用于制冷设备以及空调的安装与维护，可以使用在包括R22，R134A，R404A，R410A，R407C，R507等各类冷媒中。
主体尺寸：8mm,12mm,16mm
材质：钢
螺纹连接形式：螺纹连接，焊接，板式连接
工作压力：钢质接头最大承压为1,800psi (125bar)
EATON Hansen W10000制冷专用接头
PDF Catalog
产品描述:
采用干式连接以及HNBR和Nero等特殊密封材料,对冷媒有良好的耐性,拥有众多的配件可以满足现场不同追求.
应用:
专门应用于制冷设备以及空调的安装与维维护,可以使用在包括R22,R134a,R404a,R410a,R407c,R507等各类冷媒中.
主体尺寸:
8mm 12mm 16mm
材质:
钢
螺纹连接形式:
螺纹连接 焊接 板式连接
工作压力:
钢制接头最大承压:1,800psi(125bar)
Coupling Dash
Size |
Seal Material |
Dimensions
(inches) |
Female
Half |
Male
Half |
Part No. |
Overall Length |
Maximum Diameter |
Hex Size |
Hex Size |
Part No. |
Overall Length |
Maximum Diameter |
A |
B |
C |
D |
E |
F |
-8 |
HNBR |
WA10037IO |
1.66 |
1.30 |
1.18 |
1.02 |
WA10034IO |
1.38 |
1.26 |
-8 |
Neoprene |
WA10037MO |
1.66 |
1.30 |
1.18 |
1.02 |
WA10034MO |
1.38 |
1.26 |
-12 |
HNBR |
WA10057IO |
2.17 |
1.77 |
1.62 |
1.38 |
WA10054IO |
1.73 |
1.77 |
-12 |
Neoprene |
WA10057MO |
2.17 |
1.77 |
1.62 |
1.38 |
WA10054MO |
1.73 |
1.77 |
-16 |
HNBR |
WA10067IO |
2.40 |
2.21 |
1.97 |
1.77 |
WA10064IO |
1.98 |
2.09 |
-16 |
Neoprene |
WA10067MO |
2.40 |
2.21 |
1.97 |
1.77 |
WA10064MO |
1.98 |
2.09 |
Coupling
Dash
Size |
Maximum Bulkhead
Thickness (inches) |
Assembly Torque,
lb-ft |
With Lock
Washer |
Without Lock
Washer |
Adapter/Body |
Male/Female |
-8 |
0.16 |
0.28 |
25-30 |
15-20 |
-12 |
0.23 |
0.34 |
40-45 |
20-25 |
-16 |
0.22 |
0.28 |
50-55 |
25-30 |
Coupling
Dash
Size |
Part
Numbers |
Dust
Cap |
Dust
Plug |
Lock
Washer |
Jam
Nut |
-8 |
WA 10134 00 |
WA 10137 00 |
W62A34N |
W28A34N |
-12 |
WA 10154 00 |
WA 10157 00 |
W62A54N |
W28A54N |
-16 |
WA 10164 00 |
WA 10167 00 |
W62A64N |
W28A64N |
Adapters |
Coupling
Dash
Size |
Tube
O.D.
(inch) |
Part
Numbers |
Dimensions
(inches) |
Adapter |
O-Ring |
Thread
Size |
Exposed
Length |
Maximum
Diameter |
Hex
Size |
HNBR |
Neoprene |
J |
K |
L |
M |
| Adapter, SAE 37
(JIC) -
Steel |
-8 |
3/8 |
W54A32N |
W11J340 |
W11M340 |
9/16/2018 |
0.81 |
1.10 |
1.00 |
-8 |
1/2 |
W54A33N |
W11J340 |
W11M340 |
3/4/2016 |
0.91 |
1.10 |
1.00 |
-12 |
5/8 |
W54A52N |
W11J54041 |
W11M540 |
7/8/2014 |
1.07 |
1.52 |
1.38 |
-12 |
3/4 |
W54A53N |
W11J54041 |
W11M540 |
1 1/16-12 |
1.24 |
1.52 |
1.38 |
-16 |
1 |
W54A62N |
W11J64041 |
W11M640 |
1 5/16-12 |
1.27 |
1.97 |
1.75 |
| Adapter, Braze -
Brass |
-8 |
1/2 |
W60L38012 |
W11J340 |
W11M340 |
- |
0.37 |
1.12 |
1.00 |
-12 |
5/8 |
W60L58058 |
W11J54041 |
W11M540 |
- |
0.72 |
1.54 |
1.38 |
-16 |
7/8 |
W60L68078 |
W11J64041 |
W11M640 |
- |
0.99 |
1.96 |
1.75 |
|
