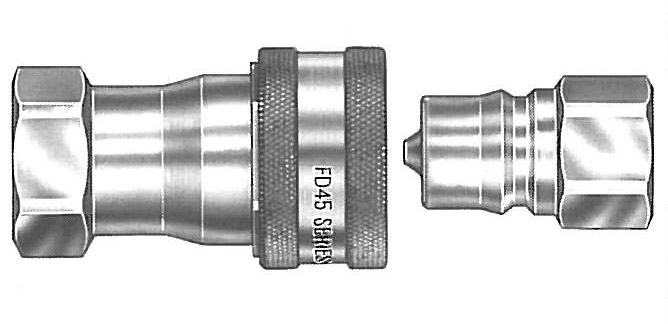

Aeroquip FD45 Series Industrial Interchange Series B (Brass)
Aeroquip Quick Disconnects FD45 Series Quick Disconnect

Aeroquip FD45系列 B系列（黄铜）

DANFOSS Aeroquip快速断开FD45系列快速接头



DANFOSS FD45系列黄铜工业互换快速接头在不可接受钢制快速接头的情况下提供耐腐蚀性。这种通用快速接头使用推拉式闩锁机构。-内半部的双接口O型环在连接时提供冗余密封。The FD45 Series brass industrial interchange coupling offers corrosion resistance where steel couplings are unacceptable. This general purpose coupling uses a Push-Pull latch mechanism.- Dual interface O-Rings in the female half provide redundant sealing while connected.

- 黄铜结构搭配不锈钢弹簧，具有更强的耐腐蚀性和流体兼容性。
- 尺寸符合ISO标准7241/1系列B的工业互换快速接头。
- PUSH-PULL球形插销设计可快速方便地连接和断开软管管路。自密封提升阀提供出色的高低压密封。
- 标准密封材料-丁腈橡胶、EPR和氟橡胶。
- 标准阀体材料-黄铜，带不锈钢弹簧和球体。
- Brass construction with stainless steel springs for greater corrosion resistance and fluid compatibility.
- Industrial interchange coupling conforming dimensionally to ISO standard 7241/1 Series B.
- PUSH-PULL ball latch design allows quick and easy connection and disconnection of hose lines. Self-sealing poppet valves provide excellent high and low pressure sealing.
- Standard seal material - Buna-N, EPR and Viton.
- Standard body material - Brass with stainless steel springs and balls.


Item #
Coupling Size
Thread Size (P)
Seal Material
Type
FD45-1086-02-02
-2
1/8-27
BUNA-N
Male Half - Female Pipe/Valved
FD45-1086-04-04
-4
1/4-18
BUNA-N
Male Half - Female Pipe/Valved
FD45-1086-06-06
-6
3/8-18
BUNA-N
Male Half - Female Pipe/Valved
FD45-1086-08-10
-10
1/2-14
BUNA-N
Male Half - Female Pipe/Valved
FD45-1086-12-12
-12
3/4-14
BUNA-N
Male Half - Female Pipe/Valved
FD45-1086-16-16
-16
1-11 1/2
BUNA-N
Male Half - Female Pipe/Valved
FD45-1086-20-20
-20
1-1/4 - 11-1/2
BUNA-N
Male Half - Female Pipe/Valved
FD45-1092-02-02
-2
1/8-27
Viton
Male Half - Female Pipe/Valved
FD45-1092-04-04
-4
1/4-18
Viton
Male Half - Female Pipe/Valved
FD45-1092-06-06
-6
3/8-18
Viton
Male Half - Female Pipe/Valved
FD45-1092-08-10
-10
1/2-14
Viton
Male Half - Female Pipe/Valved
FD45-1092-12-12
-12
3/4-14
Viton
Male Half - Female Pipe/Valved
FD45-1092-16-16
-16
1-11 1/2
Viton
Male Half - Female Pipe/Valved
FD45-1092-20-20
-20
1-1/4 - 11-1/2
Viton
Male Half - Female Pipe/Valved
FD45-1153-02-02
-2
1/8-27
EPR
Male Half - Female Pipe/Valved
FD45-1153-04-04
-4
1/4-18
EPR
Male Half - Female Pipe/Valved
FD45-1153-06-06
-6
3/8-18
EPR
Male Half - Female Pipe/Valved
FD45-1153-08-10
-10
1/2-14
EPR
Male Half - Female Pipe/Valved
FD45-1153-12-12
-12
3/4-14
EPR
Male Half - Female Pipe/Valved
FD45-1153-16-16
-16
1-11 1/2
EPR
Male Half - Female Pipe/Valved
FD45-1153-20-20
-20
1-1/4 - 11-1/2
EPR
Male Half - Female Pipe/Valved
FD45-1101-02-02
-2
1/8-27
BUNA-N
Female Half - Female Pipe/Valved
FD45-1101-04-04
-4
1/4-18
BUNA-N
Female Half - Female Pipe/Valved
FD45-1101-06-06
-6
3/8-18
BUNA-N
Female Half - Female Pipe/Valved
FD45-1101-08-10
-10
1/2-14
BUNA-N
Female Half - Female Pipe/Valved
FD45-1101-12-12
-12
3/4-14
BUNA-N
Female Half - Female Pipe/Valved
FD45-1101-16-16
-16
1-11 1/2
BUNA-N
Female Half - Female Pipe/Valved
FD45-1101-20-20
-20
1-1/4 - 11-1/2
BUNA-N
Female Half - Female Pipe/Valved
FD45-1091-02-02
-20
1/8-27
Viton
Female Half - Female Pipe/Valved
FD45-1091-04-04
-4
1/4-18
Viton
Female Half - Female Pipe/Valved
FD45-1091-06-06
-6
3/8-18
Viton
Female Half - Female Pipe/Valved
FD45-1091-08-10
-10
1/2-14
Viton
Female Half - Female Pipe/Valved
FD45-1091-12-12
-12
3/4-14
Viton
Female Half - Female Pipe/Valved
FD45-1091-16-16
-16
1-11 1/2
Viton
Female Half - Female Pipe/Valved
FD45-1091-20-20
-20
1-1/4 - 11-1/2
Viton
Female Half - Female Pipe/Valved
FD45-1156-02-02
-2
1/8-27
EPR
Female Half - Female Pipe/Valved
FD45-1156-04-04
-4
1/4-18
EPR
Female Half - Female Pipe/Valved
FD45-1156-06-06
-6
3/8-18
EPR
Female Half - Female Pipe/Valved
FD45-1156-08-10
-10
1/2-14
EPR
Female Half - Female Pipe/Valved
FD45-1156-12-12
-12
3/4-14
EPR
Female Half - Female Pipe/Valved
FD45-1156-16-16
-16
1-11 1/2
EPR
Female Half - Female Pipe/Valved
FD45-1156-20-20
-20
1-1/4 - 11-1/2
EPR
Female Half - Female Pipe/Valved
FD45-1100-02-02
-2
1/8-27
 　
Female Pipe/Valved
FD45-1100-04-04
-4
1/4-18
 　
Female Pipe/Valved
FD45-1100-06-06
-6
3/8-18
 　
Female Pipe/Valved
FD45-1100-08-10
-10
1/2-14
 　
Female Pipe/Valved
FD45-1100-12-12
-12
3/4-14
 　
Female Pipe/Valved
FD45-1100-16-16
-16
1-11 1/2
 　
Female Pipe/Valved
FD45-1100-20-20
-20
1-1/4 - 11-1/2
 　
Female Pipe/Valved
FD45-1090-02-02
-2
1/8-27
 　
Female Pipe/Valved
FD45-1090-06-06
-6
3/8-18
 　
Female Pipe/Valved
FD45-1090-08-10
-10
1/2-14
 　
Female Pipe/Valved
FD45-1090-12-12
-12
3/4-14
 　
Female Pipe/Valved
FD45-1090-16-16
-16
1-11 1/2
 　
Female Pipe/Valved
FD45-1090-20-20
-20
1-1/4 - 11-1/2
 　
Female Pipe/Valved
FD45-1157-02-02
-2
1/8-27
 　
Female Pipe/Valved
FD45-1157-04-04
-4
1/4-18
 　
Female Pipe/Valved
FD45-1157-06-06
-6
3/8-18
 　
Female Pipe/Valved
FD45-1157-08-10
-10
1/2-14
 　
Female Pipe/Valved
FD45-1157-12-12
-12
3/4-14
 　
Female Pipe/Valved
FD45-1157-16-16
-16
1-11 1/2
 　
Female Pipe/Valved
FD45-1157-20-20
-20
1-1/4 - 11-1/2
 　
Female Pipe/Valved
FD45-1175-02-02
-2
1/8-27
BUNA-N
Male Half - Female Pipe/Non-Valved
FD45-1175-04-04
-4
1/4-18
BUNA-N
Male Half - Female Pipe/Non-Valved
FD45-1175-06-06
-6
3/8-18
BUNA-N
Male Half - Female Pipe/Non-Valved
FD45-1175-08-10
-10
1/2-14
BUNA-N
Male Half - Female Pipe/Non-Valved
FD45-1175-12-12
-12
3/4-14
BUNA-N
Male Half - Female Pipe/Non-Valved
FD45-1175-16-16
-16
1-11 1/2
BUNA-N
Male Half - Female Pipe/Non-Valved
FD45-1175-20-20
-20
1-1/4 - 11-1/2
BUNA-N
Male Half - Female Pipe/Non-Valved
FD45-1175-02-02
-2
1/8-27
Viton
Male Half - Female Pipe/Non-Valved
FD45-1175-04-04
-4
1/4-18
Viton
Male Half - Female Pipe/Non-Valved
FD45-1175-06-06
-6
3/8-18
Viton
Male Half - Female Pipe/Non-Valved
FD45-1175-08-10
-10
1/2-14
Viton
Male Half - Female Pipe/Non-Valved
FD45-1175-12-12
-12
3/4-14
Viton
Male Half - Female Pipe/Non-Valved
FD45-1175-16-16
-16
1-11 1/2
Viton
Male Half - Female Pipe/Non-Valved
FD45-1399-20-20
-20
1-1/4 - 11-1/2
Viton
Male Half - Female Pipe/Non-Valved
FD45-1175-02-02
-2
1/8-27
EPR
Male Half - Female Pipe/Non-Valved
FD45-1175-04-04
-4
1/4-18
EPR
Male Half - Female Pipe/Non-Valved
FD45-1175-06-06
-6
3/8-18
EPR
Male Half - Female Pipe/Non-Valved
FD45-1175-08-10
-10
1/2-14
EPR
Male Half - Female Pipe/Non-Valved
FD45-1175-12-12
-12
3/4-14
EPR
Male Half - Female Pipe/Non-Valved
FD45-1175-16-16
-16
1-11 1/2
EPR
Male Half - Female Pipe/Non-Valved
FD45-1400-20-20
-20
1-1/4 - 11-1/2
EPR
Male Half - Female Pipe/Non-Valved
FD45-1176-02-02
-2
1/8-27
BUNA-N
Female Half - Female Pipe/Non-Valved
FD45-1176-04-04
-4
1/4-18
BUNA-N
Female Half - Female Pipe/Non-Valved
FD45-1176-06-06
-6
3/8-18
BUNA-N
Female Half - Female Pipe/Non-Valved
FD45-1176-08-10
-10
1/2-14
BUNA-N
Female Half - Female Pipe/Non-Valved
FD45-1176-12-12
-12
3/4-14
BUNA-N
Female Half - Female Pipe/Non-Valved
FD45-1176-16-16
-16
1-11 1/2
BUNA-N
Female Half - Female Pipe/Non-Valved
FD45-1176-20-20
-20
1-1/4 - 11-1/2
BUNA-N
Female Half - Female Pipe/Non-Valved
FD45-1180-02-02
-2
1/8-27
Viton
Female Half - Female Pipe/Non-Valved
FD45-1180-04-04
-4
1/4-18
Viton
Female Half - Female Pipe/Non-Valved
FD45-1180-06-06
-6
3/8-18
Viton
Female Half - Female Pipe/Non-Valved
FD45-1180-08-10
-10
1/2-14
Viton
Female Half - Female Pipe/Non-Valved
FD45-1180-12-12
-12
3/4-14
Viton
Female Half - Female Pipe/Non-Valved
FD45-1180-16-16
-16
1-11 1/2
Viton
Female Half - Female Pipe/Non-Valved
FD45-1180-20-20
-20
1-1/4 - 11-1/2
Viton
Female Half - Female Pipe/Non-Valved
FD45-1178-02-02
-2
1/8-27
EPR
Female Half - Female Pipe/Non-Valved
FD45-1178-04-04
-4
1/4-18
EPR
Female Half - Female Pipe/Non-Valved
FD45-1178-06-06
-6
3/8-18
1.06 inches
EPR
FD45-1178-08-10
-10
1/2-14
1.31 inches
EPR
FD45-1178-12-12
-12
3/4-14
1.62 inches
EPR
FD45-1178-16-16
-16
1-11 1/2
1.94 inches
EPR
FD45-1178-20-20
-20
1-1/4 - 11-1/2
2.38 inches
EPR
FD45-1174-02-02
-2
1/8-27
 　
Female Pipe/Non-Non-Valved
FD45-1174-04-04
-4
1/4-18
 　
Female Pipe/Non-Non-Valved
FD45-1174-06-06
-6
3/8-18
 　
Female Pipe/Non-Non-Valved
FD45-1174-08-10
-10
1/2-14
 　
Female Pipe/Non-Non-Valved
FD45-1174-12-12
-12
3/4-14
 　
Female Pipe/Non-Non-Valved
FD45-1174-16-16
-16
1-11 1/2
 　
Female Pipe/Non-Non-Valved
FD45-1174-20-20
-20
1-1/4 - 11-1/2
 　
Female Pipe/Non-Non-Valved
FD45-1179-02-02
-2
1/8-27
 　
Female Pipe/Non-Non-Valved
FD45-1179-04-04
-4
1/4-18
 　
Female Pipe/Non-Non-Valved
FD45-1179-06-06
-6
3/8-18
 　
Female Pipe/Non-Non-Valved
FD45-1179-08-10
-10
1/2-14
 　
Female Pipe/Non-Non-Valved
FD45-1179-12-12
-12
3/4-14
 　
Female Pipe/Non-Non-Valved
FD45-1179-16-16
-16
1-11 1/2
 　
Female Pipe/Non-Non-Valved
FD45-1179-20-20
-20
1-1/4 - 11-1/2
 　
Female Pipe/Non-Non-Valved
FD45-1177-02-02
-2
1/8-27
 　
Female Pipe/Non-Non-Valved
FD45-1177-04-04
-4
1/4-18
 　
Female Pipe/Non-Non-Valved
FD45-1177-06-06
-6
3/8-18
 　
Female Pipe/Non-Non-Valved
FD45-1177-08-10
-10
1/2-14
 　
Female Pipe/Non-Non-Valved
FD45-1177-12-12
-12
3/4-14
 　
Female Pipe/Non-Non-Valved
FD45-1177-16-16
-16
1-11 1/2
 　
Female Pipe/Non-Non-Valved
FD45-1177-20-20
-20
1-1/4 - 11-1/2
 　
Female Pipe/Non-Non-Valved
FD45-1201-04-04
-4
1/4-18
BUNA-N
Male Half - Female Pipe/Pusher Style Valving
FD45-1201-06-06
-6
3/8-18
BUNA-N
Male Half - Female Pipe/Pusher Style Valving
FD45-1201-08-10
-10
1/2-14
BUNA-N
Male Half - Female Pipe/Pusher Style Valving
FD45-1201-12-12
-12
3/4-14
BUNA-N
Male Half - Female Pipe/Pusher Style Valving
FD45-1201-16-16
-16
1-11 1/2
BUNA-N
Male Half - Female Pipe/Pusher Style Valving
FD45-1201-04-04
-4
1/4-18
Viton
Male Half - Female Pipe/Pusher Style Valving
FD45-1201-06-06
-6
3/8-18
Viton
Male Half - Female Pipe/Pusher Style Valving
FD45-1201-08-10
-10
1/2-14
Viton
Male Half - Female Pipe/Pusher Style Valving
FD45-1201-12-12
-12
3/4-14
Viton
Male Half - Female Pipe/Pusher Style Valving
FD45-1201-16-16
-16
1-11 1/2
Viton
Male Half - Female Pipe/Pusher Style Valving
FD45-1201-04-04
-4
1/4-18
EPR
Male Half - Female Pipe/Pusher Style Valving
FD45-1201-06-06
-6
3/8-18
EPR
Male Half - Female Pipe/Pusher Style Valving
FD45-1201-08-10
-10
1/2-14
EPR
Male Half - Female Pipe/Pusher Style Valving
FD45-1201-12-12
-12
3/4-14
EPR
Male Half - Female Pipe/Pusher Style Valving
FD45-1201-16-16
-16
1-11 1/2
EPR
Male Half - Female Pipe/Pusher Style Valving
FD45-1203-04-04
-4
1/4-18
.88 inches
BUNA-N
FD45-1203-06-06
-6
3/8-18
1.06 inches
BUNA-N
FD45-1203-08-10
-10
1/2-14
1.31 inches
BUNA-N
FD45-1203-12-12
-12
3/4-14
1.62 inches
BUNA-N
FD45-1203-16-16
-16
1-11 1/2
1.94 inches
BUNA-N
FD45-1199-04-04
-4
1/4-18
.88 inches
Viton
FD45-1199-06-06
-6
3/8-18
1.06 inches
Viton
FD45-1199-08-10
-10
1/2-14
1.31 inches
Viton
FD45-1199-12-12
-12
3/4-14
1.62 inches
Viton
FD45-1199-16-16
-16
1-11 1/2
1.94 inches
Viton
FD45-1211-04-04
-4
1/4-18
.88 inches
EPR
FD45-1211-06-06
-6
3/8-18
1.06 inches
EPR
FD45-1211-08-10
-10
1/2-14
1.31 inches
EPR
FD45-1211-12-12
-12
3/4-14
1.62 inches
EPR
FD45-1211-16-16
-16
1-11 1/2
1.94 inches
EPR
FF016-02
-2
N/AN/AN/AN/ABUNA-N
 　
　
FF016-04
-4
N/AN/AN/AN/ABUNA-N
 　
　
FF016-06
-6
N/AN/AN/AN/ABUNA-N
 　
　
FF016-10
-10
N/AN/AN/AN/ABUNA-N
 　
　
FF016-12
-12
N/AN/AN/AN/ABUNA-N
 　
　
FF016-16
-16
N/AN/AN/AN/ABUNA-N
 　
　
FF016-20
-20
N/AN/AN/AN/ABUNA-N
 　
　
FF017-02
-2
N/AN/AN/AN/AViton
 　
　
FF017-04
-4
N/AN/AN/AN/AViton
 　
　
FF017-06
-6
N/AN/AN/AN/AViton
 　
　
FF017-10
-10
N/AN/AN/AN/AViton
 　
　
FF017-12
-12
N/AN/AN/AN/AViton
 　
　
FF017-16
-16
N/AN/AN/AN/AViton
 　
　
FF017-20
-20
N/AN/AN/AN/AViton
 　
　
FF018-02
-2
N/AN/AN/AN/AEPR
 　
　
FF018-04
-4
N/AN/AN/AN/AEPR
 　
　
FF018-06
-6
N/AN/AN/AN/AEPR
 　
　
FF018-10
-10
N/AN/AN/AN/AEPR
 　
　
FF018-12
-12
N/AN/AN/AN/AEPR
 　
　
FF018-16
-16
N/AN/AN/AN/AEPR
 　
　
FF018-20
-20
N/AN/AN/AN/AEPR
 　
　
FD45-1040-02
-2
N/AN/AN/AN/AN/ADUST CAP
 　
　
FD45-1040-04
-4
N/AN/AN/AN/AN/ADUST CAP
 　
　
FD45-1040-06
-6
N/AN/AN/AN/AN/ADUST CAP
 　
　
FD45-1040-10
-10
N/AN/AN/AN/AN/ADUST CAP
 　
　
FD45-1040-12
-12
N/AN/AN/AN/AN/ADUST CAP
 　
　
FD45-1040-16
-16
N/AN/AN/AN/AN/ADUST CAP
 　
　
FD45-1041-02
-2
N/AN/AN/AN/AN/ADUST PLUG
 　
　
FD45-1041-04
-4
N/AN/AN/AN/AN/ADUST PLUG
 　
　
FD45-1041-06
-6
N/AN/AN/AN/AN/ADUST PLUG
 　
　
FD45-1041-10
-10
N/AN/AN/AN/AN/ADUST PLUG
 　
　
FD45-1041-12
-12
N/AN/AN/AN/AN/ADUST PLUG
 　
　
FD45-1041-16
-16
N/AN/AN/AN/AN/ADUST PLUG
 　
　


- Aeroquip FD45 Series Quick Disconnect Couplings | Aeroquip Quick Disconnect Couplings - FD45 (Steel): ISO 7241/1 Series B Interchange | FD45 (Brass): ISO 7241/1 Series B Interchange | FD45 (Stainless Steel): ISO 7241/1 Series B Interchange





信德迈科技（北京）有限公司 CNMEC Technology
美国DMK Engineering Solutions公司

地址：北京市朝阳区望京街10号望京SOHO塔1C座2115室
邮编：100102
电话：010-8428 2935, 8428 9077, 8428 3983
手机：139 1096 2635
Http：//www.cnmec.biz
E-mail：sales@cnmec.biz
传真：010-8428 8762

京ICP备08000876号-1号
京公网安备 11010502019740
Since 2007 Strong Distribution & Powerful Partnerships
